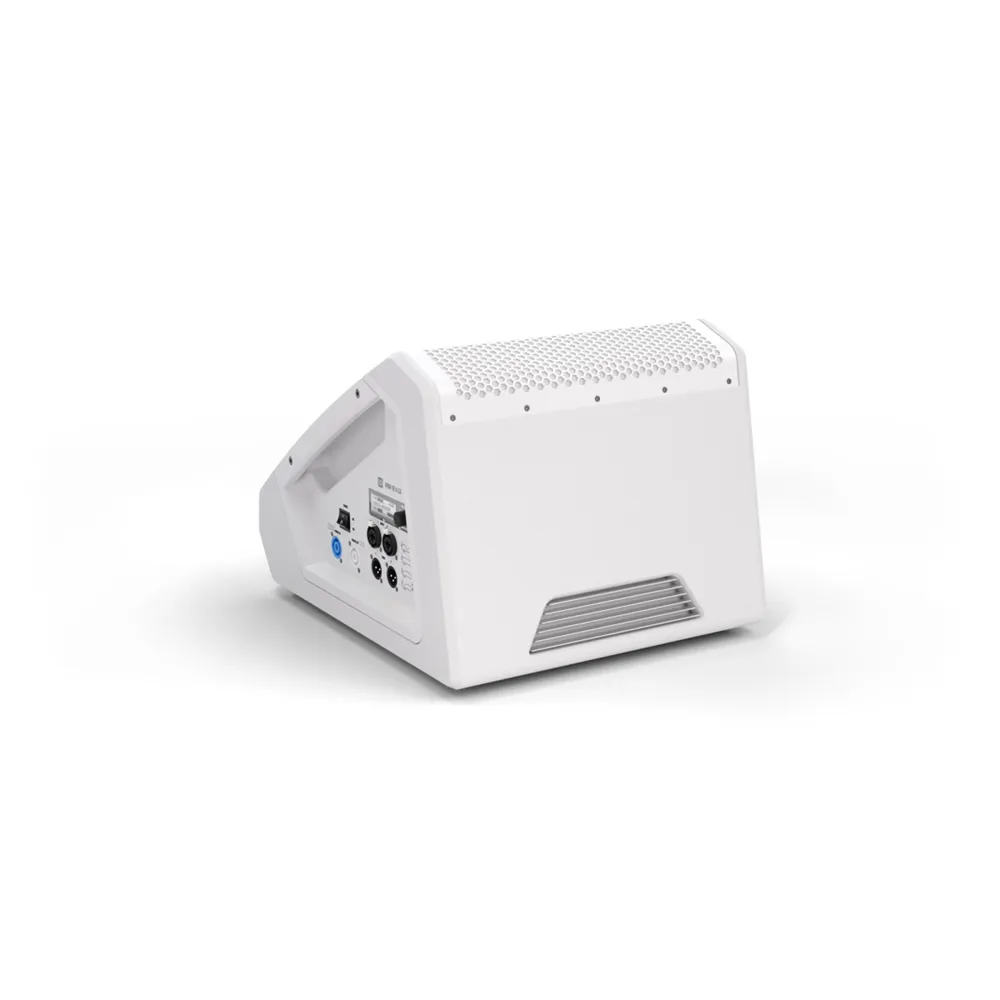

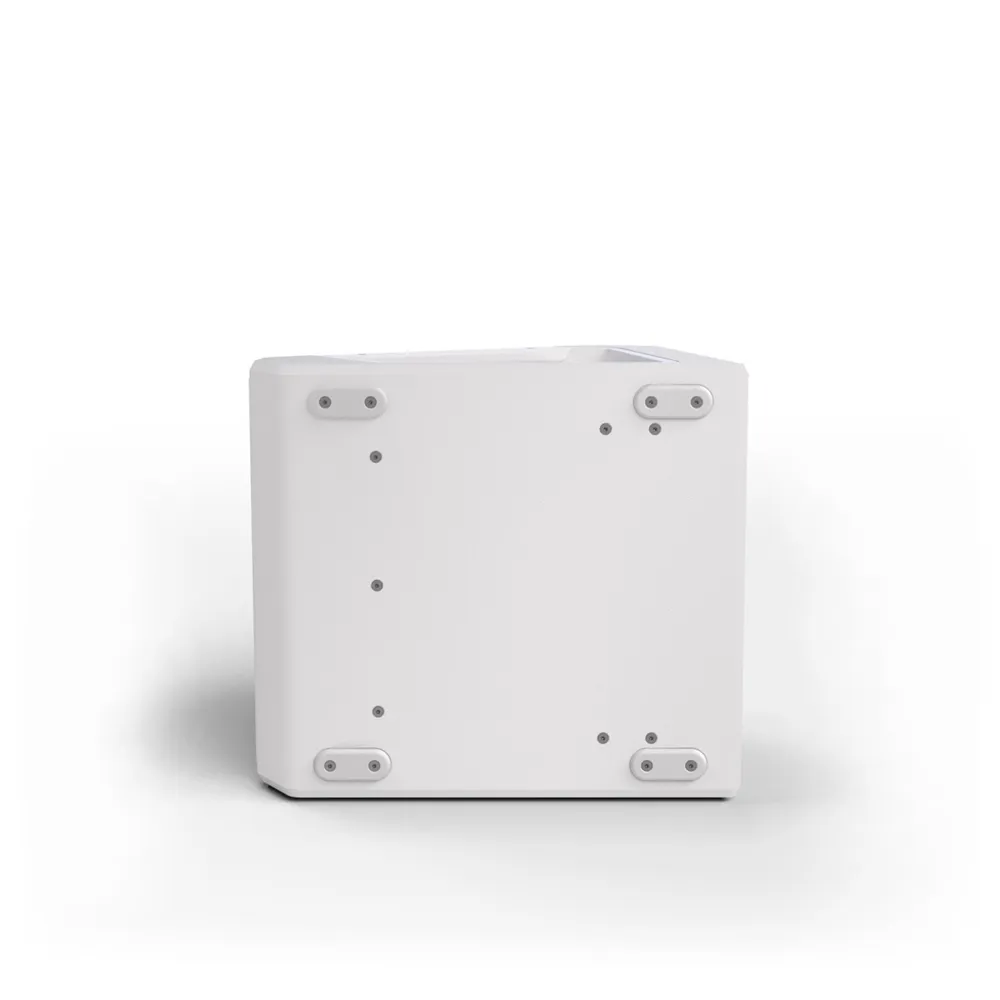

LD Systems MON 10 A G3 W - 10" aktiver koaxialer Bühnenmonitor, weiß

LD Systems MON 10 A G3 W - 10" Active Coaxial Stage Monitor, White

Brand:

LD Systems MON 10 A G3 - 10" Active Coaxial Stage Monitor

LD Systems MON 10 G3 PC - Gepolsterte Schutzhülle für MON 10 A G3

Features

Compact and powerful stage monitor with high-quality technology
Class-D amplifier with 300 W RMS / 1200 W Peak and 126 dB max. SPL

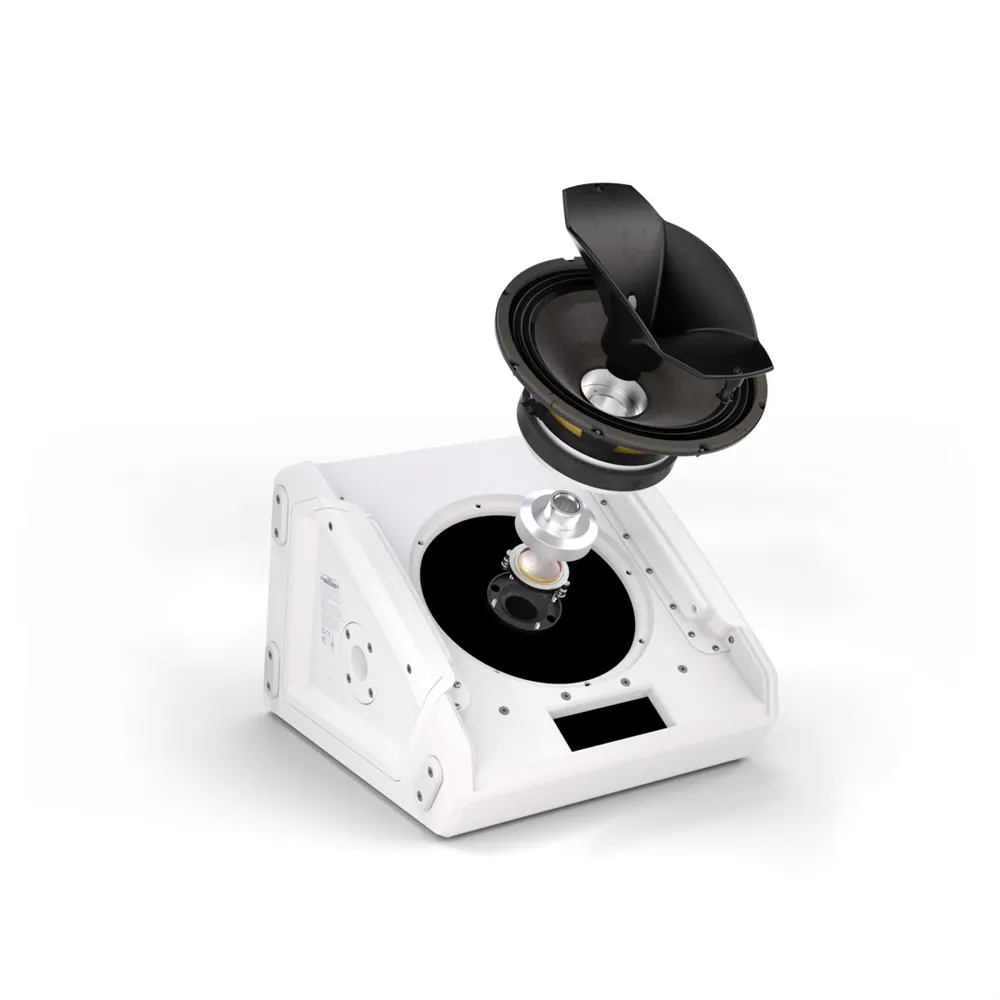

Coaxial design for a true point sound source with a 1.75" titanium diaphragm HF driver

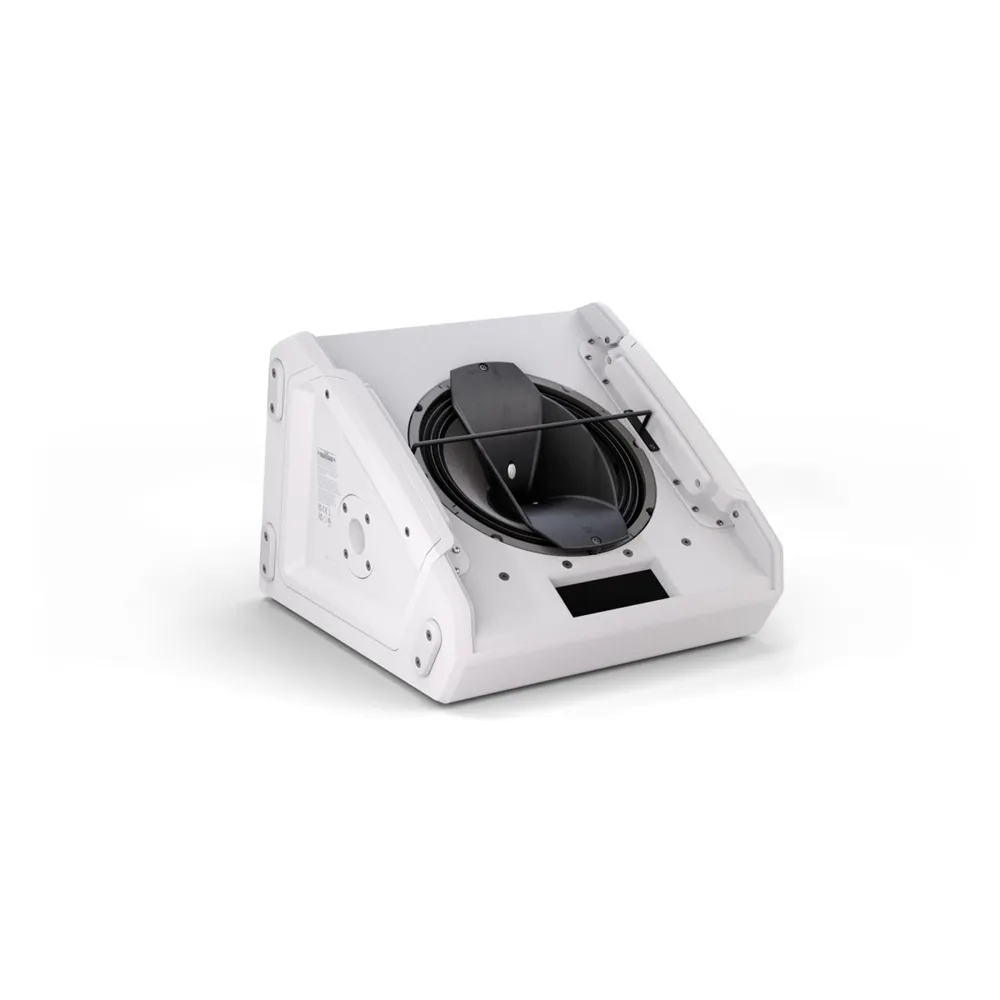

10" woofer with a 2.5" voice coil
Optimized practical radiation pattern through 50° x 90° CD horn
DynX® DSP (Gen.2) for distortion-free playback even at maximum volume

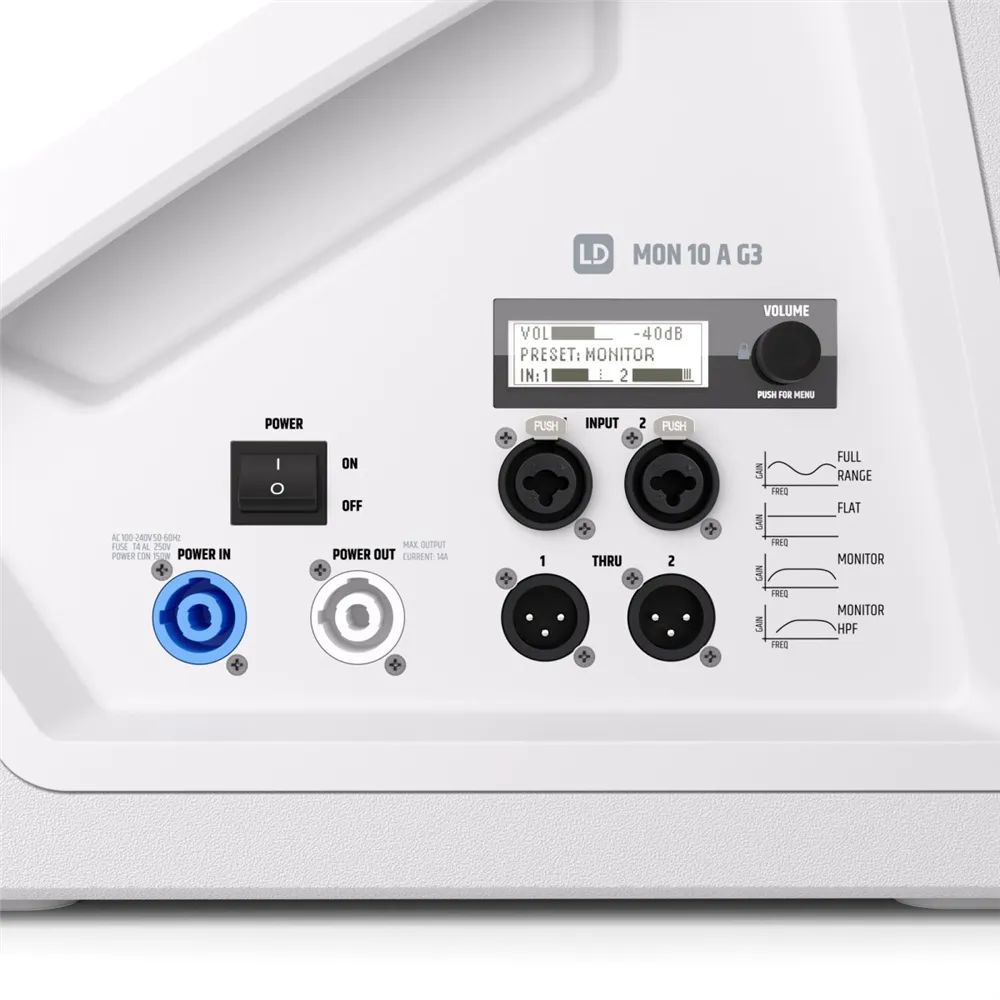

3-band EQ, notch filter, 4 application presets, and delay function
PowerCON-compatible, loop-through professional power connection

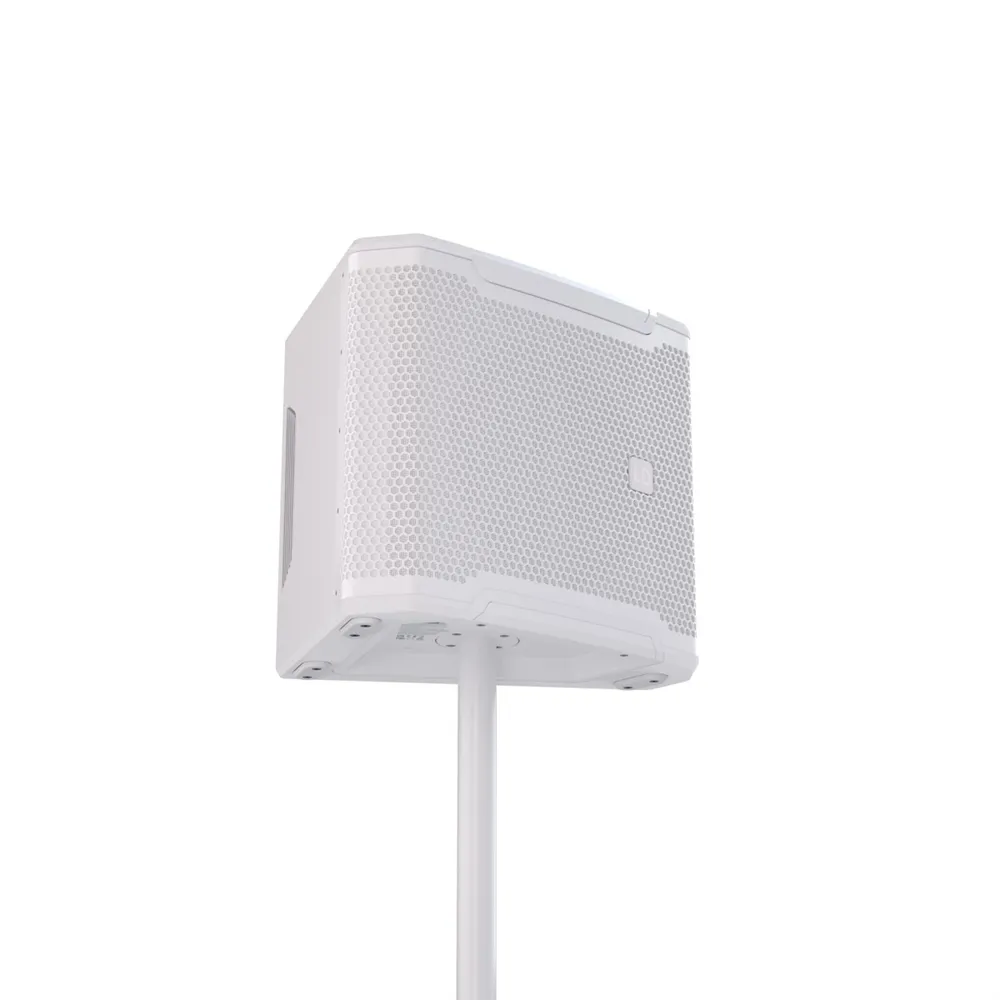

35 mm pole mount for FOH applications

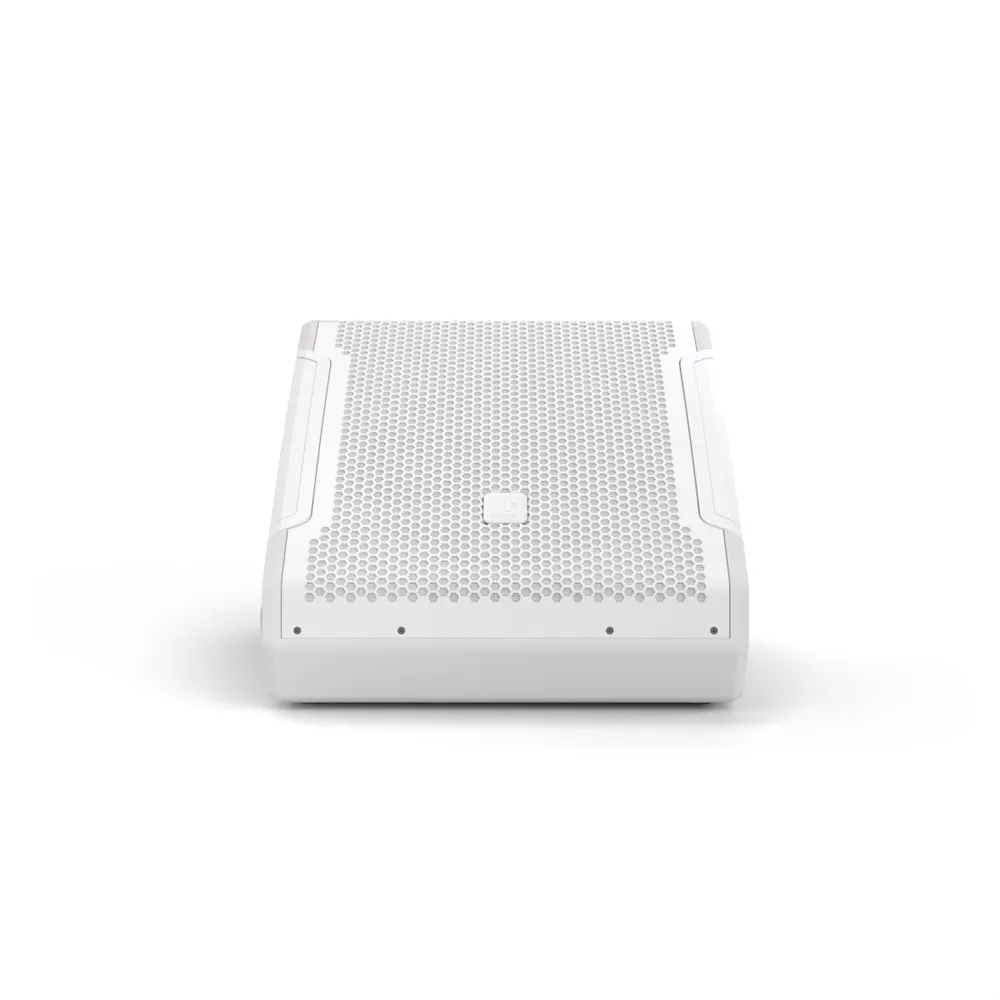

Durable polyurea coating and robust front grille
Max. SPL Average (Sine burst): 118 dB (100 Hz - 12 kHz, full space @1m, 10% THD)
Max. SPL Peak (Sine burst): 126 dB (full space @1m, 10% THD)
Frequency range (-3 dB): 72 - 18000 Hz
Frequency range (-10 dB): 58 - 20000 Hz
Crossover frequency: 1700 Hz
Monitor angle: 33°
Dispersion angle (H x V): 50° x 90°
Weight: 15.21 kg
Enclosure type: Bass reflex
Enclosure material: 15 mm birch plywood and 15 mm MDF
Amplifier: Class D
Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent
Operating temperature: 0 - 40 °C
Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Power consumption: 150 W

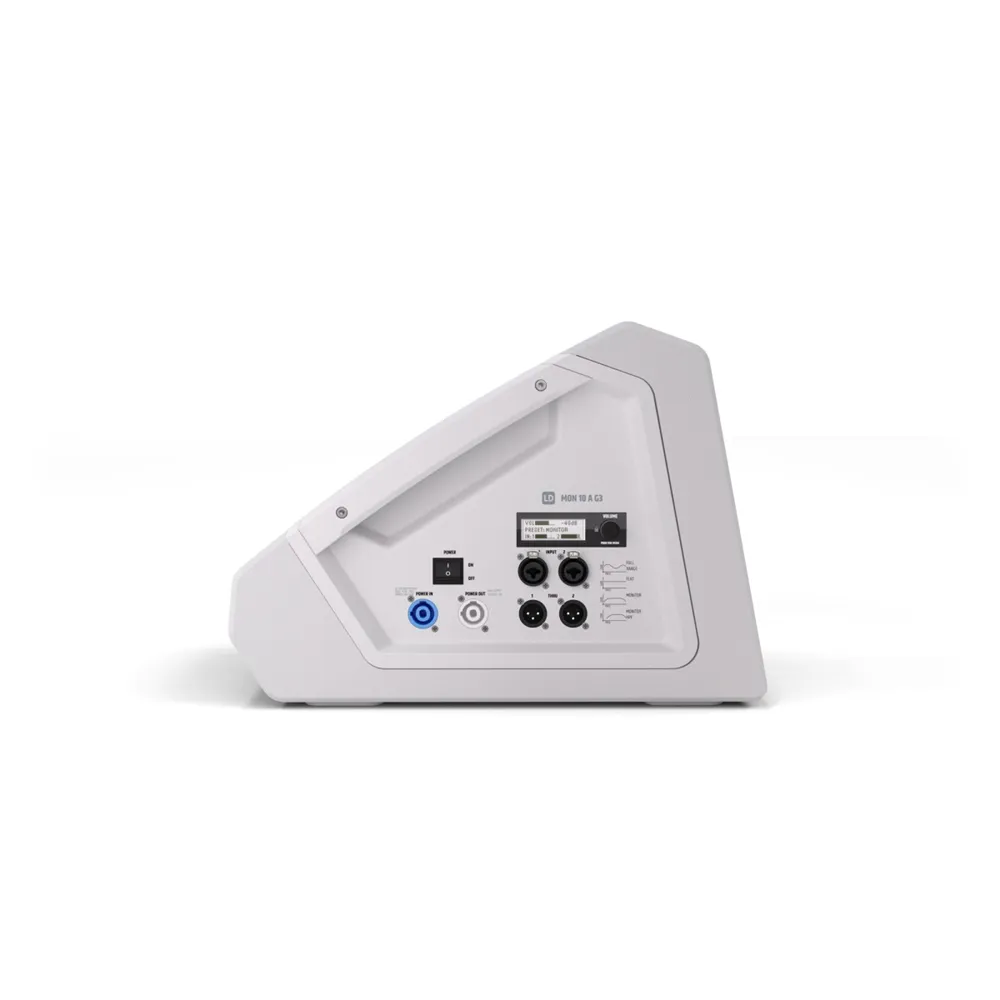

Line inputs: 2 (6.3 mm jack and XLR - combo)
Line output: 2 (XLR)

LD Systems MON 10 A G3 W - 10" Active Coaxial Stage Monitor, White

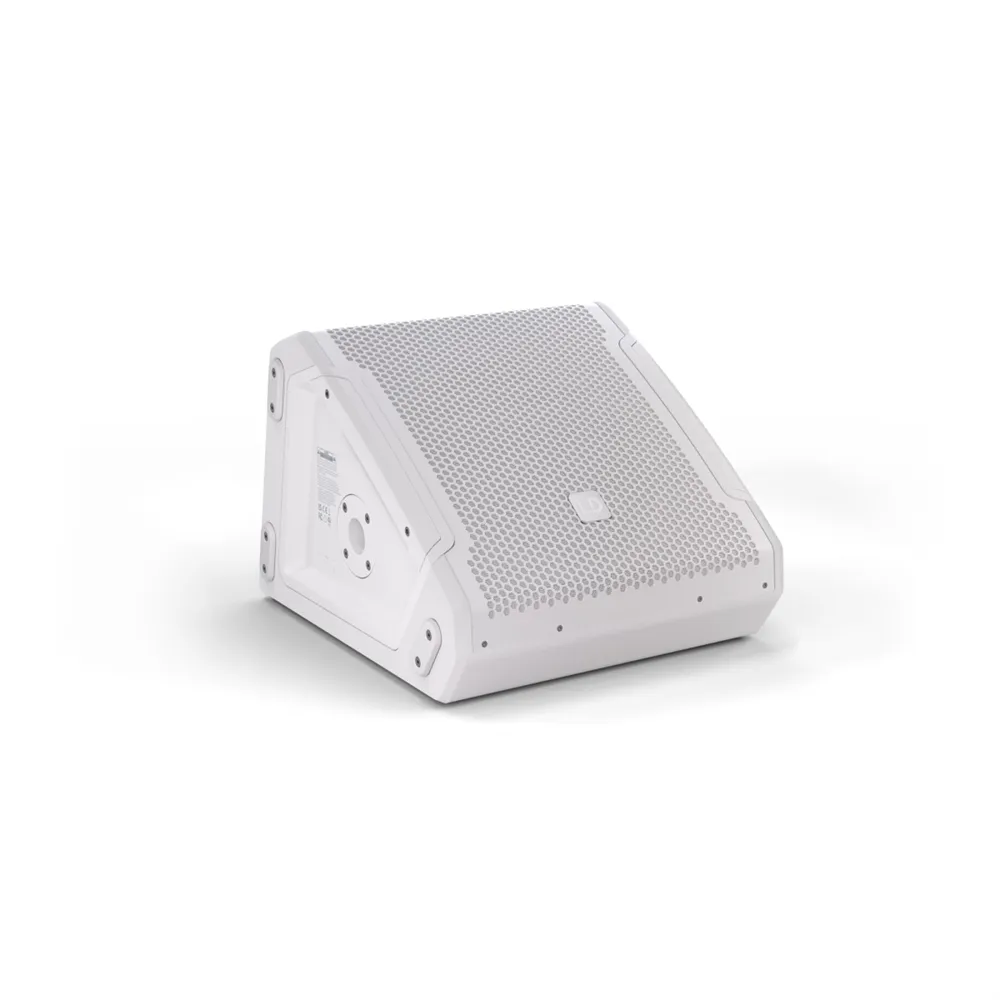

The LD Systems MON 10 A G3 W is the perfect stage monitor for professional applications, impressing with its compact design and outstanding performance. Featuring a Class-D amplifier that delivers 300 W RMS and up to 1200 W Peak, this monitor achieves a maximum sound pressure level of 126 dB. The coaxial design, with a 10" woofer and a 1.75" titanium diaphragm HF driver, ensures a true point sound source and exceptional audio quality, even at short listening distances.

Thanks to the optimized radiation pattern of 50° x 90° and the integrated 50° x 90° CD horn, the MON 10 A G3 W is versatile for use as a stage monitor or as a FOH system. The DynX® DSP technology guarantees distortion-free playback, even at maximum volume. With a 3-band EQ, notch filter, and four application presets, this monitor offers extensive customization options for any situation.

The durable polyurea coating and robust front grille make the MON 10 A G3 W a long-lasting companion on any stage. Weighing only 15.21 kg and featuring a 35 mm stand mount, it is also easy to transport and position. Experience top-notch sound and professional quality with the LD Systems MON 10 A G3 W!
