LD Systems MON 10 A G3 - 10" aktiver koaxialer Bühnenmonitor

LD Systems MON 10 A G3 - 10" Active Coaxial Stage Monitor

Brand:

LD Systems MON 101 A G2 - 10" Bühnenmonitor aktiv

LD Systems MON 10 A G3 W - 10" Active Coaxial Stage Monitor, White

Features

Compact and powerful stage monitor with high-quality technology
Class-D amplifier with 300 W RMS / 1200 W Peak and 126 dB max. SPL

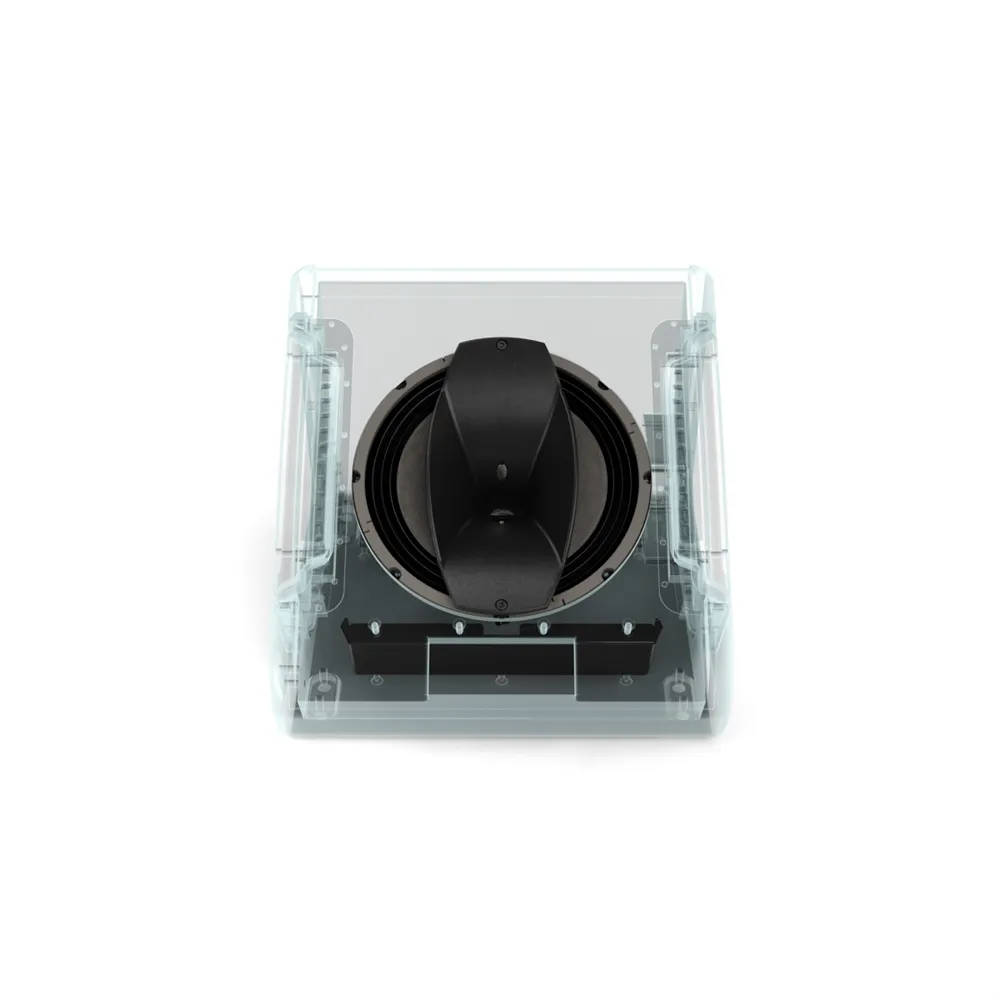

Coaxial design for a true point sound source with a 1.75" titanium diaphragm HF driver
10" woofer with a 2.5" voice coil
Optimized practical radiation pattern through 50° x 90° CD horn
DynX® DSP (Gen.2) for distortion-free playback even at maximum volume
3-band EQ, notch filter, 4 application presets, and delay function

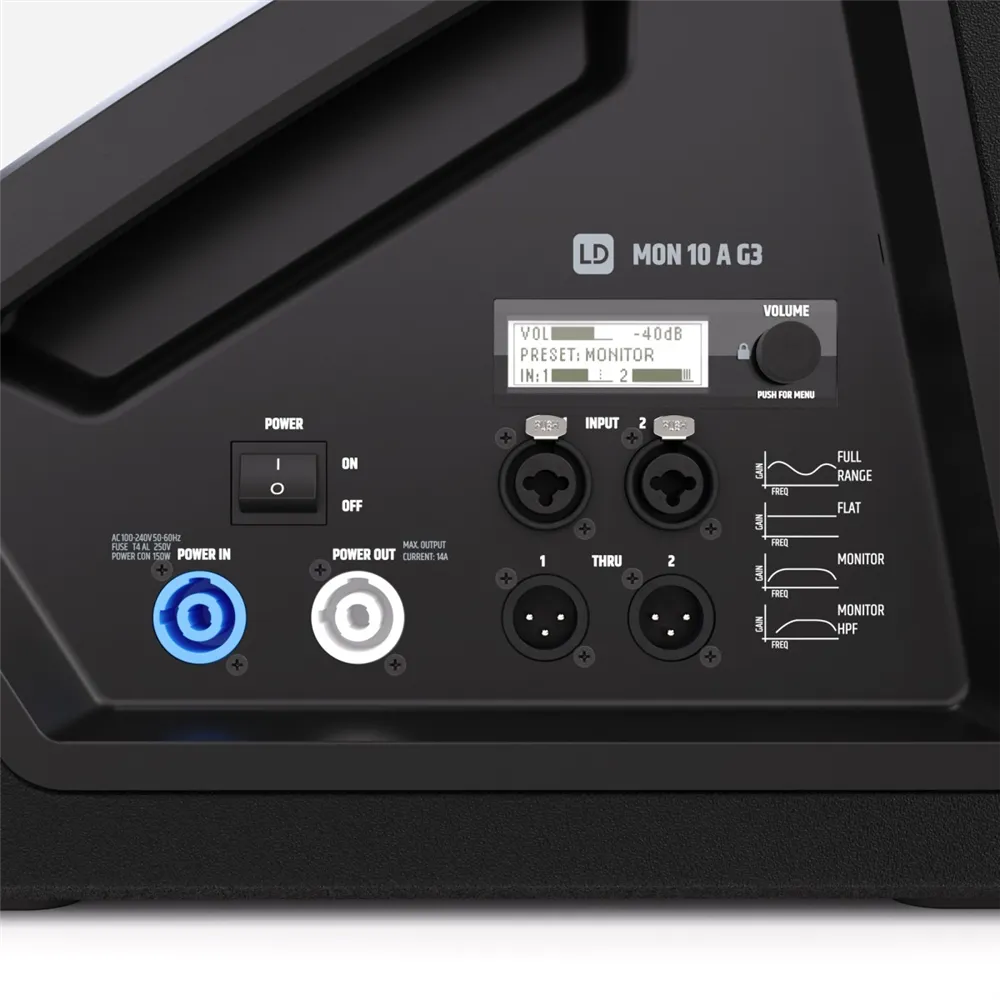

PowerCON-compatible, loop-through professional power connection
35 mm pole mount for FOH applications
Durable polyurea coating and robust front grille
Max. SPL Average (Sine burst): 118 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst): 126 dB (fullspace @1m, 10% THD)
Frequency range (-3 dB): 72 - 18000 Hz
Frequency range (-10 dB): 58 - 20000 Hz
Crossover frequency: 1700 Hz
Monitor angle: 33°
Dispersion angle (H x V): 50° x 90°
Weight: 15.21 kg
Enclosure type: Bass reflex
Enclosure material: 15 mm birch plywood and 15 mm MDF
Amplifier: Class D
Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent
Operating temperature: 0 - 40 °C
Controls: Rotary-push encoder, power switch
Display: LC display
Power supply: SMPS
Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Power consumption: 150 W
Line inputs: 2 (6.3 mm jack, XLR - combo)
Line loop-through connection: XLR

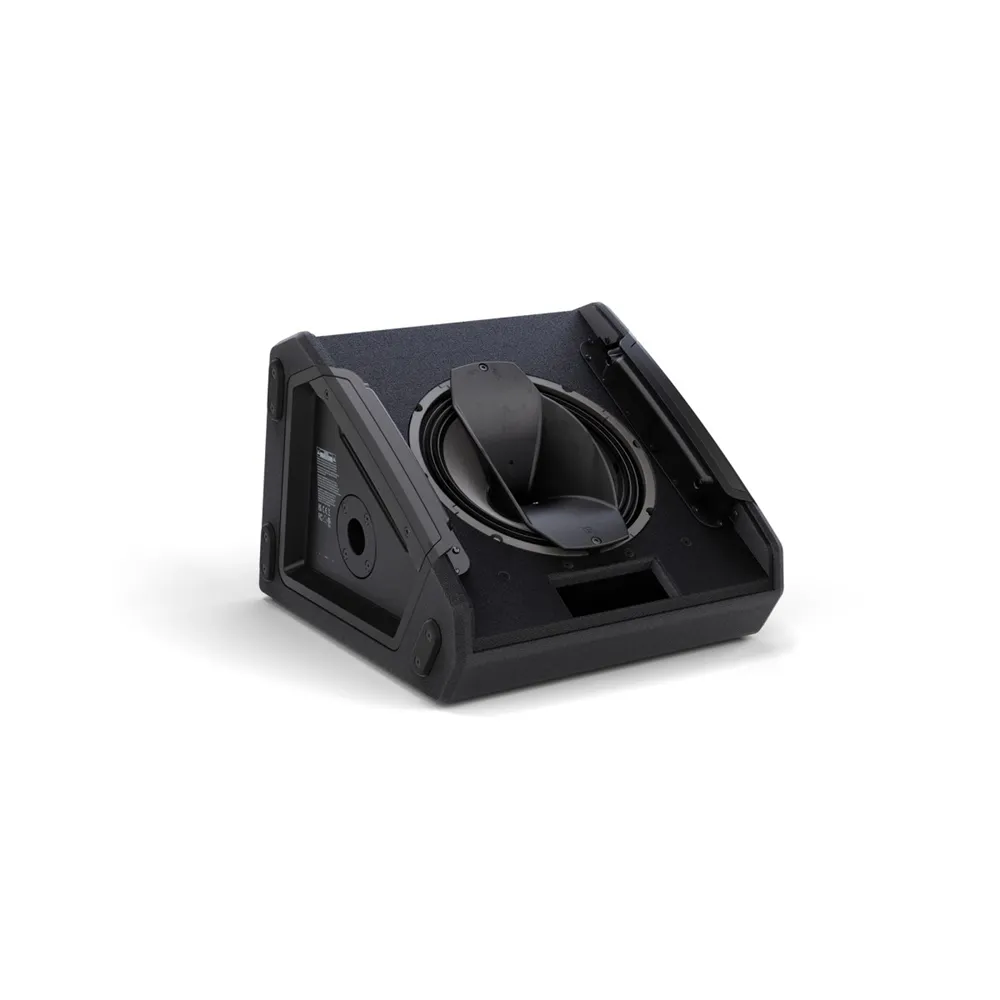

LD Systems MON 10 A G3 - 10" Active Coaxial Stage Monitor

The LD Systems MON 10 A G3 is a compact and powerful stage monitor equipped with high-quality technology. With a Class-D amplifier delivering 300 W RMS and 1200 W Peak, this monitor achieves an impressive maximum sound pressure level of 126 dB. The coaxial design featuring a 1.75" titanium diaphragm HF driver and a 10" woofer provides a true point sound source, offering outstanding audio characteristics.

The optimized radiation pattern of 50° x 90° through the integrated CD horn ensures precise sound distribution, while the DynX® DSP (Gen.2) guarantees distortion-free playback even at maximum volume. With a 3-band EQ, notch filter, and four application presets, the MON 10 A G3 is versatile and suitable for both monitor and FOH applications.

Thanks to its durable polyurea coating and robust front grille, the MON 10 A G3 is ideal for professional use. The pass-through signal and power connections allow for easy cabling, while the 35 mm pole mount provides additional flexibility. Experience top-notch sound and reliable performance with the LD Systems MON 10 A G3!
