LD Systems ICOA 15 A - 15" Aktiver koaxialer PA-Lautsprecher

LD Systems ICOA 15 A - 15" Active Coaxial PA Speaker

Brand:

LD Systems ICOA 15 - 15" Passive Coaxial PA Speaker

LD Systems ICOA 15 A BT - 15" Active Coaxial PA Speaker with Bluetooth

Features

True all-rounder for full-range, satellite, and monitor applications
128 dB max SPL and 1200 W PEAK power

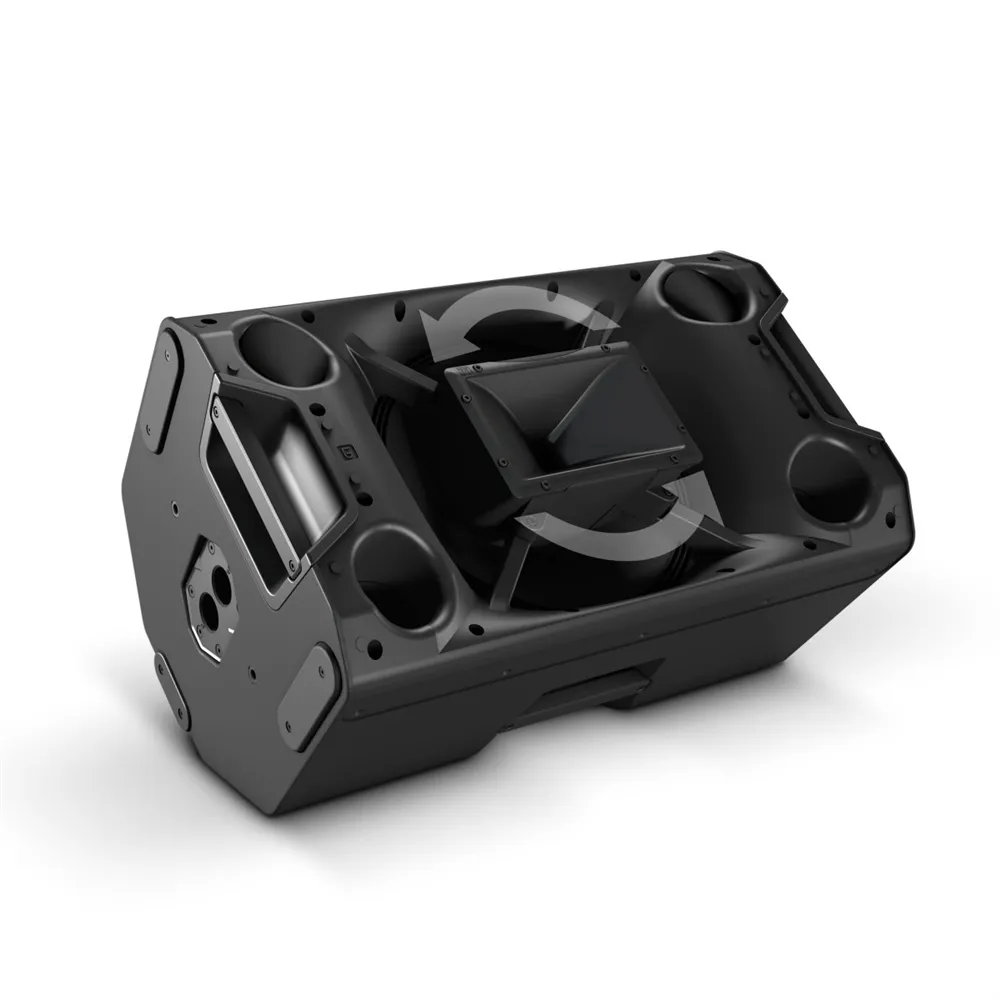

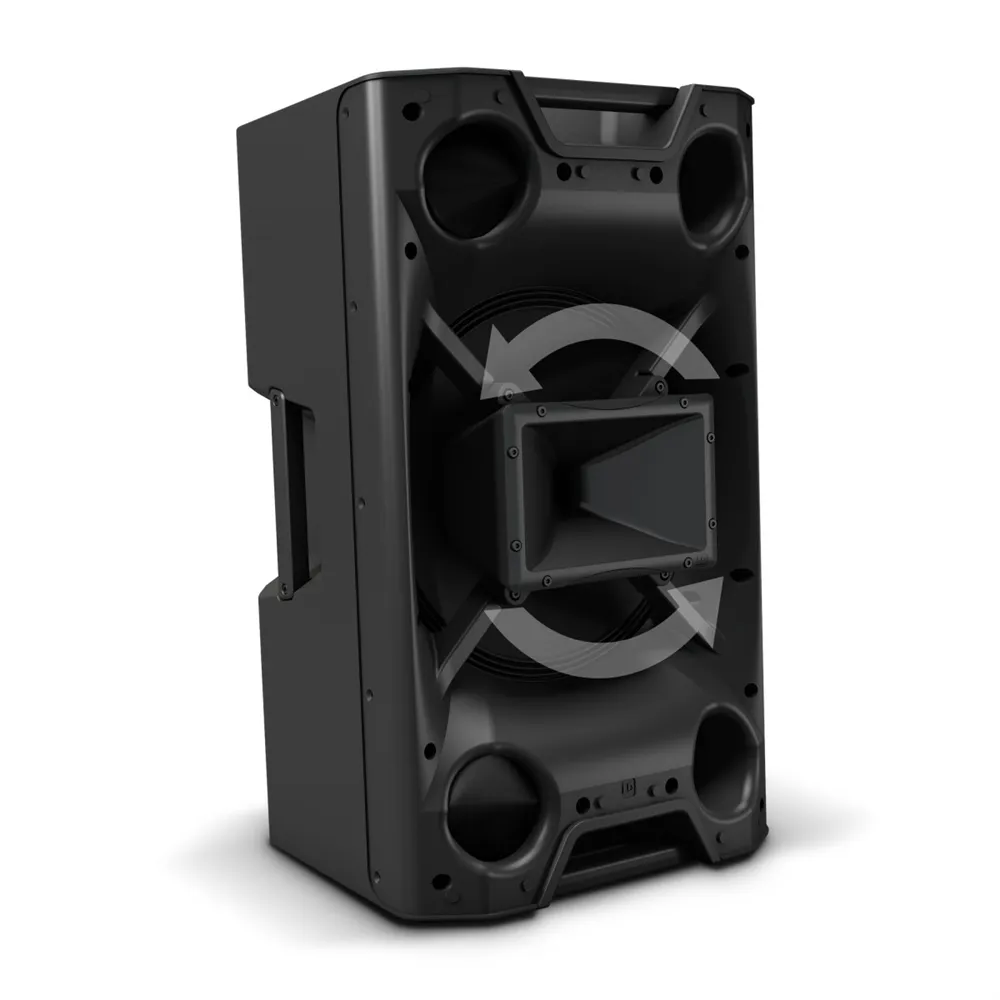

Vertical and horizontal application through coaxial design with rotatable, BEM-optimized CD horn (patent pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ, and delay function
2 line/mic input channels with individual gain controls plus mono mix output
Bluetooth® streaming available in the BT model

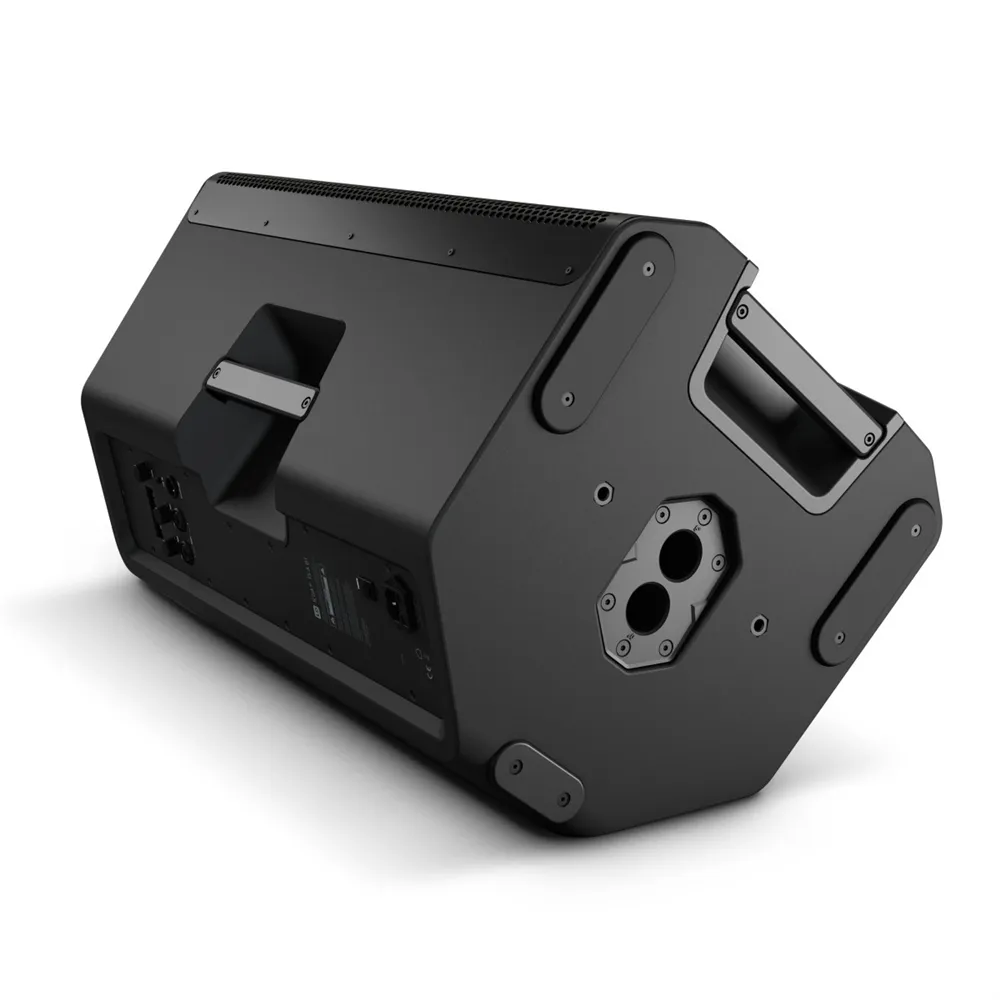

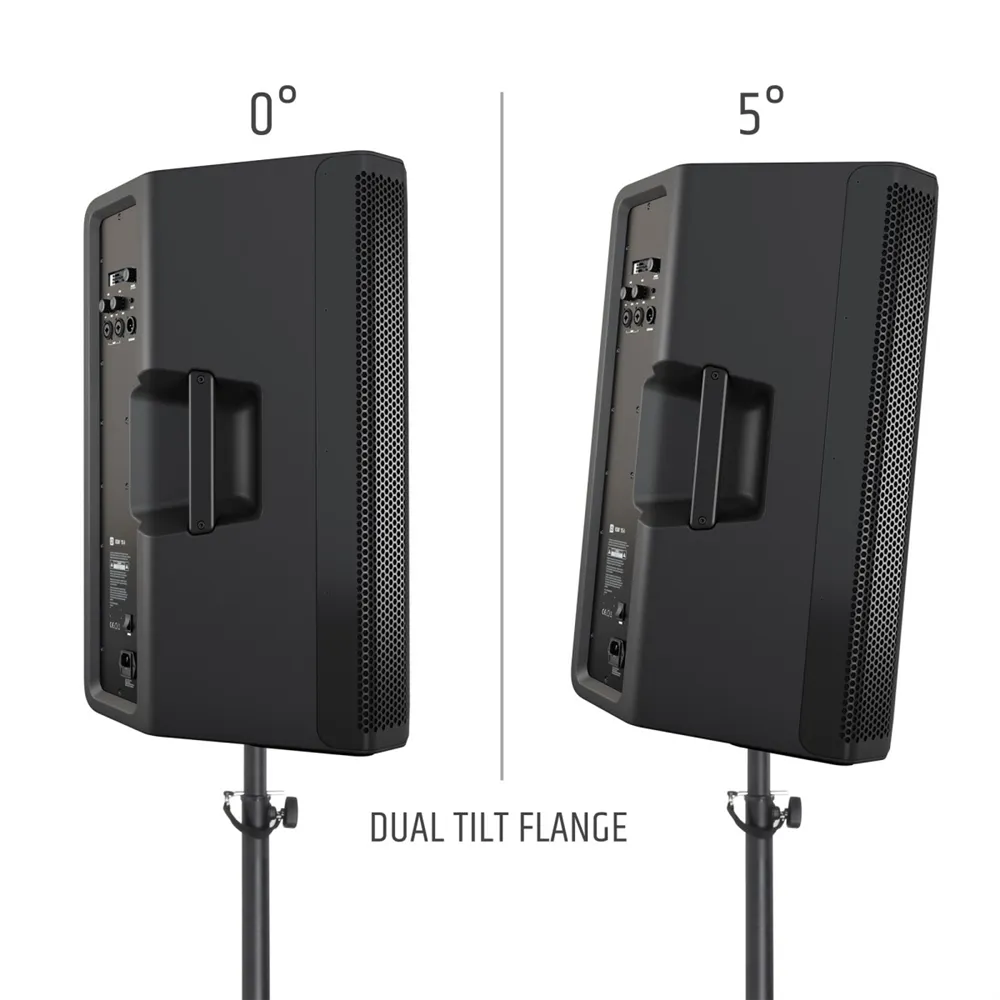

36 mm dual-tilt tripod mount with 0° and 5° tilt angles, 55° monitor angle with stable stand
6 x M10 flying points

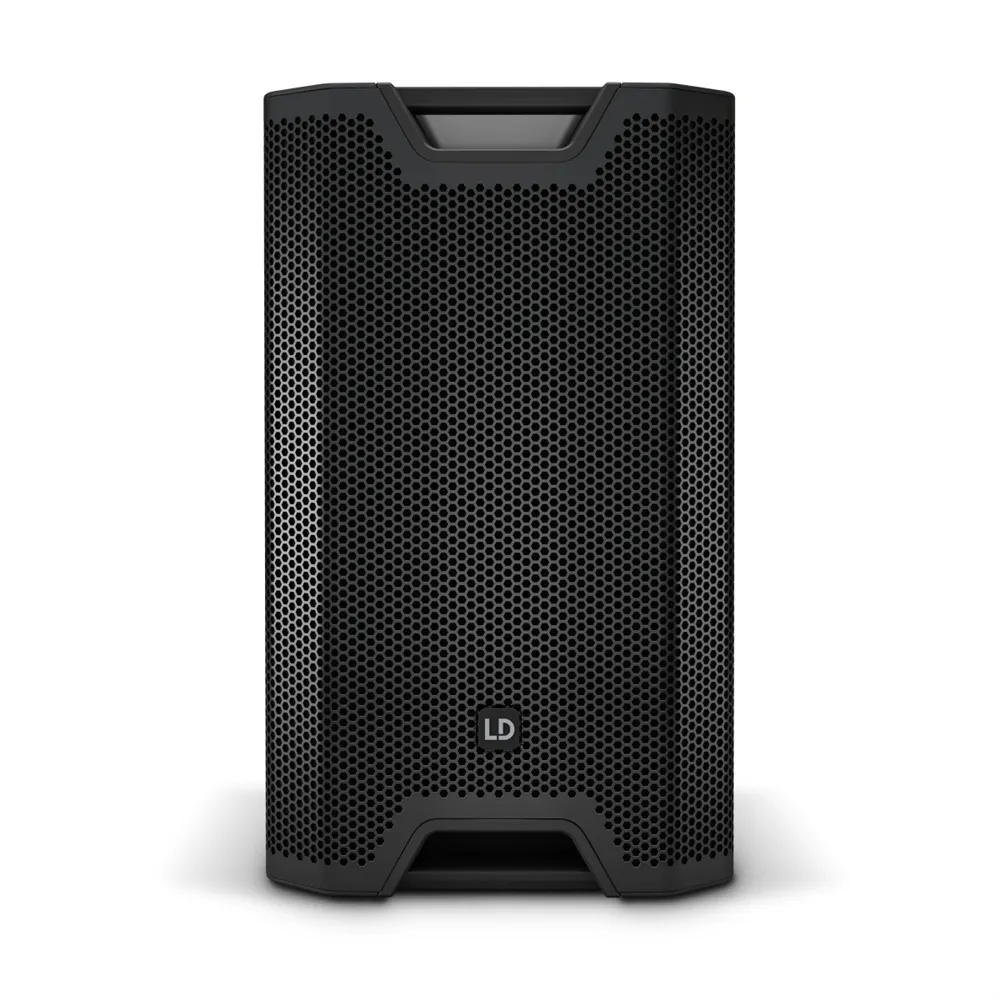

Impact-resistant front grille for optimal speaker protection
4 aluminum handles with ergonomic, rubberized surface
Extensive optional accessories for installation and transport
Product type: PA speaker
Type: Active
Woofer size: 15" (381 mm)
Woofer magnet: Ferrite
Horn: BEM optimized CD horn
HF driver size: 1" (25.4 mm)
HF driver magnet: Ferrite
Amplifier: Class D
Dispersion angle (H x V): 90° x 50°
Power (RMS): 300 W
Frequency response: 48 - 20,000 Hz
Crossover frequency: 2 kHz
Max SPL (Peak): 128 dB
Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent

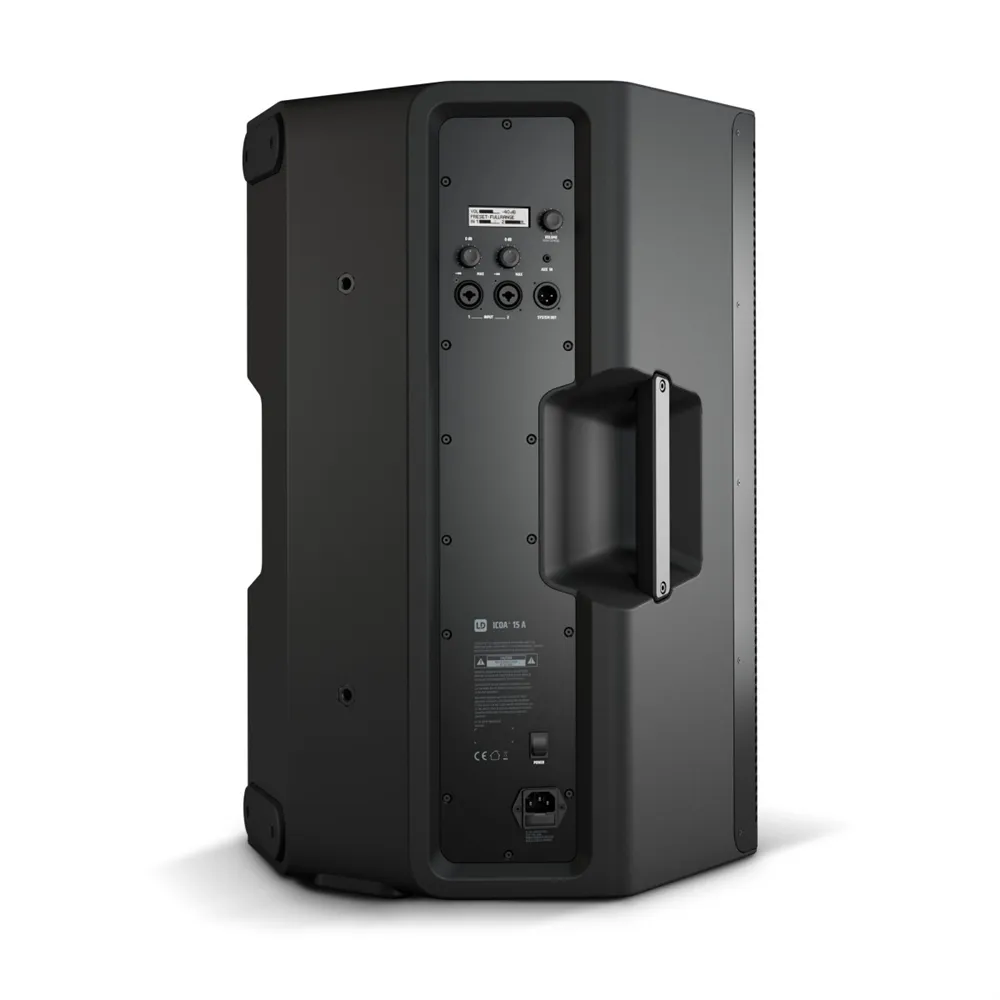

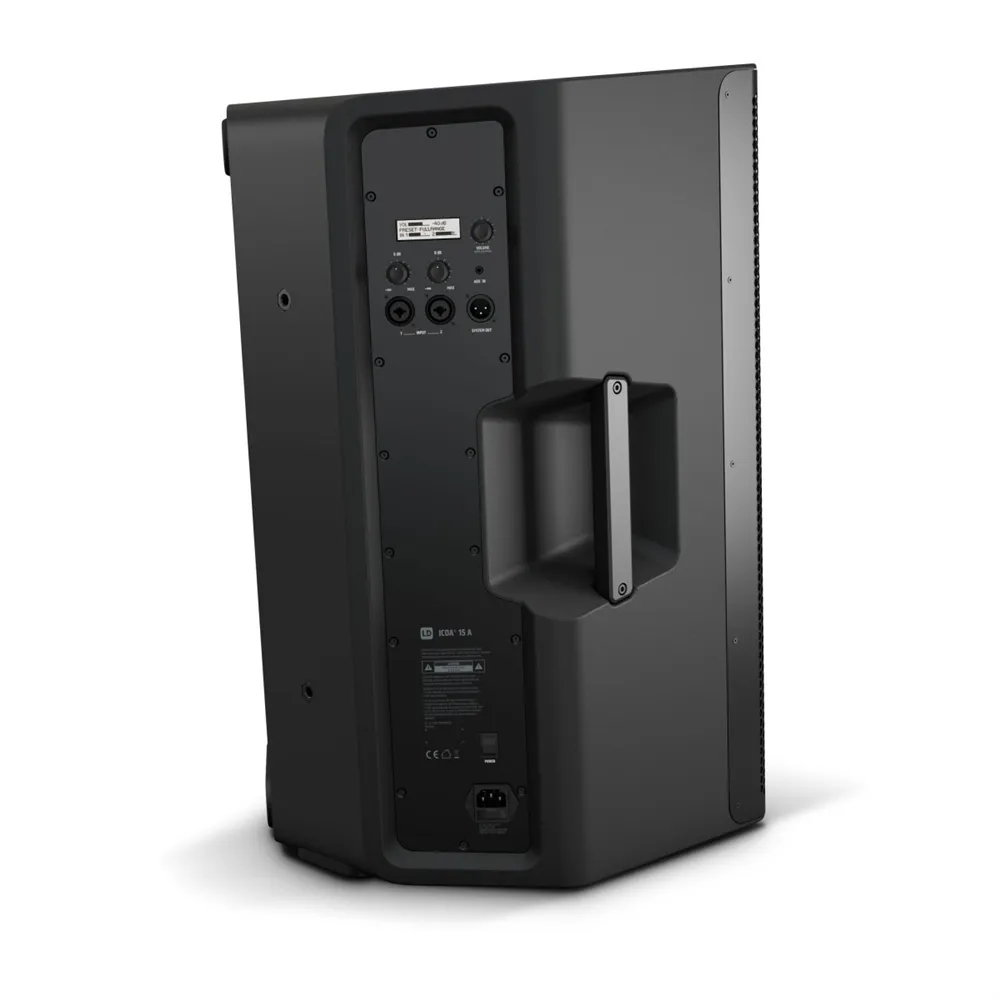

Controls: 2 x Gain, rotary-push encoder, power switch
Display elements: LC display
Mic/line inputs: 2 (6.3 mm combo jacks and XLR)
Line inputs: 1 (3.5 mm stereo jack)
Line outputs: 1 (XLR)
Power supply: SMPS
Power consumption: 150 W
Operating temperature (in use): 0 - 40 °C
Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
Fuse: T4AL 250 V
Enclosure material: Polypropylene
Enclosure design: Bass reflex
Mounting: 36 mm flange (0°, 5°) and 6 x M10 flying points

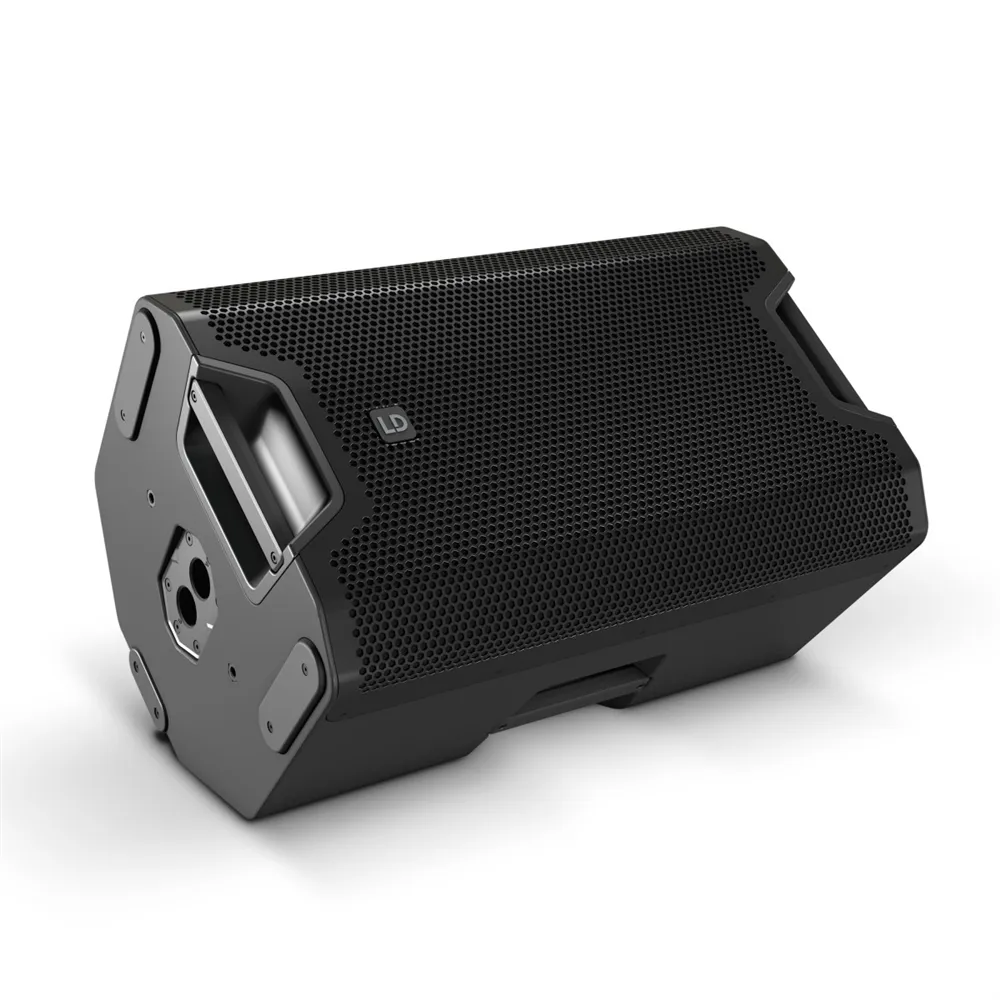

Monitor angle: 55 °
Dimensions (W x H x D): 416 mm x 695 mm x 415 mm
Weight: 24.3 kg
Accessories (included): Power cable

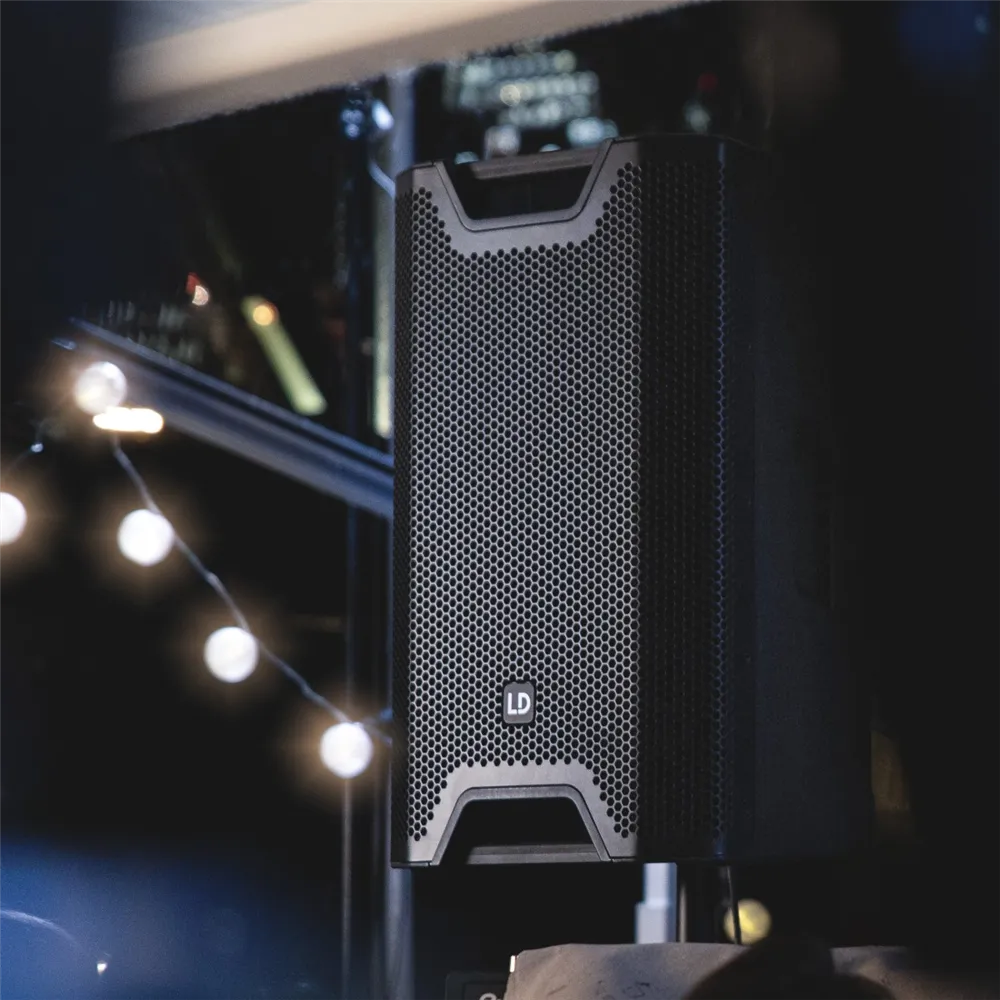

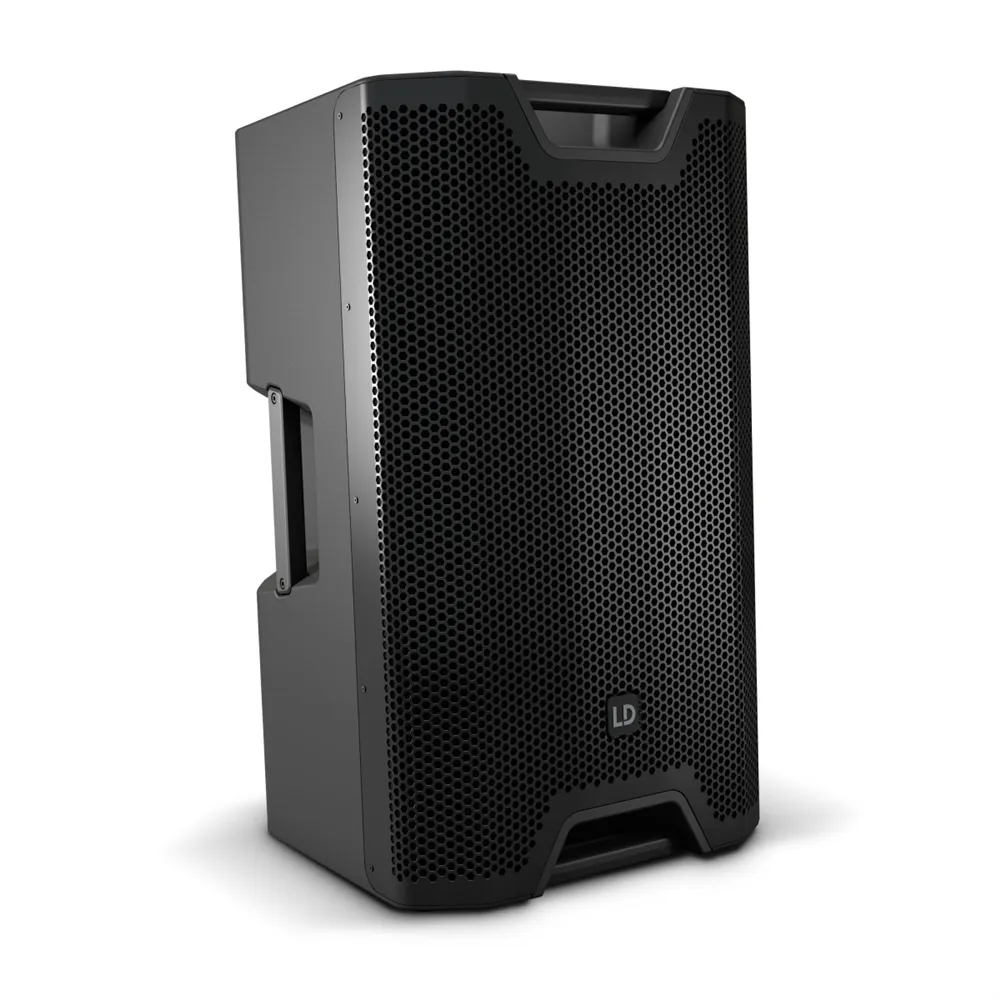

LD Systems ICOA 15 A - 15" Active Coaxial PA Speaker

The LD Systems ICOA 15 A is a powerful 15" active coaxial PA speaker that serves as a true all-rounder for full-range, satellite, and monitor applications. With an impressive maximum sound pressure level of 128 dB and a peak power of 1200 W, this speaker delivers outstanding sound quality that will impress both musicians and DJs.

Thanks to its innovative coaxial design featuring a rotatable, BEM-optimized CD horn, the ICOA 15 A can be used flexibly in both vertical and horizontal orientations. The horn-loaded woofer technology ensures excellent bass reproduction, while the DynX DSP technology with 4 presets, a 3-band EQ, and a delay function allows for optimal sound tuning.

With two line/mic input channels, individual gain controls, and a mono mix output, various signal sources can be easily connected. The impact-resistant front grille provides optimal protection for the speaker, while the ergonomic aluminum handles facilitate transport. The ICOA 15 A is the ideal choice for live events, parties, and professional applications that demand the highest standards of sound quality and flexibility.
