LD Systems ICOA 15 - 15" Passiver koaxialer PA-Lautsprecher

LD Systems ICOA 15 - 15" Passive Coaxial PA Speaker

Brand:

LD Systems ICOA 12 W - 12" Passive Coaxial PA Speaker, White

LD Systems ICOA 15 A - 15" Active Coaxial PA Speaker

Features

True all-rounder for full-range, satellite, and monitor applications as well as fixed installations
Passive speaker with a maximum SPL of 125 dB and a peak power handling of 1000 W

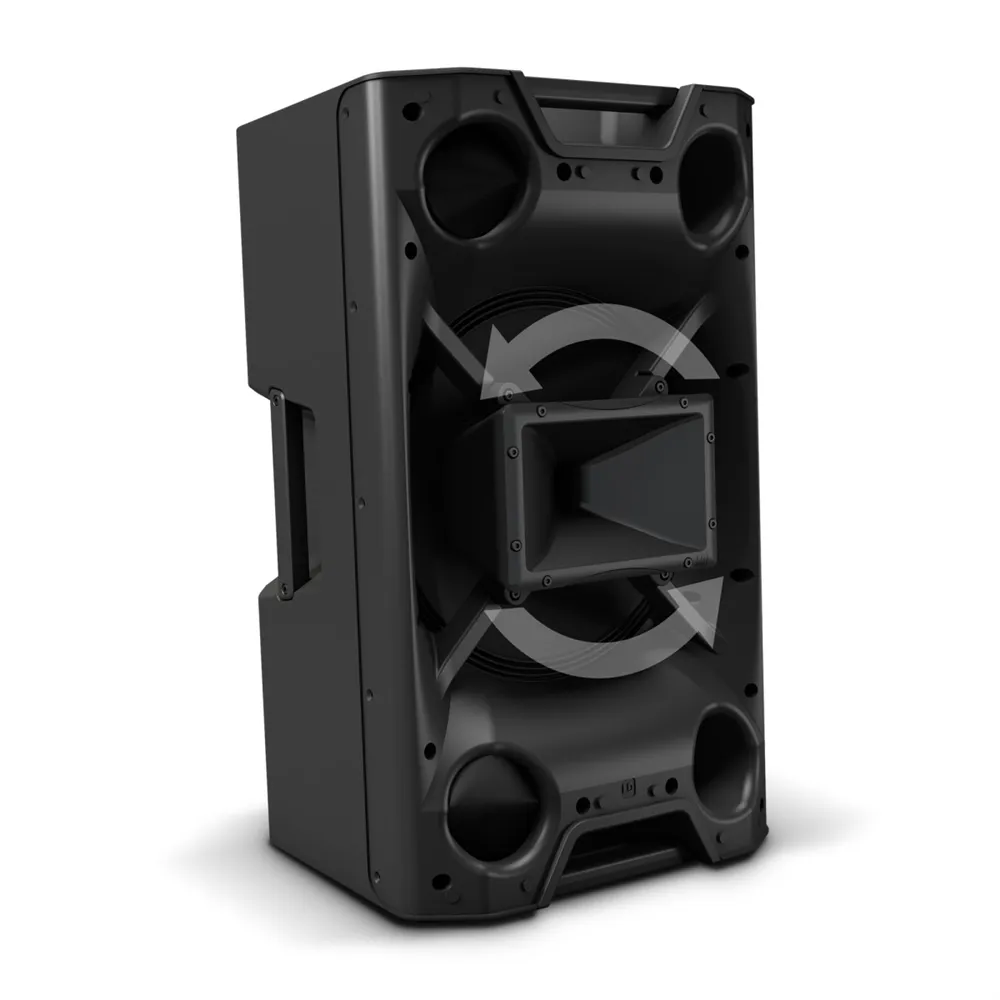

Vertical and horizontal application through coaxial design with a rotatable, BEM-optimized CD horn (patent pending)
Horn-loaded woofer

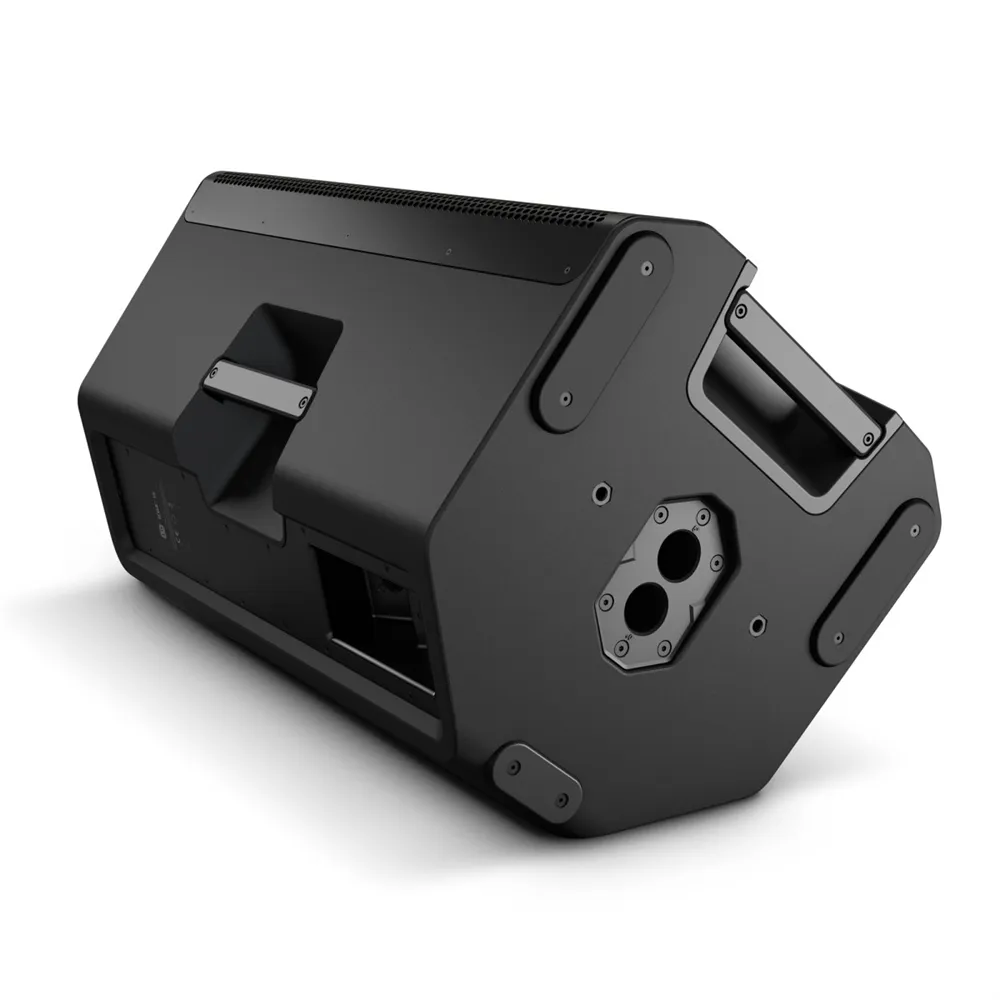

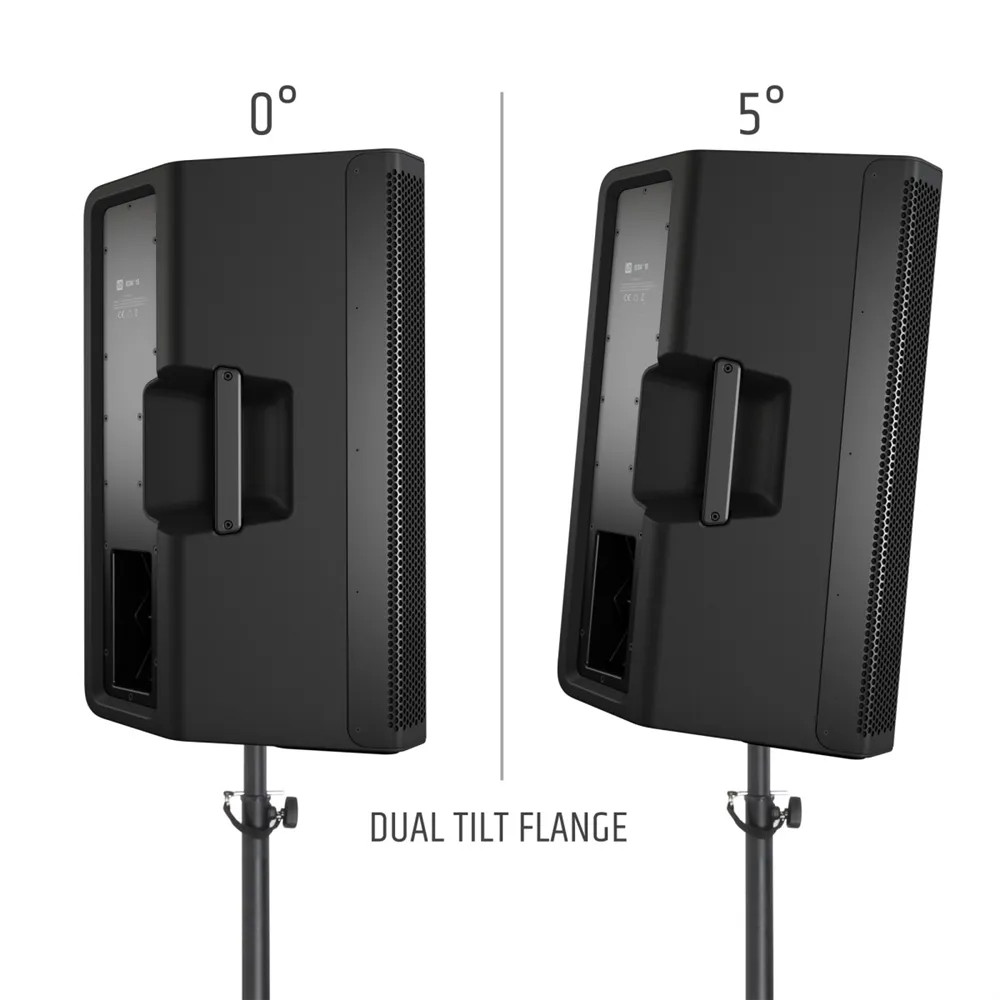

36 mm dual-tilt stand mount with 0° and 5° tilt angles, 55° monitor angle with stable base
6 x M10 flying points
Impact-resistant front grille for optimal speaker protection

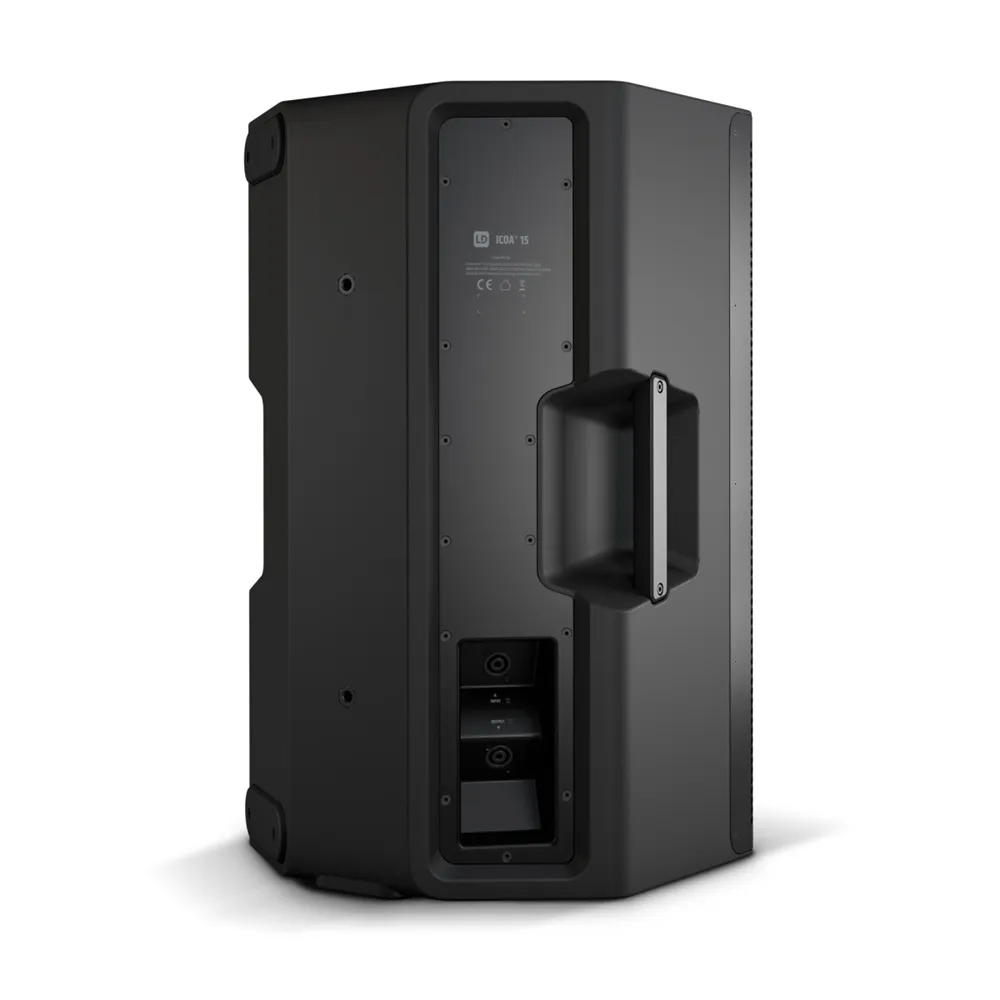

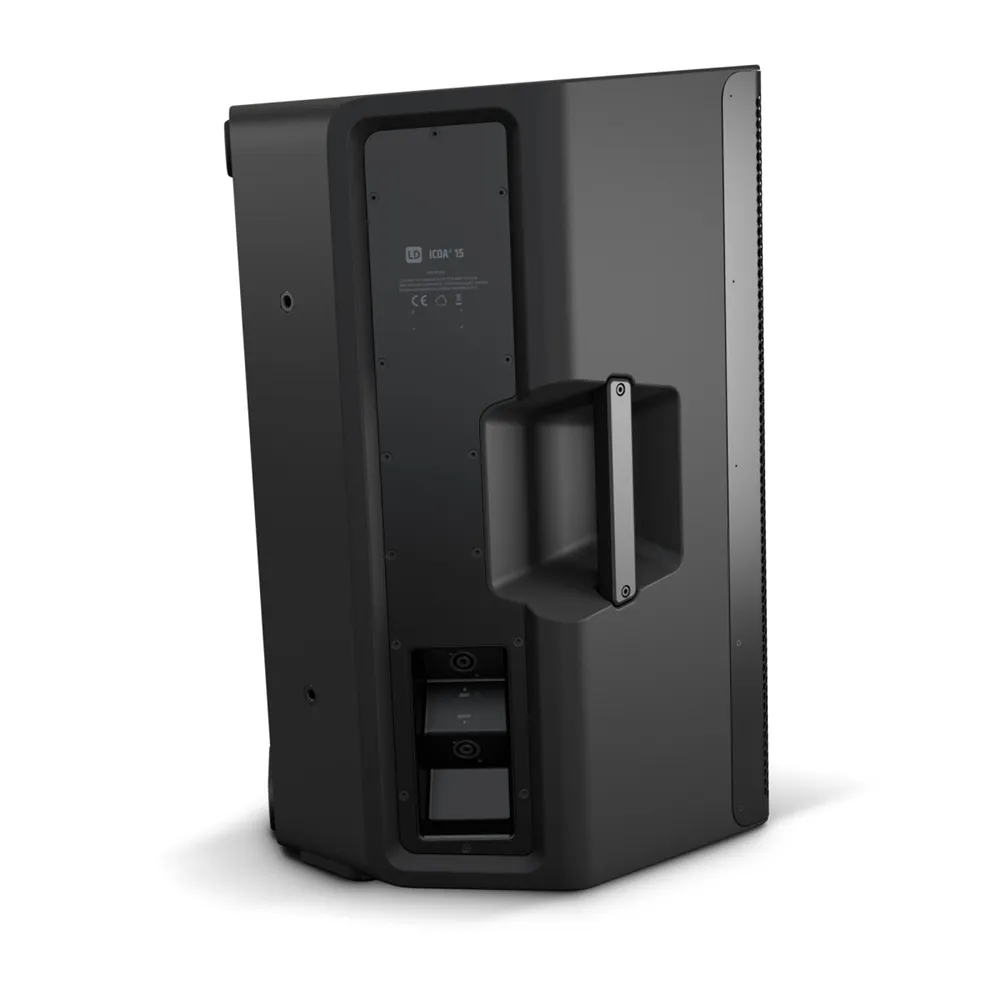

Four aluminum handles with ergonomic, rubberized surface
Comprehensive optional accessories for installation and transport
Product type: PA Speaker
Type: Passive
Woofer size: 15" (381 mm)
Woofer magnet: Ferrite
Woofer brand: Custom Made
Horn: BEM optimized CD horn
HF driver size: 1" (25.4 mm)
HF driver magnet: Ferrite
HF driver brand: Custom Made
HF driver voice coil: 1.4" (35 mm)
Power handling (RMS): 250 W
Dispersion angle (H x V): 90° x 50°
Frequency response: 48 - 20000 Hz
Crossover frequency: 2000 Hz
SPL (1 W/1 m): 95 dB
Max. SPL: 125 dB
Impedance: 8 Ohm
Speaker inputs: 1

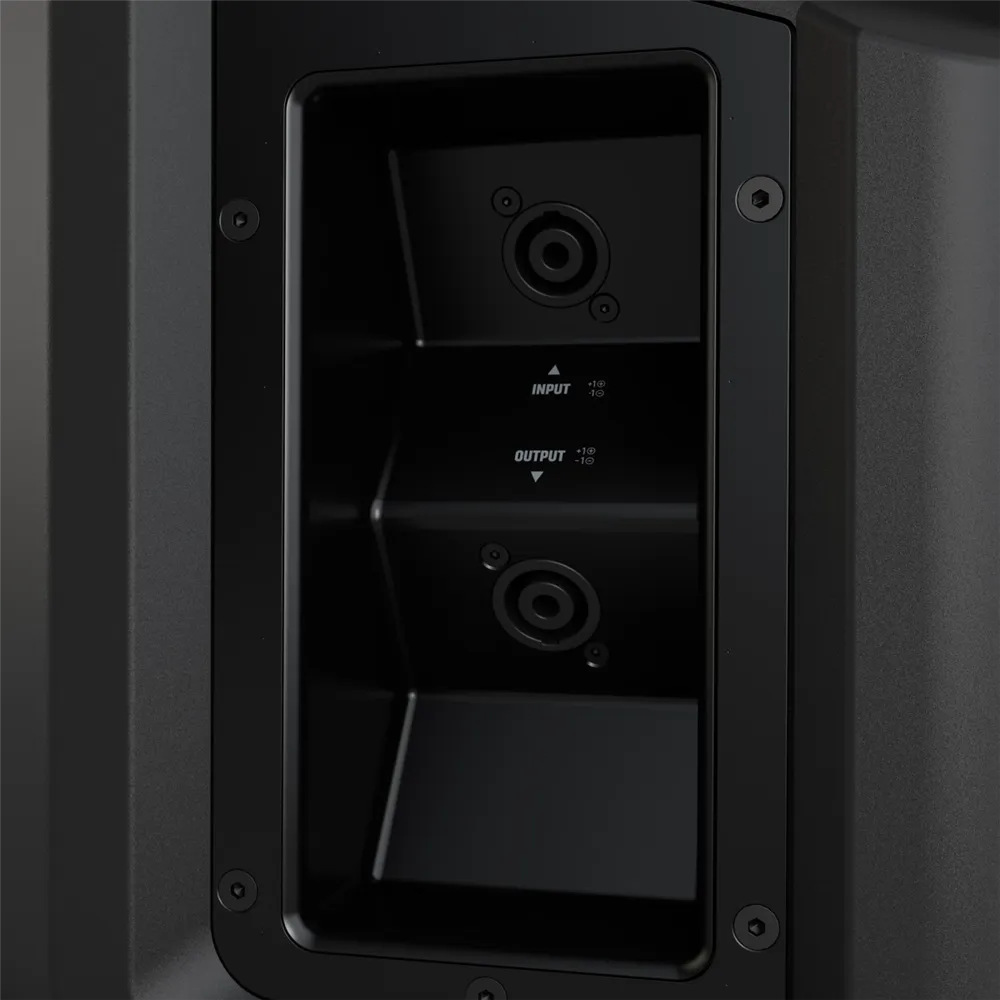

Speaker input connections: Speakon compatible
Speaker outputs: 1
Speaker output connections: Speakon compatible
Cabinet material: Polypropylene
Cabinet design: Bass reflex
Mounting: 36 mm flange (0°, 5°)
Mounting: 6 x M10 flying points

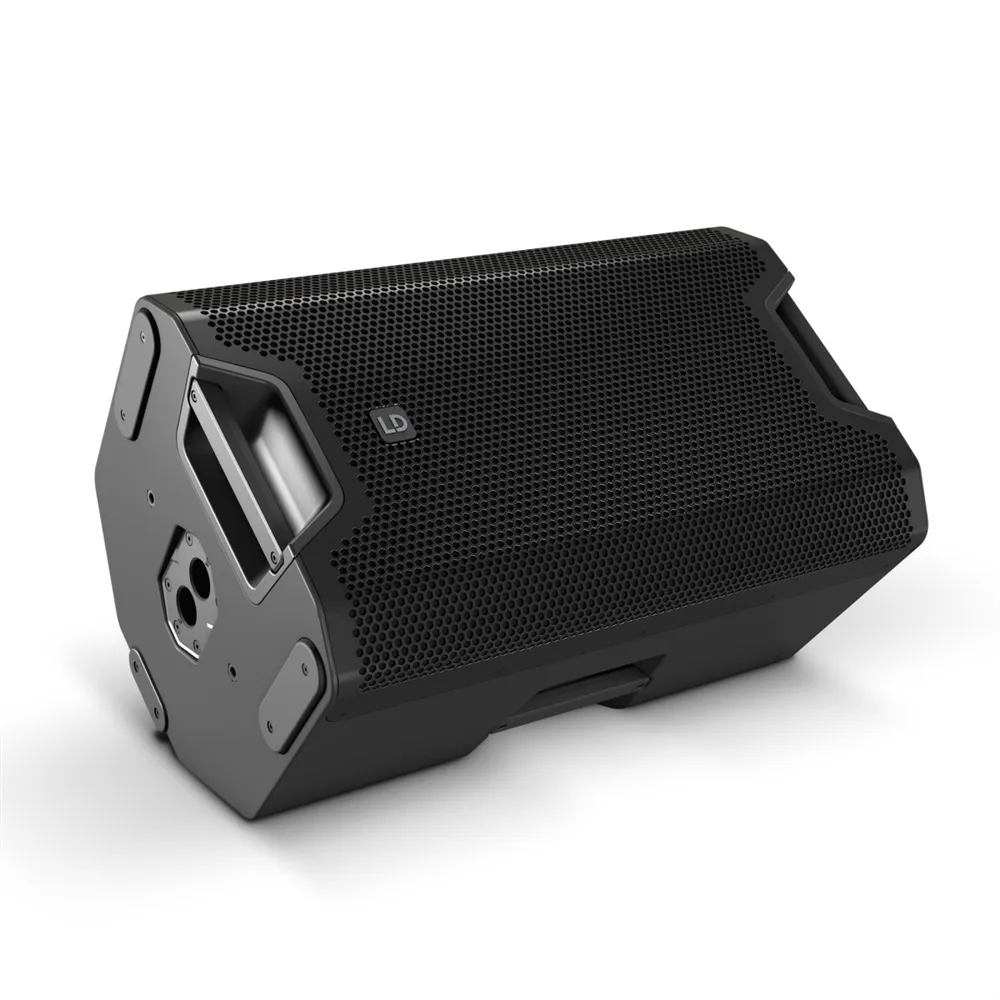

Monitor angle: 55°
Width: 416 mm
Height: 695 mm
Depth: 415 mm
Weight: 24.7 kg

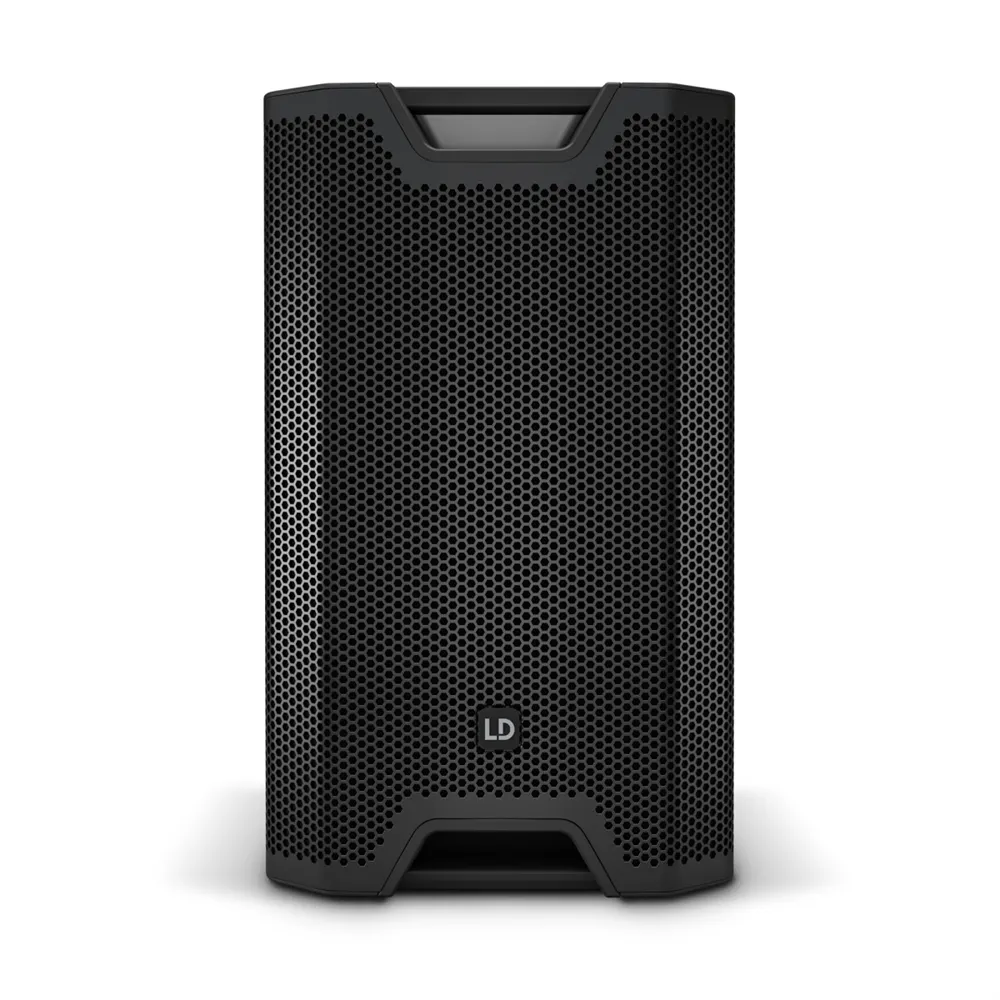

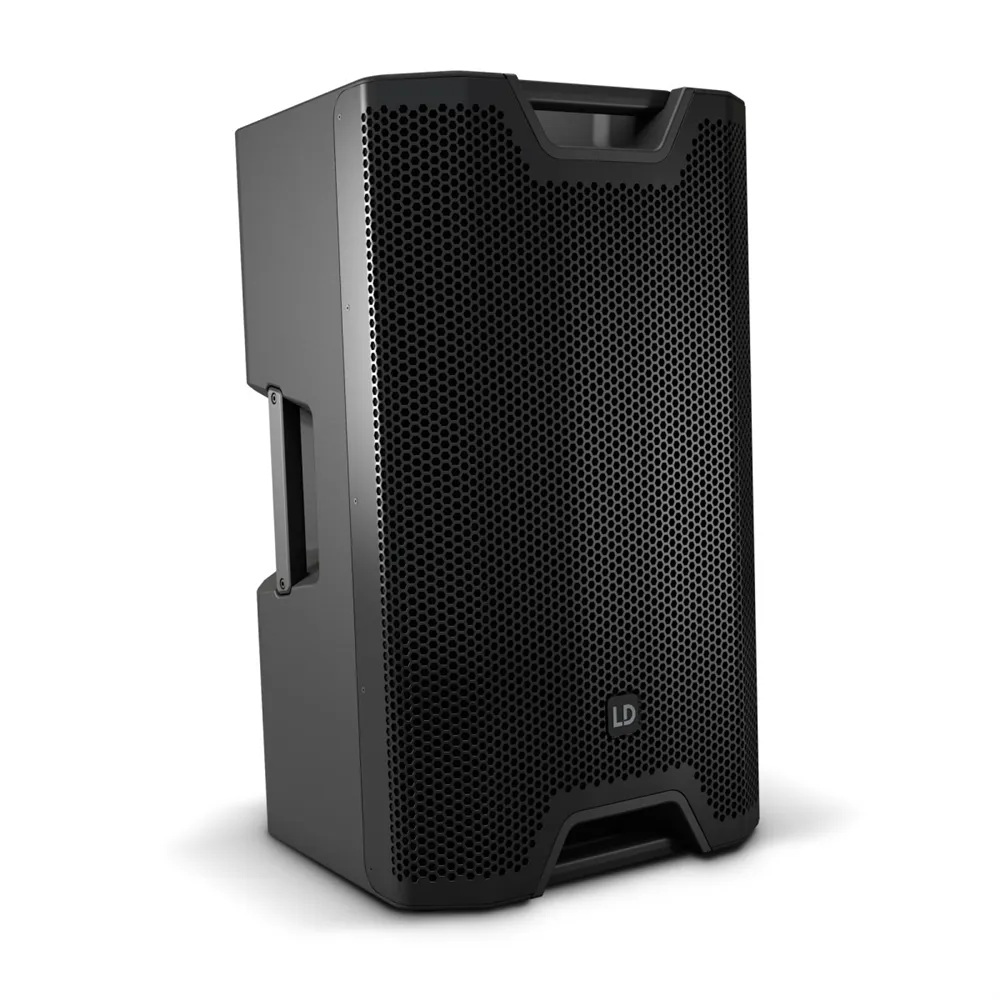

LD Systems ICOA 15 - 15" Passive Coaxial PA Speaker

The LD Systems ICOA 15 is an outstanding 15" full-range speaker known for its versatility and impressive sound quality. With a maximum sound pressure level of 125 dB and a power handling capacity of 1000 W PEAK, this passive speaker is ideal for full-range, satellite, and monitor applications, as well as for permanent installations.

Thanks to its innovative coaxial design and rotatable, BEM-optimized CD horn, the ICOA 15 can be used both vertically and horizontally. The horn-loaded woofer delivers excellent bass reproduction, which is particularly appreciated by DJs and during live performances. Even without a subwoofer, the speaker produces powerful sounds that captivate the audience.

The robust construction features a shock-resistant front grille that optimally protects the speaker, while the ergonomic aluminum handles facilitate transport. With a 36 mm dual-tilt stand mount and a monitor angle of 55°, the ICOA 15 adapts to any sound reinforcement situation. Optional accessories for installation and transport are also available to further enhance flexibility.
