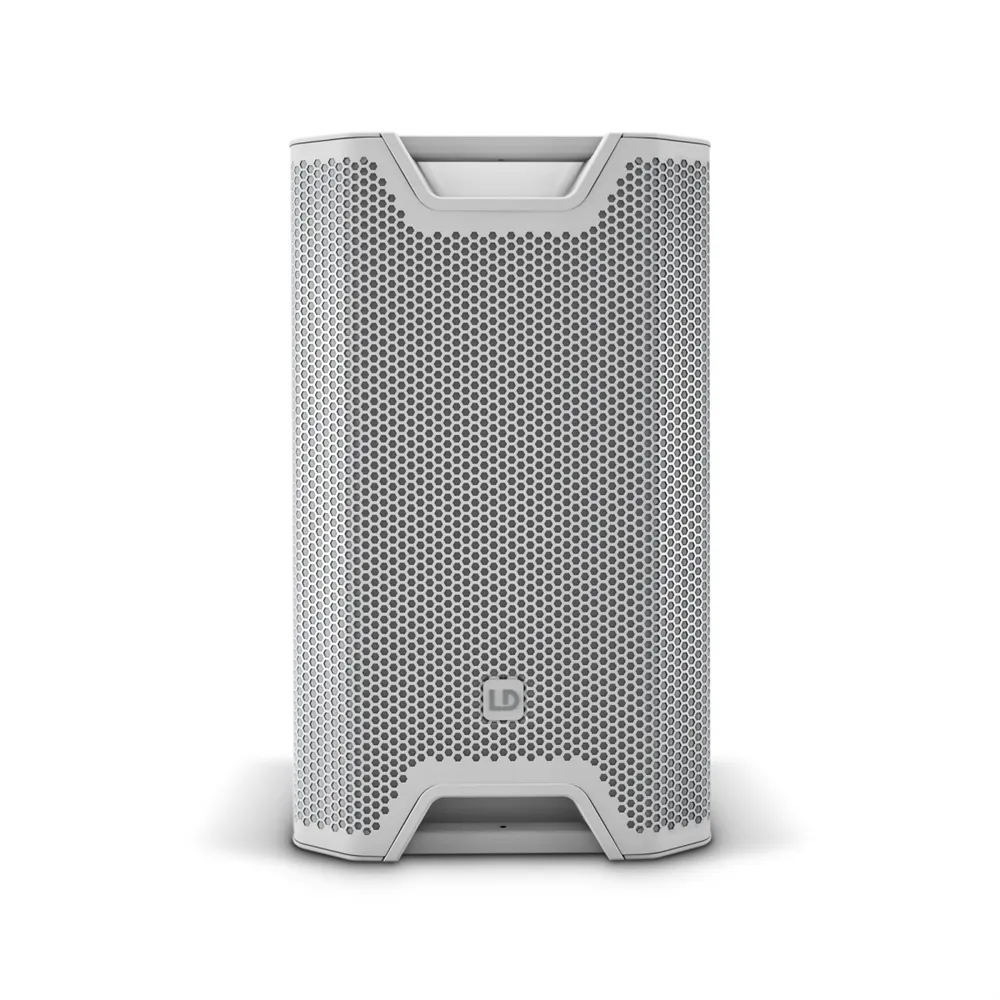

LD Systems ICOA 12 A W - 12" Aktiver koaxialer PA-Lautsprecher, weiß

LD Systems ICOA 12 A W - 12" Active Coaxial PA Speaker, White

Brand:

LD Systems ICOA® PRO 12 A - 12" Active Coaxial High-Performance PA Speaker with Bluetooth and App Control

LD Systems ICOA 12 PC - Padded Protective Cover for ICOA 12"

Features

True all-rounder for full-range, satellite, and monitor applications
126 dB max SPL and 1200 W PEAK power

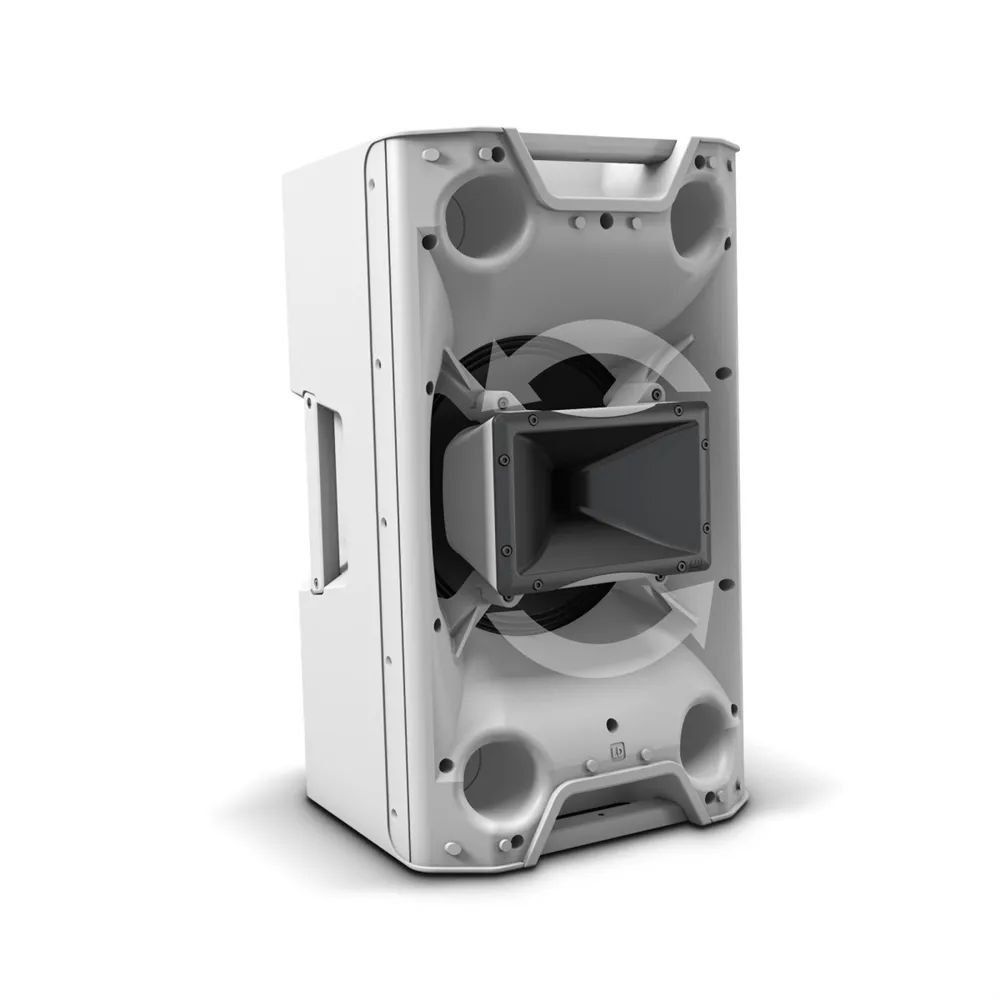

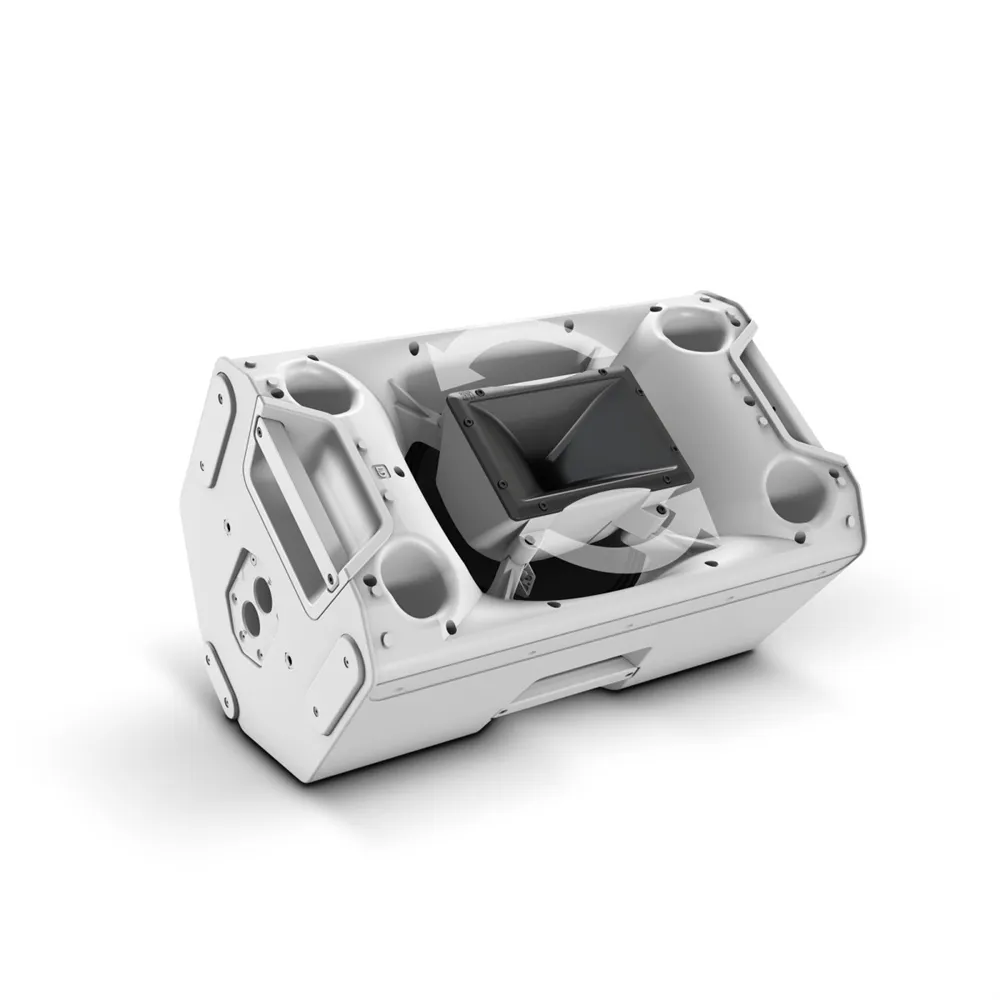

Vertical and horizontal application through coaxial design with rotatable, BEM-optimized CD horn (patent pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ, and delay function
2 line/mic input channels with individual gain controls plus mono mix output
Bluetooth® streaming available in the BT model

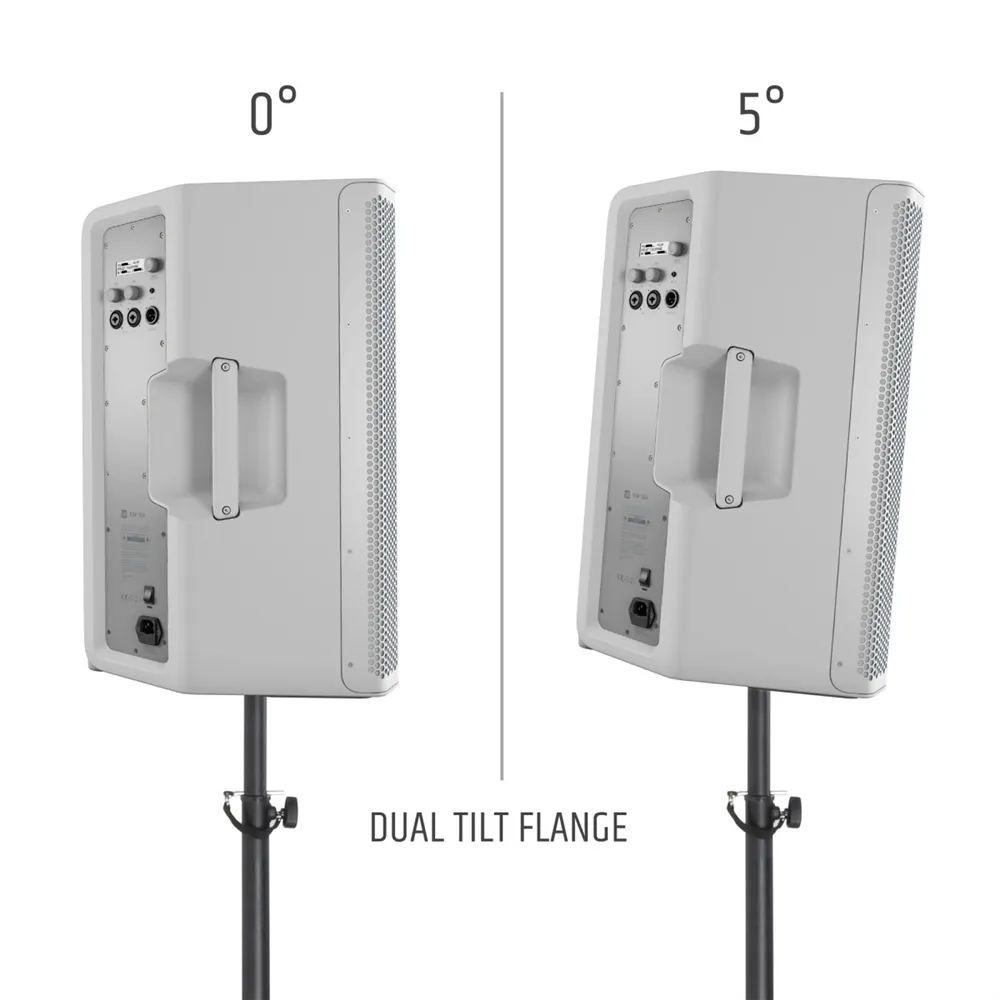

36 mm dual-tilt tripod mount with 0° and 5° tilt angles, 55° monitor angle with stable base
6 x M10 flying points
Impact-resistant front grille for optimal speaker protection
4 aluminum handles with ergonomic, rubberized surface
Extensive optional accessories for installation and transport
Product type: PA speaker
Type: Active
Color: White (RAL 9003)
Woofer size: 12 "
Woofer magnet: Ferrite
Woofer brand: Custom Made
Horn: BEM optimized CD horn
HF driver size: 1 "
HF driver magnet: Ferrite
HF driver brand: Custom Made
Amplifier: Class D
Dispersion angle (H x V): 90° x 50°
Power (RMS): 300 W
Frequency response: 50 - 20000 Hz
Max. SPL (Peak): 126 dB
Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent

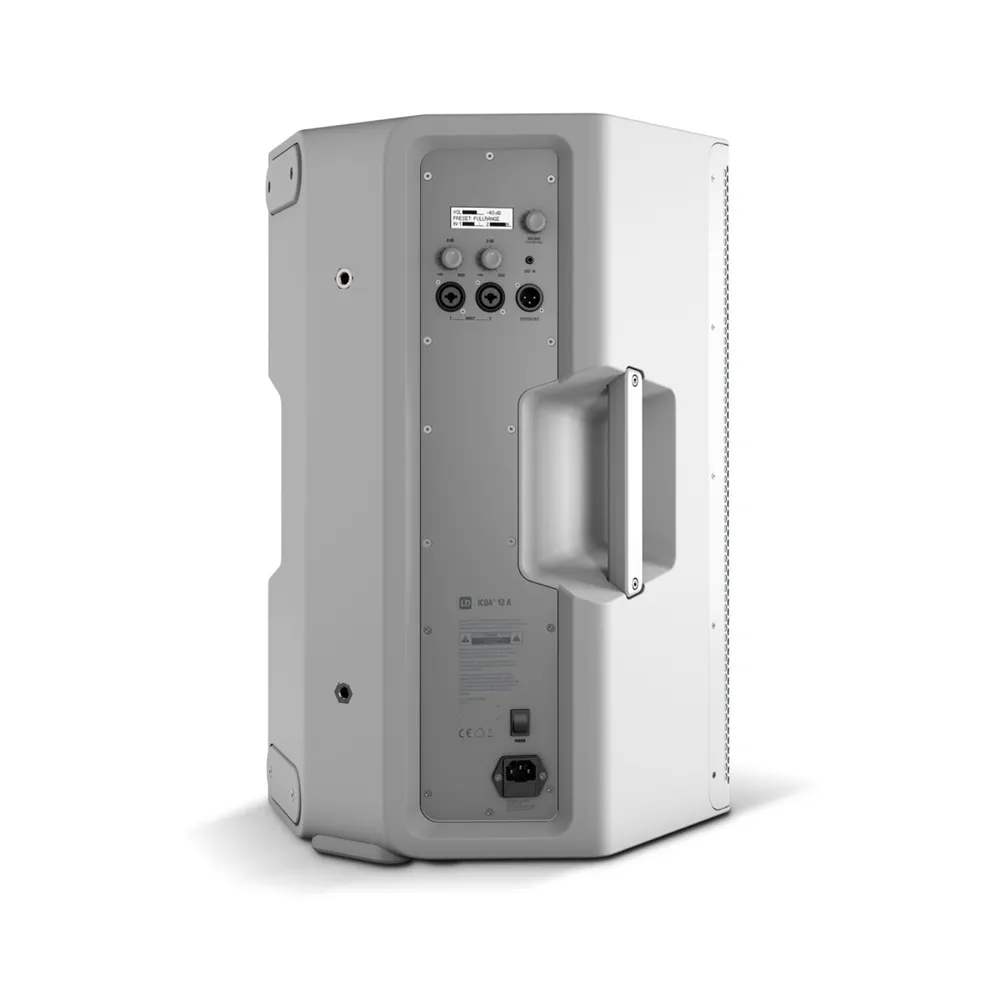

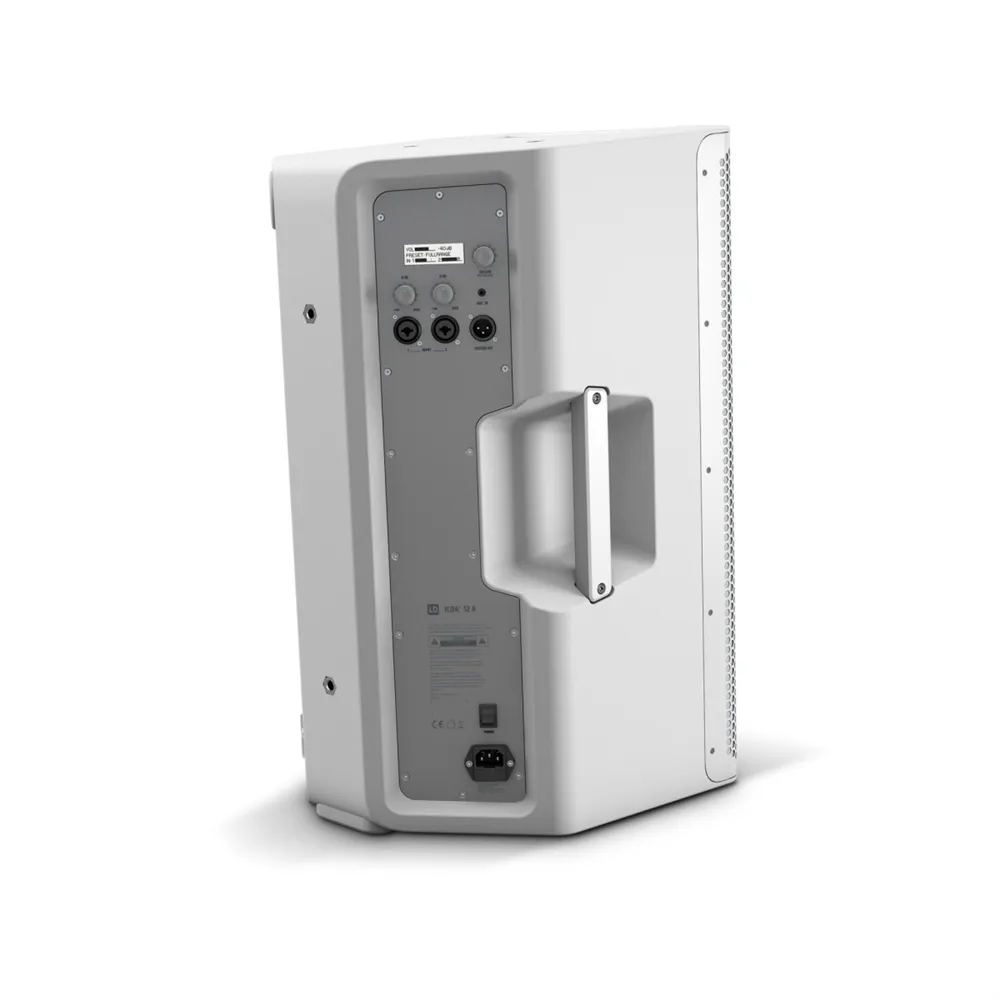

Controls: 2 x Gain, rotary-push encoder, power switch
Display elements: LC display
Mic/line inputs: 6.3 mm jack combo sockets (balanced), XLR
Line inputs: 1
Line outputs: 1
Power supply: SMPS
Power consumption: 150 W
Operating temperature (in use): 0 - 40 °C
Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Fuse: T4AL 250 V
Cabinet material: Polypropylene
Cabinet design: Bass reflex

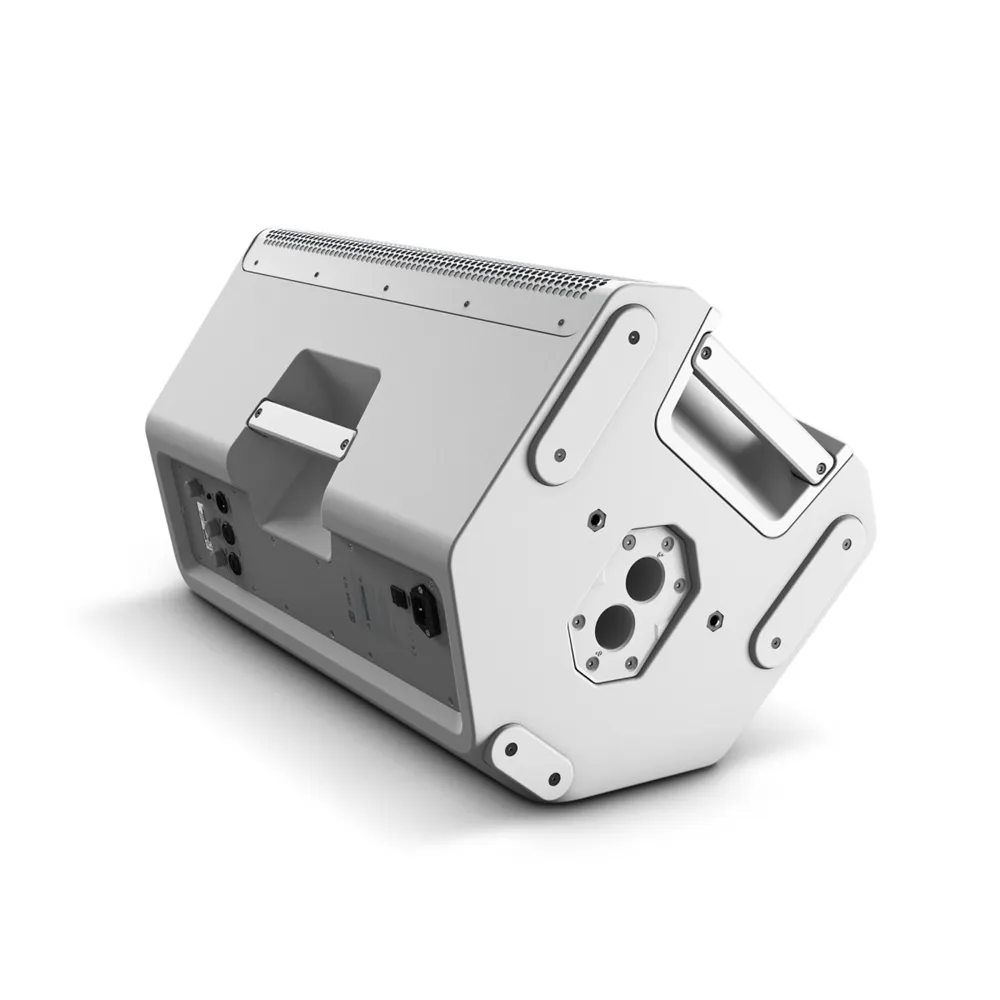

Mounting: 36 mm flange (0°, 5°), 6 x M10 flying points
Monitor angle: 55 °
Width: 375 mm
Height: 635 mm
Depth: 396 mm
Weight: 19.95 kg
Accessories (included): Power cable

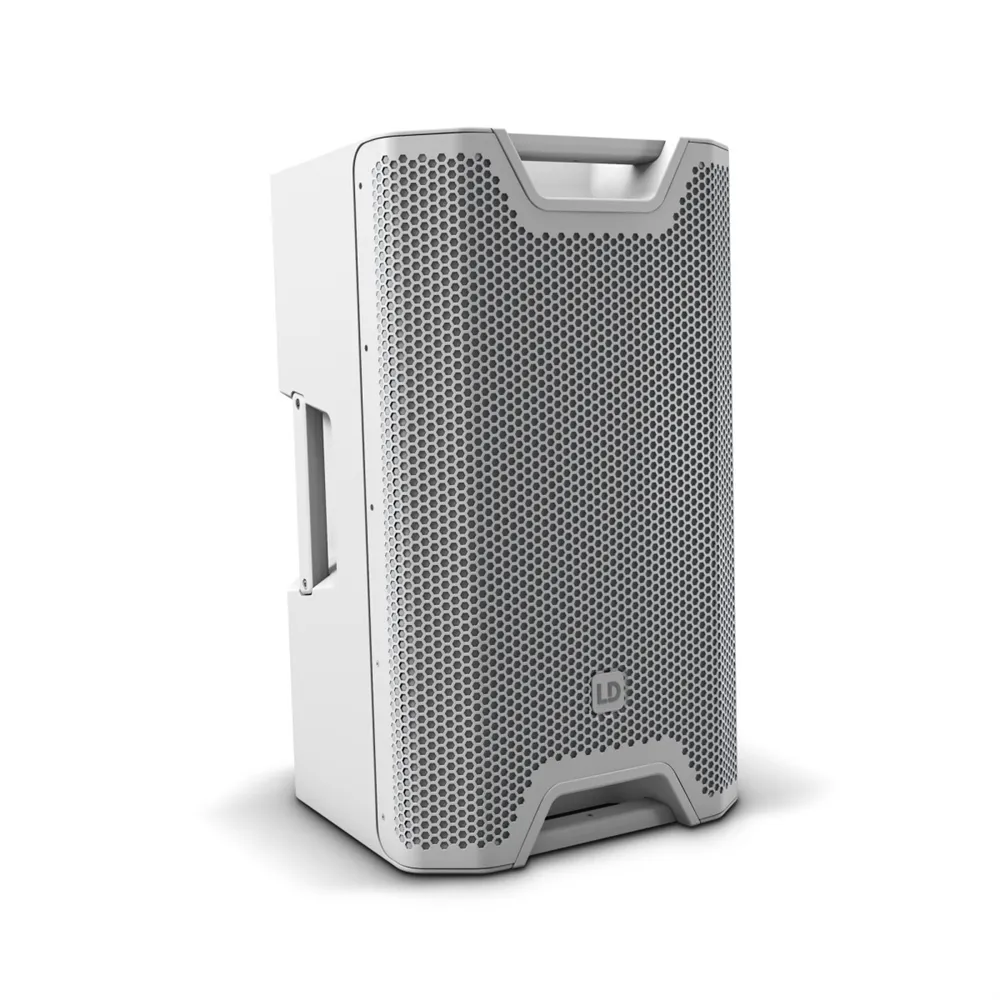

LD Systems ICOA 12 A W - 12" Active Coaxial PA Speaker, White

The LD Systems ICOA 12 A W is a powerful 12" active coaxial PA speaker that stands out for its versatility and excellent sound quality. With a maximum sound pressure level of 126 dB and a peak power of 1200 W, this speaker is the ideal companion for full-range, satellite, and monitor applications. Thanks to its innovative coaxial design and rotatable, BEM-optimized CD horn, the speaker adapts flexibly to various usage scenarios.

The combination of a horn-loaded woofer and DynX DSP technology delivers impressive bass response and clear sound quality. With four DSP presets, a 3-band EQ, and a delay function, you can optimally tailor the sound to your environment. Two line/mic input channels with individual gain controls allow for the connection of various signal sources.

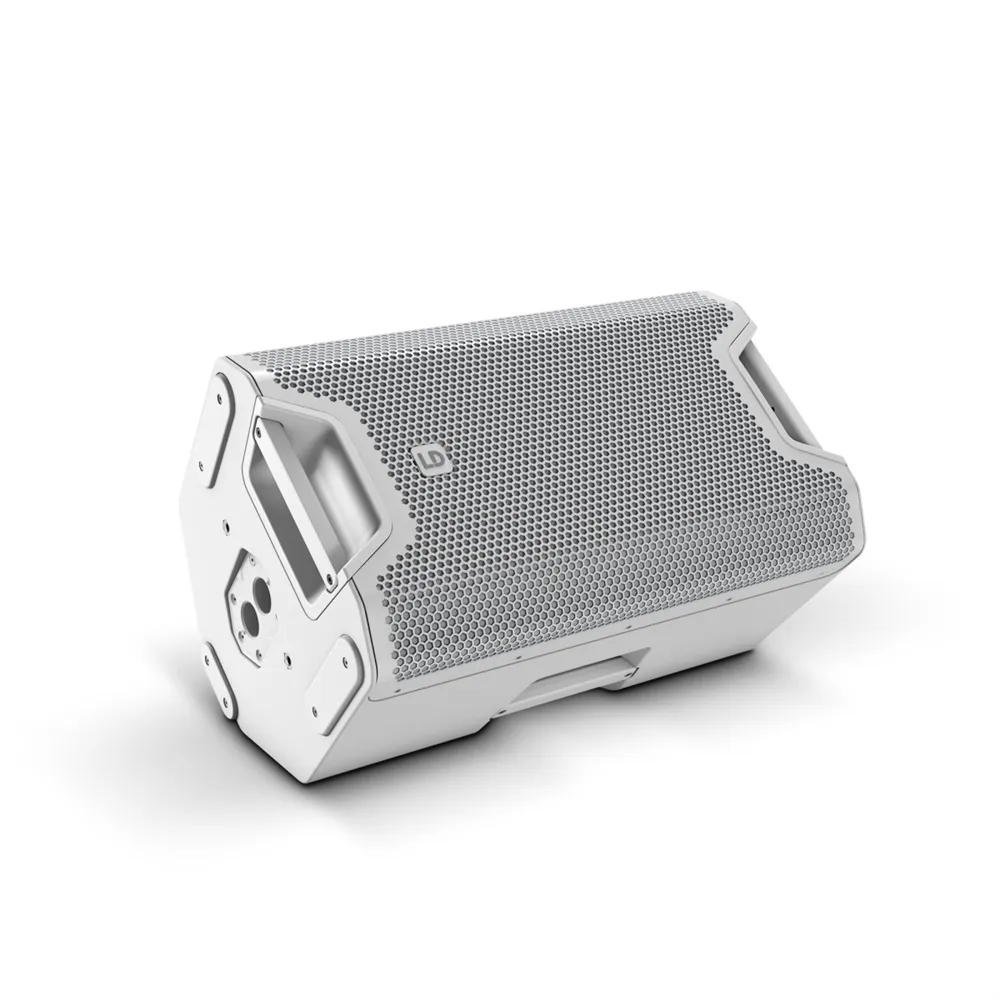

The impact-resistant front grille and ergonomic aluminum handles ensure high durability and ease of handling. With a 36 mm dual-tilt pole mount and a monitor angle of 55°, the ICOA 12 A W is perfectly suited for both vertical and horizontal use. Optional accessories for installation and transport are also available to meet your requirements.
