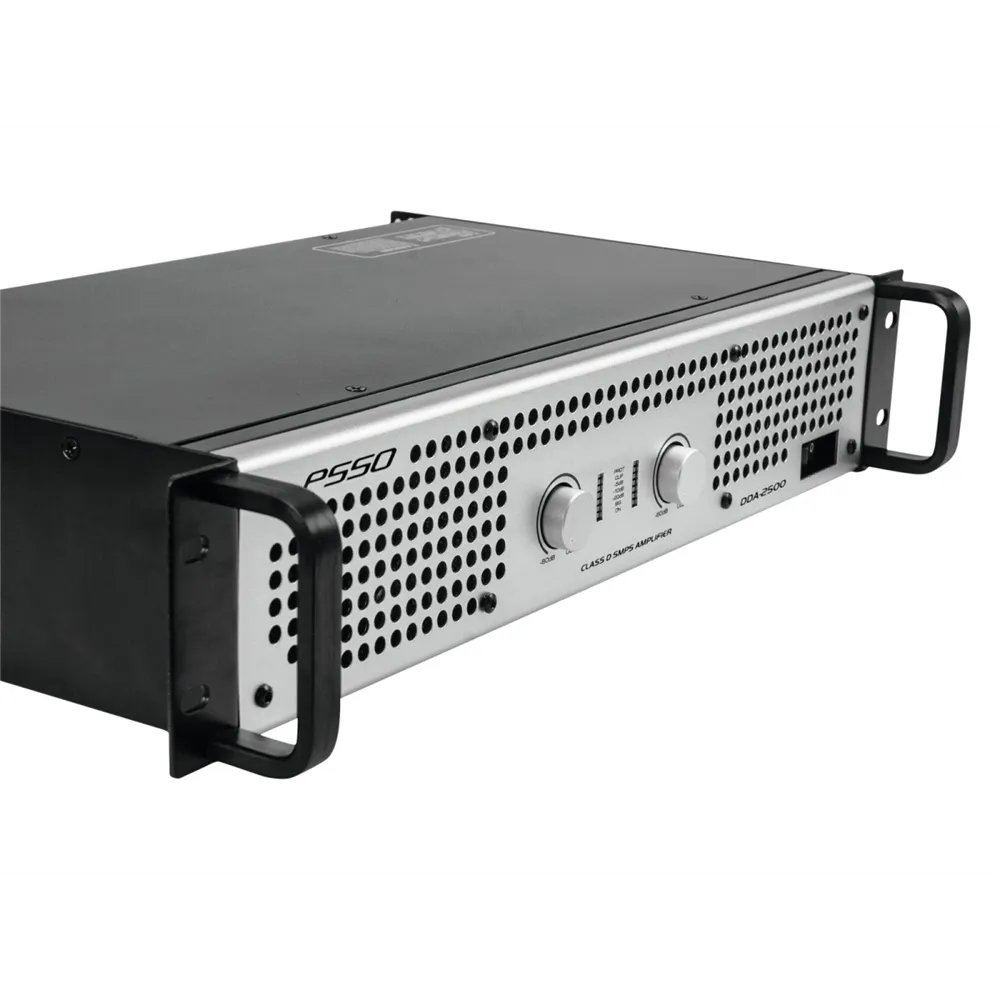

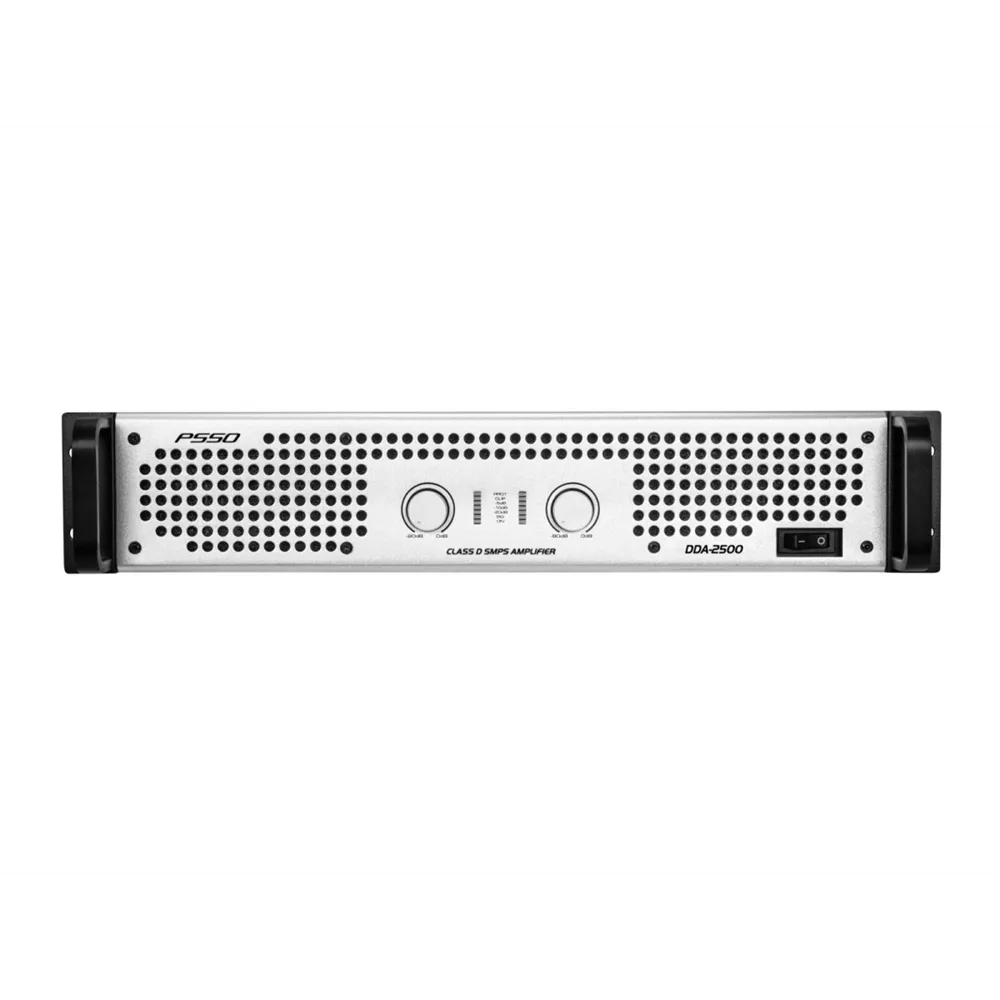

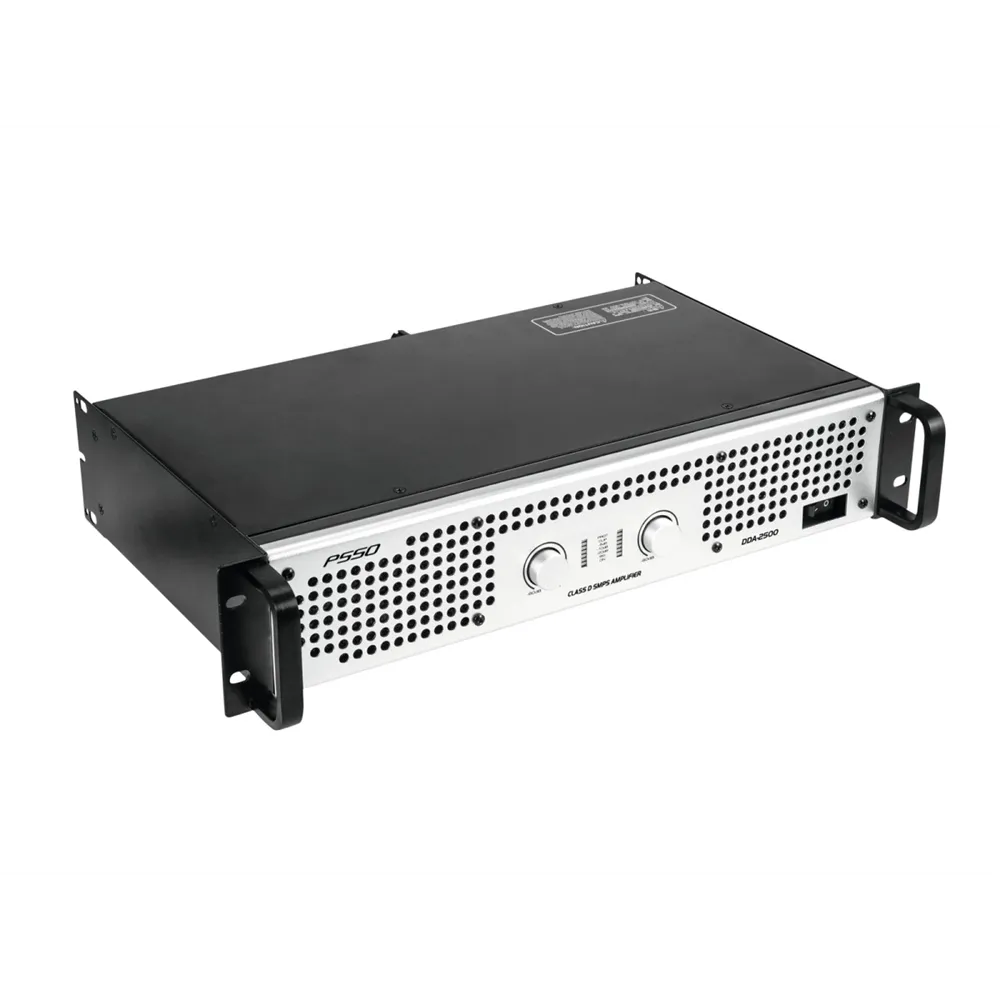

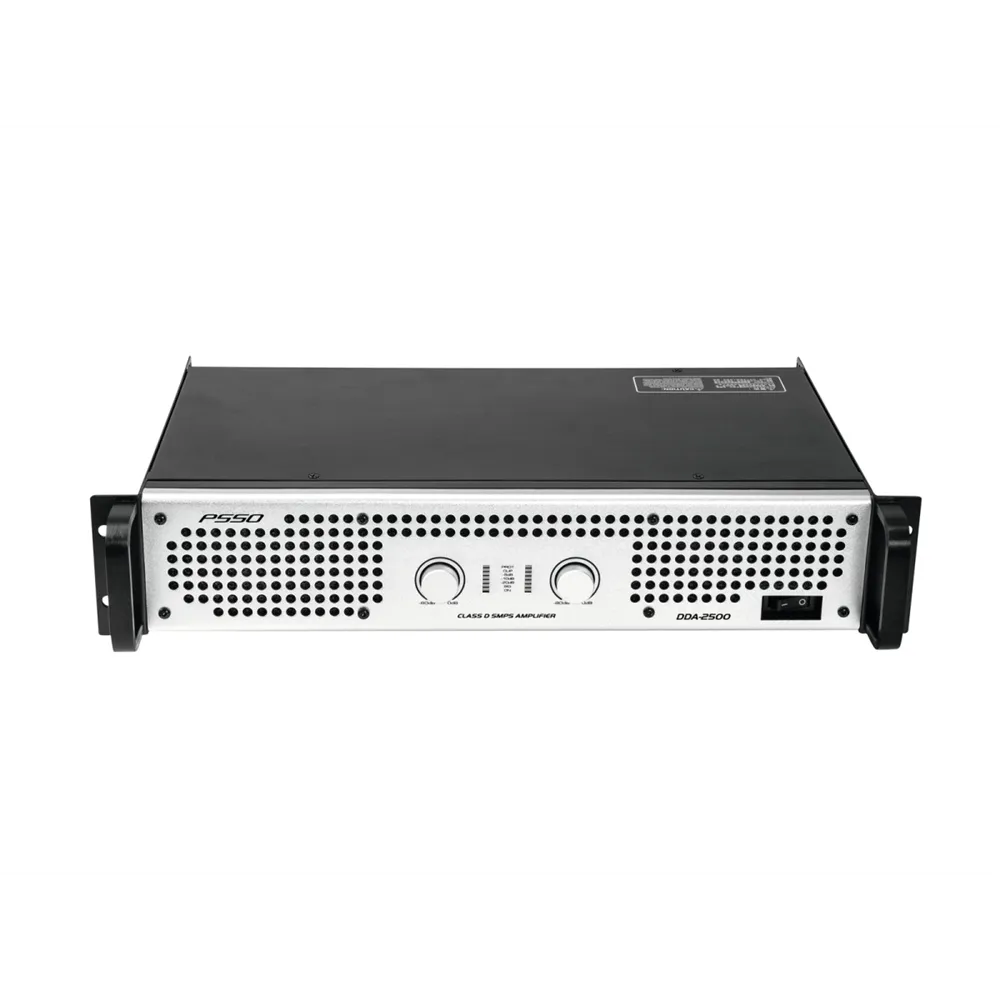

PSSO DDA-2500 Power Amplifier

Features

• Class D Stereo PA Amplifier with Switching Power Supply
• 2 x 1250 W RMS (4 Ohm), 2 x 700 W RMS (8 Ohm), 1 x 2500 W RMS bridged (8 Ohm)
• Lightweight and low profile due to integrated switching power supply
• Reliable workhorse with high impulse strength for a wide range of applications (e.g., compact PAs, multi-way PAs, concerts)
• Limiter and speaker turn-on delay
• 3 selectable operating modes (Stereo, Parallel, or Bridged)
• 2 stepped level controls for precise level adjustment
• Adjustable input sensitivity
• Per channel LED VU meter and LEDs for activated protection circuit (Protect) and clipping (Clip)
• Electronically balanced inputs via XLR connectors with XLR loop-through outputs
• Speaker outputs via lockable speaker connectors
• Robust steel chassis with aluminum front panel
• High-efficiency airflow from front to rear
• Temperature-controlled fans for device cooling
• (19") 48.3 cm rack mountable, 2 HE
• Suitable for applications such as clubs, dance schools, mobile events, mobile DJs, restaurants, bars, hotels, rental services, sports centers, and fitness studios
• Power supply: 100-240 V AC, 50/60 Hz
• Total connection value: 200 W 1/8 Power
• Protection class: Class I
• Cable length: 1.8 m detachable
• Frequency range: 20 - 20,000 Hz
• Signal-to-noise ratio: >100 dB
• Cooling: 2 x temperature-controlled fans
• Impedance: Input 10 kOhm unbalanced, Input 20 kOhm balanced
• Gain: 39.7 dB
• Rise times: >10 V/µs
• Damping factor: >500
• Controls: Power switch, volume control per channel, operating mode switch (Stereo/Parallel/Bridged), input sensitivity switch
• Protection circuitry: Soft start, overheating, overload, short circuit, limiter, VHF, DC, progressive level control
• Status LEDs: Power, Level Indicator, Clip, Protect

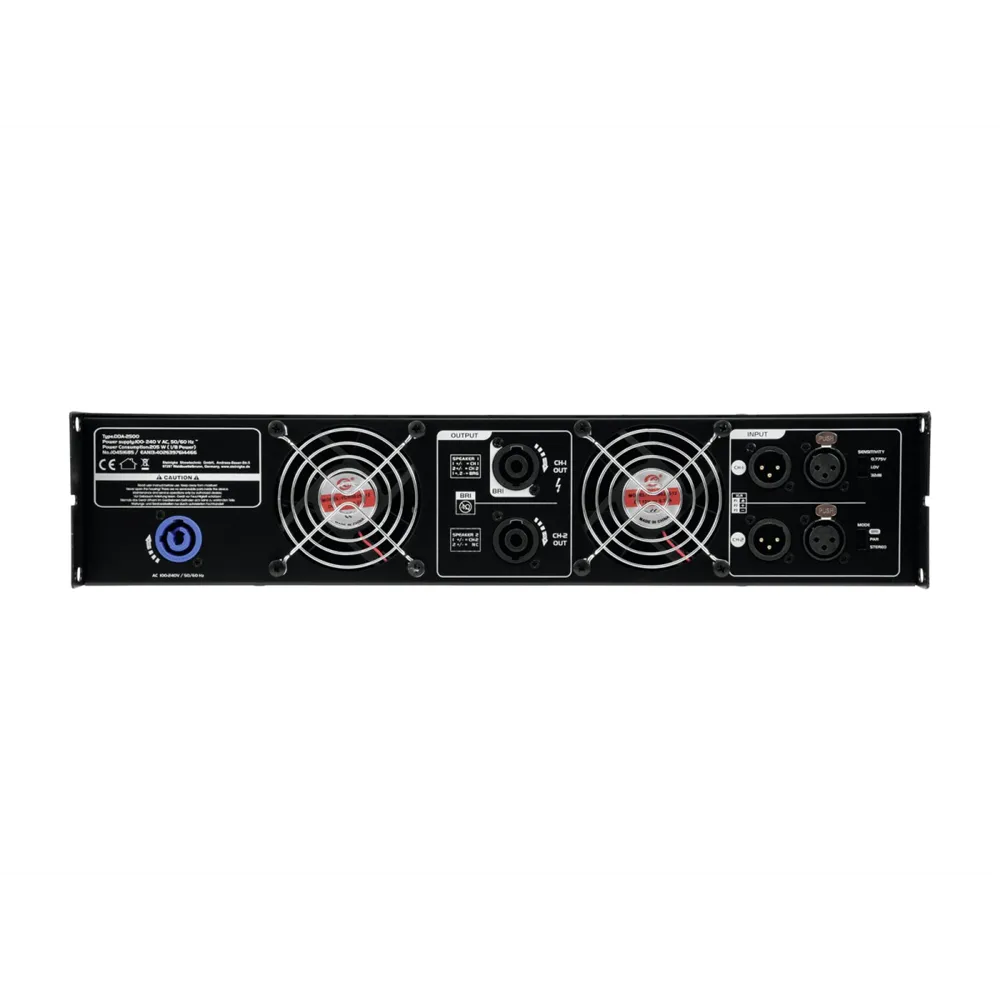

• Connections: Input: Line via 2 x 3-pin XLR, Output: Line via 2 x 3-pin XLR, Speaker via 2 x speaker connectors (W)
• Input sensitivity: 0.775 V; 1.0 V; 1.81 V, switchable; 32 dB; 37 dB; 39.3 dB, switchable
• Color: Black
• Enclosure type: (19") 48.3 cm rack mountable, 2 HE
• Dimensions: Width: 48.3 cm, Depth: 30.7 cm, Height: 8.9 cm
• Weight: 6.25 kg
