IMG STAGELINE 6-Kanal-Stereo-Audio-Mischer 1xMik 5xAudio 1xPhono

IMG STAGELINE 6-Channel Stereo Audio Mixer 1xMic 5xAudio 1xPhono

Brand:

MONACOR 6-Channel Stereo Mixer 3 Zones 2xMic 4xAudio

Features

6-channel stereo audio mixer specifically designed for ELA and DJ applications
2 mono microphone channels with talkover switch and dual tone control
4 stereo input channels, switchable between Phono/Line (channels 1 and 2) or Line/Line (channels 3 and 4)
1 stereo master output
1 master-independent stereo record output
3-band equalizer with center detent for master and record outputs
Pre-listening of all stereo input channels and master mix via adjustable stereo headphone output
Switchable crossfader for blending between channels 1-4 in any configuration
Stereo LED level indicator
Number of channels: 6
Number of inputs: 8
Mic input: 1 mV, 2 x 6.3 mm jack
Line input: 150 mV, 5 x RCA L/R
CD input: 150 mV, 1 x RCA L/R
Phono input: 3 mV, 2 x RCA L/R
Master output: 0.775 V/600 Ω, 1 x RCA L/R
Record output: 0.775 V/600 Ω, 1 x RCA L/R
Headphones: ≥8 Ω, 1 x 6.3 mm jack
Frequency range: 20-20,000 Hz
Total harmonic distortion: 0.1%
Signal-to-noise ratio: 65 dB
Low frequency control: ±10 dB/100 Hz
Mid frequency control: ±10 dB/1 kHz
High frequency control: ±10 dB/10 kHz
Talkover: -15 dB
Crossfader: yes
Power supply: ~ 230 V/50 Hz/10 VA
Voltage: ~ 230 V
Frequency: 50 Hz
Power consumption in operation: 10 VA
Permissible operating temperature: 0-40 °C
Width: 482 mm
Height: 89 mm
Depth: 95 mm
Rack units (HE): 2
Weight: 2.4 kg
Packaging dimensions (W x H x L): 0.12 x 0.155 x 0.56 m
Gross weight: 3.18 kg
Net weight: 2.47 kg

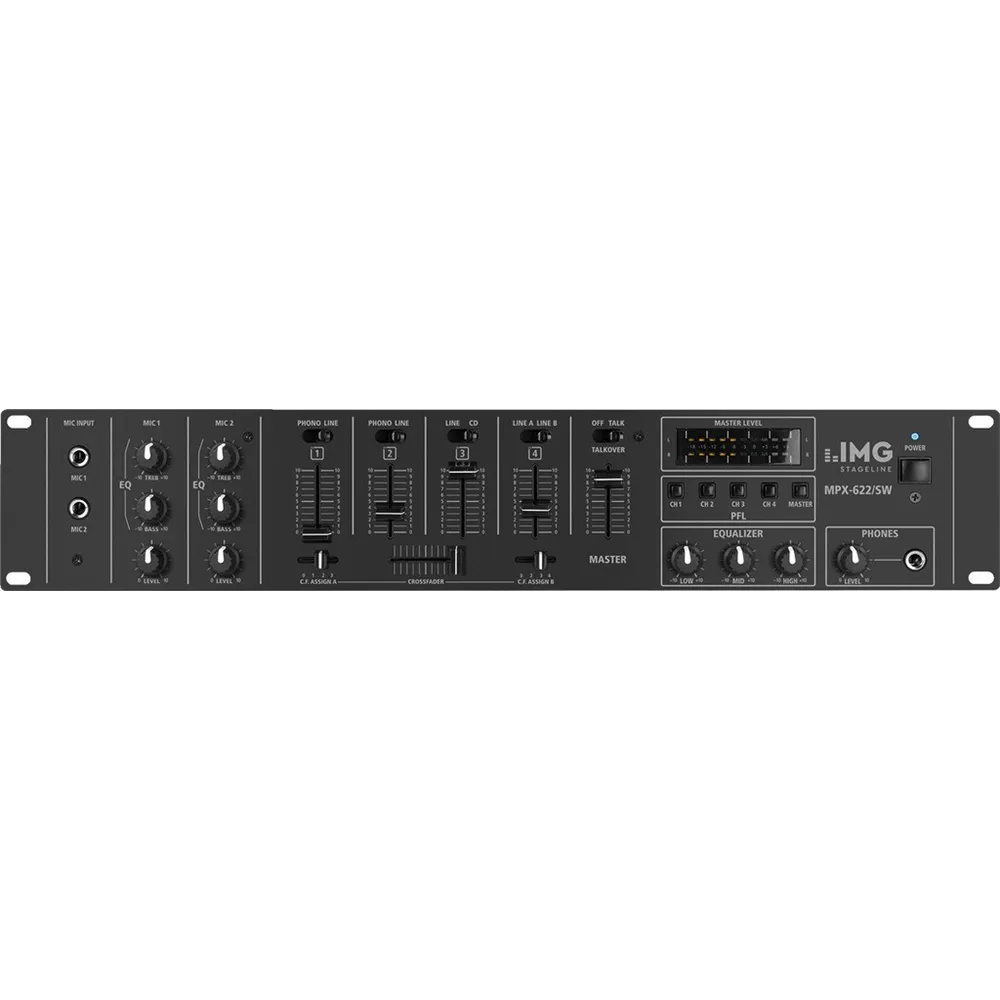

IMG STAGELINE 6-Channel Stereo Audio Mixer 1xMic 5xAudio 1xPhono

The IMG STAGELINE 6-Channel Stereo Audio Mixer is the perfect solution for professionals working in the public address (PA) and DJ sectors. Featuring two mono microphone channels equipped with a talkover switch and dual sound control, this mixer offers exceptional flexibility. The four stereo input channels can be switched between Phono/Line and Line/Line, allowing you to seamlessly integrate various audio sources.

The mixer includes a stereo master output as well as a master-independent stereo record output, both equipped with a three-band equalizer. An adjustable stereo headphone output enables monitoring of all inputs and the master mix. The switchable crossfader allows for effortless blending between channels 1-4, while the stereo LED level meter helps you keep track of the volume levels.

With a frequency range of 20-20,000 Hz, a total harmonic distortion of just 0.1%, and a signal-to-noise ratio of 65 dB, the IMG STAGELINE mixer guarantees outstanding sound quality. Compact and lightweight, it is ideal for mobile use and can be easily integrated into any setup.
