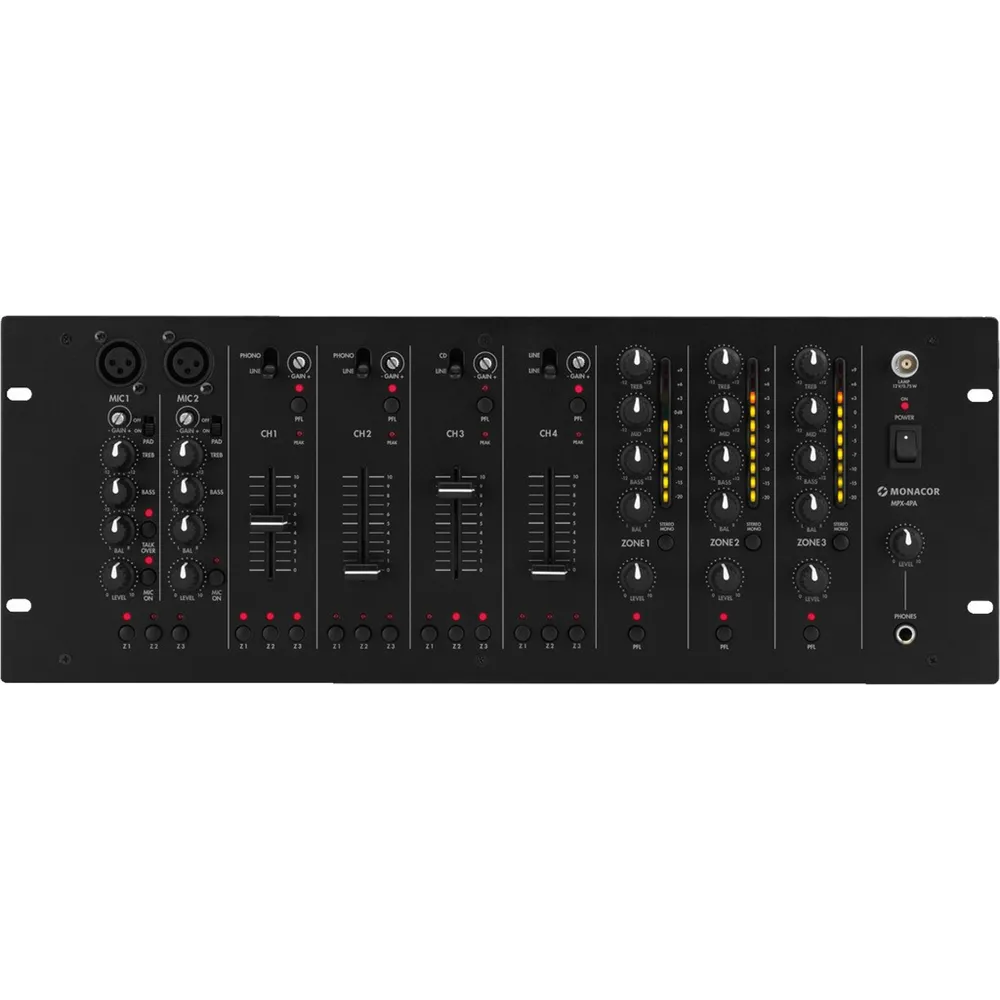

MONACOR 6-Channel Stereo Mixer 3 Zones 2xMic 4xAudio

Features

• 3 zones with flexible routing options for all input channels
• XLR and RCA zone outputs
• 6 input channels (4 stereo paths, 2 microphone paths)
• Both microphone paths can only be routed together
• Recessed gain controls for all input channels
• Microphone paths with dual tone control, talkover, and PAD switch
• Switchable stereo channels: 2 x Phono/Line and 2 x Line/Line
• Zone outputs with triple tone control, LED level display for stereo sum, balance control, pre-listening (PFL), and mono/stereo switching
• Adjustable headphone output with pre-listening (PFL) for stereo input channels and zone outputs
• Connection for gooseneck lamp GNL-204
• Number of channels: 6
• Number of inputs: 12
• Mic input: 1.5 mV, 2 x 6.3 mm jack
• Line input: 150 mV, 5 x RCA L/R
• CD input: 150 mV, 1 x RCA L/R
• Phono input: 3 mV, 2 x RCA L/R
• Master output: 1 V/600 Ω, 3 x 3-pin XLR L/R, 3 x RCA L/R
• Headphones: ≥8 Ω, 1 x 6.3 mm jack
• Gooseneck lamp: 12 V/0.75 W, 1 x BNC
• Frequency range: 20-20,000 Hz
• THD (Total Harmonic Distortion): 0.1%
• Signal-to-noise ratio: 61 dB, unweighted
• Low frequency control: +12 dB, -12 dB/50 Hz
• Mid frequency control: +12 dB, -12 dB/1 kHz
• High frequency control: +12 dB, -12 dB/10 kHz
• Talkover: -16 dB
• Power supply: ~ 230 V/50 Hz/20 VA
• Voltage: ~ 230 V
• Frequency: 50 Hz
• Power consumption in operation: 20 VA
• Permissible operating temperature: 0-40 °C
• Width: 482 mm
• Height: 177 mm
• Depth: 105 mm
• Rack units (HE): 4
• Weight: 4 kg
• Packaging dimensions (W x H x L): 0.215 x 0.15 x 0.52 m
• Gross weight: 5.02 kg
• Net weight: 4.075 kg
