Features
- OLED Display
- Isolated Outputs
- 2 Inputs, Selectable Outputs
- Multiple Monitoring Functions
- RDM Compatible
- Real-Time DMX Monitoring
- Customizable DMX Timing
- Audible Alarm for Errors
- Power Supply: 100-240 VAC 50-60 Hz
- Power Consumption: 5 W
- Power Input Connector: Pro Power Blue
- DMX Connector: XLR 5P In/Out
- Length: 483 mm
- Width: 137 mm
- Height: 46 mm
- Weight: 2 kg
- Housing Material: Metal / Plastic
- Color: Black
- Control Mode: DMX
- Protocols: DMX / RDM / USITT
- Universes: 2
Showtec Booster Pro - 2-8 DMX/RDM Booster XLR, 5-Pin

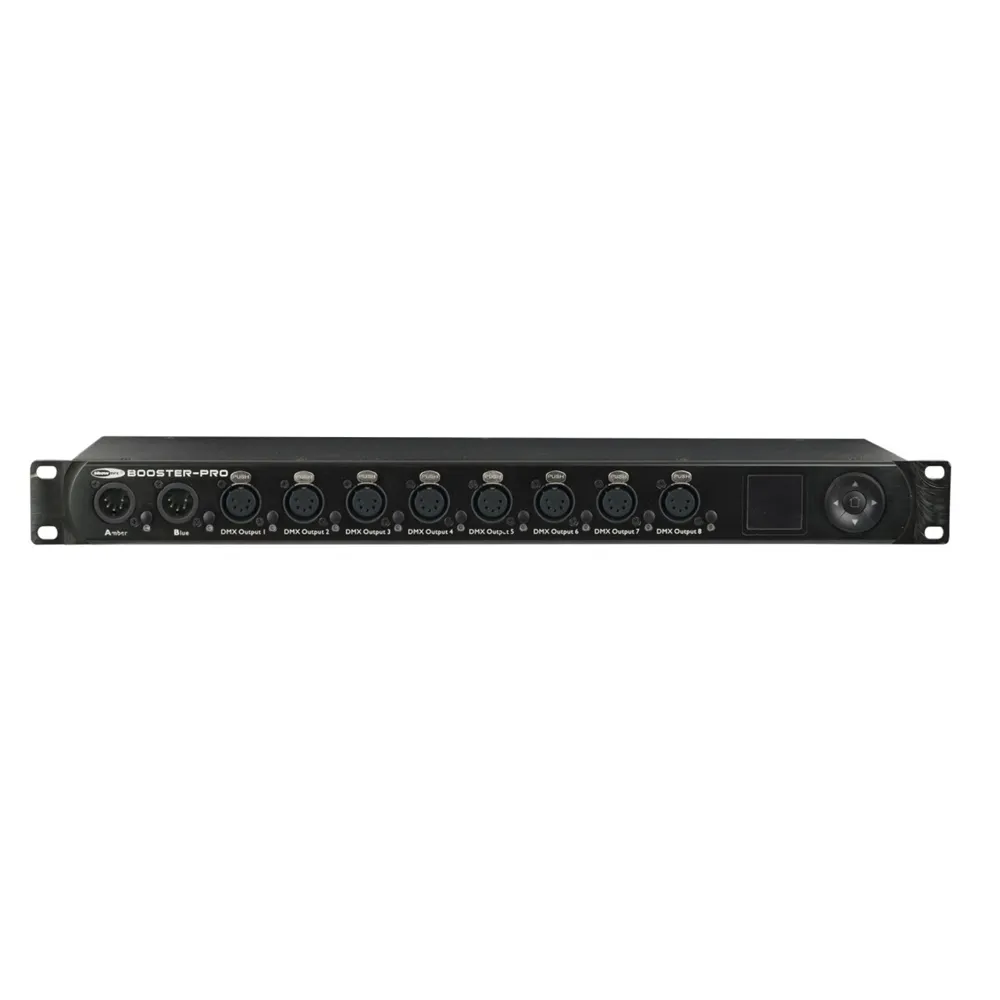

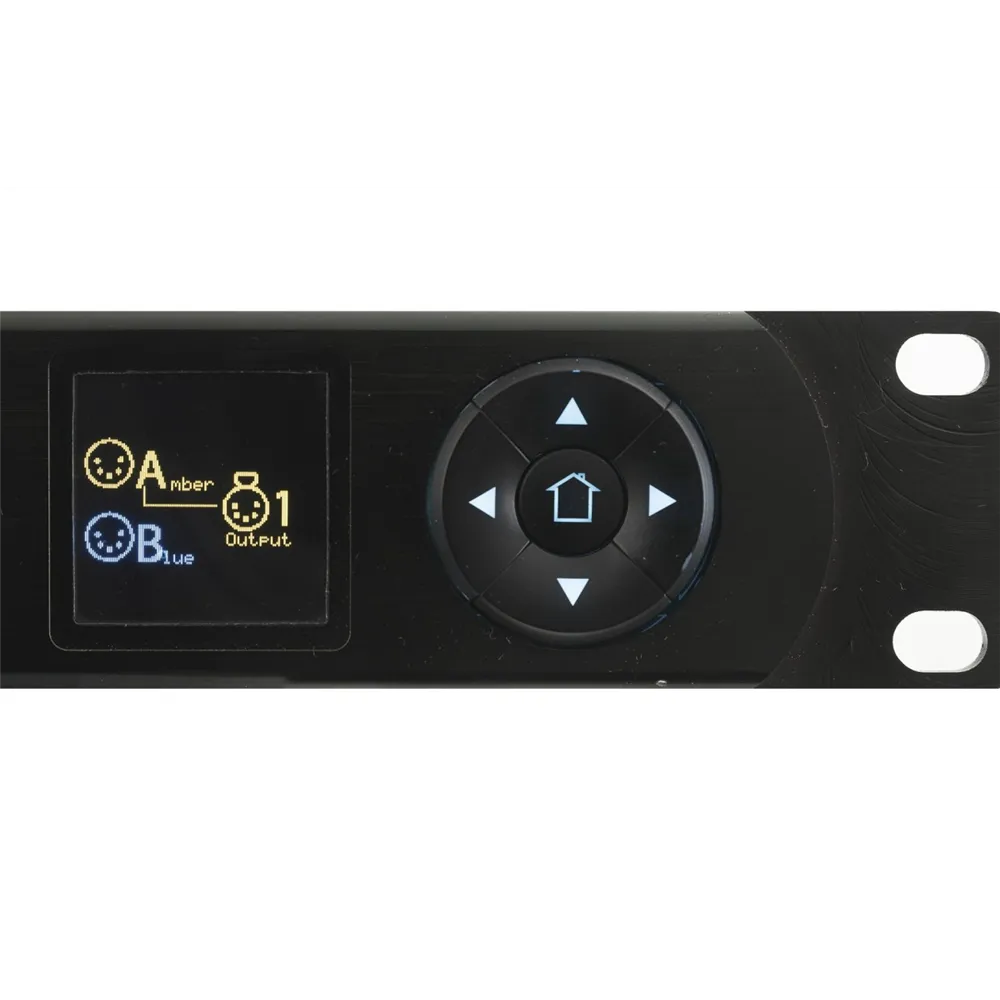

The Showtec Booster Pro is an essential DMX tool for rental companies and event organizers, designed to elevate your lighting installations to the next level. This optically isolated DMX splitter and booster features two inputs that can be patched to eight selectable outputs, providing you with maximum flexibility in signal distribution. The Booster Pro is fully RDM-compatible, allowing for real-time monitoring of the DMX signal, making it an ideal partner for professional applications.

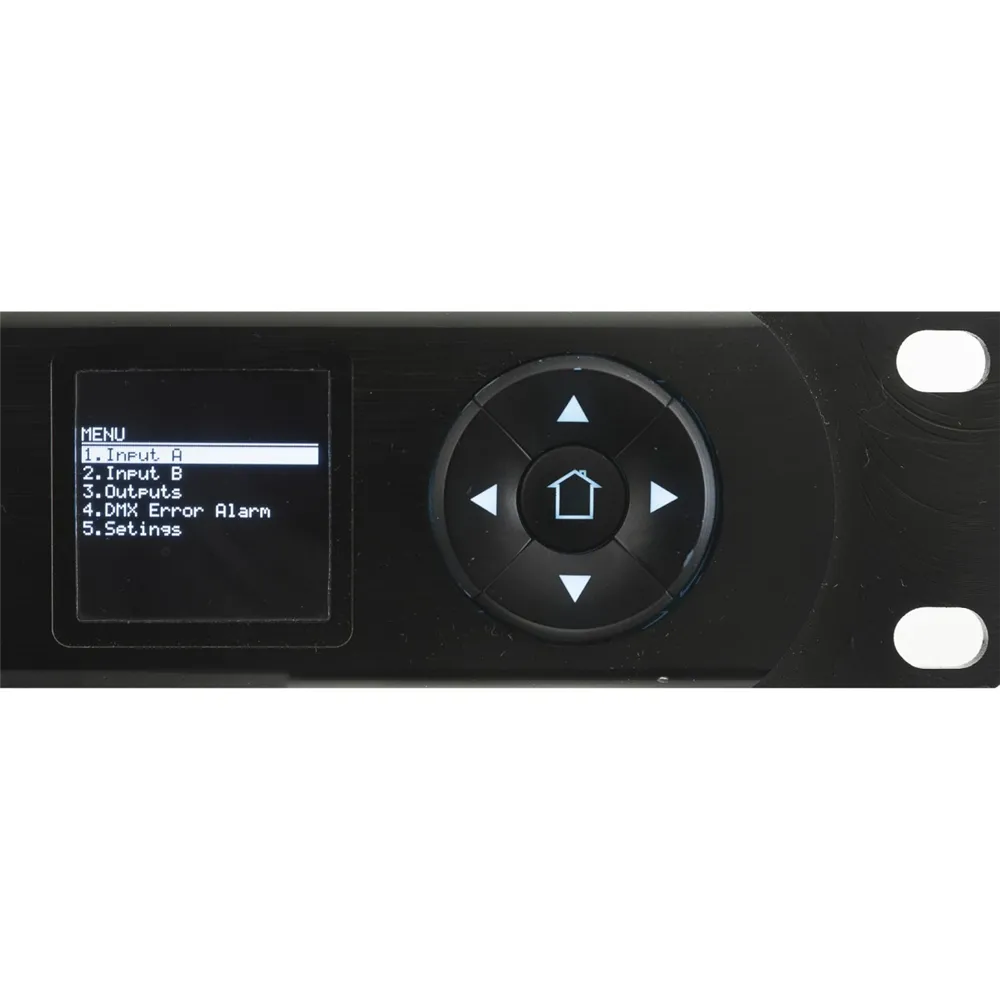

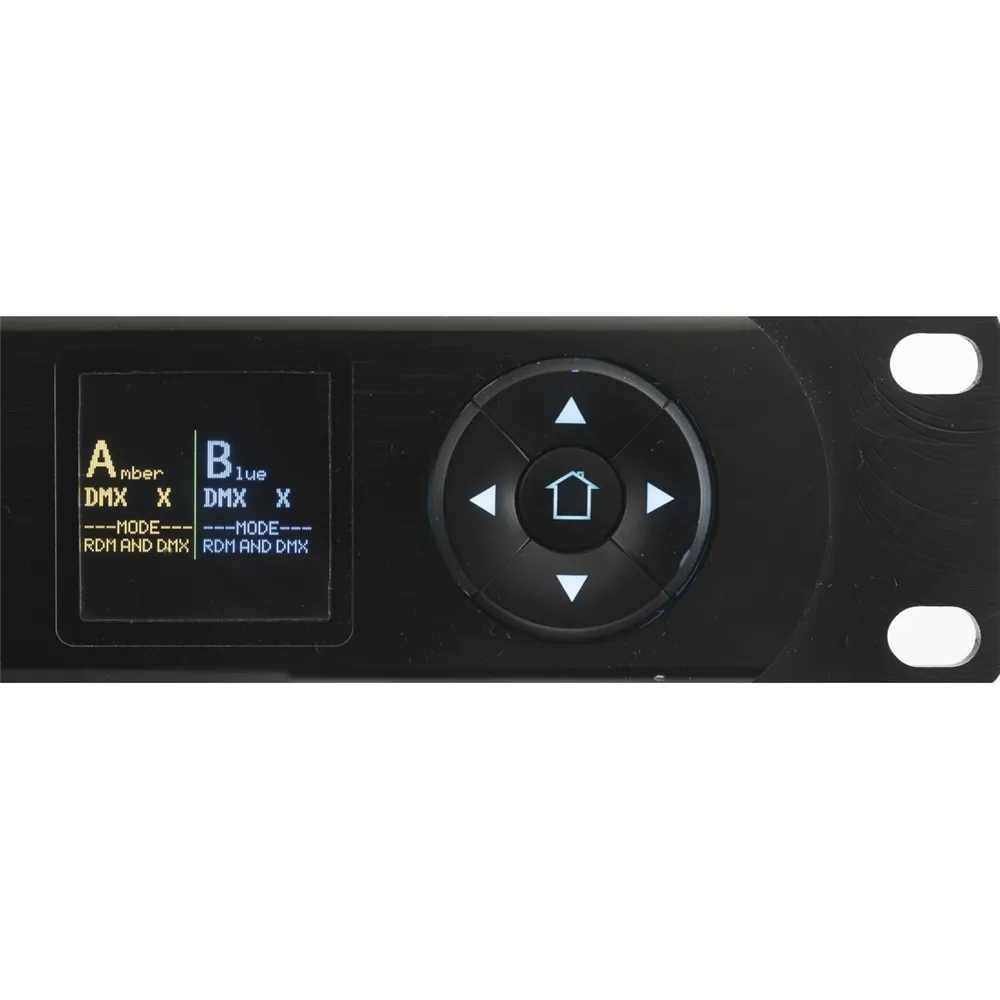

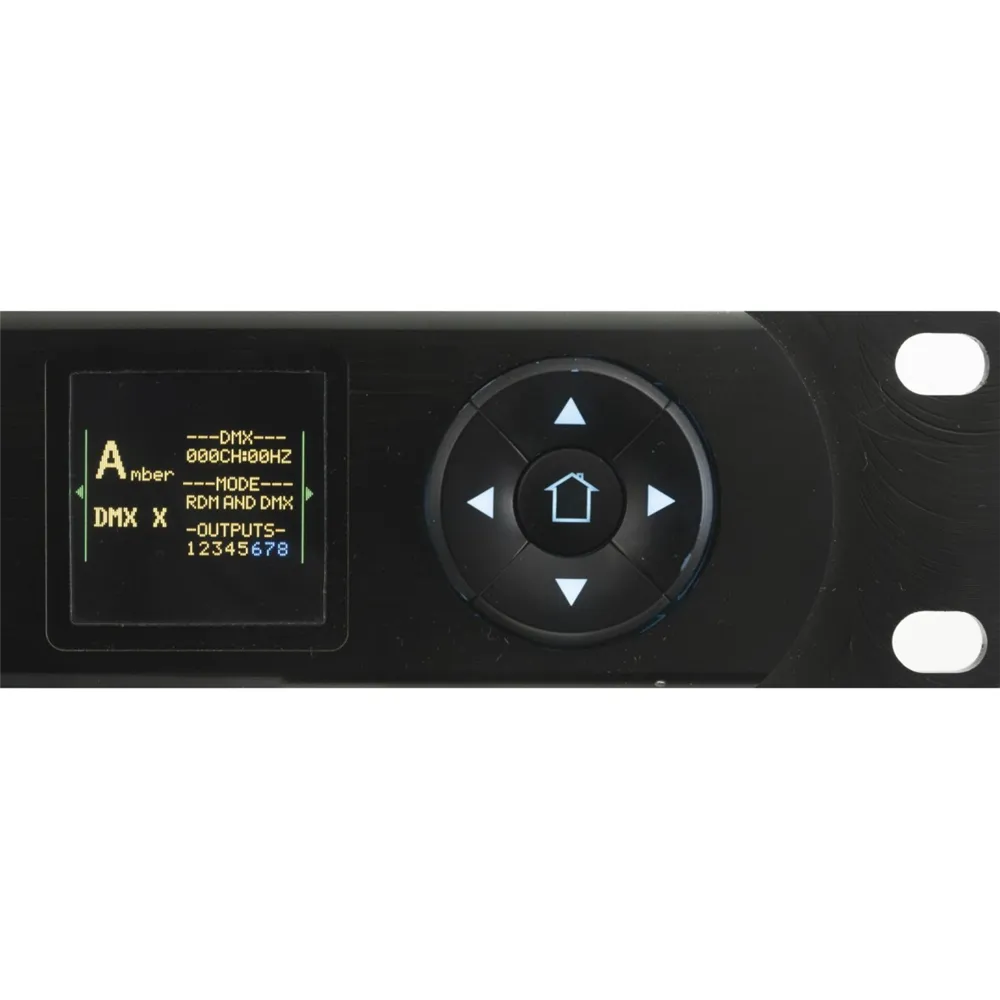

With an intuitive OLED display, you can quickly and easily adjust the various functions. Each output is equipped with a monitoring feature that checks the status of the connected cables in real-time. In case of errors, you will be immediately alerted by an acoustic warning signal. Additionally, you can customize the DMX timing for specific applications to achieve optimal results.

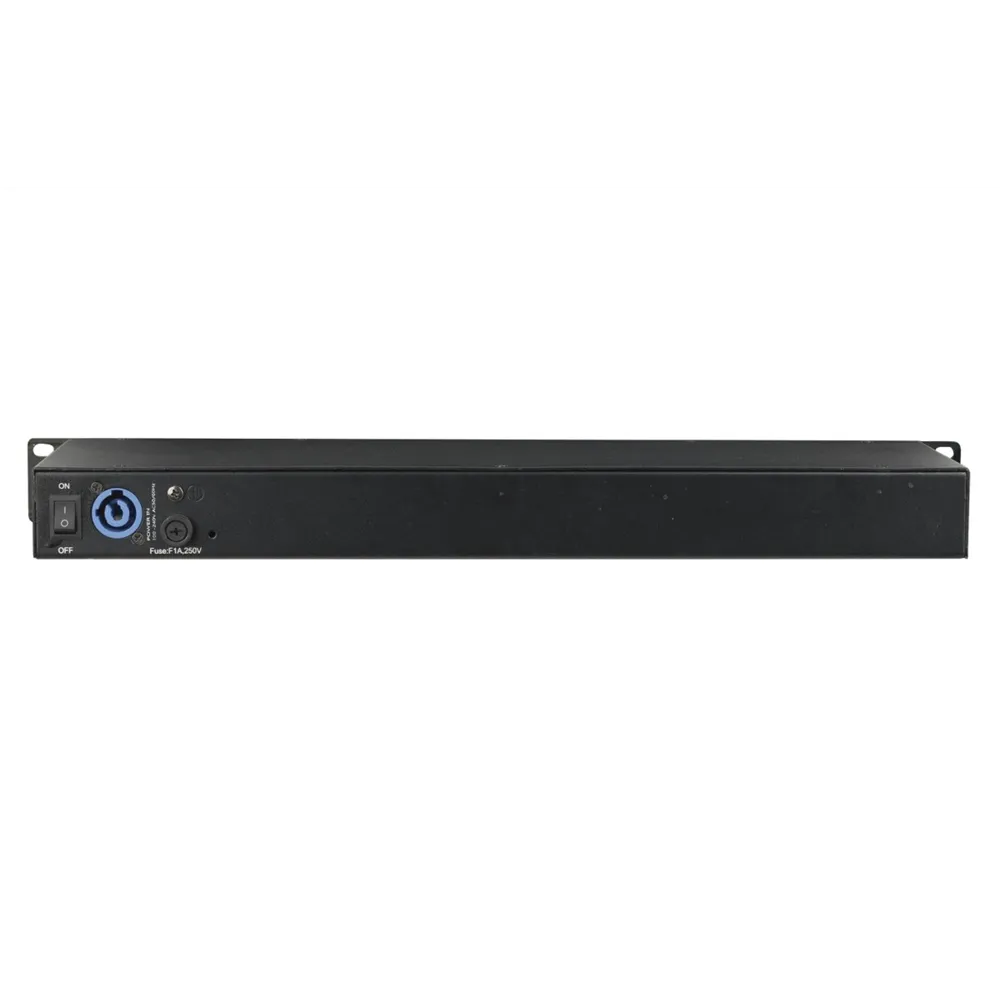

The Showtec Booster Pro is robustly constructed and offers a power supply of 100-240 VAC. Weighing only 2 kg and featuring compact dimensions, it is both portable and easy to integrate. Rely on the Showtec Booster Pro to manage your DMX setups reliably and efficiently.
