EUROLITE LED IP FL-20 SMD Cool White

EUROLITE LED IP FL-20 SMD Cool White

Brand:

Features

Flat outdoor spotlight (IP66) with white SMD LEDs
30 powerful SMD 2835 cool white (CW) LEDs
Device cooling via passive convection cooling
Plug and play controllable
Includes mounting bracket
Suitable for outdoor use IP66
Available in various versions
Silent operation
Applications include: Installation; Restaurants, Bars, and Hotels; Architecture
Usage option: Portable
Power supply: 230 V AC, 50 Hz
Total power consumption: 22 W
Protection class: IP66
Protection rating: Class I
Power connection: Fixed power supply cable with protective contact plug
Cable construction: 3 x 1.0 mm² H05RN-F
Cable length: Approx. 1 m
Type of lamp: LED lamp
LED type: 30 x SMD 2835 cool white (CW)
Cooling: Passive convection cooling
Beam angle (1/2 Peak): 70°
Beam angle (1/10 Peak): 120°
Color temperature: 6000K
Luminous flux: 1756 lm
Housing color: Matte black
Mounting system: Mounting bracket
Material: Die-cast aluminum
Dimensions: Width: 13 cm, Depth: 2.3 cm, Height: 10 cm
Weight: 0.36 kg
Noise classification: Class 0 (no noise)
Energy efficiency class (A - G): F
EPREL No: 963751
Diameter of mounting holes: 1 x Ø8mm; 2 x Ø6mm
Material of mounting bracket: Metal, 1.5 mm

EUROLITE LED IP FL-20 SMD CW

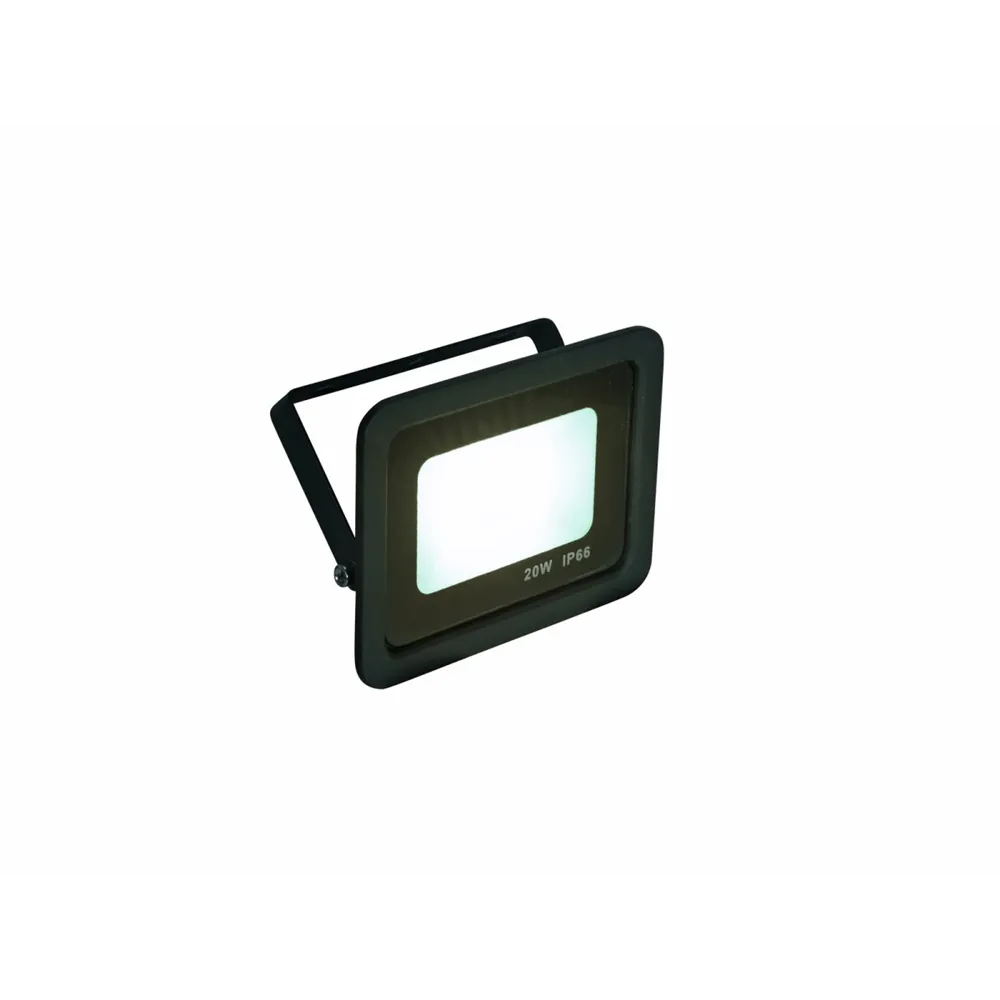

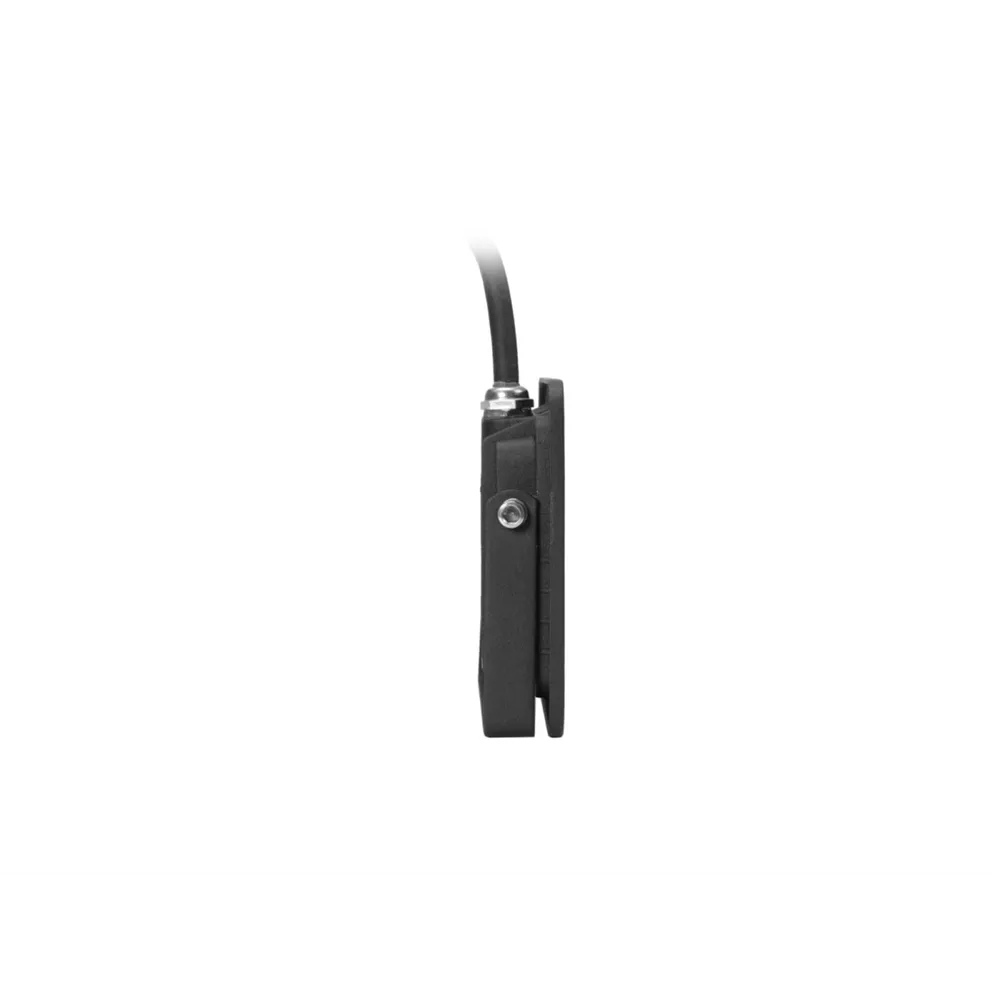

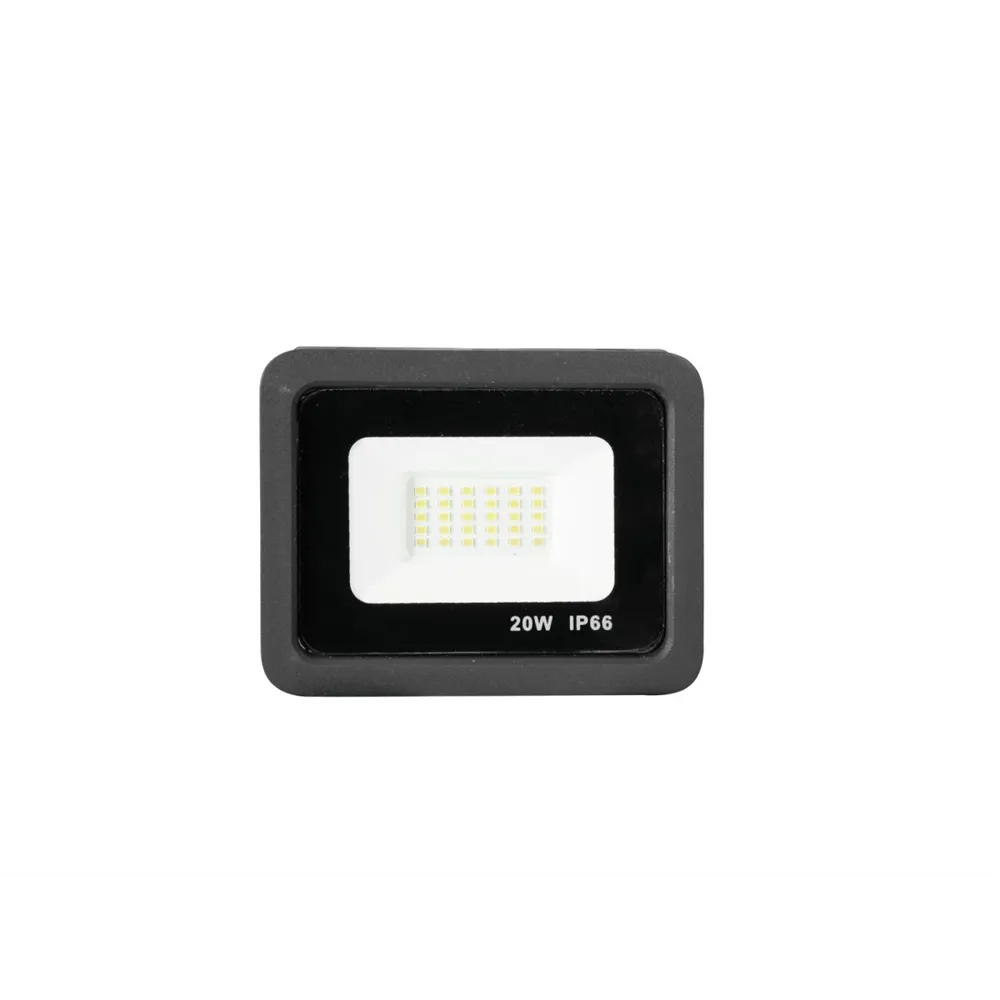

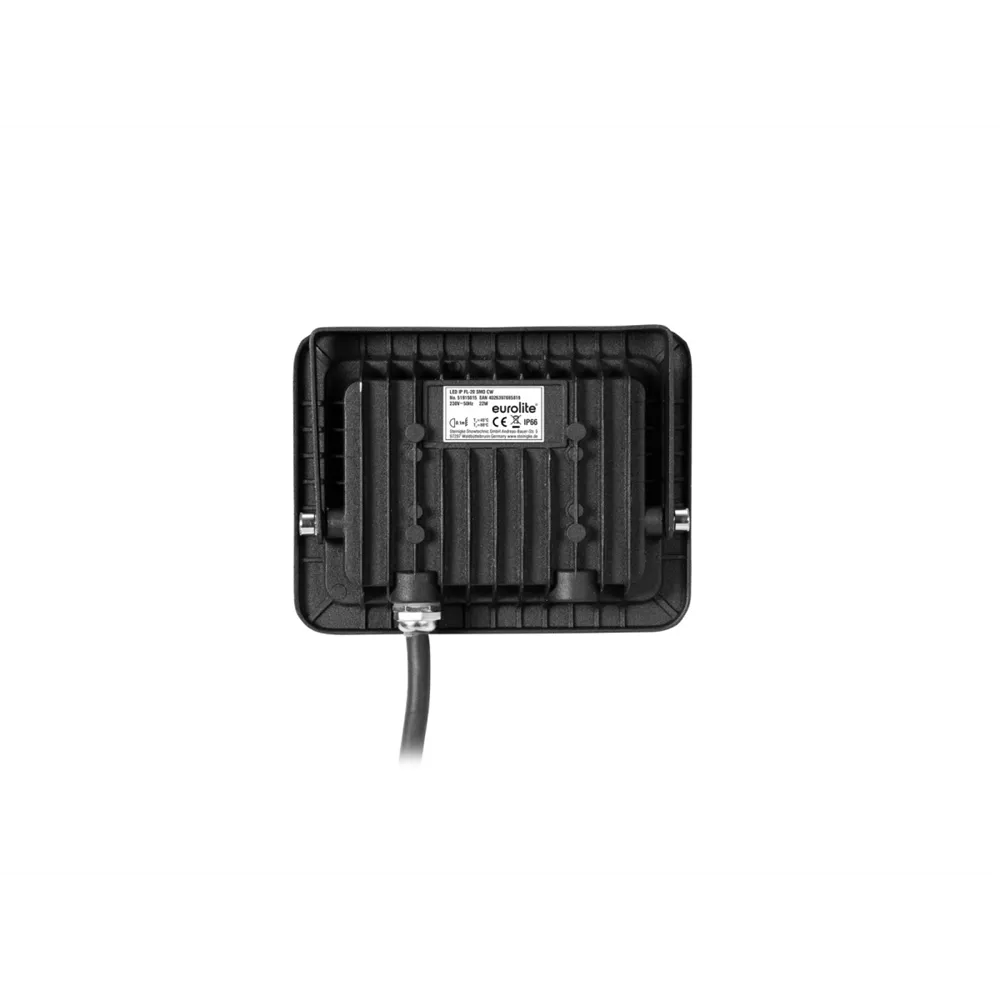

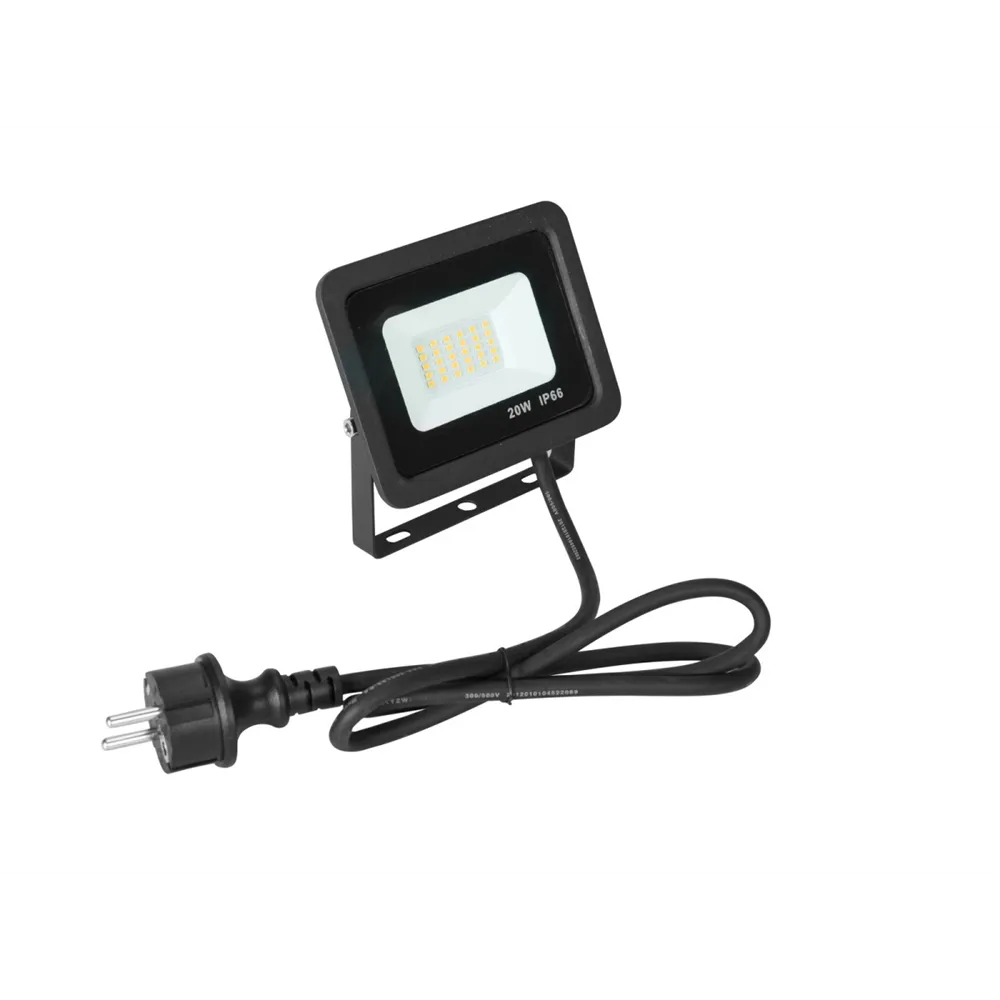

The EUROLITE LED IP FL-20 SMD CW is a flat outdoor spotlight equipped with 30 high-performance SMD 2835 cool white LEDs. With a color temperature of 6000K and a luminous flux of 1756 lm, it provides bright and clear illumination, making it ideal for various applications such as installations in restaurants, bars, hotels, and architectural projects.

Thanks to its IP66 protection rating, this spotlight is perfectly suited for outdoor use and offers reliable performance under various weather conditions. The passive convection cooling ensures silent operation, while the plug-and-play control allows for easy installation. The spotlight comes with a mounting bracket that enables flexible positioning.

With a beam angle of 70° (1/2 Peak) and 120° (1/10 Peak), the EUROLITE LED IP FL-20 SMD CW provides a wide light distribution. The matte black die-cast aluminum housing gives the spotlight a modern and elegant appearance. Weighing only 0.36 kg, it is easy to handle and install.
