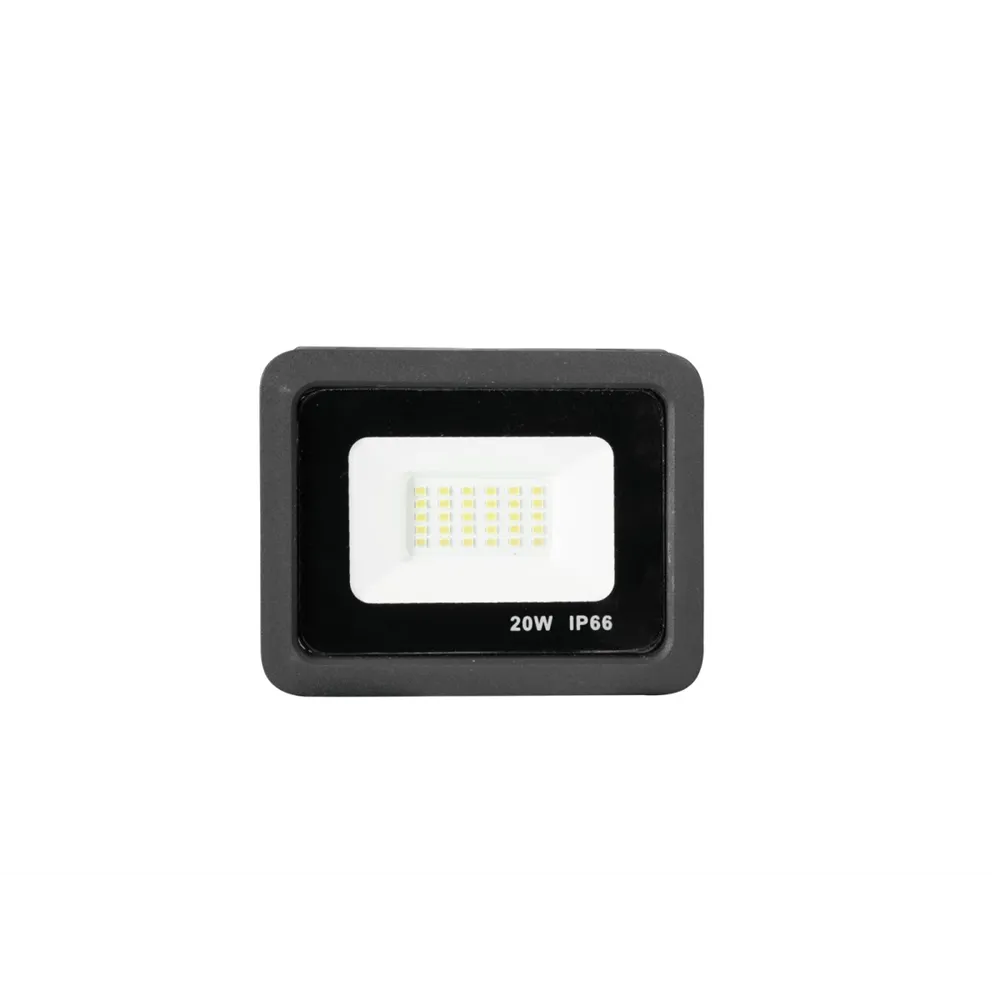

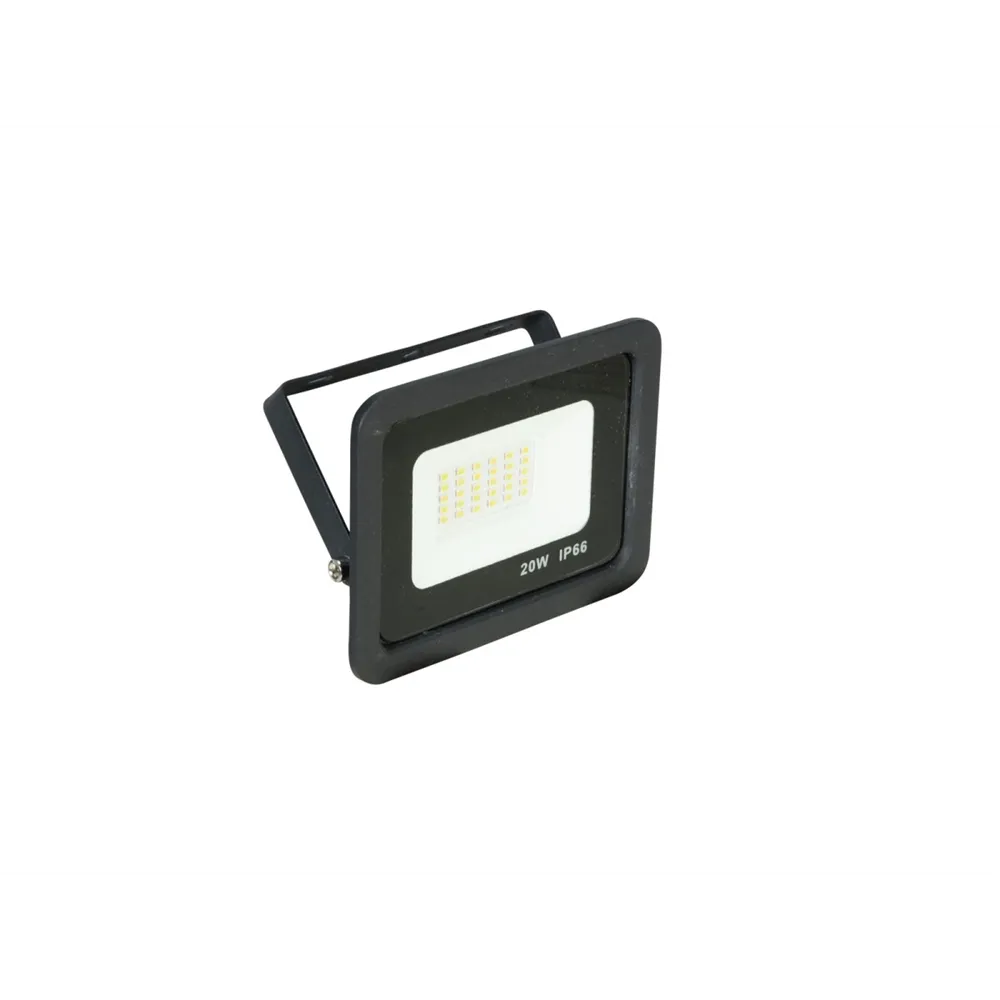

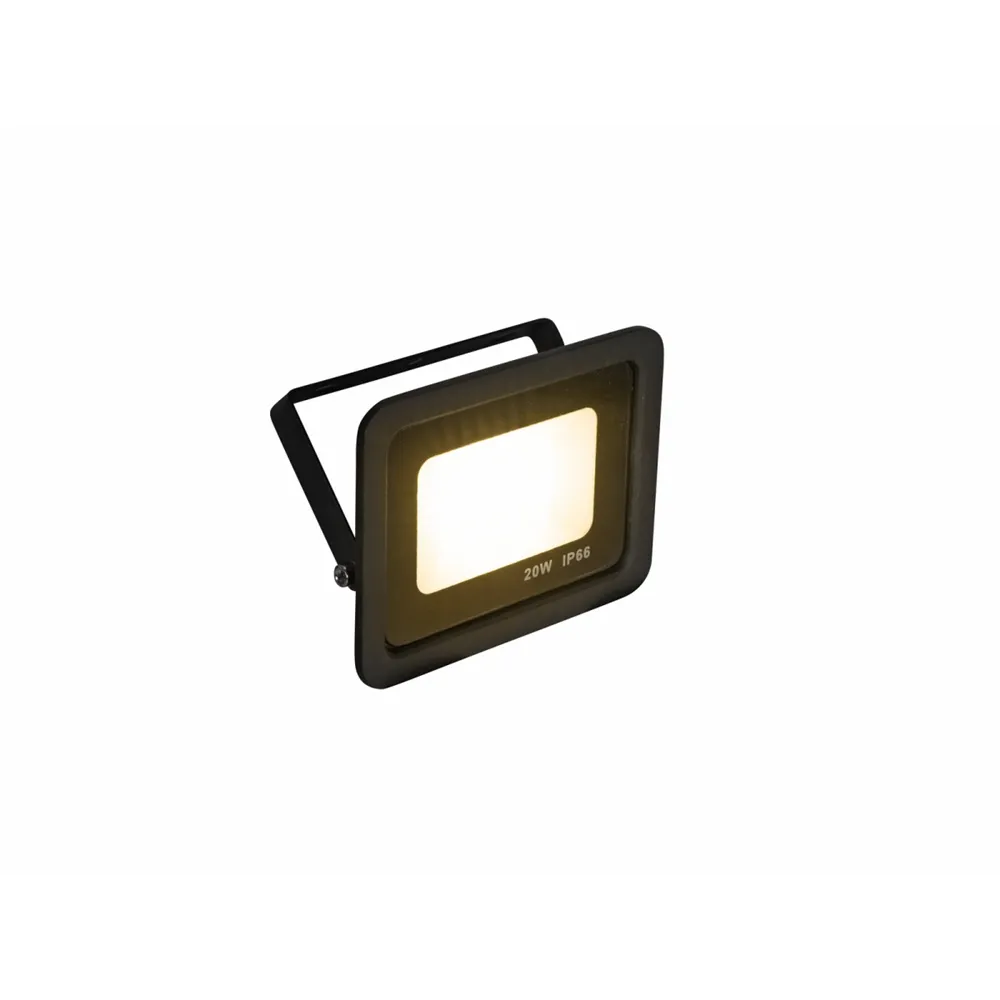

EUROLITE LED IP FL-20 SMD Warm White

EUROLITE LED IP FL-20 SMD Warm White

Brand:

Features

Flat outdoor spotlight (IP66) with white SMD LEDs
30 powerful warm white SMD 2835 LEDs (WW)
Device cooling via passive convection cooling
Plug and play operation
Good color rendering index (CRI)
Includes mounting bracket
Suitable for outdoor use (IP66)
Available in various versions
Silent operation
Ideal for applications such as: Installations; Restaurants, Bars, and Hotels; Architecture
Mounting option: Suspended
Power supply: 230 V AC, 50 Hz
Total power consumption: 22 W
Protection class: IP66
Protection rating: Class I

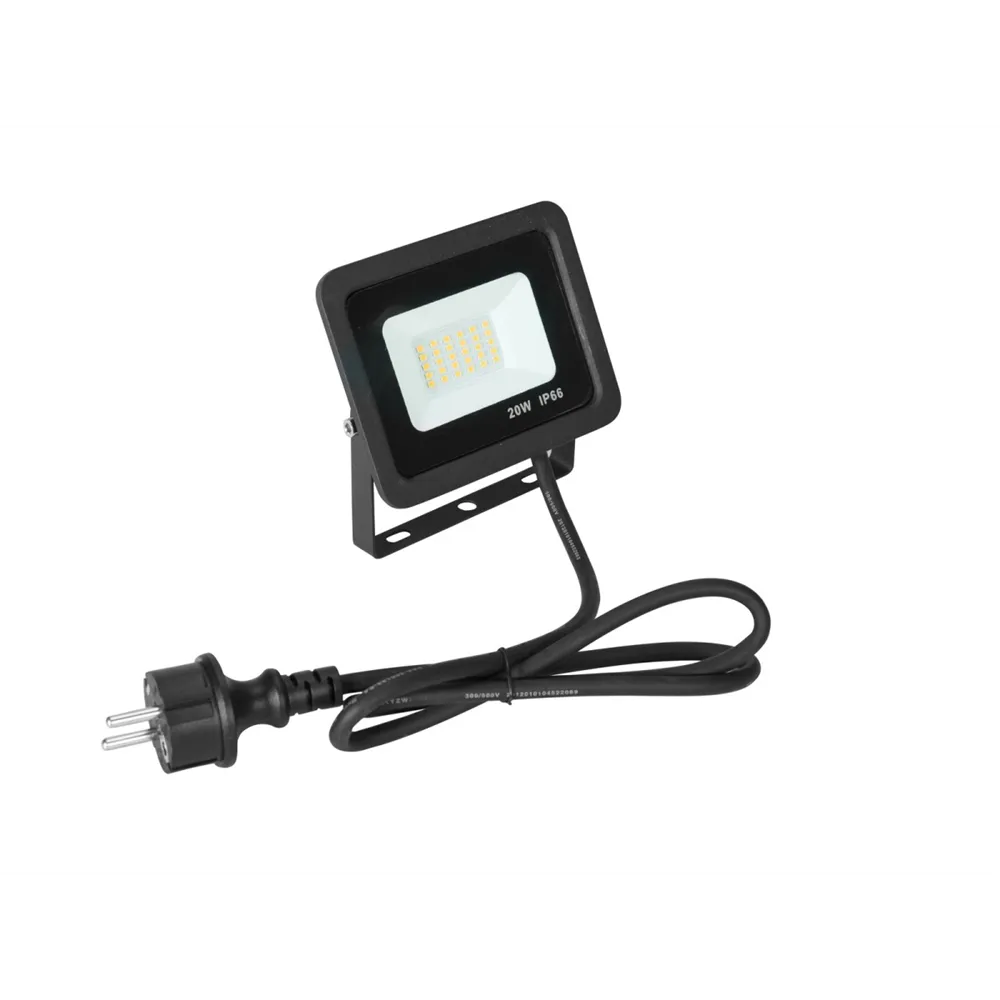

Power connection: Fixed power supply cable with protective contact plug
Cable construction: 3 x 1.0 mm² H05RN-F
Cable length: Approx. 1 m
Type of lamp: LED lamp
LED type: 30 x SMD 2835 warm white (WW)
Cooling: Passive convection cooling
Beam angle (1/2 Peak): 70°
Beam angle (1/10 Peak): 120°
Color temperature: 3000K
Color rendering index (CRI): 81 Ra
Luminous flux: 1706 lm
Housing color: Matte black
Mounting system: Mounting bracket
Material: Die-cast aluminum
Dimensions: Width: 13 cm, Depth: 2.3 cm, Height: 10 cm
Weight: 0.36 kg
Noise classification: Class 0 (no noise)
Energy efficiency class (A - G): F
EPREL No: 963719
Diameter of mounting holes: 2 x Ø6mm; 1 x Ø8mm
Material of mounting bracket: Metal, 1.5 mm

EUROLITE LED IP FL-20 SMD WW

The EUROLITE LED IP FL-20 SMD WW is a flat outdoor spotlight equipped with 30 powerful SMD 2835 LEDs in warm white (3000K). With an impressive luminous flux of 1706 lumens and a good color rendering index (CRI) of 81 Ra, this spotlight ensures excellent light quality for various applications. Thanks to its IP66 protection rating, it is ideal for outdoor use and can withstand the elements.

The passive convection cooling ensures silent operation, making it perfect for use in restaurants, bars, hotels, and architectural installations. The spotlight can be easily controlled via plug and play and comes with a convenient mounting bracket that allows for flexible installation.

With a beam angle of 70° (1/2 Peak) and 120° (1/10 Peak), the EUROLITE LED IP FL-20 offers wide light distribution. The matte black aluminum housing gives it a modern and elegant appearance. The spotlight is not only functional but also aesthetically pleasing, making it suitable for any environment.
