Features
- 8 Channels
- 3 Operating Modes: Automatic Mode, Priority, or 8/1 Channel Mixer

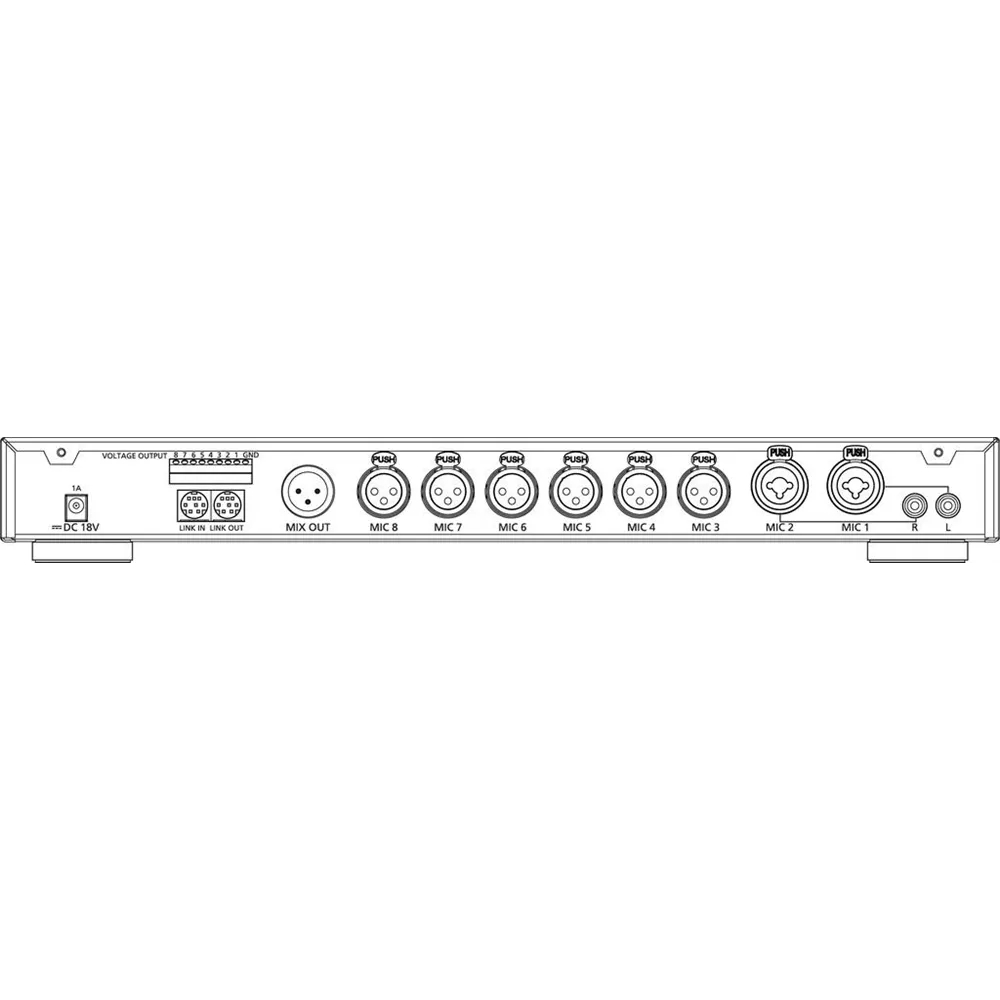

- Balanced XLR Inputs, switchable Mic/Line
- Additional Stereo RCA Input
- 48V Phantom Power
- Mix Output, switchable Mic/Line
- Trigger Outputs for external devices such as warning lights, cameras, or speakers
- Status LEDs
- Link Connections for connecting multiple devices (cables included)
- Desktop Metal Housing
- 482 mm Rack Mount (19") with included mounting brackets
- Number of Channels: 8
- Number of Inputs: 8
- Mic Input: 0.2 mV/4.7 kΩ
- Line Input: 60 mV/20 kΩ
- Aux Output: 1 V/200 Ω
- Frequency Range: 35-20,000 Hz
- Signal-to-Noise Ratio: > 70 dB
- Phantom Power: +48 V
- Power Supply: via included plug-in power supply
- Permissible Operating Temperature: 0-40 °C
- Width: 420 mm
- Height: 44 mm
- Depth: 199 mm
- Weight: 2.3 kg
- Packaging Dimensions (W x H x L): 0.3 x 0.105 x 0.505 m
- Gross Weight: 3.17 kg
- Net Weight: 2.55 kg

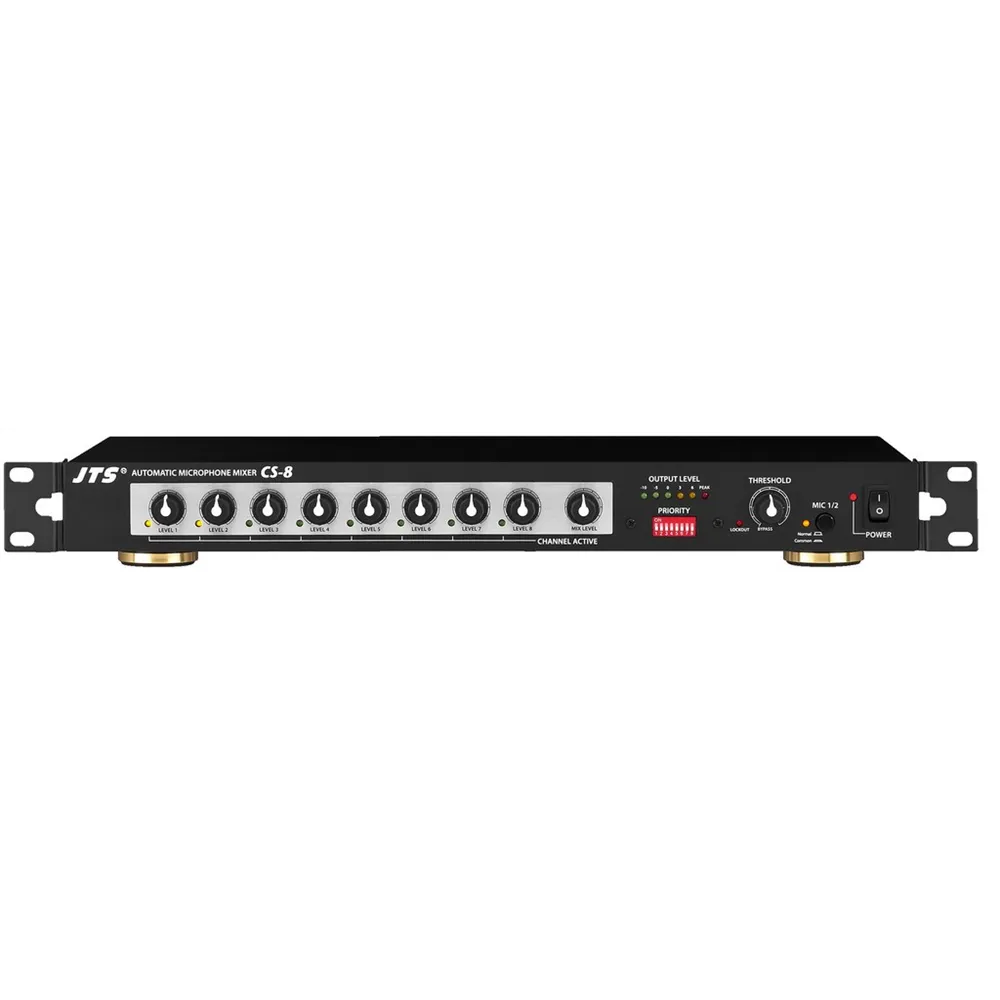

JTS 8-Channel Microphone-Line Mixer with Auto On/Off
The JTS 8-Channel Microphone-Line Mixer with Auto On/Off is the ideal solution for professional audio applications in conference rooms, churches, and language labs. With its intelligent automatic function, the mixer activates microphones only when needed and silently deactivates them once the speaker has finished. This ensures clear and transparent sound quality while minimizing feedback and distracting background noise.
The mixer features 8 balanced XLR inputs that can be switched between microphone and line inputs, as well as an additional stereo RCA input. With three operating modes – Auto Mode, Priority, and 8/1 Channel Mixer – the device adapts flexibly to your needs. The 48V phantom power allows for the use of condenser microphones, while the trigger outputs can control external devices such as warning lights or cameras.
The robust desktop metal housing and the option for rack mounting (482 mm) make the JTS Mixer a versatile and durable companion for any event. With a frequency range of 35-20,000 Hz and a signal-to-noise ratio of over 70 dB, this mixer delivers outstanding audio quality that elevates your presentations to the next level.
