Features
- 4 Channels
- 3 Operating Modes: Automatic Mode, Priority, or 4/1 Channel Mixer

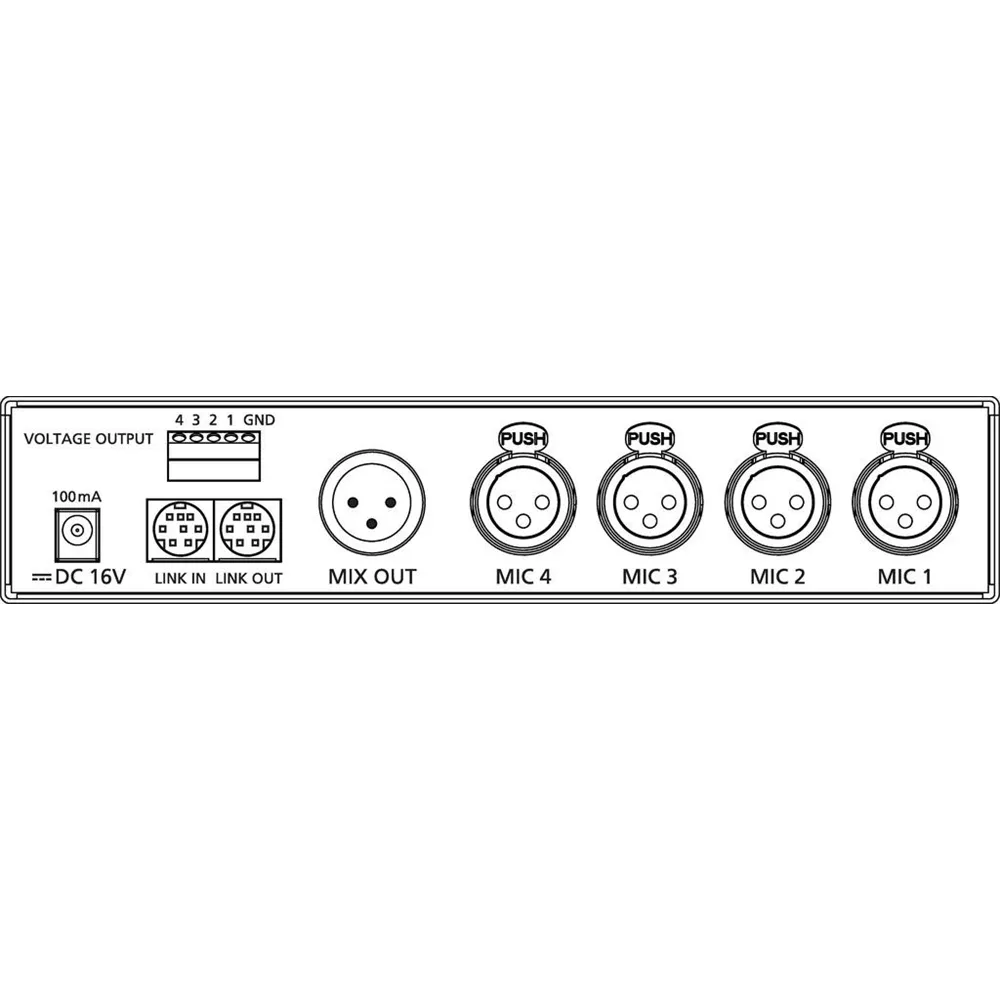

- Balanced XLR Inputs, switchable Mic/Line
- 12V Phantom Power
- Mix Output, switchable Mic/Line
- Trigger Outputs for external devices such as warning lights, cameras, or speakers
- Status LEDs

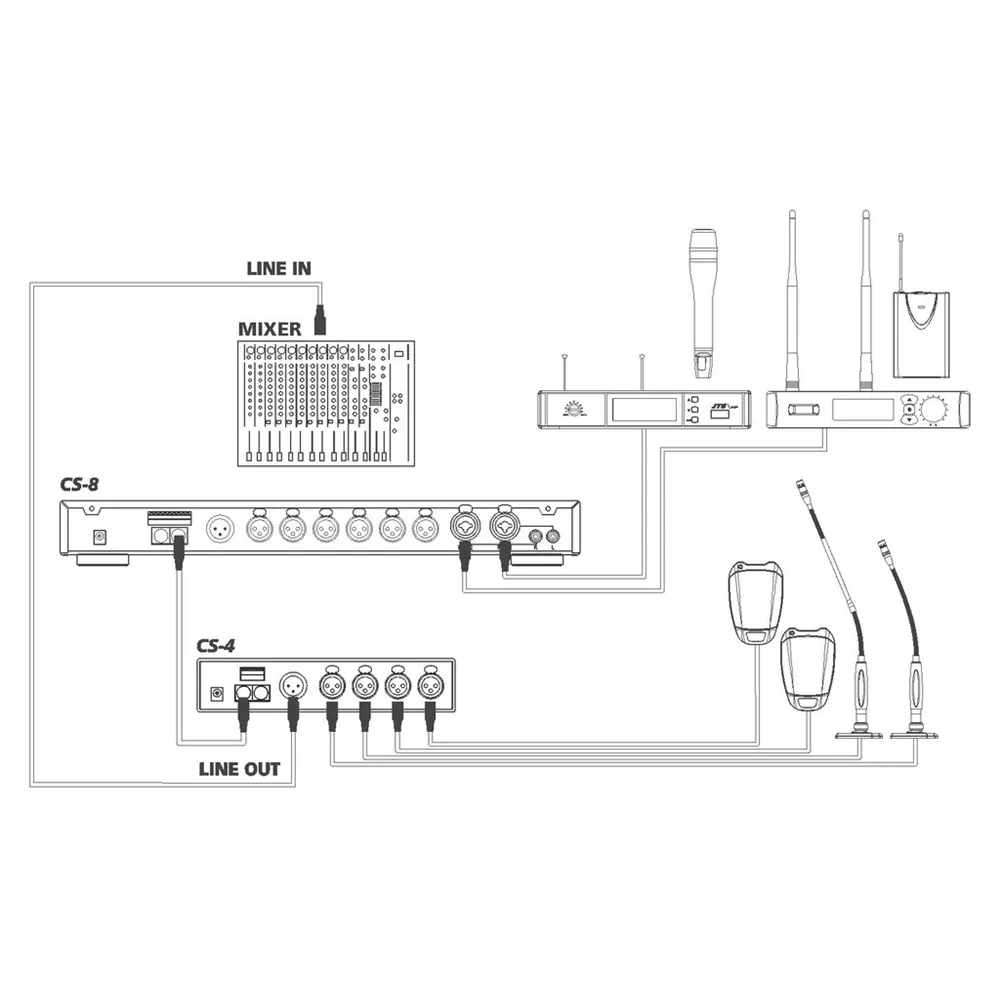

- Link Connections for daisy-chaining multiple devices (cables included)
- Desktop Metal Housing
- 482 mm Rack Mount (19") with included mounting brackets
- Frequency Range: 35-20,000 Hz
- Signal-to-Noise Ratio: > 70 dB
- Phantom Power: +12 V
- Power Supply via included Plug-in Power Adapter
- Operating Temperature Range: 0-40 °C
- Dimensions: 200 mm (W) x 44 mm (H) x 212 mm (D)
- Weight: 1.4 kg

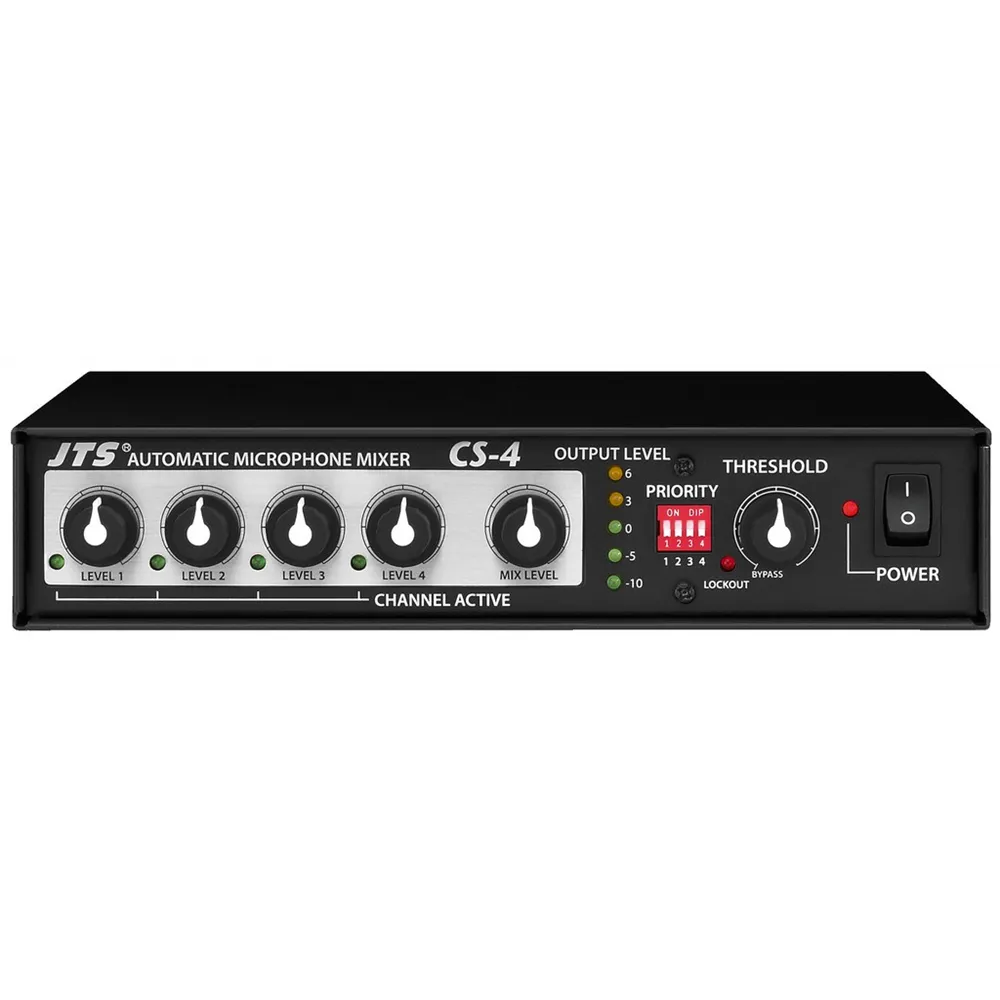

JTS 4-Channel Microphone-Line Mixer with Auto On/Off
The JTS 4-Channel Microphone-Line Mixer is the ideal solution for professional audio applications in conference rooms, churches, and language labs. With its intelligent automatic function, the mixer activates microphones only when needed and silently deactivates them once the speaker has finished. This ensures that no important words are lost and that the sound remains clear and transparent.
The mixer offers three operating modes: Automatic Mode, Priority Mode, and 4/1 Channel Mixer, allowing you to maintain control over your audio sources. Featuring balanced XLR inputs that can switch between microphone and line input, as well as 12V phantom power, the mixer is highly versatile. The mix output can also be switched between microphone and line output, providing additional flexibility.
The trigger outputs enable the control of external devices such as warning lights or cameras, while the status LEDs give you a clear overview of the operational status at all times. Thanks to its robust desktop metal housing and the option for rack mounting, the JTS Microphone-Line Mixer is perfectly suited for both stationary and mobile use.
