Features
- DMX-controllable panel light with 704 cool white LEDs
- 704 high-performance SMD 2835 cool white (CW) LEDs
- Energy-efficient, long-lasting, and environmentally friendly
- Perfect glare and transport protection with 4 barn doors
- Variable pulse width modulation
- Passive convection cooling
- Controllable via stand-alone; DMX; quick selection potentiometer for brightness and flash rate; master/slave function; music control via microphone; W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional)
- Flicker-free operation
- Beam angle of 120°
- Color Rendering Index (CRI): 80 Ra
- Includes mounting bracket
- LCD display
- Flat, robust metal housing
- Suitable for applications such as video and photography; stage; exhibition and retail construction; mobile use
- Pre-programmed with Light Captain; Light’J
- Power input and output for easy linking of up to 8 devices
- Sturdy carrying handle
- Silent operation
- Usage options: flying; on tripod
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 140 W
- Protection class: IP20
- Fuse: T 3 A replaceable fuse
- Type of lamp: LED lamp
- Flash rate: 0 - 20 Hz
- DMX channels: 1; 2; 3
- DMX input: 3-pin XLR (M) built-in version
- DMX output: 3-pin XLR (F) built-in version
- Illuminance in Lux (lx): Cool white (CW) 1m: 4111 lx, 3m: 598 lx, 6m: 182 lx
- Housing color: Black
- Dimensions: Width: 56.5 cm, Depth: 25.5 cm, Height: 42.2 cm
- Weight: 7.70 kg
- Noise classification: Class 0 (no noise)
- Photobiological safety: Risk group 0
- Special product: Not intended for household room lighting
- Purpose: Lighting for show effects

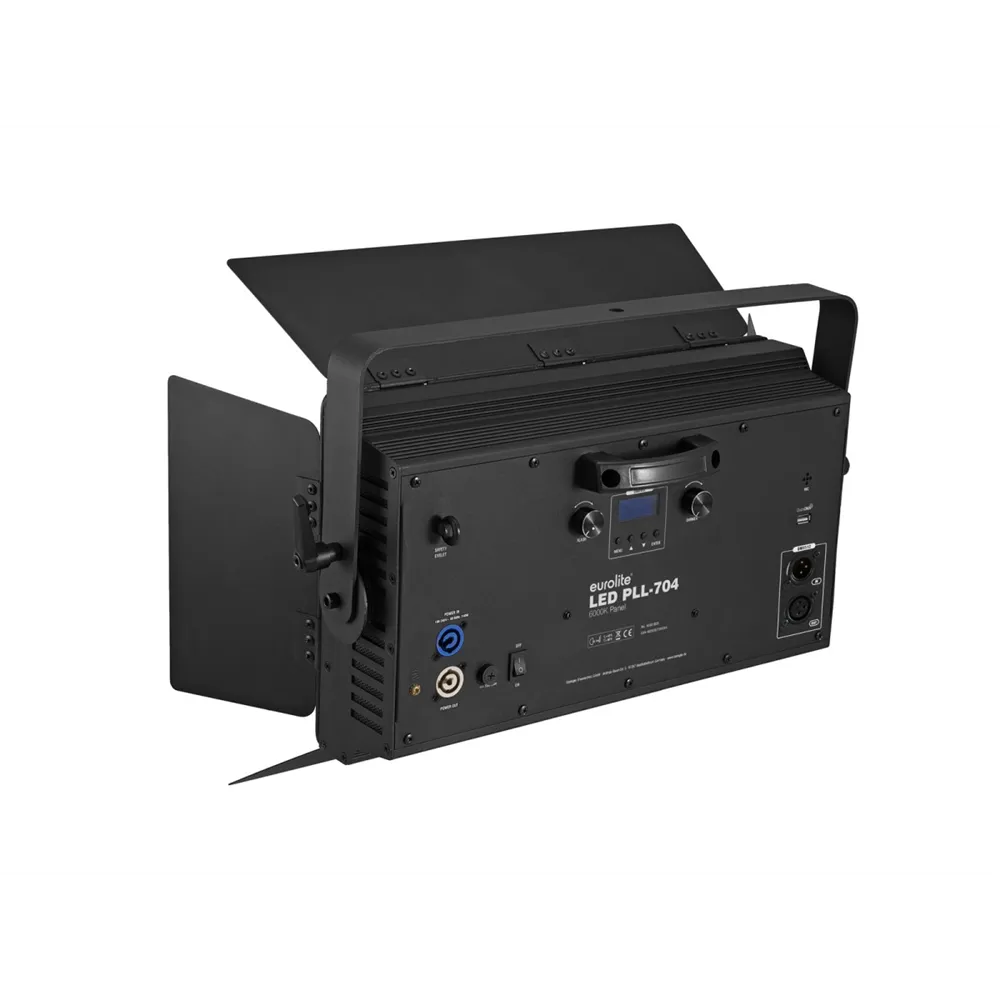

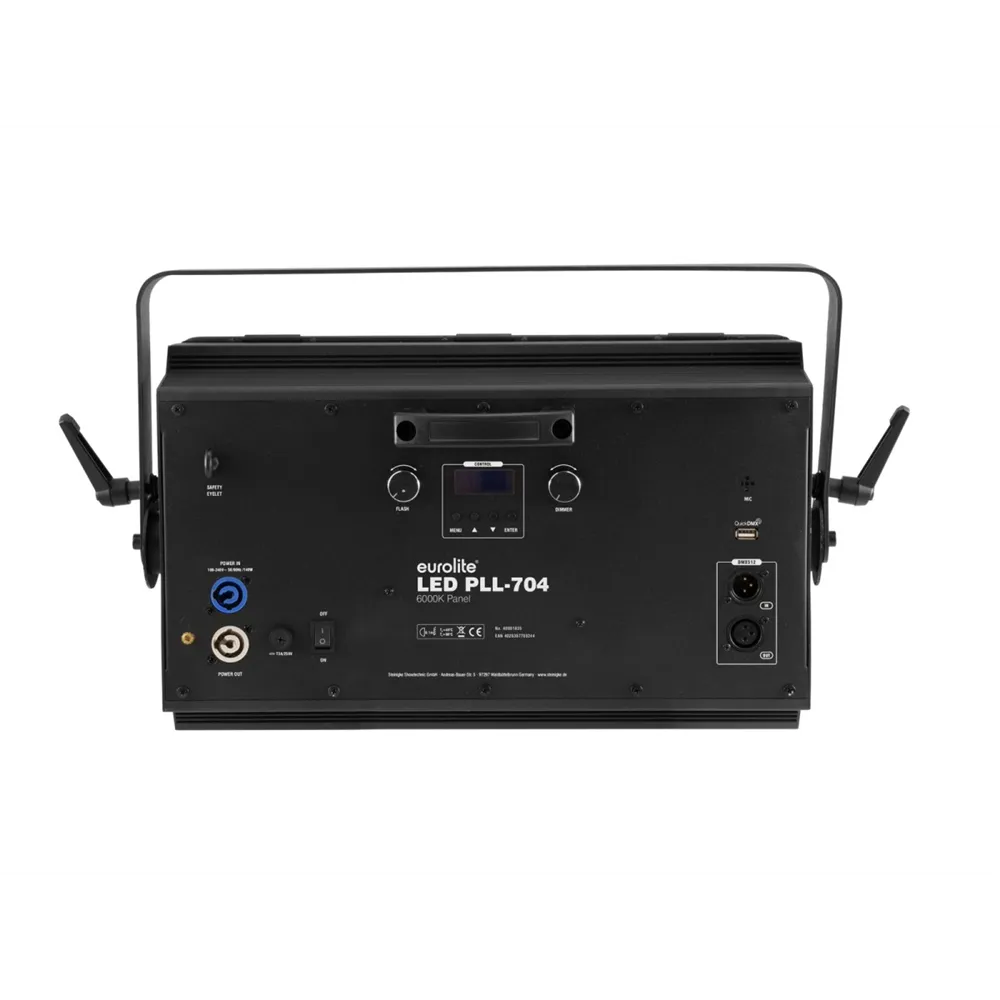

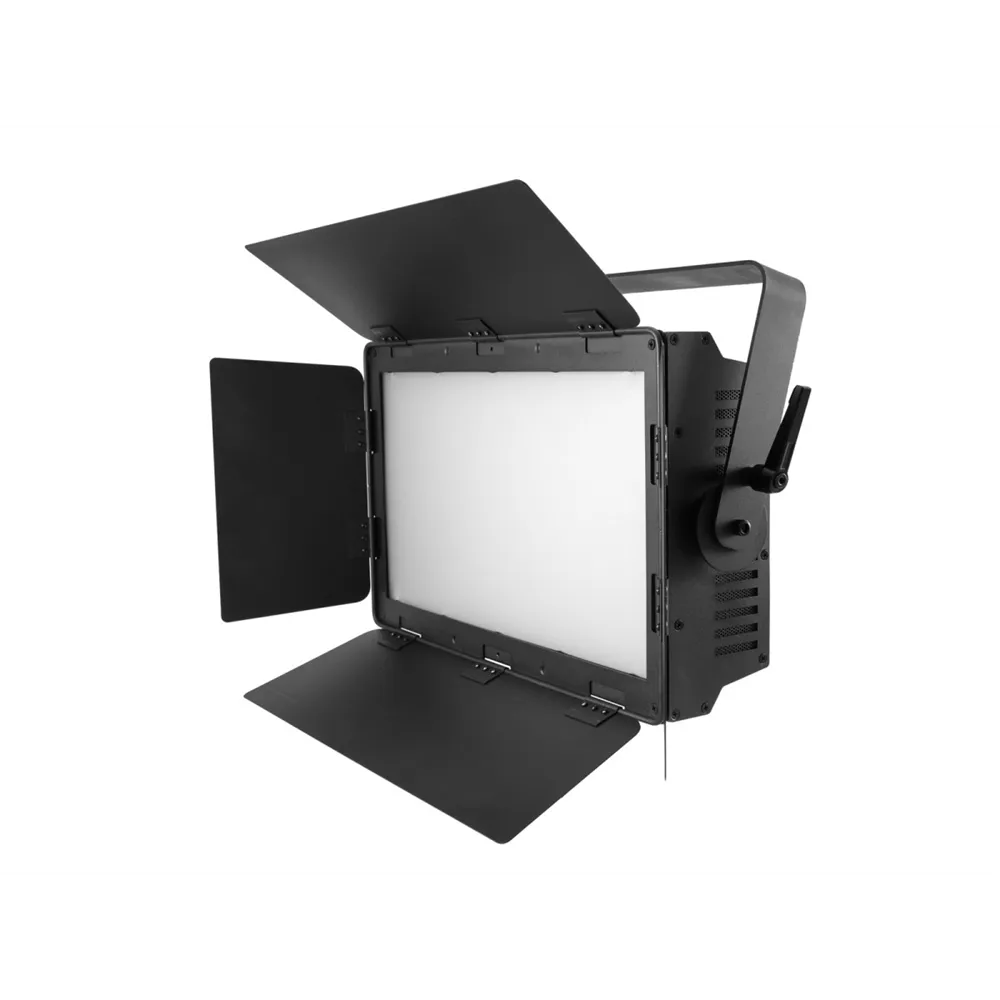

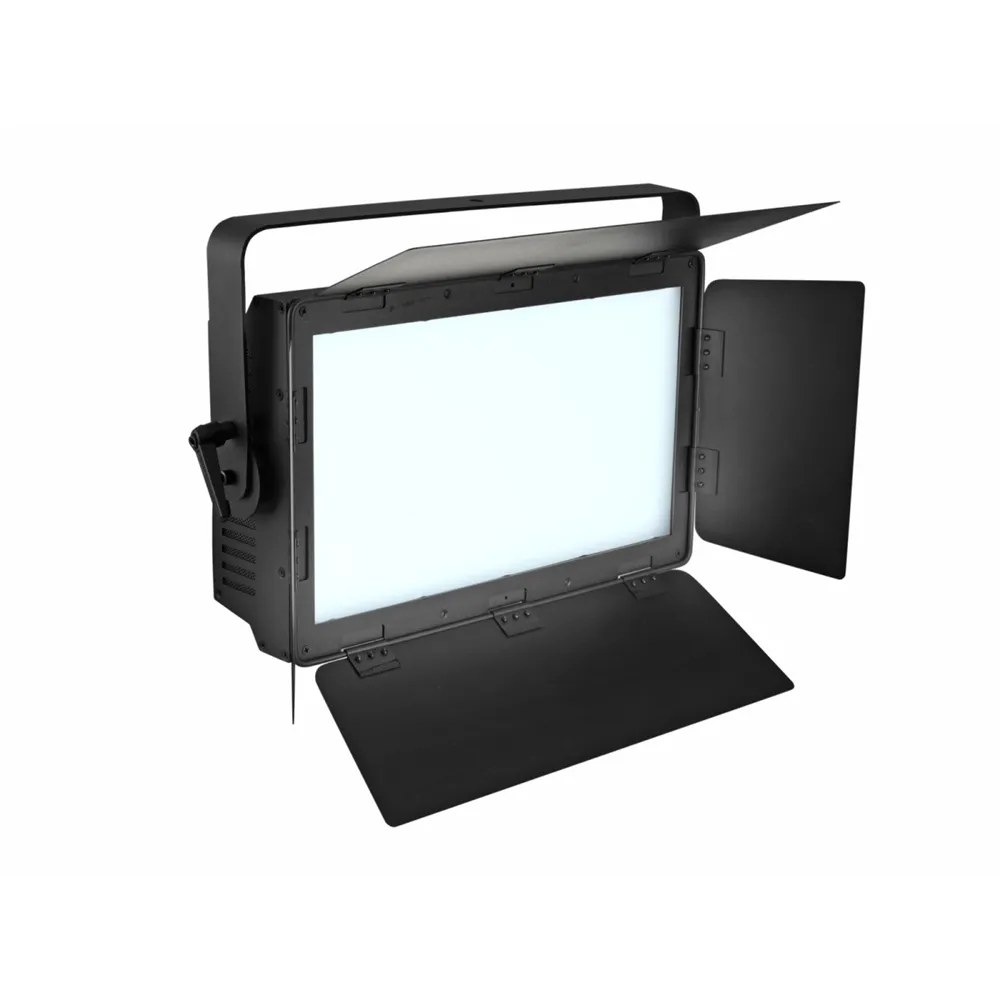

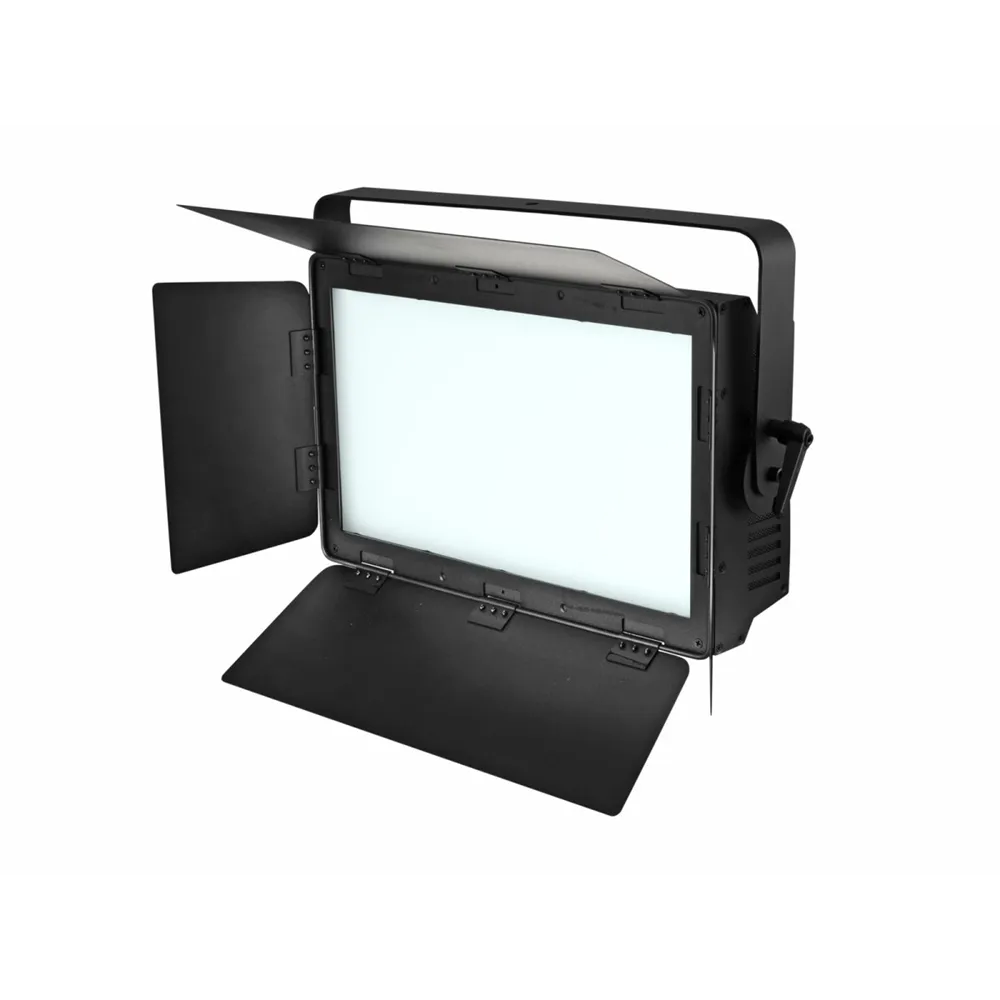

EUROLITE LED PLL-704 6000K Panel
Discover the EUROLITE LED PLL-704 6000K Panel, a powerful DMX-controllable surface light equipped with 704 cool white SMD 2835 LEDs. This energy-efficient and long-lasting fixture not only delivers excellent light quality but also boasts a high Color Rendering Index (CRI) of 80 Ra, making it ideal for professional applications in video and photography, on stage, as well as in exhibition and retail environments.
With a beam angle of 120°, the panel ensures uniform illumination. The passive convection cooling guarantees silent operation, while the four barn doors provide optimal glare and transport protection. Control options include stand-alone mode, DMX, master/slave functionality, and music control via microphone. Additionally, the device is pre-programmed for use with Light Captain and Light'J.
The robust metal housing and mounting bracket allow for flexible application, whether suspended or on a tripod. Weighing only 7.70 kg and featuring a compact design, the EUROLITE LED PLL-704 Panel is the perfect choice for mobile use. Experience the future of lighting with this innovative fixture!
