EUROLITE LED PLL-704 3200K Panel

EUROLITE LED PLL-704 3200K Panel

Brand:

Features

DMX-controllable panel light with 704 warm white SMD 2835 LEDs
Energy-efficient, long-lasting, and environmentally friendly

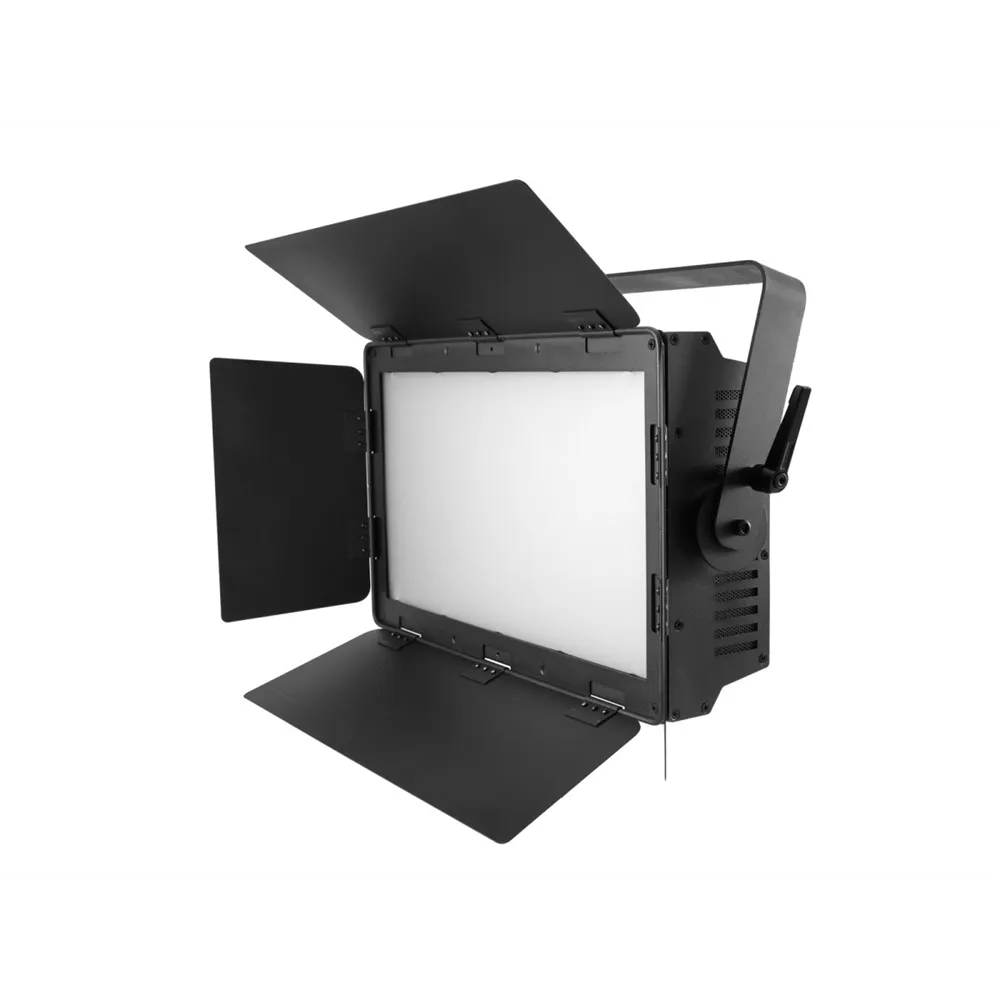

Perfect glare and transport protection with 4 barn doors
Variable pulse width modulation
Passive convection cooling
Controllable via stand-alone; DMX; quick selection potentiometer for brightness and flash rate; music control via microphone; master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by Wireless Solution via USB (optional); QuickDMX via USB (optional)
Flicker-free operation
Beam angle of 120°
Color rendering index (CRI) of 91 Ra
Includes mounting bracket
LCD display
Robust carrying handle
Chrome-plated case folding handle
Flat, durable metal housing
Suitable for video and photography; stage; exhibition and shop construction; mobile use
Pre-programmed with Light Captain
Power input and output for easy linking of up to 8 devices
Silent operation
Usage options: suspended; on tripod
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 140 W
Protection class: IP20
Fuse: T 3 A replaceable fuse
Type of lamp: LED lamp
Flash rate: 0 - 20 Hz
DMX channels: 1; 2; 3
DMX input: 3-pin XLR (M)
DMX output: 3-pin XLR (F)
Illuminance in Lux (lx): Warm White (WW) 1m: 3274 lx, 3m: 438 lx, 6m: 131 lx
Housing color: Black
Dimensions: Width: 56.5 cm, Depth: 25.5 cm, Height: 42.2 cm
Weight: 7.70 kg
Noise classification: Class 0 (no noise)
Photobiological safety: Risk Group 0
Special product: Not intended for household room lighting
Intended use: Lighting for show effects

EUROLITE LED PLL-704 3200K Panel

Discover the EUROLITE LED PLL-704 3200K Panel, a DMX-controllable flat light equipped with 704 powerful warm white LEDs. This energy-efficient and long-lasting fixture not only offers excellent light quality but also provides an environmentally friendly solution for your lighting needs. With a beam angle of 120° and a high Color Rendering Index (CRI) of 91 Ra, the panel ensures impressive light distribution and vibrant colors.

The device is cooled through passive convection, guaranteeing silent operation. Thanks to its flexible control options—including stand-alone, DMX, music control, and master/slave functionality—the panel is ideal for various applications, from stage and exhibition lighting to photography and video production. The included barn doors provide perfect glare and transport protection, while the robust metal housing and carrying handle ensure easy handling.

Included in the package are the spotlight, a power cable, and a user manual. Add a professional touch to your events with the EUROLITE LED PLL-704 3200K Panel!
