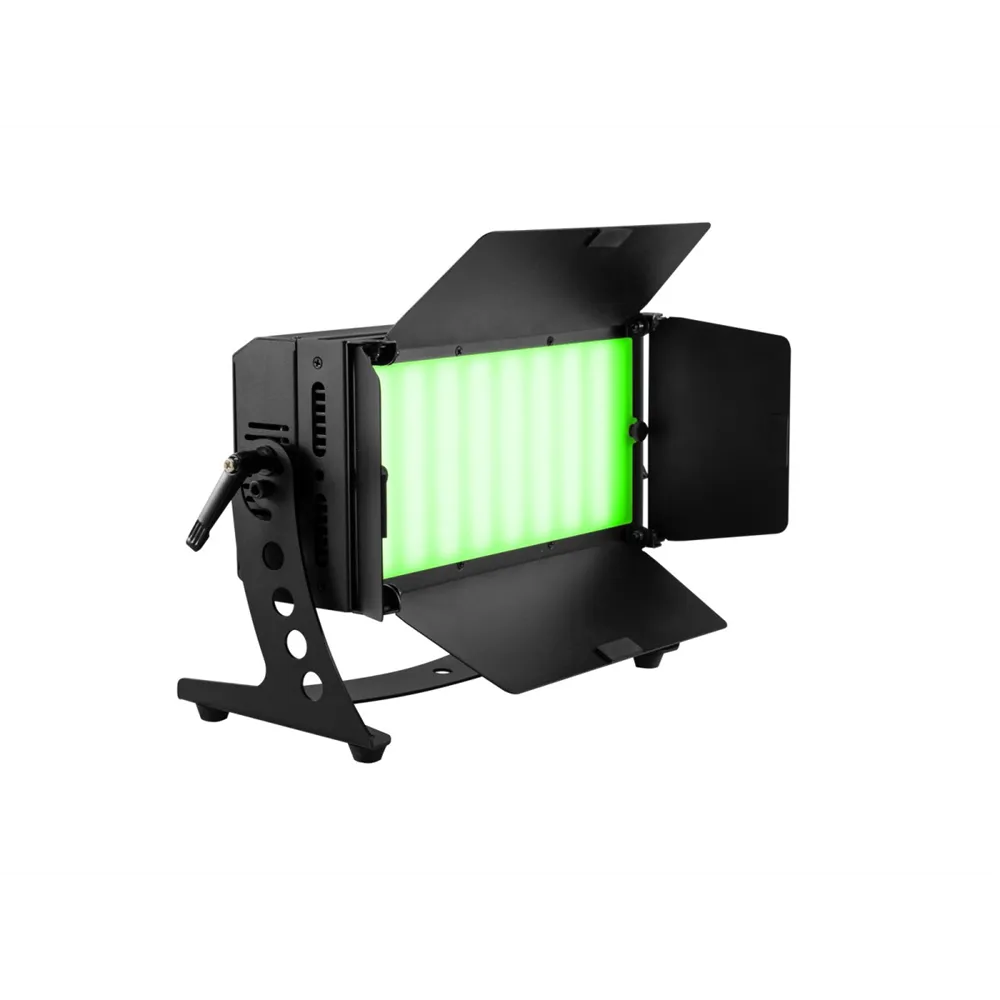

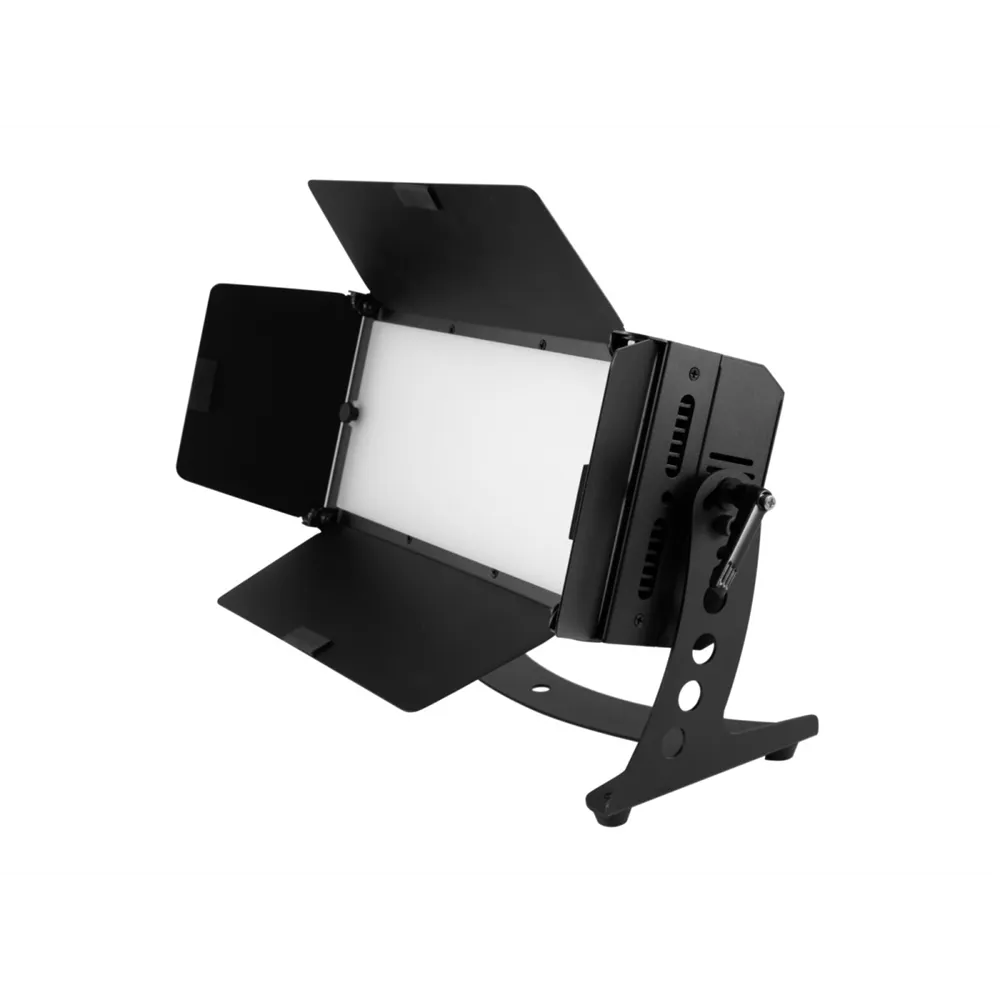

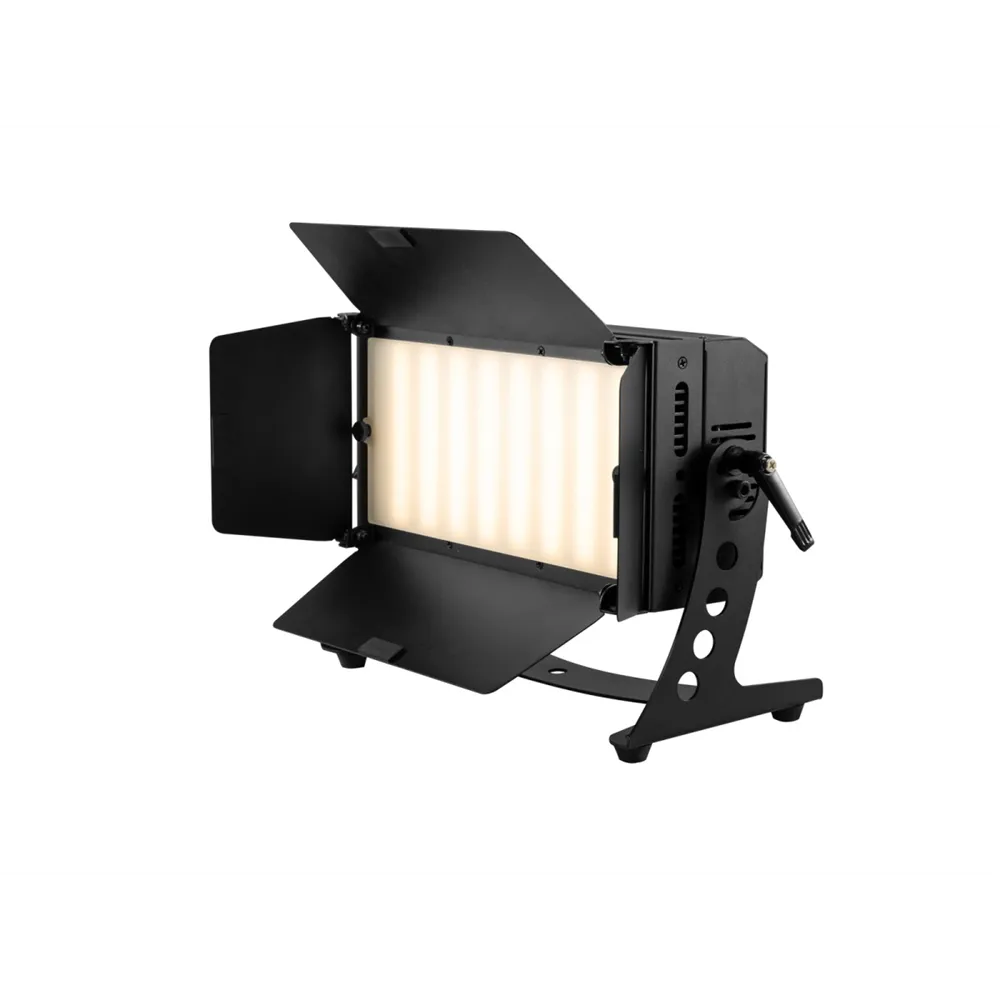

EUROLITE LED PLL-384 RGB/WW Panel

Brand:

Features

DMX-controllable panel light with RGB/WW color mixing
240 high-performance 1.5 W SMD 5054 R/G/B LEDs (homogeneous color mixing)
144 high-performance 1 W SMD 5054 warm white (WW) LEDs
Additional frost filter for wide, homogeneous, and soft light
Perfect glare and transport protection with 4 barn doors
Integrated show programs
Direct color selection for 15 preset colors
Adjustable white balance
Electronic dimmer; adjustable dimming speed (response time)
Adjustable color change; adjustable color fading; continuous color mixing
Strobe effect
Device cooling via temperature-controlled fan
Controllable via stand-alone; DMX; Master/Slave function
Quick selection potentiometer for brightness and color preset
QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
Beam angle of 120°
Very high color rendering index (CRI) of 96 Ra
Includes mounting bracket
LCD display
Pre-programmed with Light´J; Light Captain; Colorchief
Power input and output for easy linking of up to 8 devices
Suitable for applications such as theater, rental, weddings/gala/events, trade fair and shop construction
Very quiet operation
Mounting options: flying; on tripod
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 160 W
Protection rating: IP20
Protection class: Class I
Power connection: Power input via P-Con (blue)
Power output: 1 x P-Con (gray)
Fuse: T 6.3 A fuse replaceable in service
Light type: LED lamp
Flash rate: 1 - 23 Hz
DMX channels: 3; 4; 6; 8; 11

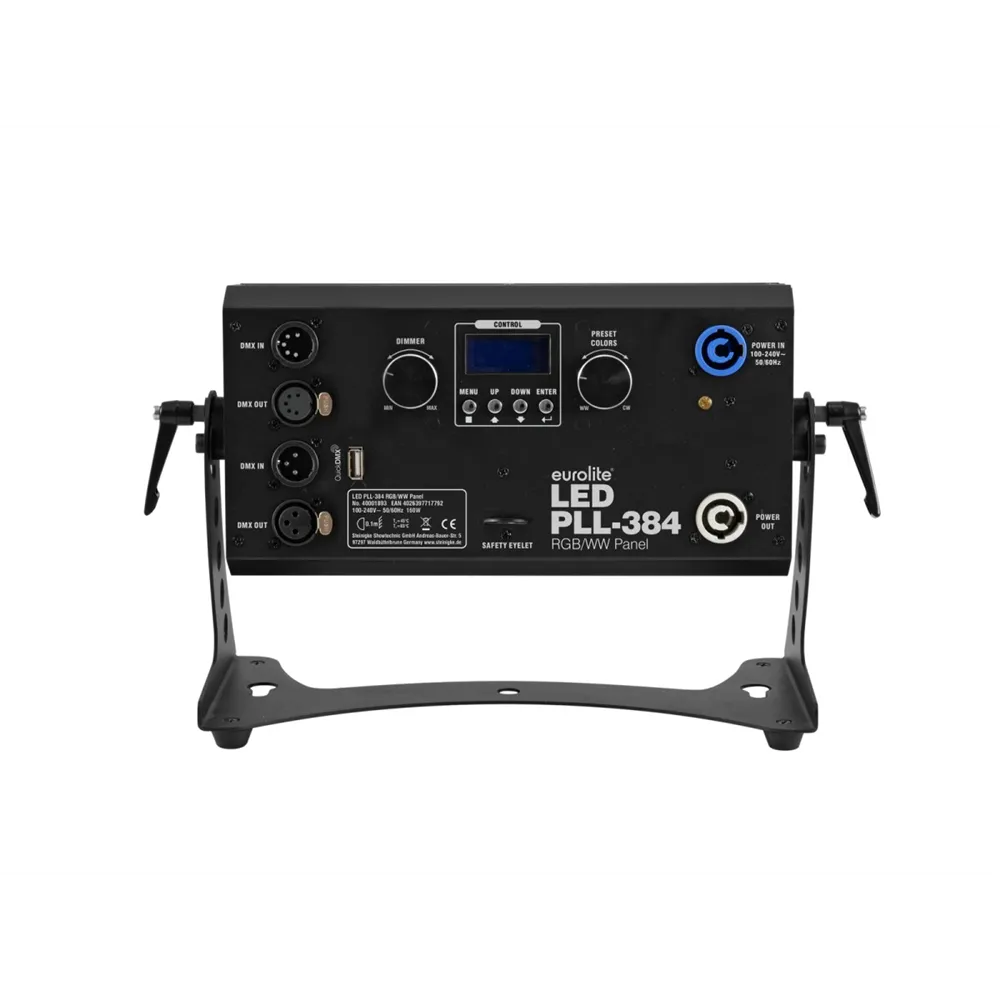

DMX input: 1 x 3-pin XLR (M), 1 x 5-pin XLR (M)
DMX output: 1 x 3-pin XLR (F), 1 x 5-pin XLR (F)
Cooling: Fan temperature-controlled
Projection: Flicker-free
Color temperature: 3000K
Illuminance in Lux (lx): Narrow red (R) 1m: 609 lx, Narrow green (G) 1m: 1250 lx, Narrow blue (B) 1m: 254 lx, Narrow warm white (WW) 1m: 1957 lx
Housing color: Black
Mounting system: Mounting bracket
Display type: LCD display
Dimensions: Length: 34.7 cm, Width: 13.1 cm, Height: 21.1 cm
Weight: 3.73 kg
Noise classification: Class 1 (very low noise, suitable for noise-sensitive environments)
Special product: Not intended for household room lighting
Purpose: Lighting for show effects

EUROLITE LED PLL-384 RGB/WW Panel

Discover the EUROLITE LED PLL-384 RGB/WW Panel, the perfect solution for stunning lighting installations! This DMX-controllable panel light features RGB/WW color mixing and is equipped with 240 powerful 1.5 W SMD 5054 LEDs in red, green, and blue, as well as 144 warm white 1 W SMD 5054 LEDs. The additional frost filter ensures a wide, homogeneous, and soft light output, while the 4 barn doors provide optimal glare and transport protection.

With built-in show programs and direct color selection for 15 preset colors, you can customize your light show to your liking. The electronic dimmer and adjustable dimming speed allow for precise control of light intensity. The device is cooled by a temperature-controlled fan, and flicker-free operation ensures a pleasant lighting atmosphere.

The panel is versatile and suitable for various applications, whether in theaters, weddings, galas, or trade shows. With a beam angle of 120° and a high color rendering index (CRI) of 96 Ra, it delivers brilliant colors and excellent light quality. The package includes everything you need: spotlight, user manual, power cable, frost filter, and thumb screws. Make your events unforgettable with the EUROLITE LED PLL-384 RGB/WW Panel!
