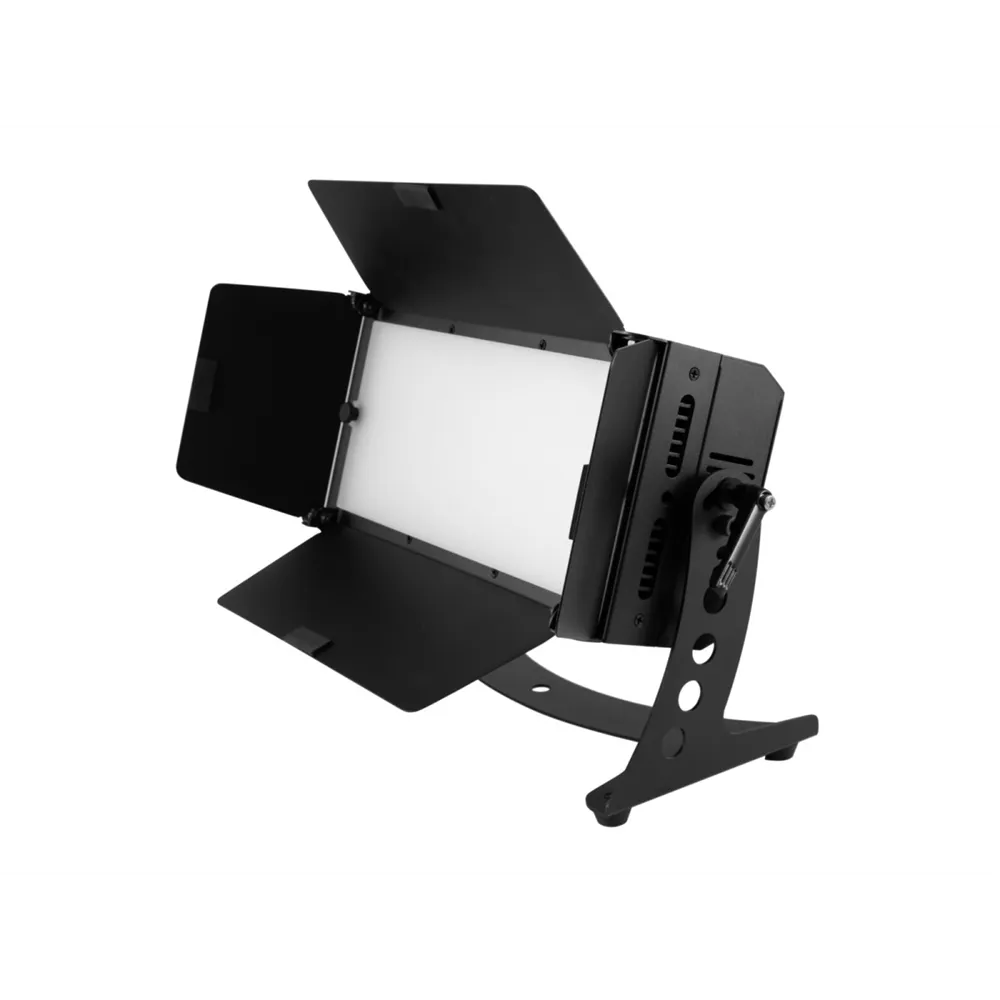

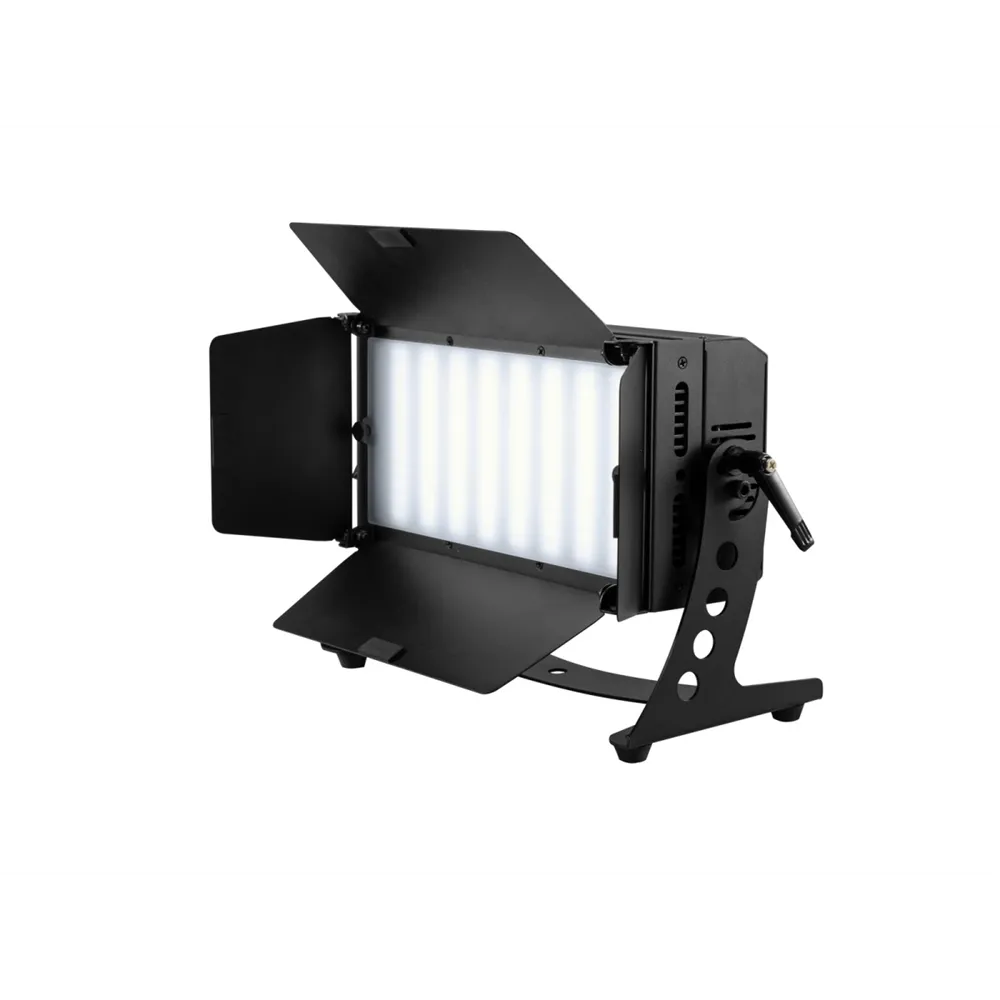

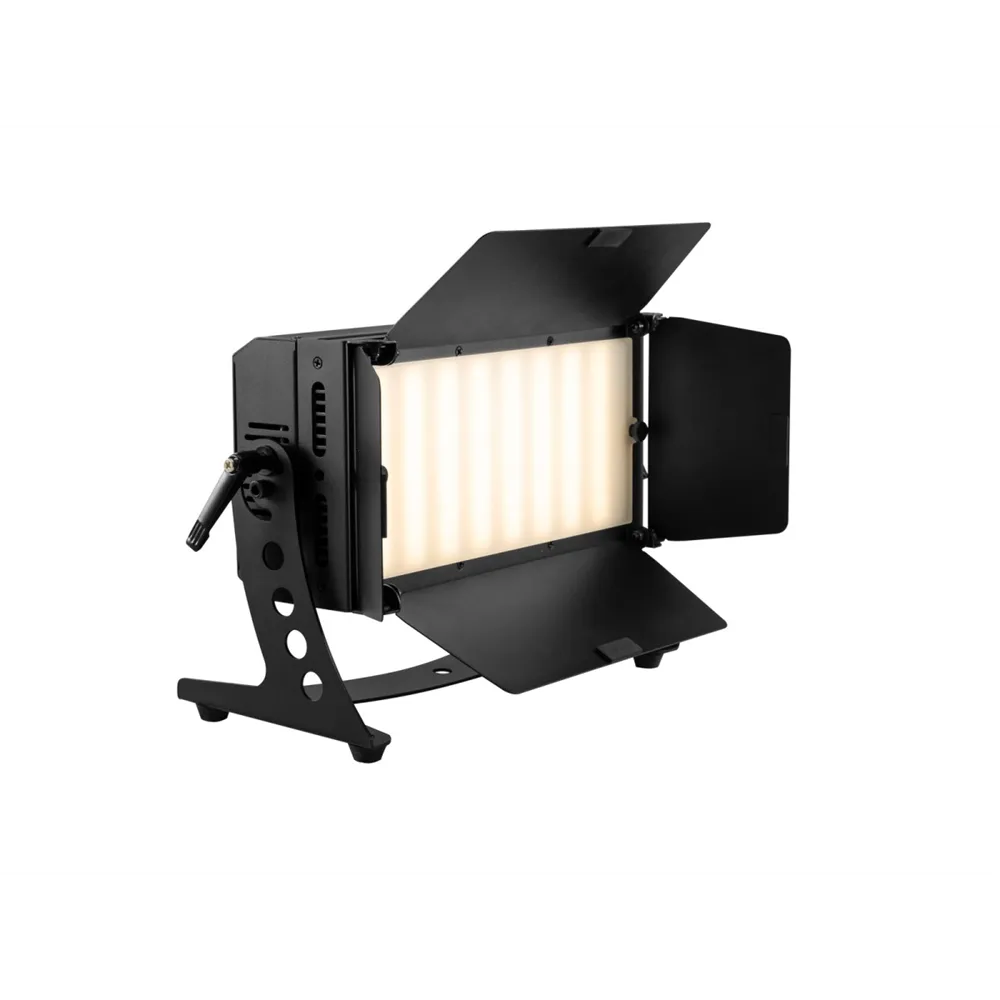

EUROLITE LED PLL-384 CW/WW Panel

EUROLITE LED PLL-384 CW/WW Panel

Brand:

EUROLITE LED Flood 210 Asymmetrical RGBLI

Features

DMX-controllable panel light with 384 dual-white LEDs

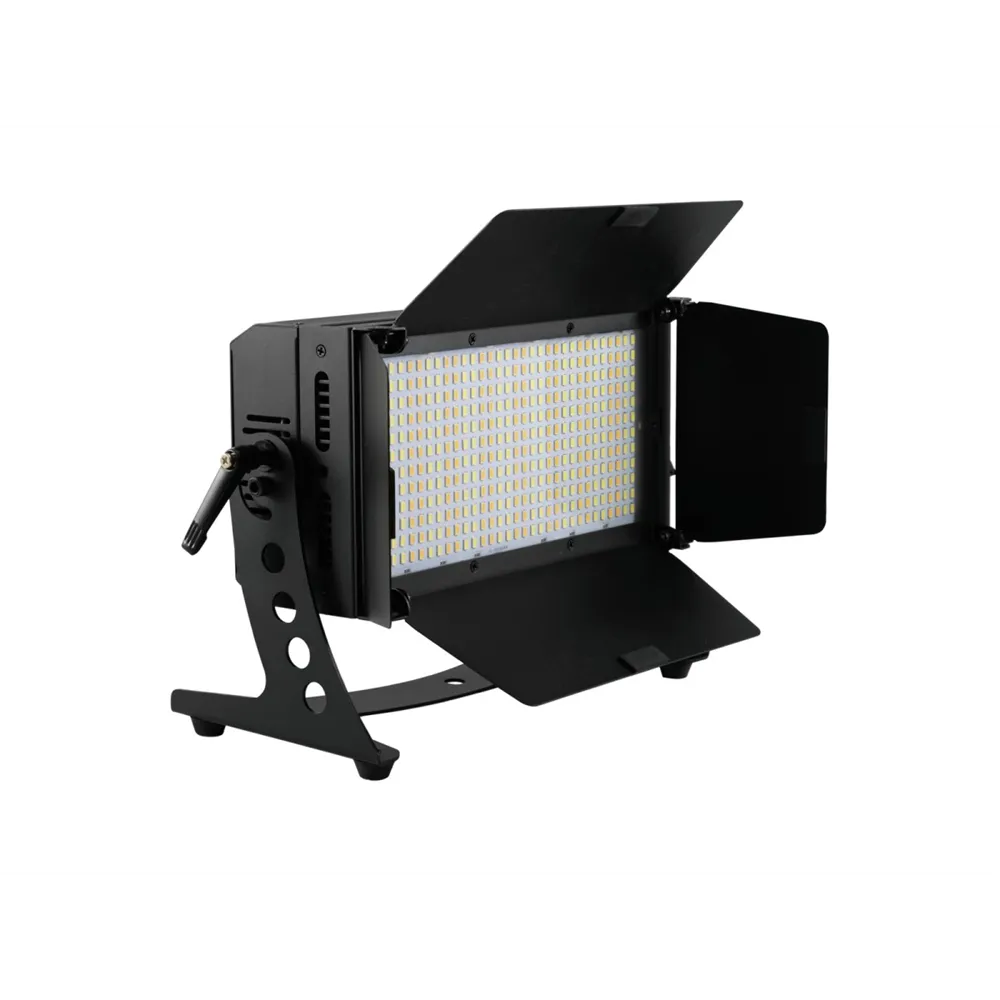

192 powerful 0.5 W SMD 5730 cool white (CW) LEDs
192 powerful 0.5 W SMD 5730 warm white (WW) LEDs
Energy-efficient, long-lasting, and environmentally friendly
Additional frost filter for wide, homogeneous, and soft light
Perfect glare and transport protection with 4 barn doors
Variable color temperature from 2700 K to 5700 K
Very quiet operation
Direct color temperature selection for 69 preset values
Electronic dimmer
Device cooling via temperature-controlled fans

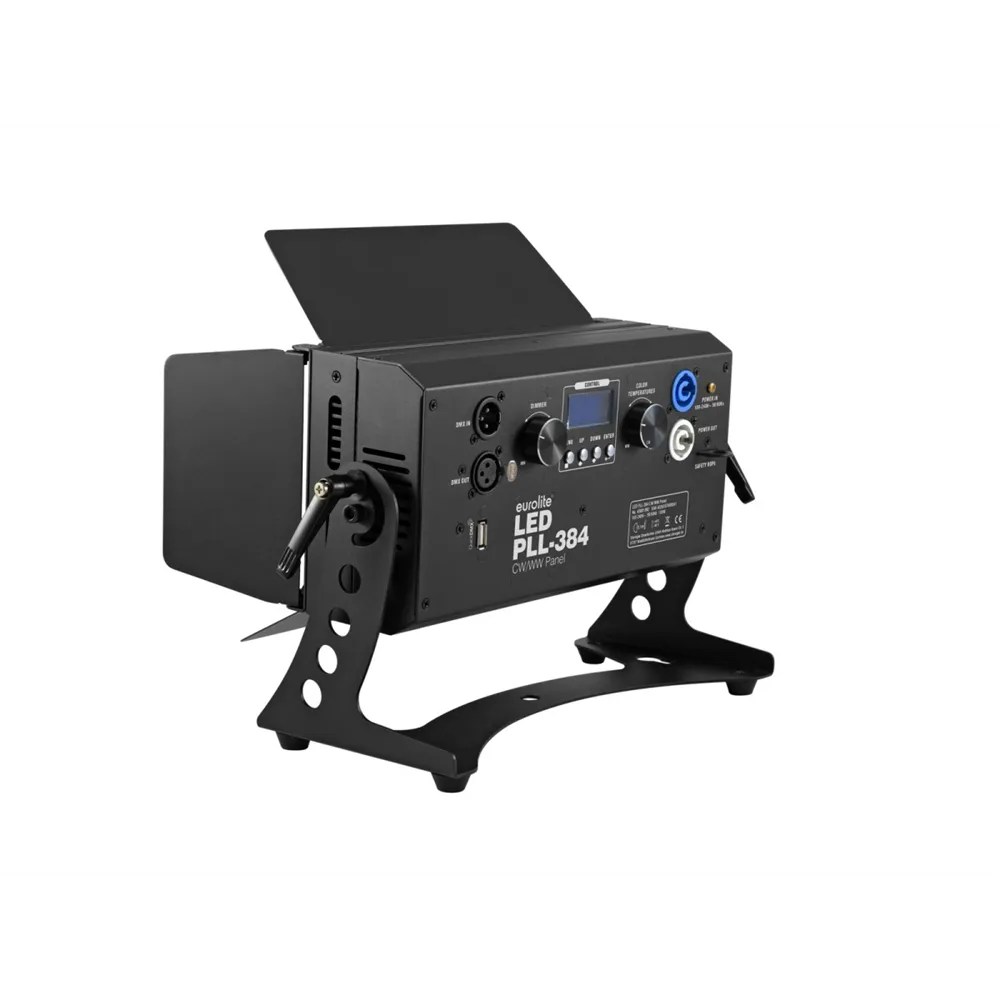

Controllable via quick selection potentiometer for brightness and color temperature; DMX; Master/Slave function; Stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by Wireless Solution via USB (optional)
Flicker-free
Beam angle of 120°
Very high color rendering index (CRI) of 94 Ra
Includes mounting bracket
LCD display
Suitable for video and photography; stage; exhibition and retail construction; theater
Pre-programmed with Light Captain; Colorchief
Rubber feet for better stability
Power input and output for easy linking of up to 8 devices
Usage options: Hanging; on tripod
Power supply: 100-240 V AC, 50/60 Hz
Total connection value: 100 W
Protection class: IP20
Protection rating: Class I
Fuse: T 3.15 A fuse fixed installed
Type of lamp: LED lamp
Flash rate: 1 - 20 Hz
DMX channels: 2-1; 2-2; 3-1; 3-2; 4

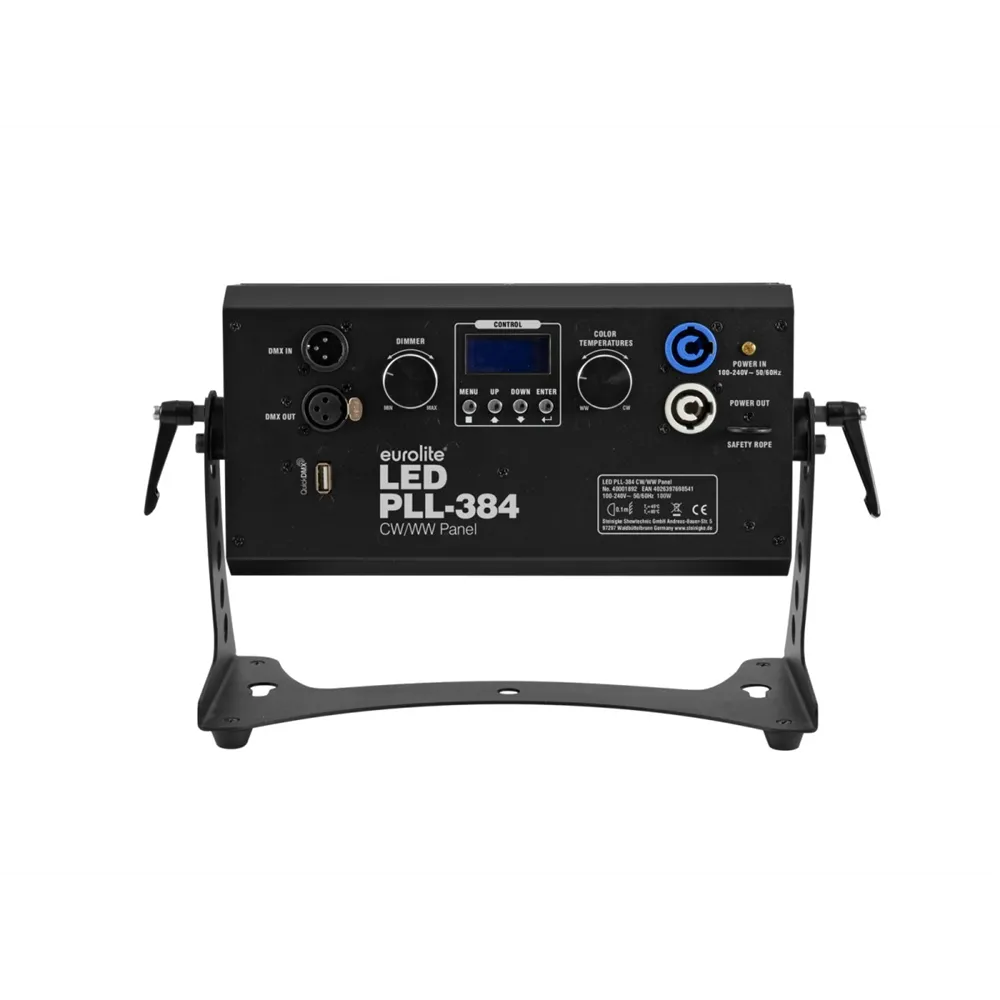

DMX input: 3-pin XLR (M)
DMX output: 3-pin XLR (F)
Cooling: Temperature-controlled fan
Projection: Flicker-free
Illuminance in lux (lx): Wide cool white (CW) 1m: 2324 lx, 3m: 276 lx, 6m: 83 lx; Wide warm white (WW) 1m: 2277 lx, 3m: 249 lx, 6m: 76 lx; Narrow cool white (CW) 1m: 2789 lx, 3m: 327 lx, 6m: 98 lx; Narrow warm white (WW) 1m: 2542 lx, 3m: 297 lx, 6m: 94 lx
Housing color: Black
Material: Metal
Dimensions: Length: 34.7 cm; Width: 13.8 cm; Height: 21.1 cm
Weight: 3.52 kg
Noise classification: Class 1 (very low noise, suitable for noise-sensitive environments)
Cable length: Approx. 1.2 m
Special product: Not intended for household room lighting
Purpose: Lighting for show effects

EUROLITE LED PLL-384 CW/WW Panel

Discover the EUROLITE LED PLL-384 CW/WW Panel, a powerful and versatile surface light equipped with 384 dual-white LEDs. This DMX-controllable fixture offers you the flexibility to choose between cool white (CW) and warm white (WW) light, thanks to 192 high-performance SMD 5730 LEDs per color temperature. With a beam angle of 120° and a variable color temperature range from 2700 K to 5700 K, it provides a wide, homogeneous, and soft light, making it ideal for video and photography, stage and theater applications, as well as exhibition and retail design.

The EUROLITE LED PLL-384 is not only energy-efficient and long-lasting but also environmentally friendly. It features an additional frost filter that ensures perfect glare and transport protection. With a very high color rendering index (CRI) of 94 Ra and quiet operation, this fixture is perfectly suited for noise-sensitive environments. Easy control is achieved via DMX, Master/Slave function, or stand-alone mode. The package includes a spotlight, power cable, frost filter, and user manual. Experience the future of lighting with the EUROLITE LED PLL-384 CW/WW Panel!
