INFINITY TS-260C7 Profile Engine

INFINITY TS-260C7 Profile Engine

Brand:

Infinity

Features

Delivers the performance of a 750W tungsten halogen lamp
260W Lumiled LED engine with 7 colors and custom-designed array
CRI consistently above 96 across the entire CCT range
Linearity compensation for LED color
Drift compensation for LED color (all LEDs)
Color shift compensation
Color wheel with 64 matching filter gels
Seamless CCT channel from 2000–8000K
RGB, CMY & HSI color control
Intelligent virtual 16-bit dimming with high resolution
Tungsten mode simulating natural color drift & temporal progression
No flicker thanks to selectable PWM rate via DMX
RDM for remote configuration and information retrieval
Specially designed quiet cooling system
DMX mode with 1 channel replaces conventional control
Light source type: LED
Number of light sources: 7
Light source power: 260W
LED color: RGBCALDB
Minimum refresh rate: 1100 Hz
Maximum refresh rate: 1.6 kHz
Total lumen output: 4500 lm
Minimum color temperature: 2000 K
Maximum color temperature: 8000 K
Control mode: DMX / Manual
DMX channels: 1 / 5 / 6 / 10 / 20
Protocols: DMX / RDM
Power supply: 100-240 VAC 50-60 Hz
Power consumption: 260W

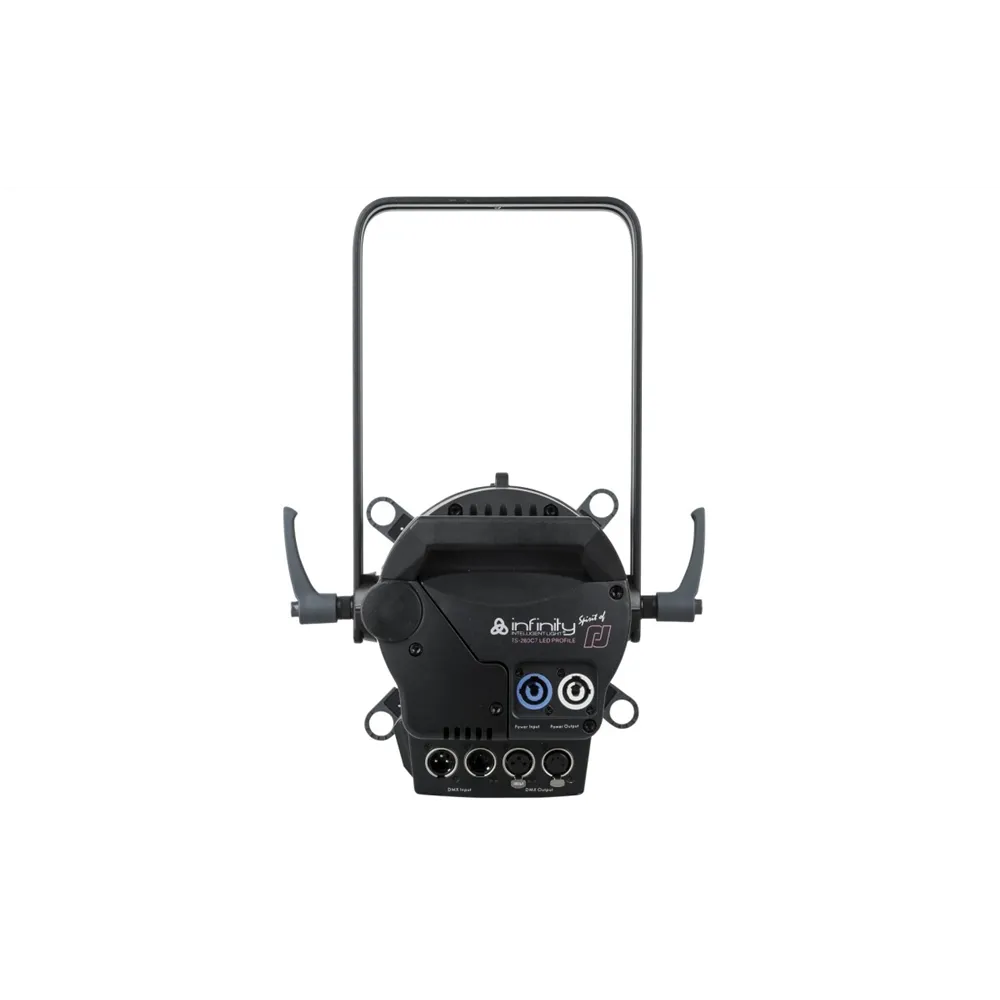

Power input connector: powerCON Blue
Power output connector: powerCON Grey
DMX connectors: XLR 3P In/Out / XLR 5P In/Out
Length: 468 mm
Width: 323 mm
Height: 457 mm
Weight: 8.5 kg
IP protection class: IP20 (indoor use only)
Housing material: Aluminum
Color: Black

INFINITY TS-260C7 Profile Engine

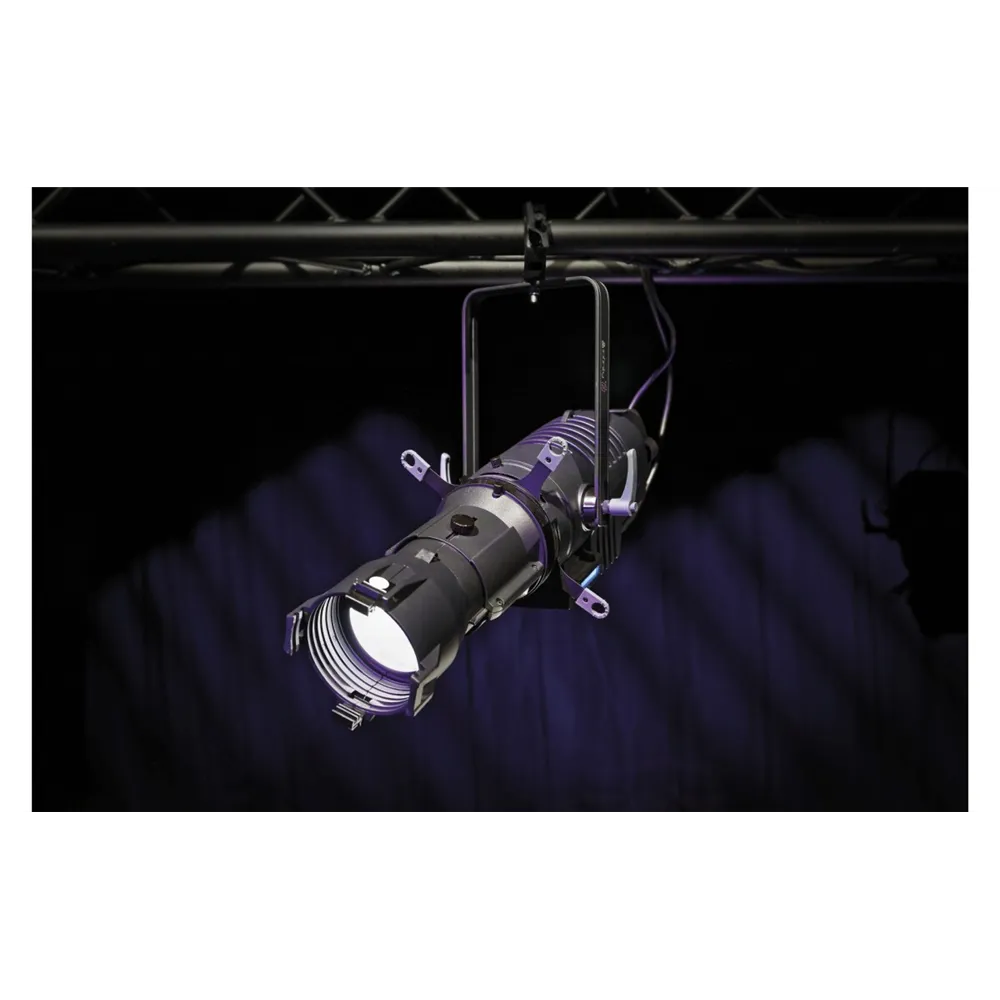

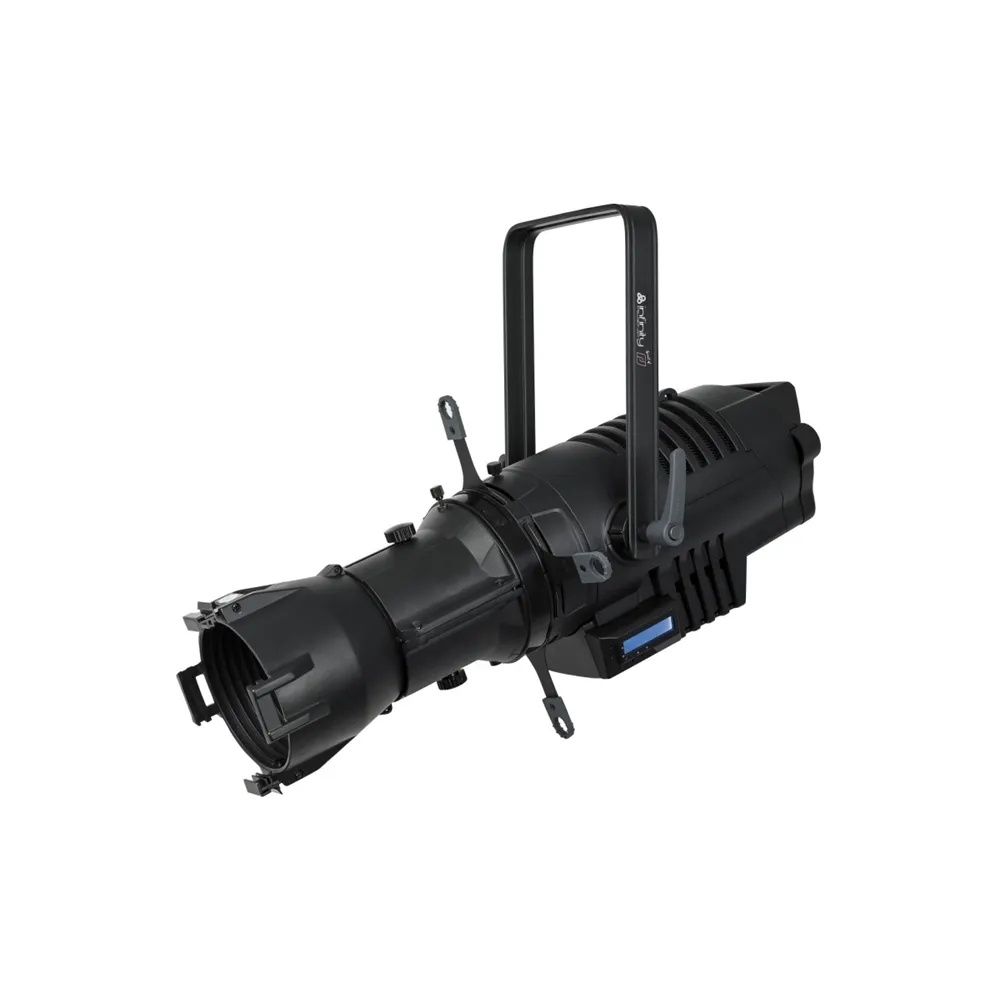

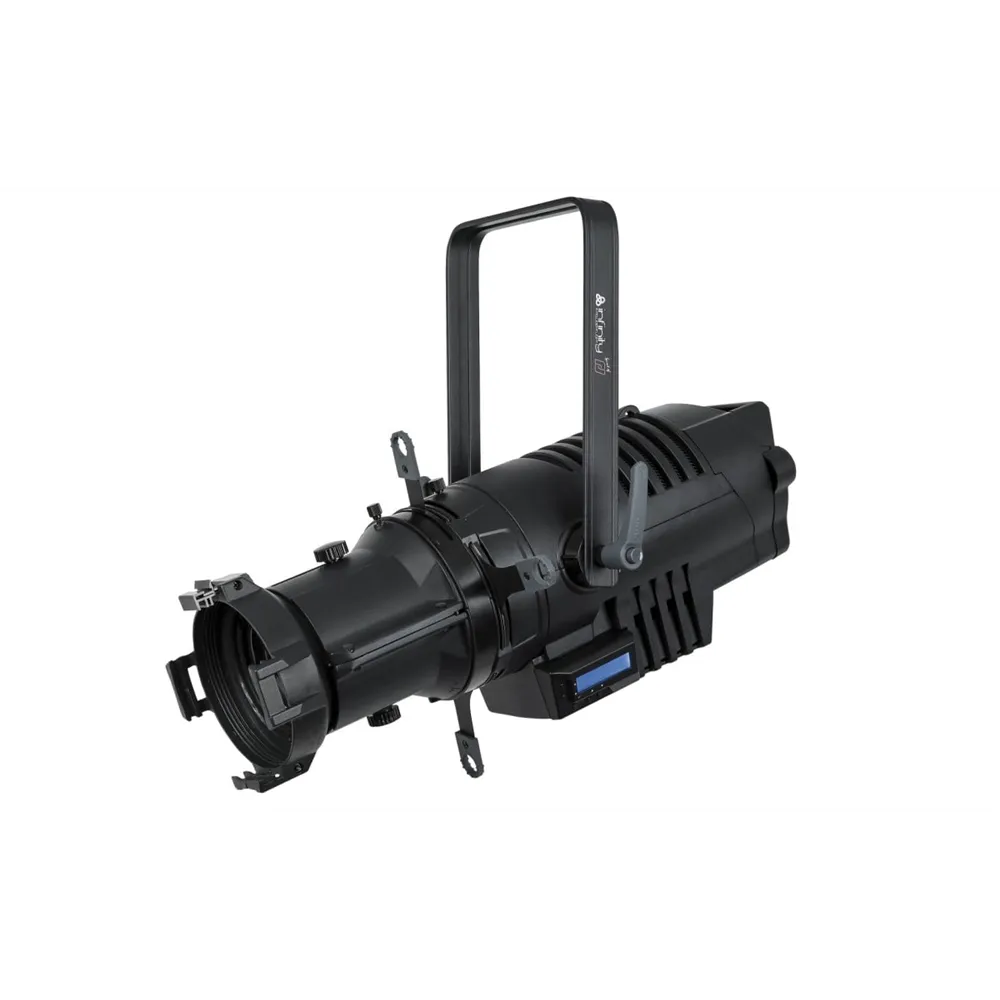

Discover the future of theatrical lighting with the INFINITY TS-260C7 Profile Engine. This innovative fixture delivers the impressive performance of a 750W tungsten halogen lamp while harnessing the advantages of cutting-edge LED technology. Featuring a 260W Lumiled LED engine that offers 7 vibrant colors and a specially designed array, the TS-260C7 produces perfectly calibrated colors that bring your productions to life.

With a CRI value of over 96 across the entire CCT range, it guarantees exceptional color accuracy, while the linear and drift-compensated LED color control ensures consistent results. With a transition range from 2000 to 8000K and RGB, CMY & HSI color control, you have the flexibility to create any desired mood. The intelligent 16-bit dimming provides high-resolution control, while the tungsten mode simulates natural color drift.

Thanks to its quiet cooling system and DMX compatibility, the TS-260C7 is the ideal choice for theaters, churches, studios, and schools. Experience the perfect combination of performance, efficiency, and user-friendliness with the INFINITY TS-260C7 Profile Engine!
