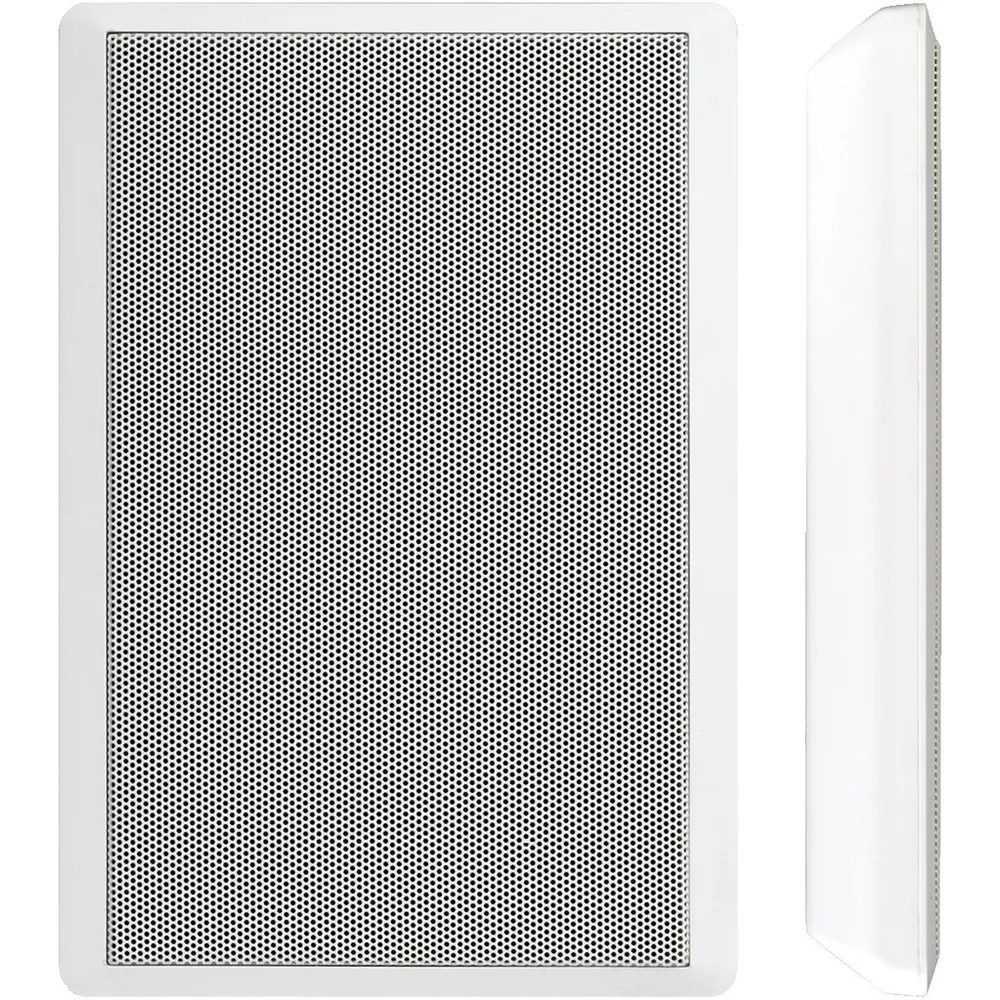

MONACOR ELA Wall Speaker, 100 Volt or 4 Ohm
Features
- Active/Passive: Passive
- Transmission Technology: 100 V or Low Impedance
- Rated Power: 6/3 W (100 V), 20 W (4 Ω)
- Rated Load Capacity: 6/3 W
- Impedance: 4 Ω
- Frequency Range: 80-18,000 Hz
- System: 2-Way
- Number of Built-in Speaker Drivers: 2
- Speaker Size: 130 mm
- Sound Pressure Level: 91 dB/W/m
- Max. Rated Sound Pressure Level: 104 dB
- Dispersion Angle: H100°/V60°
- Enclosure Material: Plastic
- Color: White
- Mounting Method: Suspension via Screw Head
- Permissible Operating Temperature: 0-40 °C
- Dimensions: 185 x 275 x 38 mm
- Weight: 1.25 kg
- Inputs: Terminal Block
- Packaging Dimensions (W x H x L): 0.075 x 0.225 x 0.315 m
- Gross Weight: 1.375 kg
- Net Weight: 1.255 kg
MONACOR ELA Wall Speaker, 100 Volt or 4 Ohm
Discover the MONACOR ELA Wall Speaker, distinguished by its exceptionally slim design. With an overall depth of just 38 mm, this speaker seamlessly integrates into any environment and is ideal for discreet wall mounting. Thanks to state-of-the-art neodymium magnet systems, the ELA Wall Speaker delivers clear and pleasant sound, suitable for both speech transmission and music.
The speaker features flexible 100V transmission technology with power taps of 3 and 6 W, as well as a 4-ohm operation with a nominal power of 20 W. The 2-way system consists of a neodymium mid-bass driver and a dome tweeter, together covering a frequency range of 80 to 18,000 Hz. The white plastic housing with a metal grille not only ensures durability but also provides an appealing aesthetic.
With a sensitivity of 91 dB/W/m and a maximum nominal sound pressure of 104 dB, this speaker is perfectly suited for use in various environments. Installation is straightforward via suspension on screw heads. The MONACOR ELA Wall Speaker is the ideal choice for those who value quality and design.
