LD Systems U505 BP - Bodypack Sender

Brand:

LD Systems U500 RK 2 - Rackmontage-Set für zwei U500 Receiver

LD Systems U505 BPG - Wireless Microphone System with Bodypack and Guitar Cable - 584 – 608 MHz.

Features

True Diversity UHF Wireless Systems
Dynamic and condenser microphones with vibration-damped capsules
Suitable for brass instruments, guitars, with lavalier and headset microphones
Automatic channel scanning
Easy one-touch infrared synchronization of transmitter and receiver
Noise filter with pilot tone
Selectable transmission power (2, 10, or 30 mW)
Robust housing
High-contrast OLED displays
Frequency range: 584 - 608 MHz
96 channels (8 groups of 12 channels)
Inputs: Mini-XLR (3-pin)
Frequency response: 30 - 16,000 Hz
Signal-to-noise ratio: >90 dB
RF output power: Variable (2mW, 10mW, 30mW)
Controls: 2 x arrow buttons (value input, up/down)
Controls: Power On/Off
Controls: Set
Display elements: OLED Display
Power supply: 2 x AA batteries
Operating time: >10 hours (with alkaline batteries)
Dimensions: Width 65 mm, Height 86 mm, Depth 23 mm
Weight: 0.09 kg
Additional features: Detachable antenna
Additional features: IR frequency synchronization
Additional features: Pilot tone detection/adjustable noise filter (squelch)
Additional features: Switchable RF power
Additional features: Switchable gain

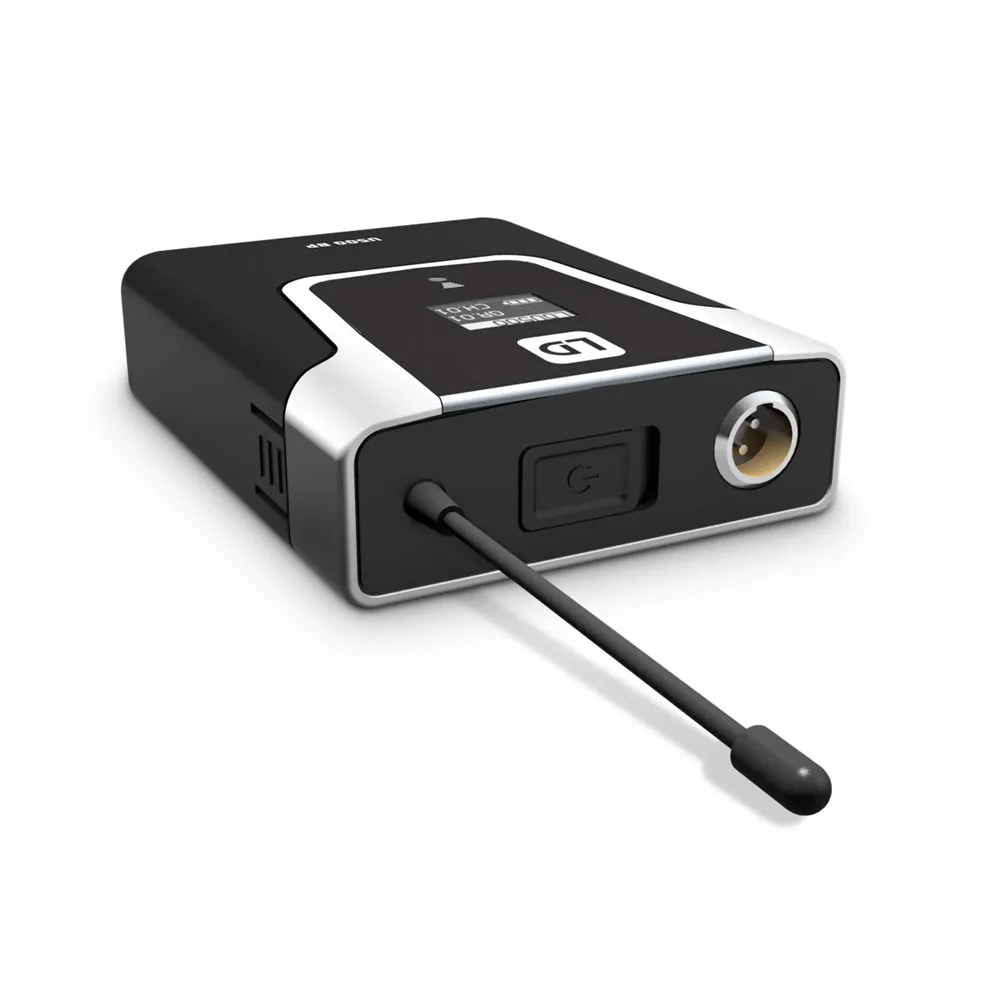

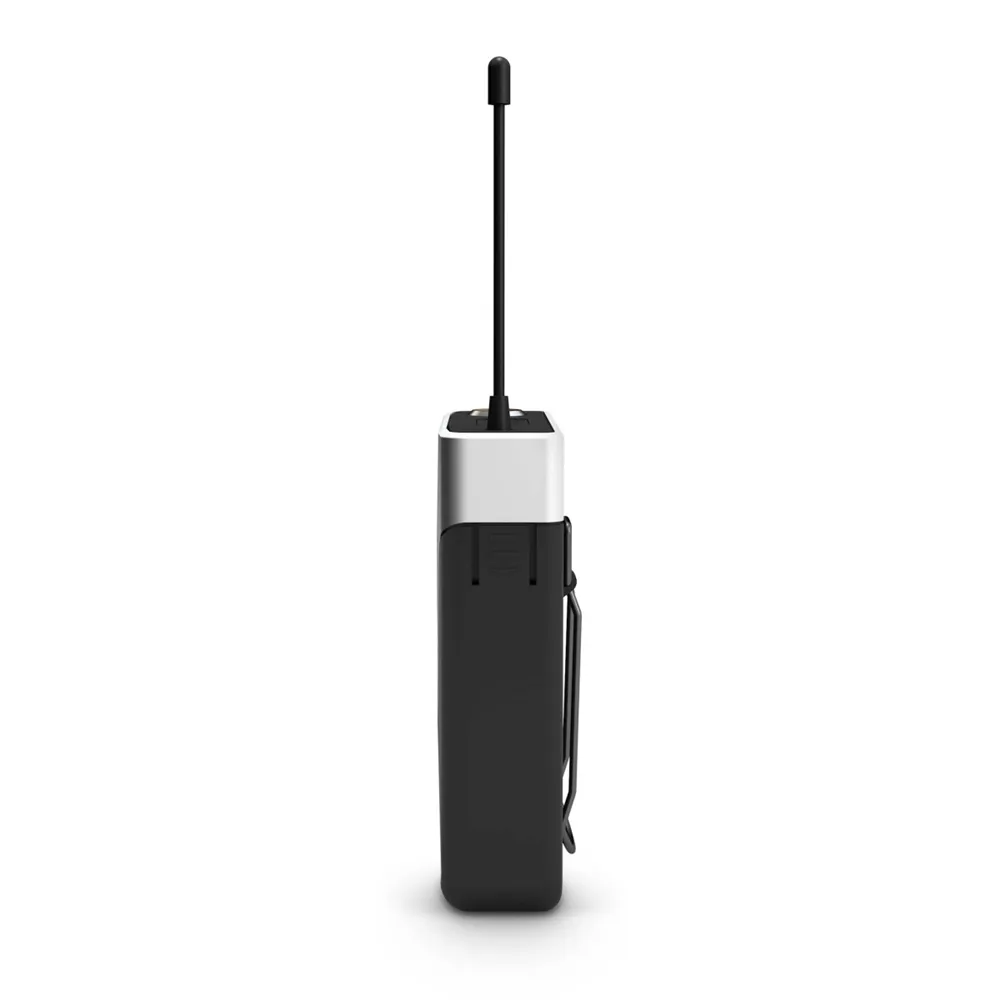

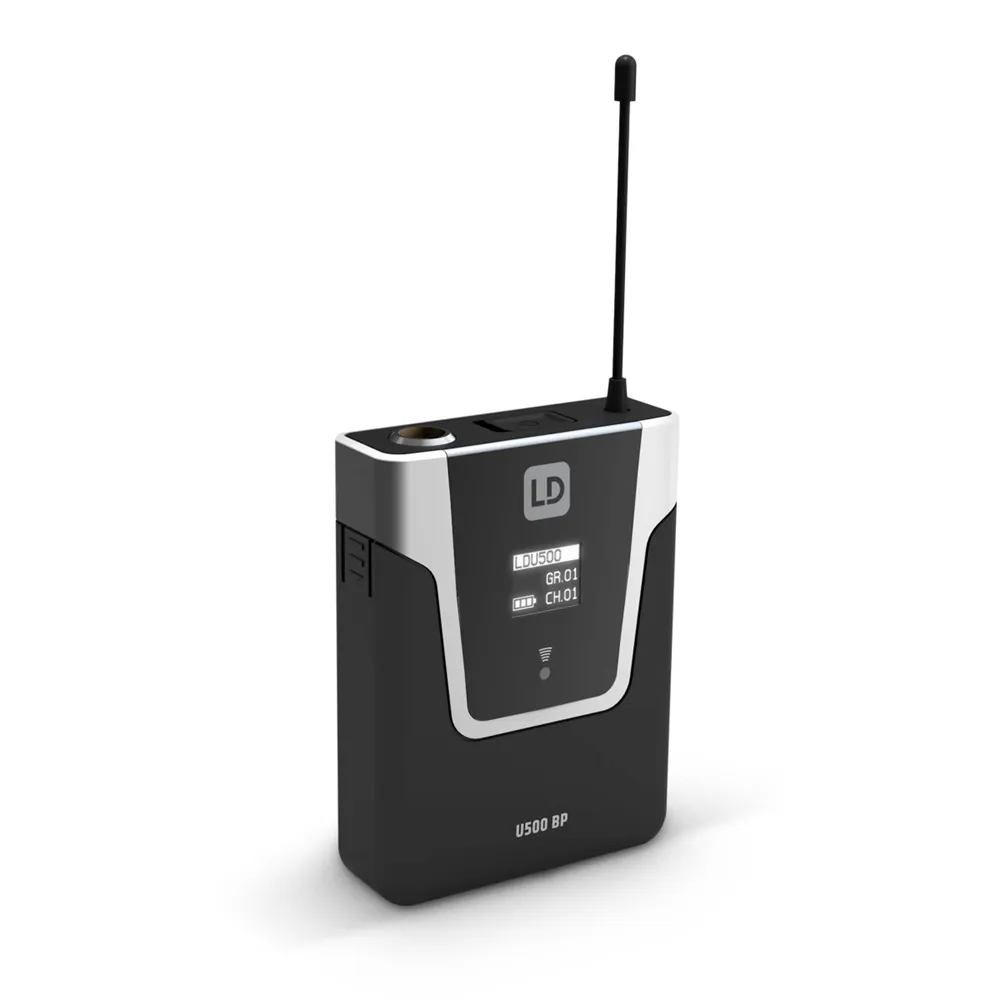

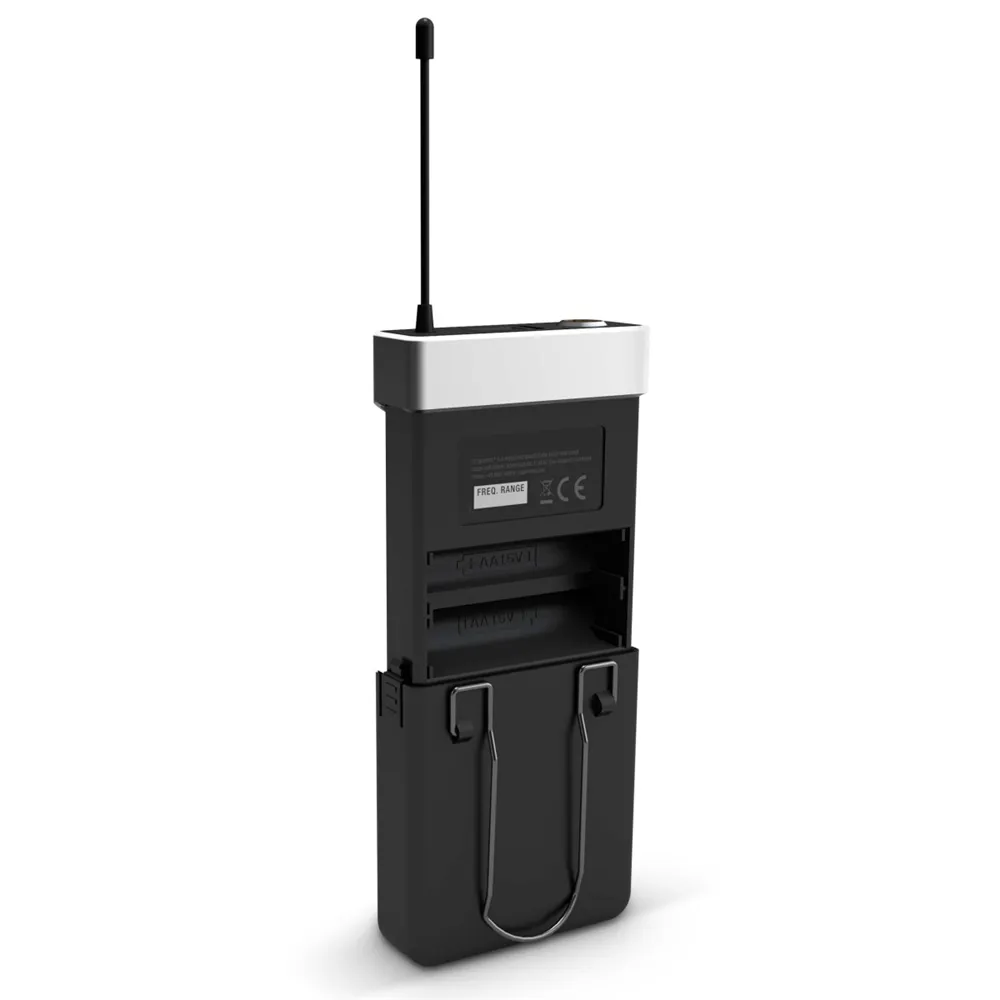

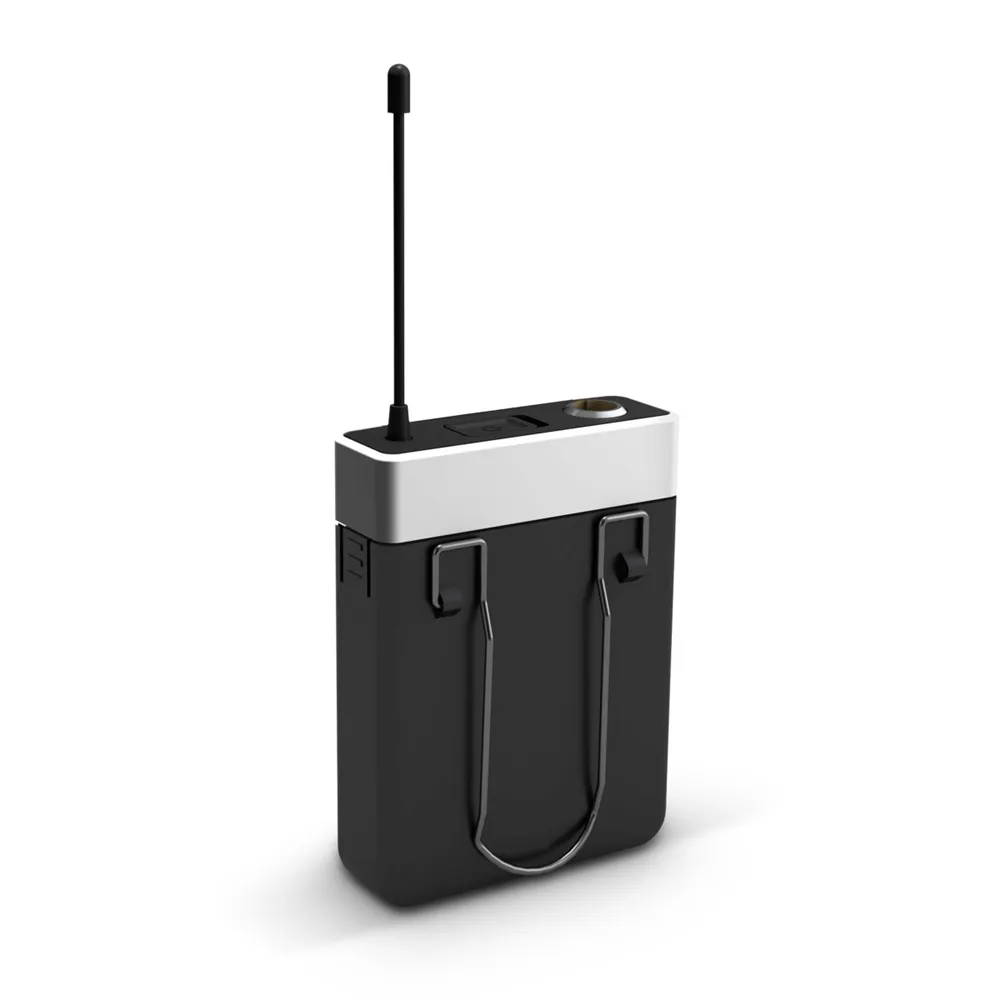

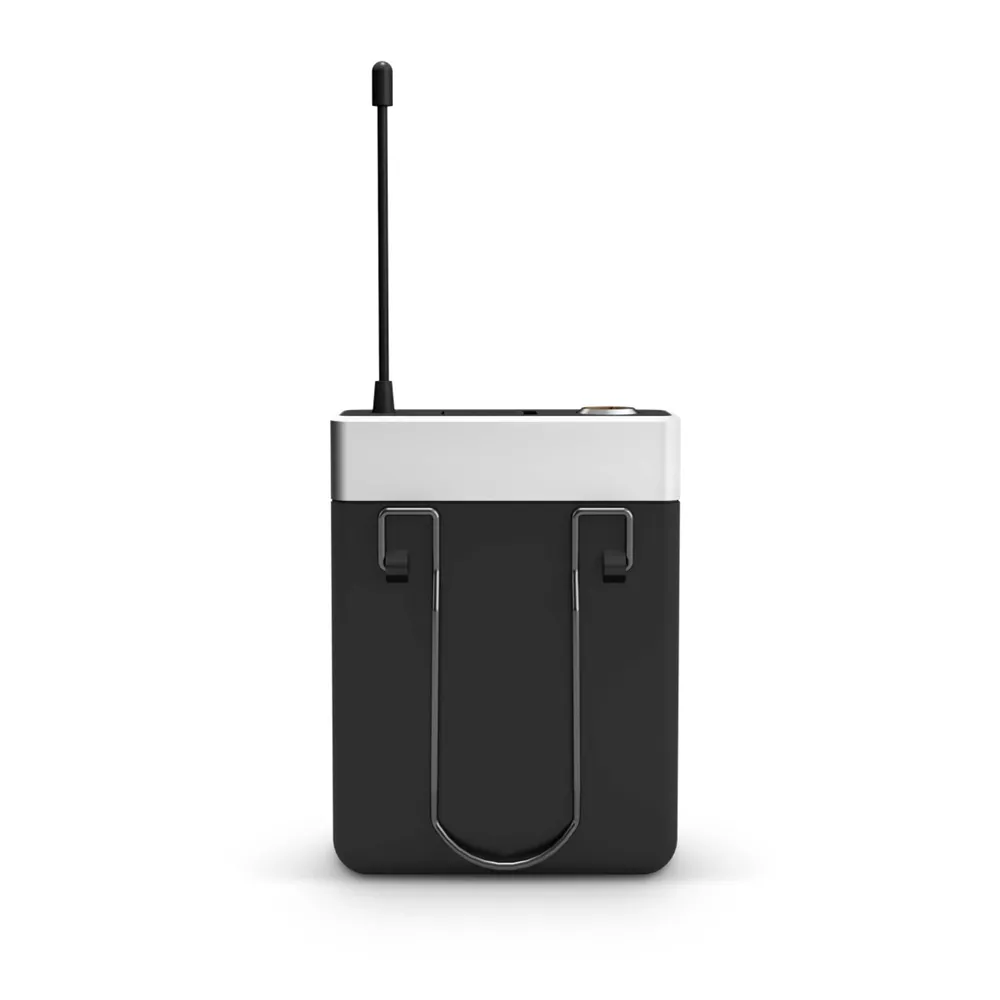

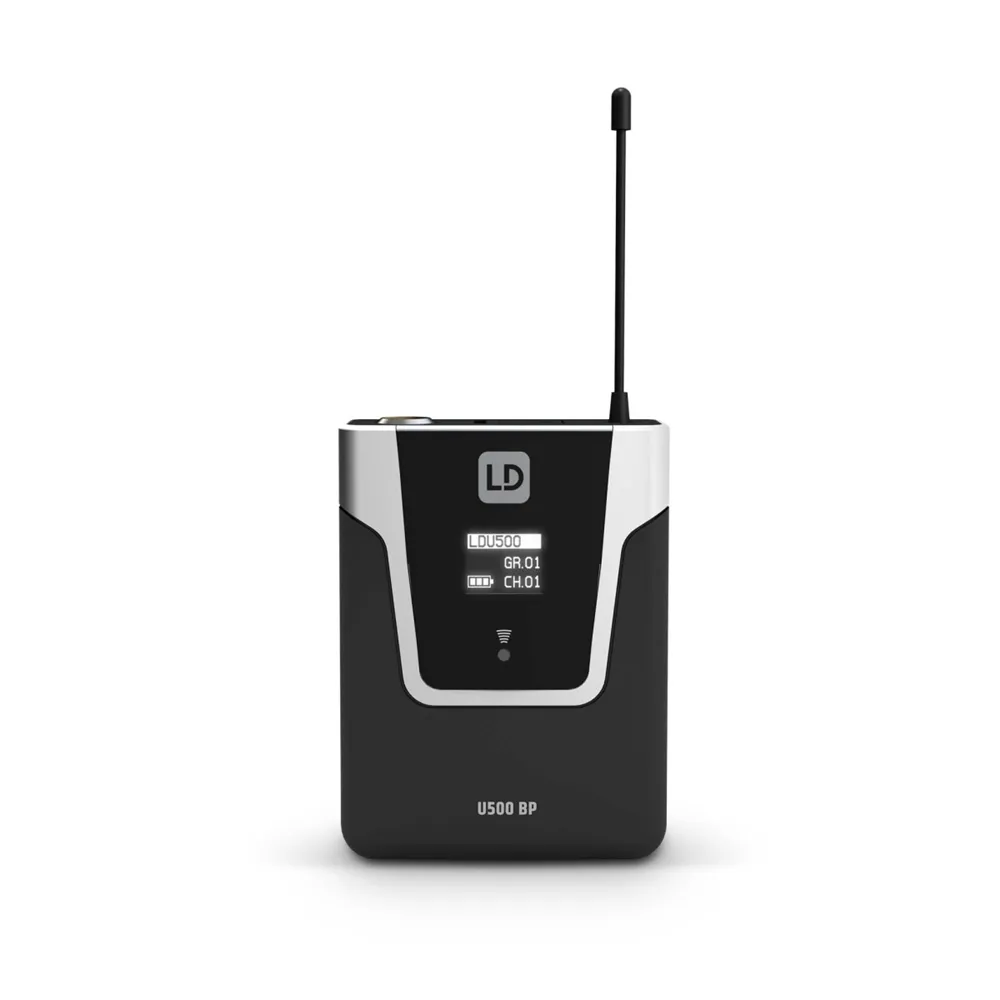

LD Systems U505 BP - Bodypack Transmitter

The LD Systems U505 BP Bodypack Transmitter is the ideal solution for professional users who value top-notch sound quality and reliability. This True Diversity UHF wireless system supports both dynamic and condenser microphones with vibration-dampened capsules, making it versatile for various applications—whether for vocals, instruments, or as a wireless conference system.

With an automatic channel scan and user-friendly one-touch infrared synchronization between transmitter and receiver, the U505 BP is ready to use in no time. The selectable transmission power of 2, 10, or 30 mW and the noise suppression with pilot tone ensure outstanding audio quality over a range of more than 100 meters in open field conditions.

The robust housing and high-contrast OLED displays provide easy operation and clear visibility of battery status and user information. With a frequency response of 30 to 16,000 Hz and the ability to swap microphone capsules, the U505 BP is perfectly tailored to meet individual needs. Experience the freedom of wireless transmission with the LD Systems U505 BP Bodypack Transmitter!
