LD Systems U308 R2 - Dual Empfänger - 863 - 865 MHz + 823 - 832 MHz

LD Systems U308 R2 - Dual Empfänger - 863 - 865 MHz + 823 - 832 MHz

Brand:

LD Systems U500 CC - Kondensator-Mikrofonkopf mit Nierencharakteristik

Features

Product Type: Wireless Microphone System Accessory
Type: Receiver
Modulation Type: FM
Frequency Range: 823 - 832 MHz
Frequency Range: 863 - 865 MHz
Channels: 12
Groups: 1
Antenna Inputs: 2 x Fixed
Frequency Response: 35 - 16,000 Hz
Noise Reduction: Squelch
Transmission Optimization: Pilot Tone
Signal-to-Noise Ratio: 104 dB
Audio Output Balanced: 3 x XLR
Audio Output Unbalanced: 6.3 mm Jack
Audio Output Unbalanced: Switchable Unbalanced Output Level (Line/Instrument)
Max Output Level: +10 dBu (Balanced), +7 dBV (Unbalanced, Line), +2.5 dBV (Unbalanced, Instrument)
Controls: 2 x Volume
Controls: Channel Down
Controls: Channel Up
Controls: Line/Instrument Level
Controls: Power On/Off
Display Elements: 5-LED VU Meter
Display Elements: Antenna A/B
Display Elements: LCD Display
Operating Voltage: 12 V DC, 500 mA
Width: 410 mm
Height: 43 mm
Depth: 120 mm
Weight: 1.265 kg
Included Accessories: 2 x AA Batteries
Included Accessories: Power Supply
Additional Features: IR Frequency Synchronization
Additional Features: Pilot Tone

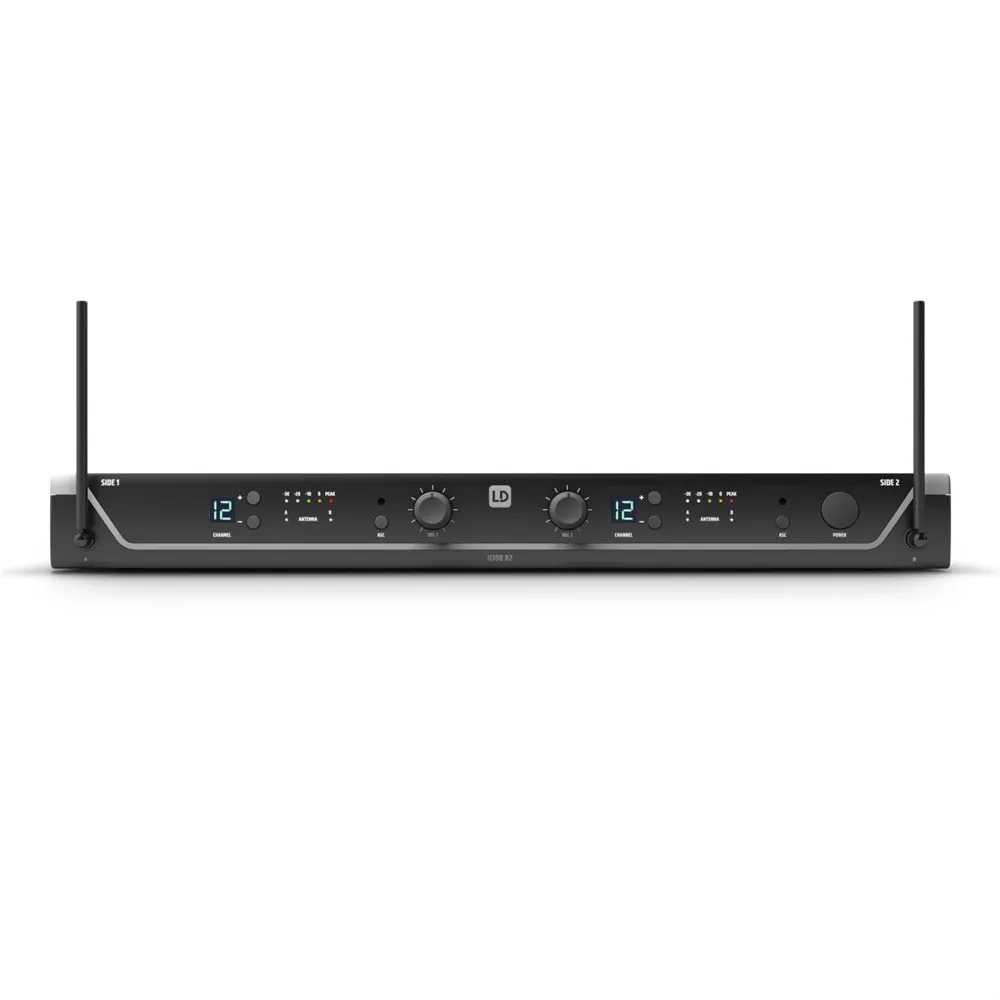

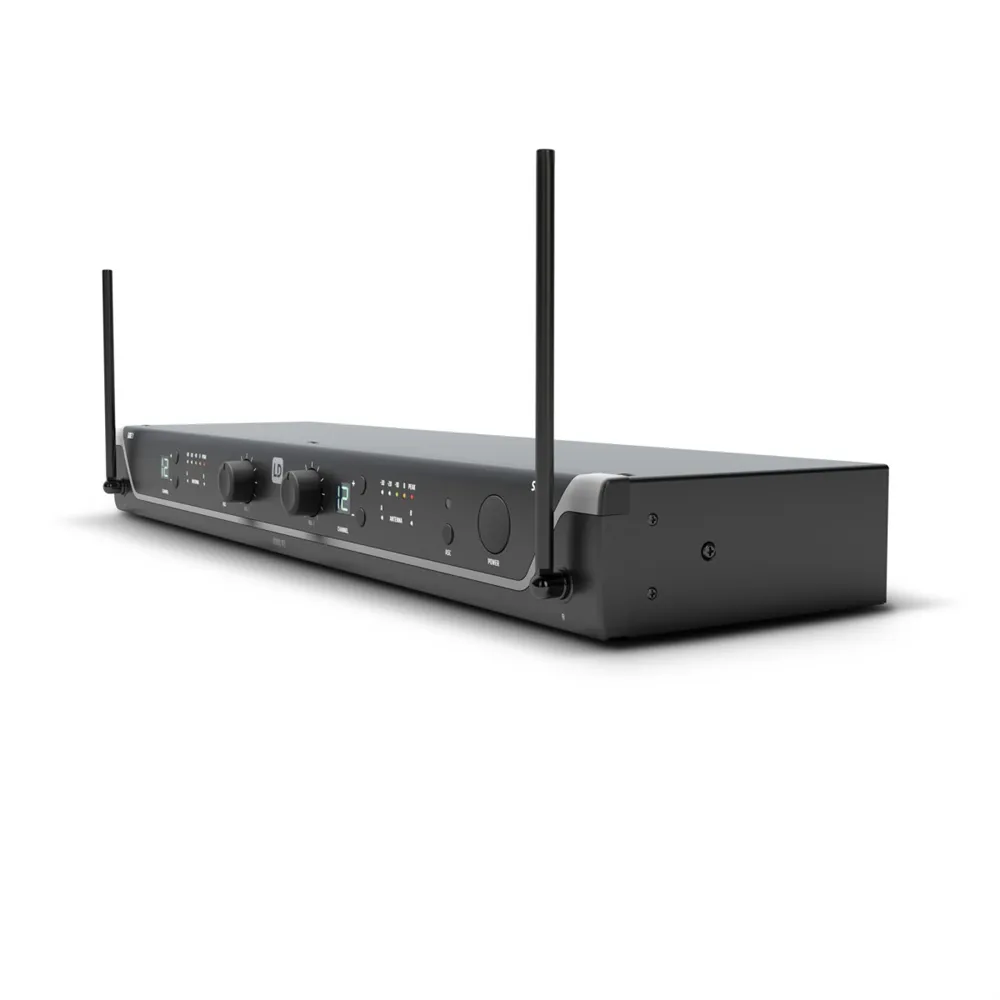

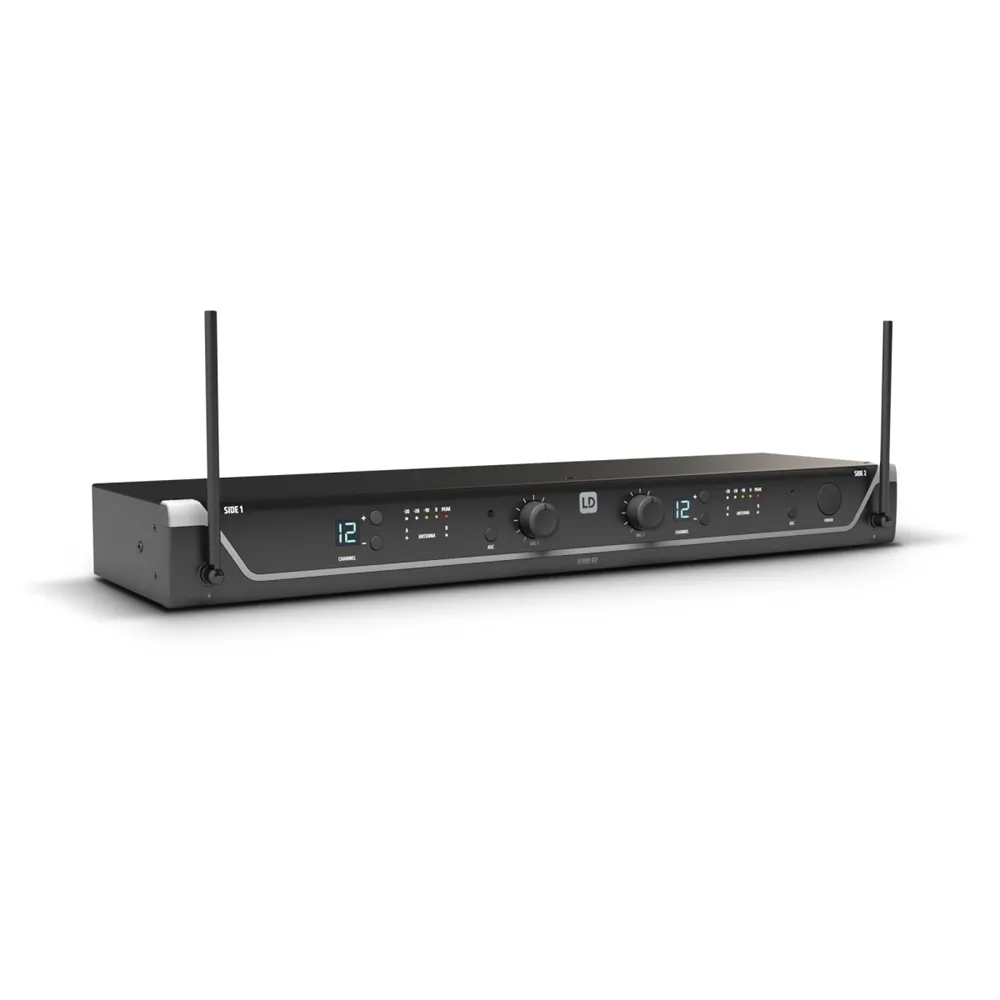

LD Systems U308 R2 - Dual Receiver - 863 - 865 MHz + 823 - 832 MHz

The LD Systems U308 R2 is a powerful dual receiver operating in the frequency bands of 863 - 865 MHz and 823 - 832 MHz. With its FM technology and a frequency response of 35 Hz to 16 kHz, it delivers outstanding sound quality for professional applications. The one-touch infrared synchronization allows for quick and easy connection with the handheld microphones or bodypacks from the U300 R2 series.

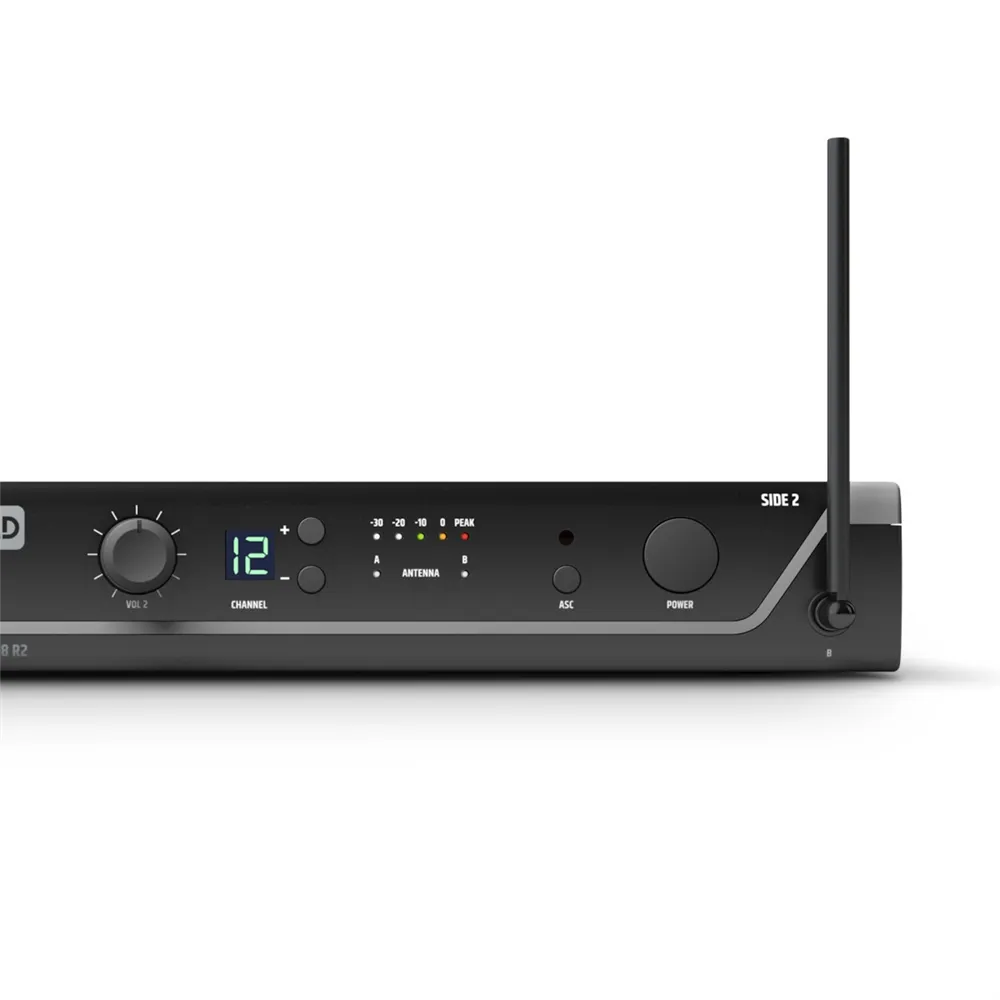

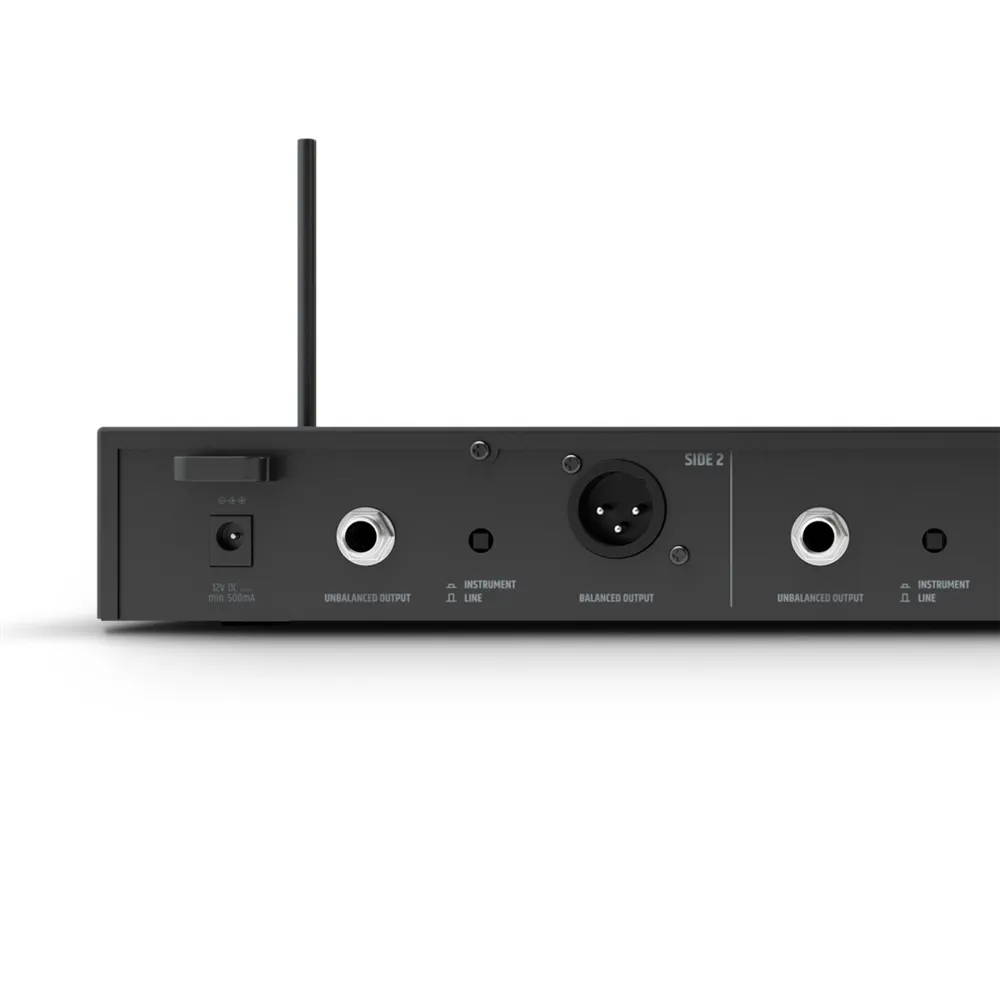

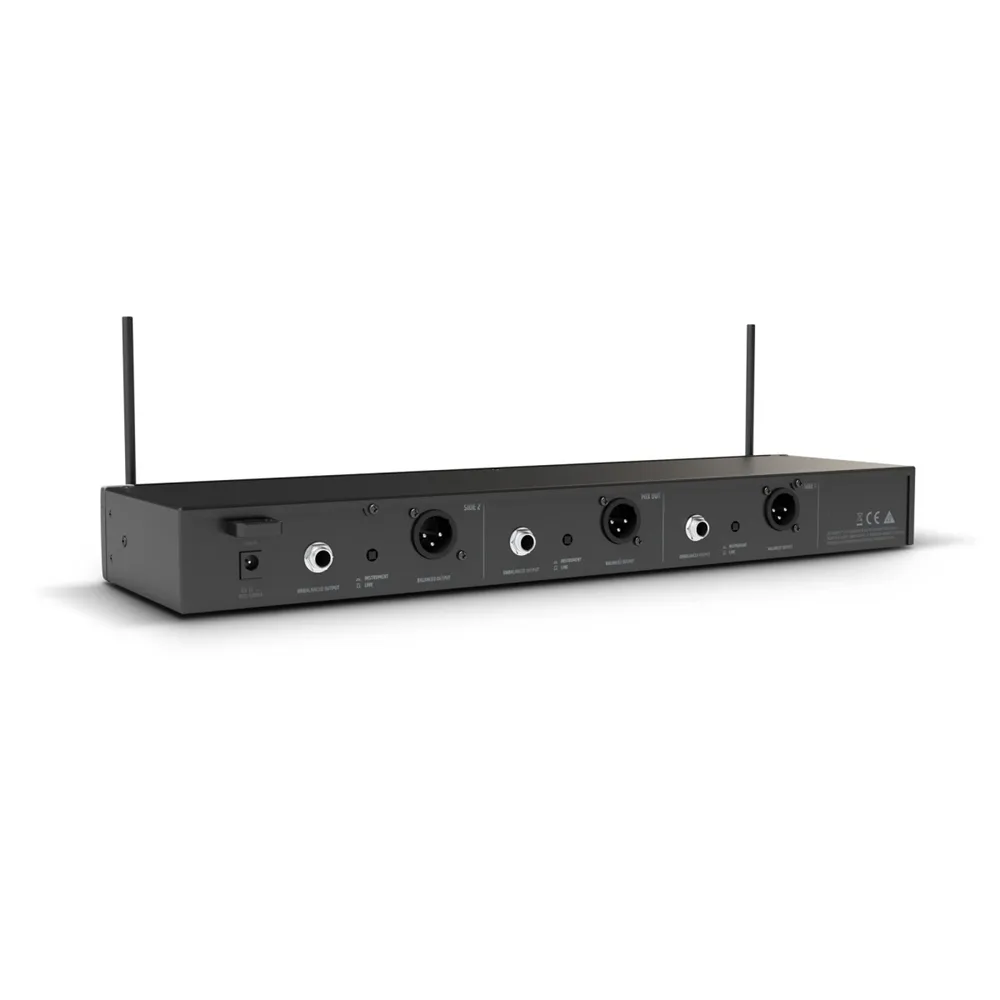

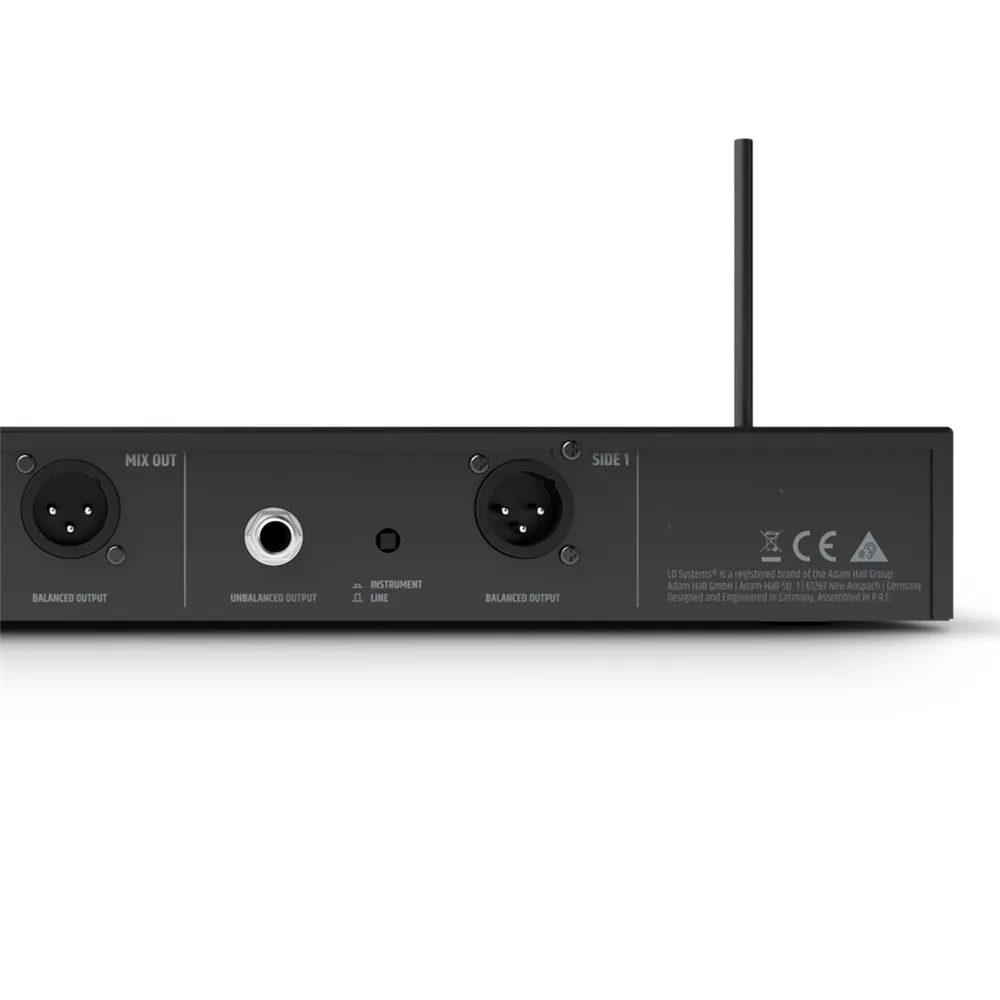

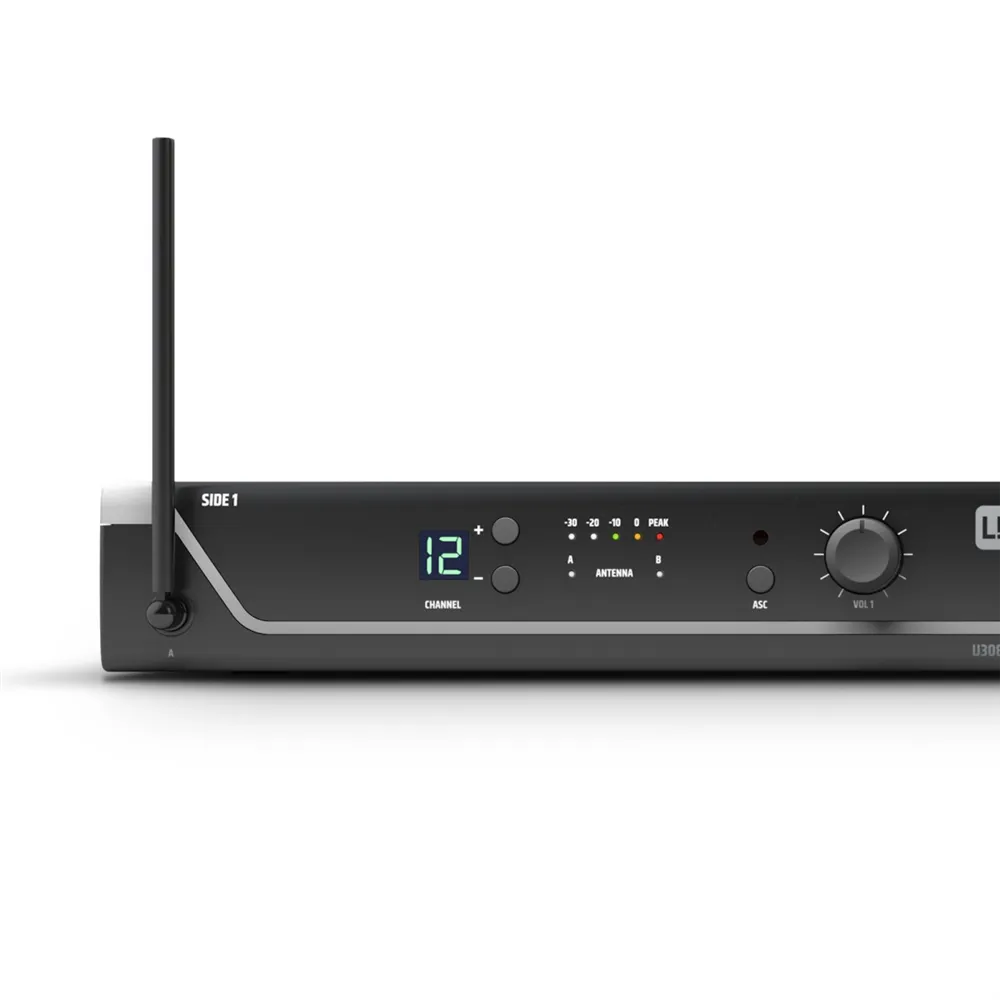

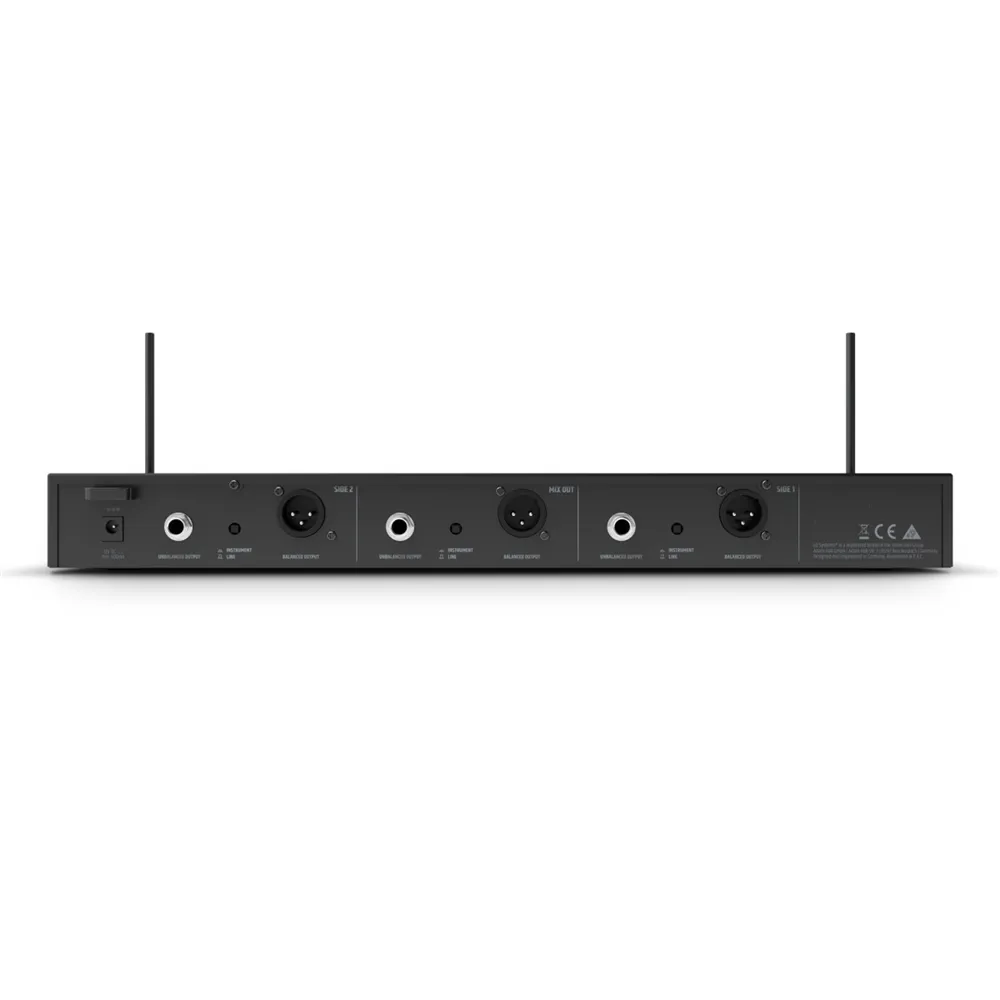

The U308 R2 impresses with its sleek metal housing and bright LCD channel display, ensuring user-friendly operation. With two balanced XLR outputs and two unbalanced 6.35 mm jack outputs, the receiver is versatile enough for direct connection to guitar and bass amplifiers. The integrated noise filter with pilot tone ensures interference-free operation, while the LED indicators display audio signal strength and the status of the active antenna. Included in the package are a power adapter, a balanced XLR cable, and a rackmount kit, making the U308 R2 the ideal choice for musicians and event organizers.
