Features
- Product Type: Installation Speaker
- Type: Wall Speaker
- Woofer Size: 4" (101 mm)
- Woofer Magnet: Ferrite
- Woofer Brand: Custom Made
- HF Driver Size: 1" (25 mm)
- HF Driver Magnet: Ferrite
- HF Driver Brand: Custom Made
- Dispersion Angle (H x V): 60° x 60°
- Power Handling (RMS): 60 W
- Frequency Response: 75 - 20,000 Hz
- SPL (1 W/1 m): 85 dB
- Max. SPL: 103 dB
- Impedance: 16 Ohm
- Protection Circuits: HF Driver
- Speaker Inputs: 1
- Speaker Input Connections: Terminal Connection
- Speakers per Amplifier Channel (DSP44/45K): 8
- Enclosure Material: 12 mm MDF
- Enclosure Finish: Textured Paint
- Enclosure Color: Black
- Enclosure Design: Closed
- Width: 140 mm
- Height: 230 mm
- Depth: 125 mm
- Weight: 5 kg

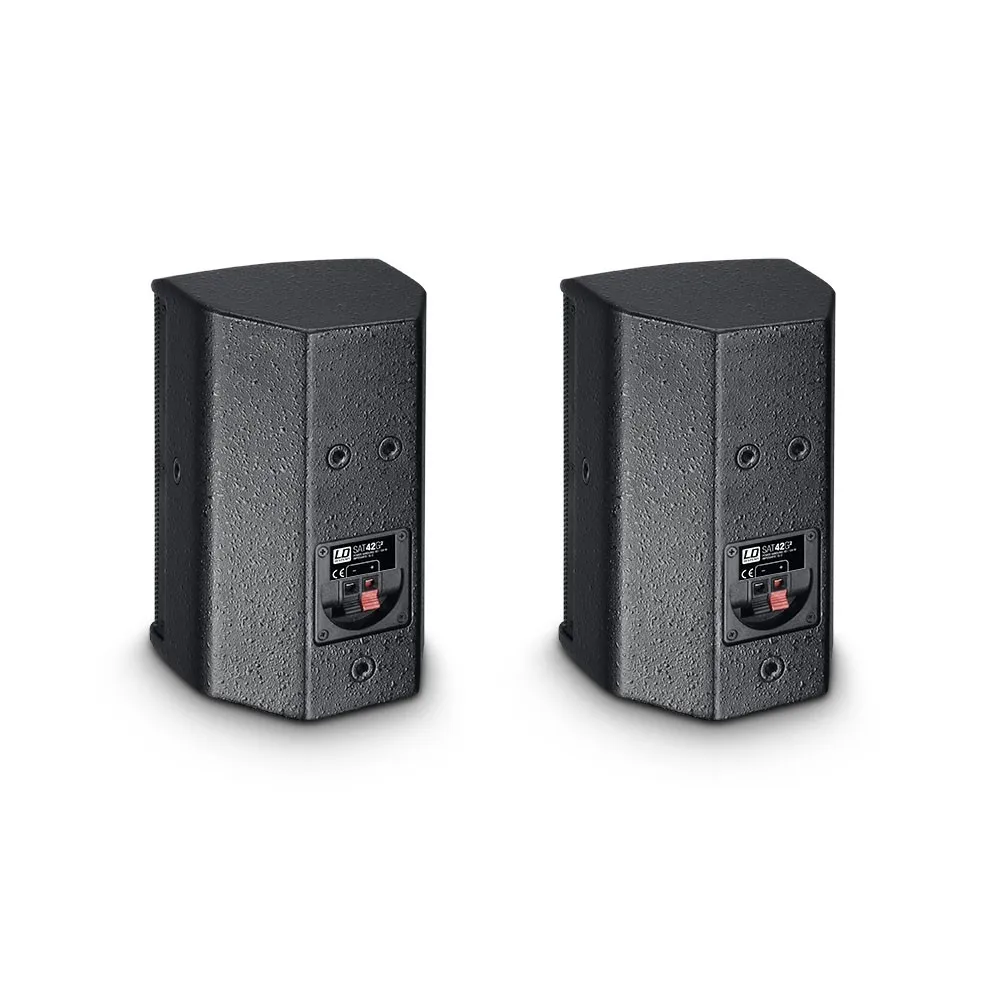

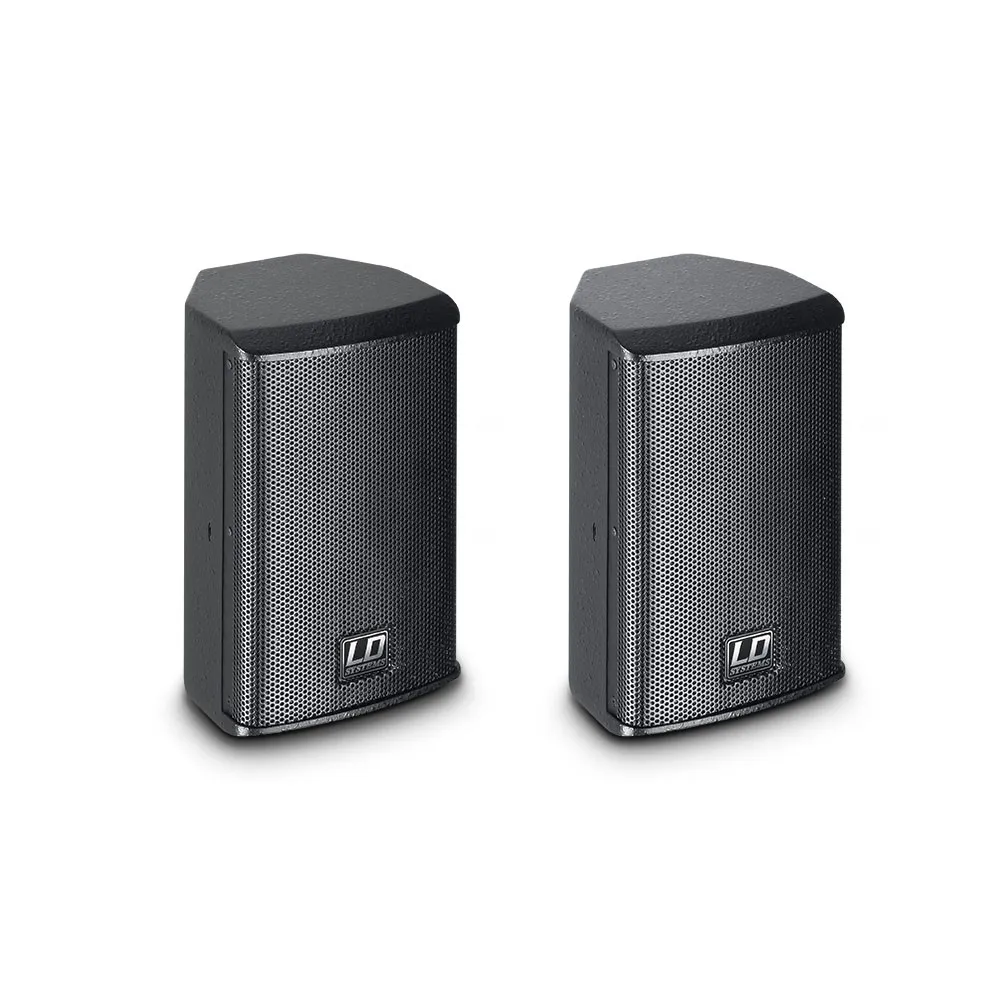

LD Systems SAT 42 G2 - 4" Passive Installation Speaker Black (Pair)
The LD Systems SAT 42 G2 is an ultra-compact 2-way speaker that is ideal for smaller installations and seamlessly integrates into any environment, whether in hospitality, retail, or residential settings. Featuring a 4" custom woofer and a 1" silk dome tweeter with waveguide, this speaker delivers a balanced sound with a dispersion angle of 60° x 60°. With a maximum sound pressure level of 103 dB, your music or speech will be heard clearly and distinctly.

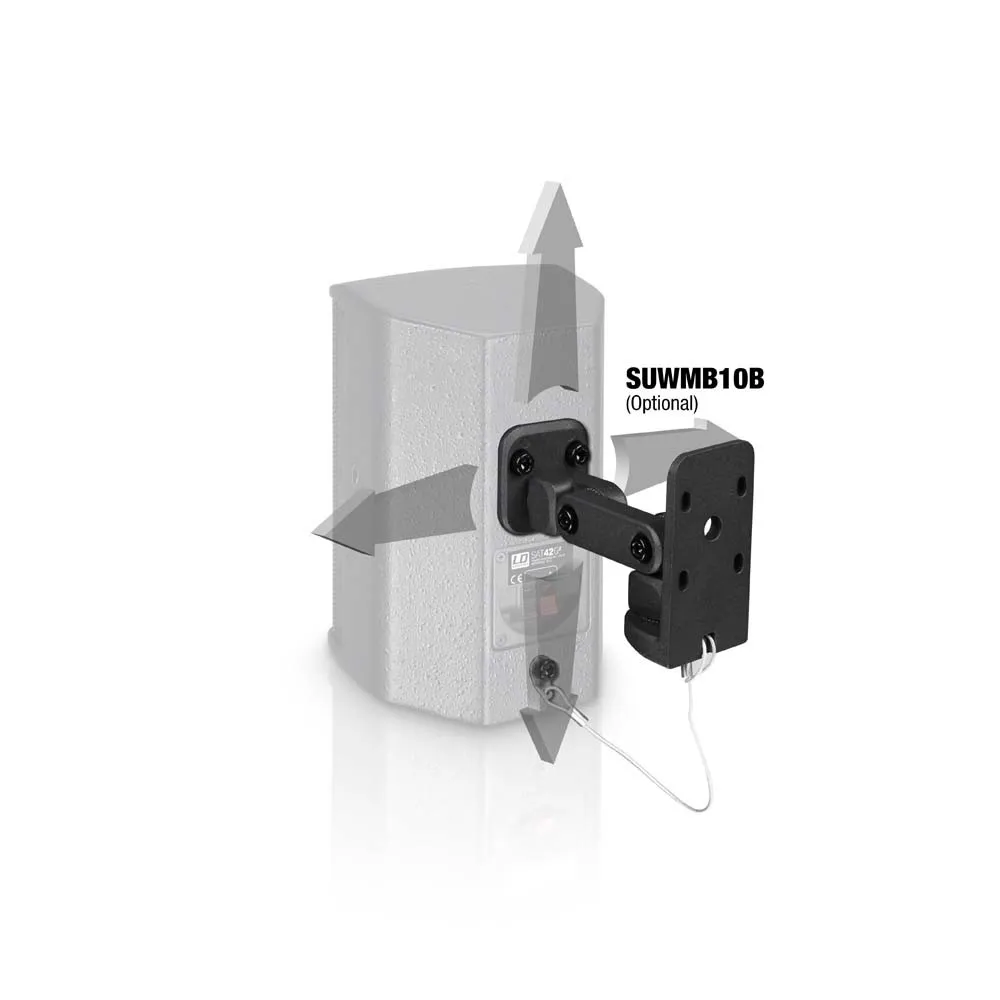

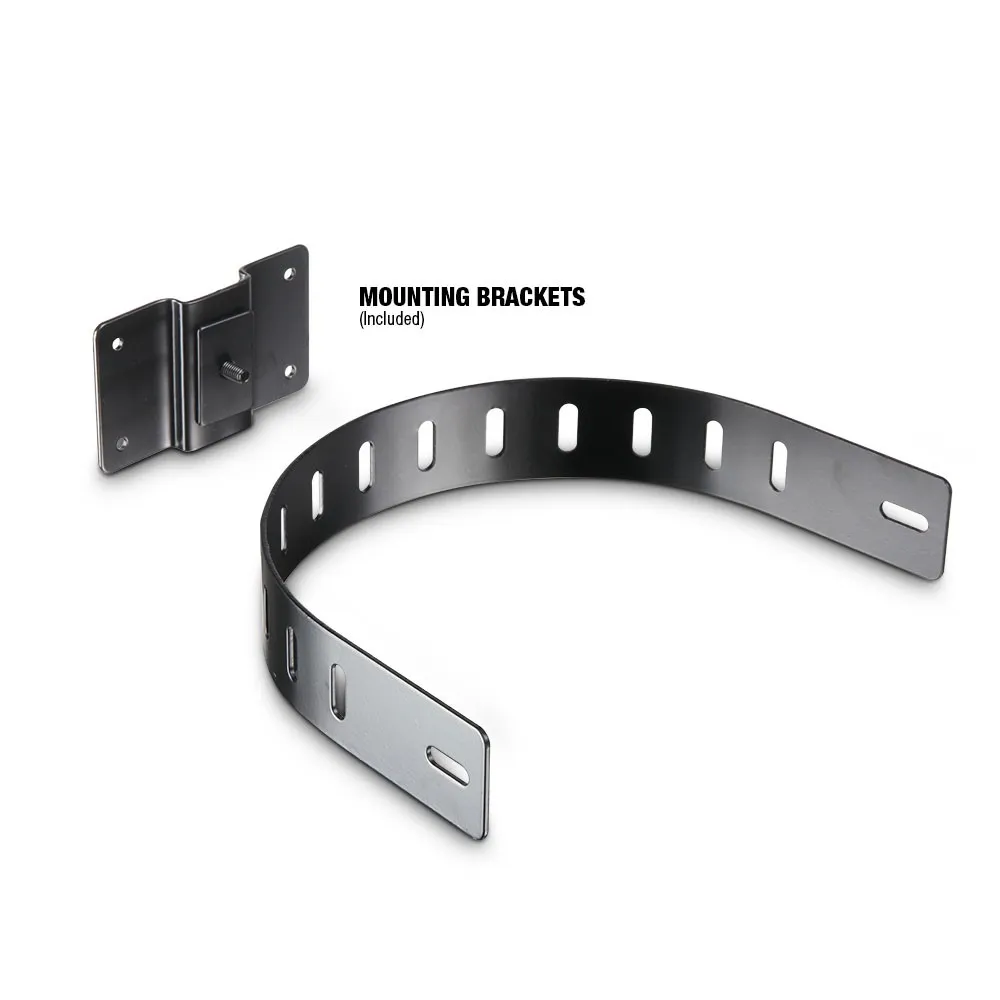

With an impedance of 16 ohms, you can connect up to eight SAT 42 G2 speakers in parallel at 2 ohms, providing flexibility for your installation. For deeper bass frequencies, the subwoofers from the LD installation series can be used as a perfect complement. The robust enclosure made of 12 mm thick MDF is coated with a durable textured paint and is available in black or white. M6 inserts and the included mounting bracket offer numerous mounting options, while the connection is made via convenient spring clips.
With a frequency response of 75 to 20,000 Hz and an RMS power handling of 60 W, the LD Systems SAT 42 G2 is the perfect choice for those who value quality and performance.
