Features
- Product Type: Installation Speaker
- Type: Wall Speaker
- Woofer Size: 2 x 4"
- Woofer Size: 2 x 101 mm
- Woofer Magnet: Ferrite
- Woofer Brand: Custom Made
- Tweeter Size: 1"
- Tweeter Size: 25 mm
- Tweeter Magnet: Ferrite
- Tweeter Brand: Custom Made
- Dispersion Angle (H x V): 60 x 60 °
- Power Handling (RMS): 100 W
- Frequency Response: 75 - 20000 Hz
- SPL (1 W/1 m): 88 dB
- Max. SPL: 108 dB
- Impedance: 8 Ohm
- Protection Circuits: Tweeter
- Speaker Inputs: 1
- Speaker Input Connections: Terminal Connection
- Speakers per Amplifier Channel (DSP44/45K): 4
- Enclosure Material: 12 mm MDF
- Enclosure Finish: Textured Paint
- Enclosure Color: Black
- Enclosure Design: Closed
- Width: 140 mm
- Height: 378 mm
- Depth: 135 mm
- Weight: 4.15 kg

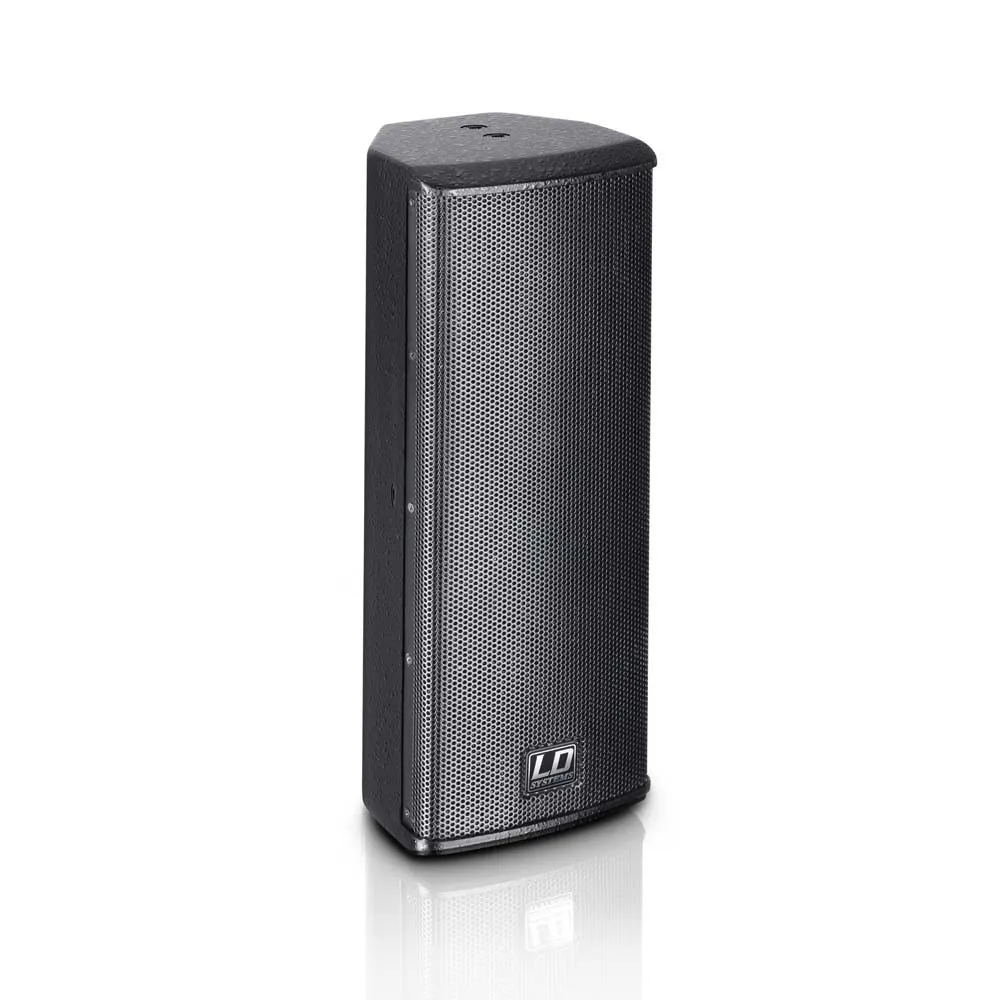

LD Systems SAT 242 G2 - 2 x 4" Passive Installation Speaker in Black
The LD Systems SAT 242 G2 is the perfect solution for smaller installations that require elegant integration into any environment. With its closed design and two powerful 4" custom woofers, along with a 1" silk dome tweeter featuring a waveguide, this compact speaker delivers an impressive maximum sound pressure level of 108 dB.
With an RMS power of 100 W, the SAT 242 G2 is versatile in its applications—either as a full-range speaker or in combination with a subwoofer from the LD installation series to extend the bass response. The cabinet, made from 12 mm thick MDF, is coated in a durable textured finish in elegant black, providing an appealing aesthetic.

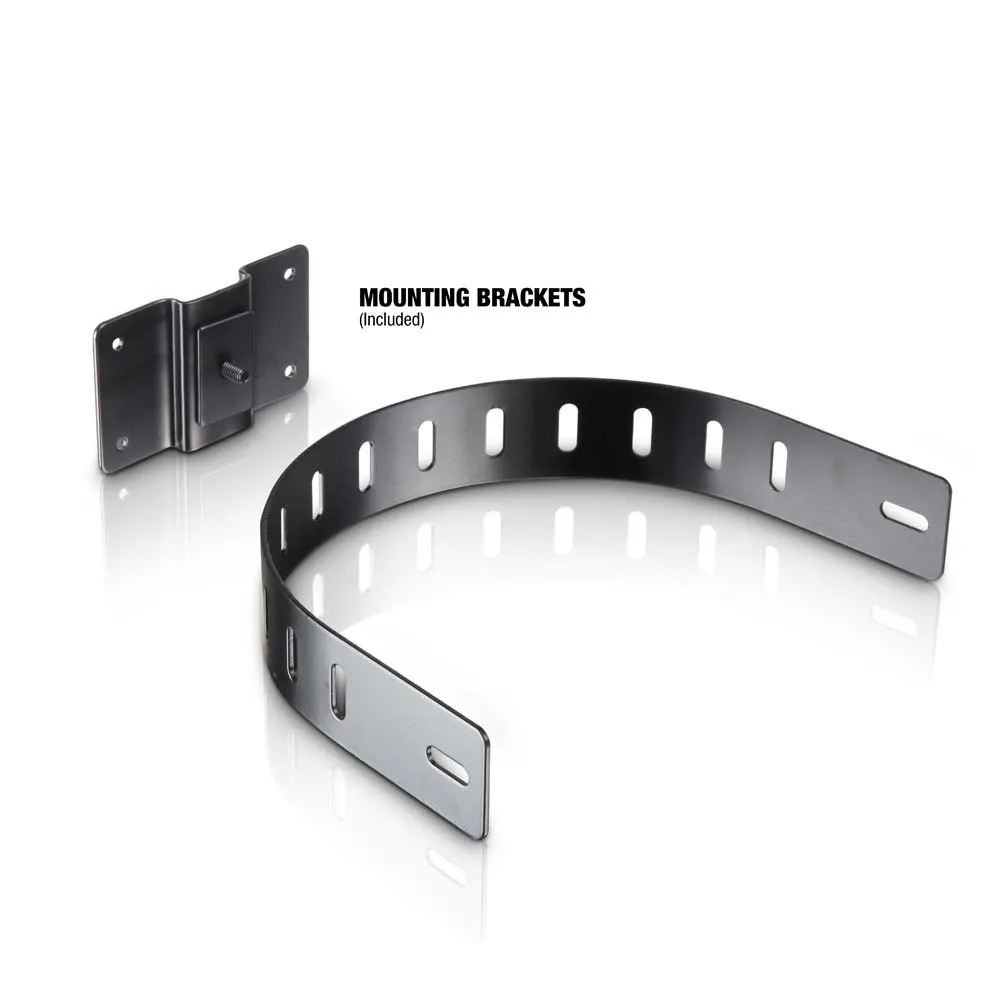

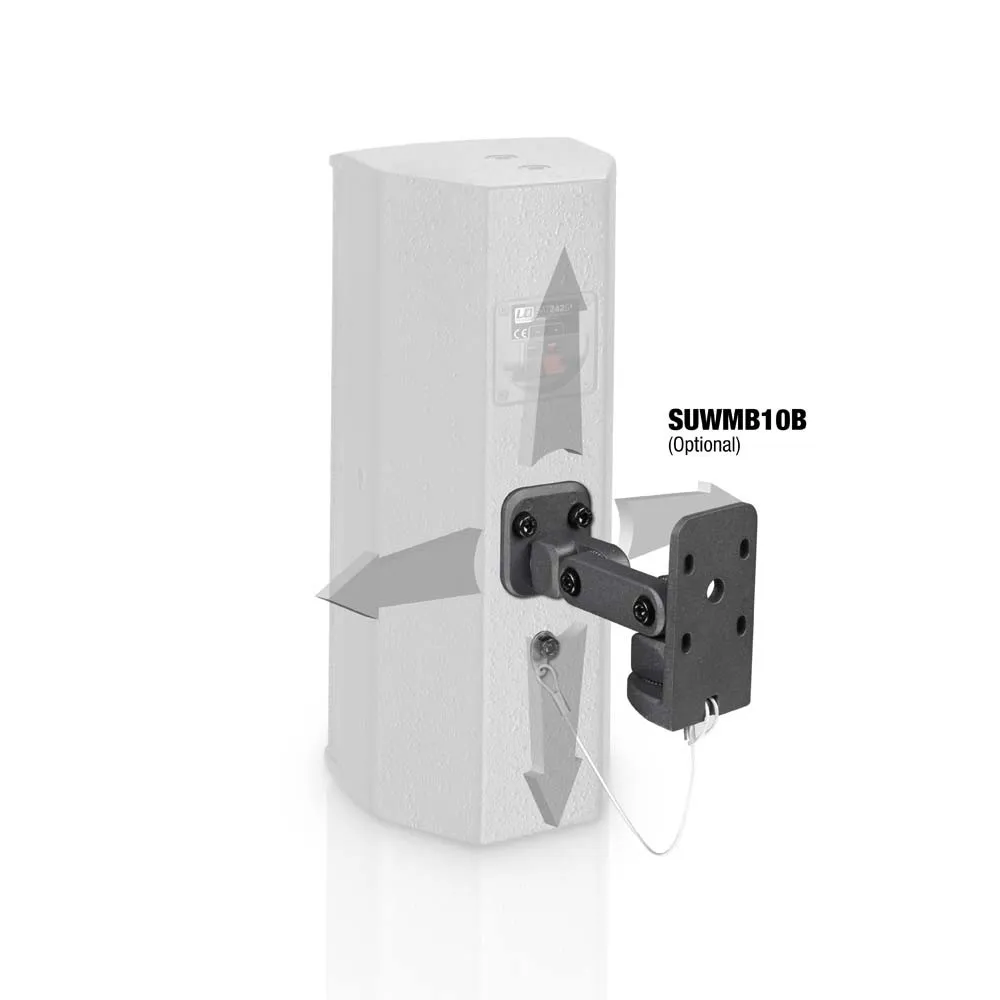

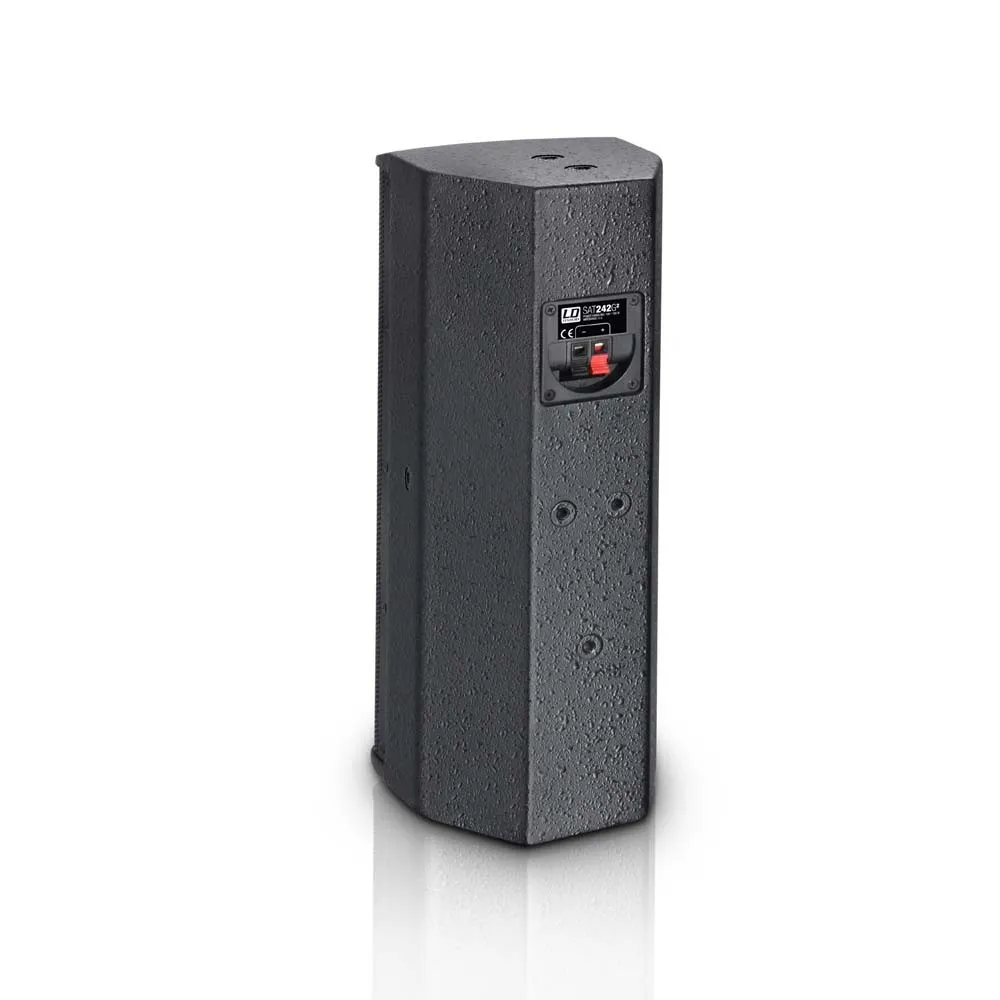

Installation is highly flexible thanks to the spring-loaded connectors and M6 inserts, along with the included mounting bracket. For additional mounting options, a universal joint mount can be purchased as an accessory. The LD Systems SAT 242 G2 is the ideal choice for those looking to combine quality and design in a compact speaker.
