LD Systems ICOA 12 A - 12" Active Coaxial PA Speaker

Brand:

LD Systems ICOA 12 - 12" Passive Coaxial PA Speaker

LD Systems ICOA 12 A BT - 12" Active Coaxial PA Speaker with Bluetooth

Features

True all-rounder for full-range, satellite, and monitor applications
126 dB max SPL and 1200 W PEAK power

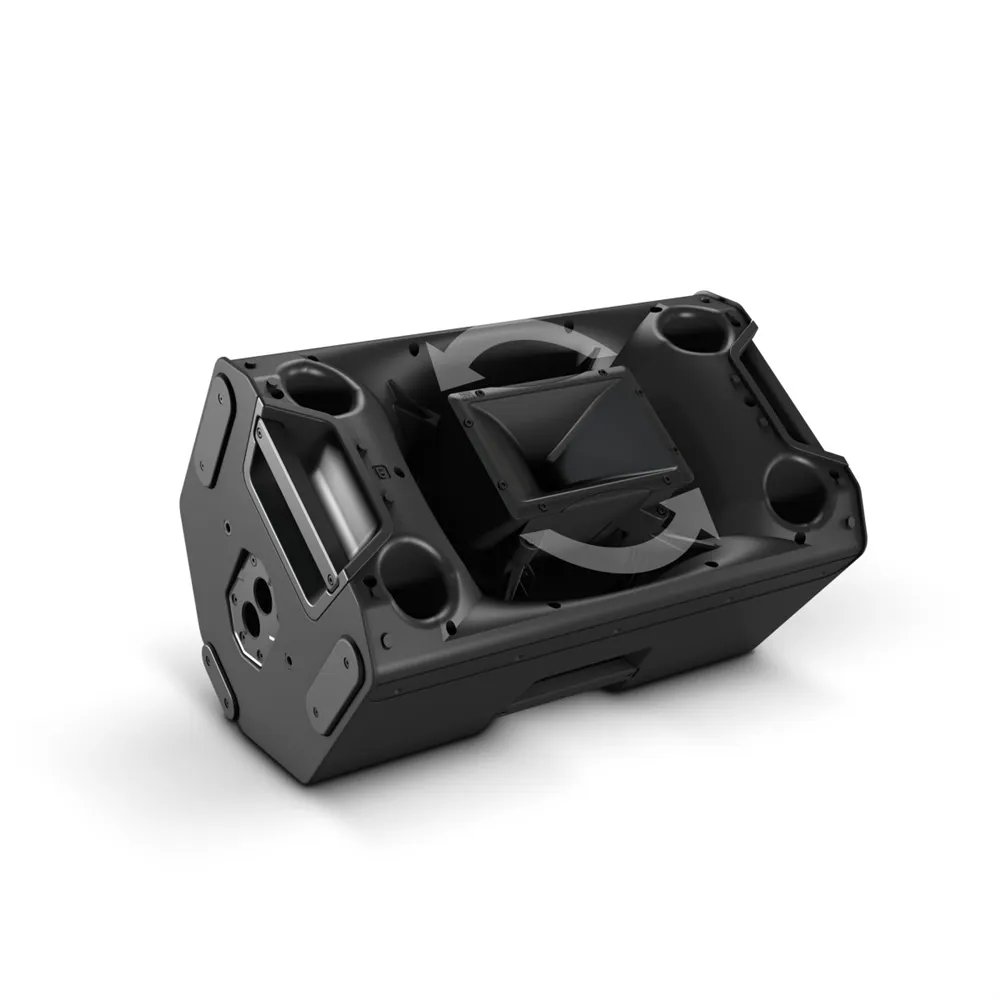

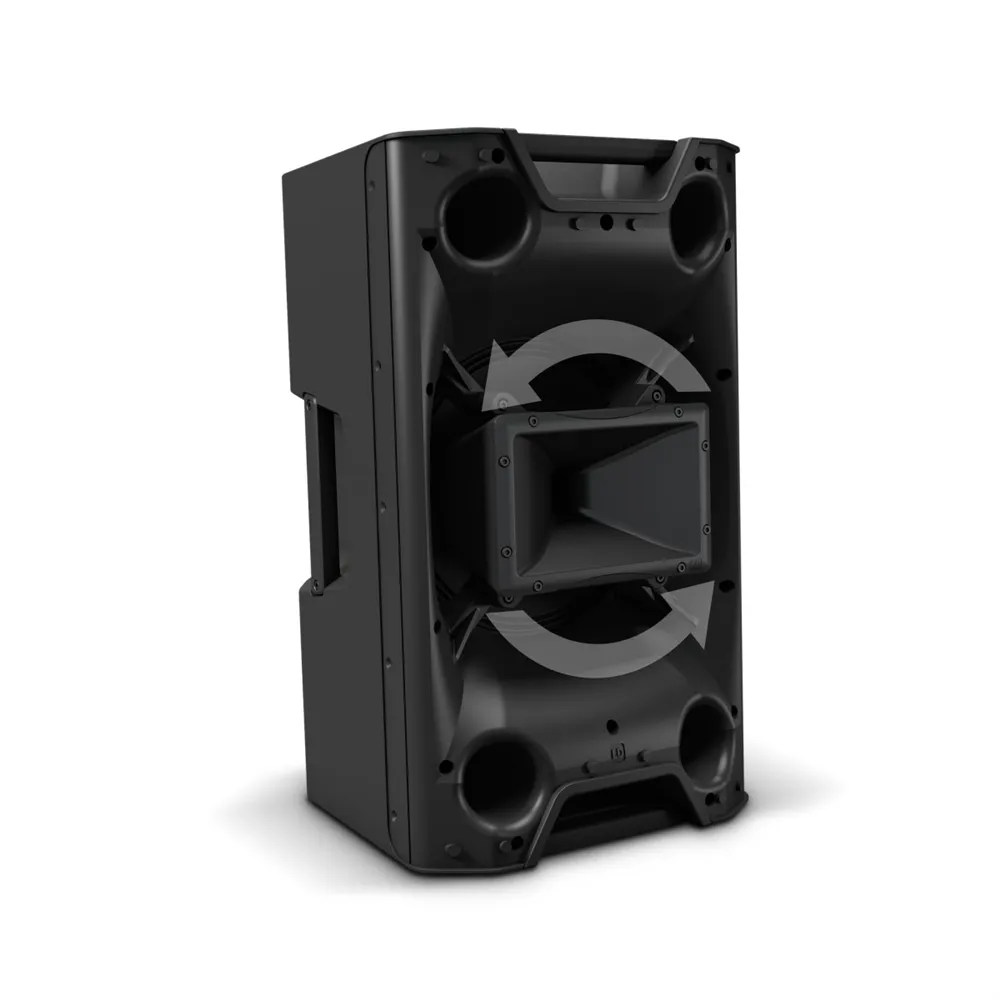

Vertical and horizontal application through coaxial design with rotatable, BEM-optimized CD horn (patent pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ, and delay function
2 line/mic input channels with individual gain controls plus mono mix output
Bluetooth® streaming available in the BT model

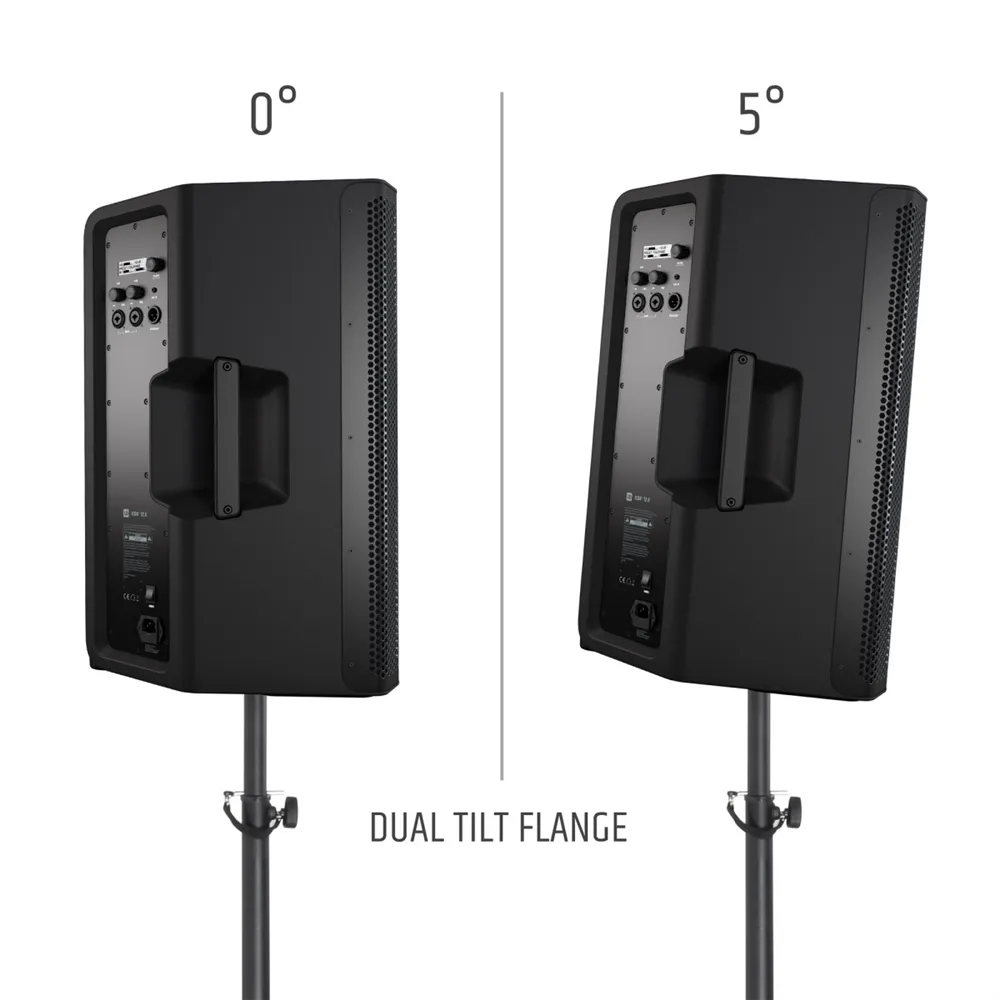

36 mm dual-tilt tripod mount with 0° and 5° tilt angles, 55° monitor angle with stable stand

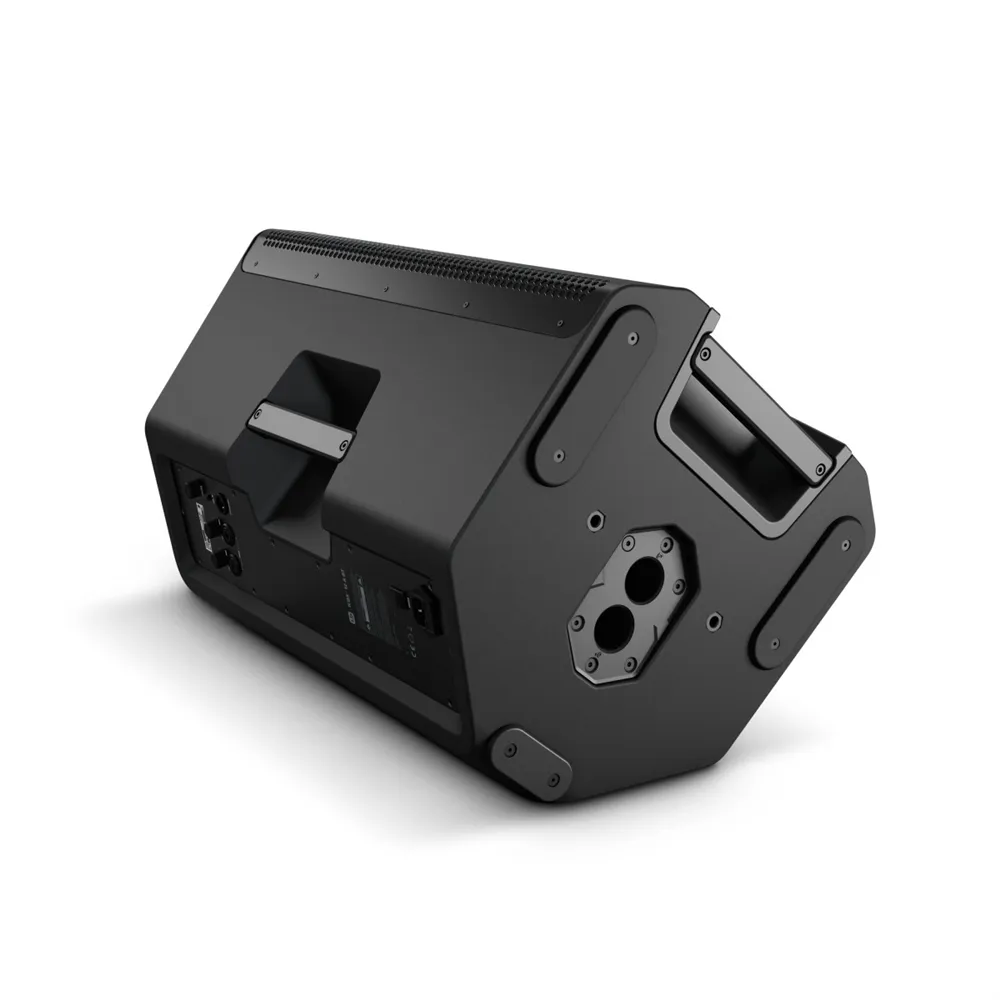

6 x M10 flying points

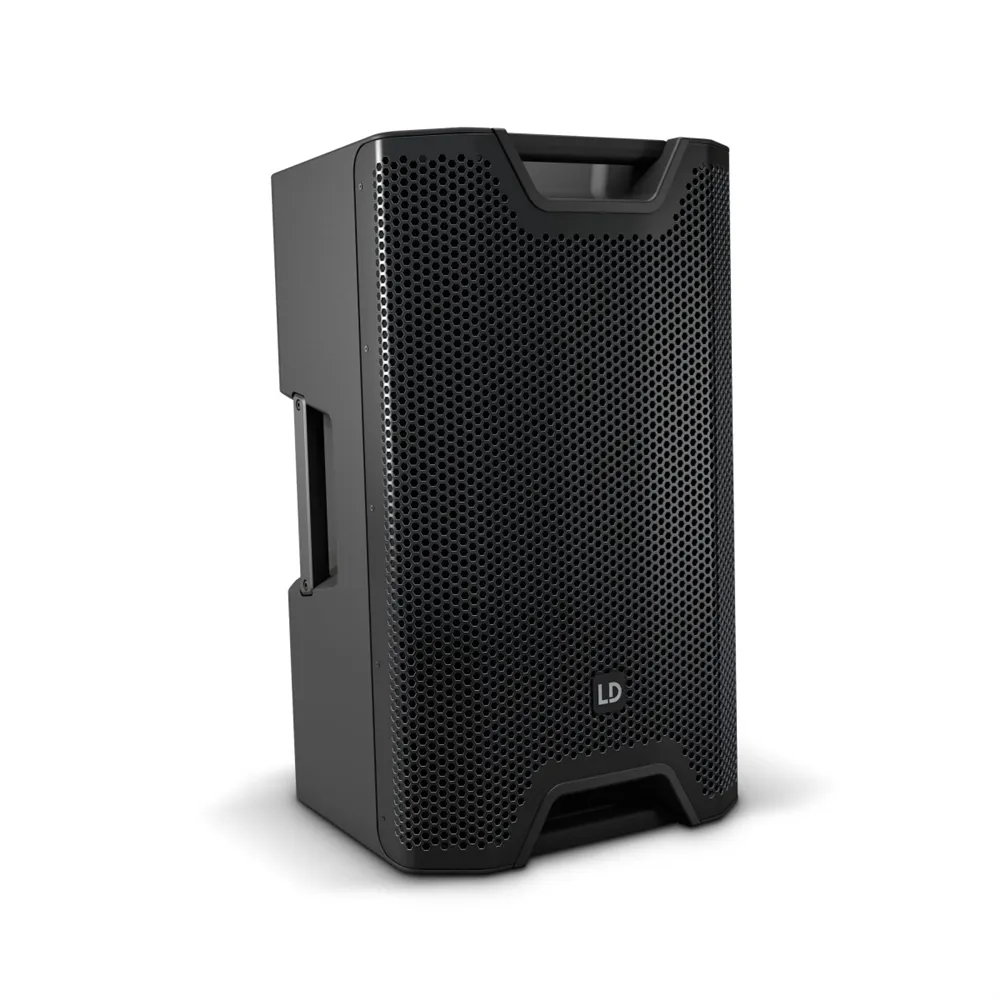

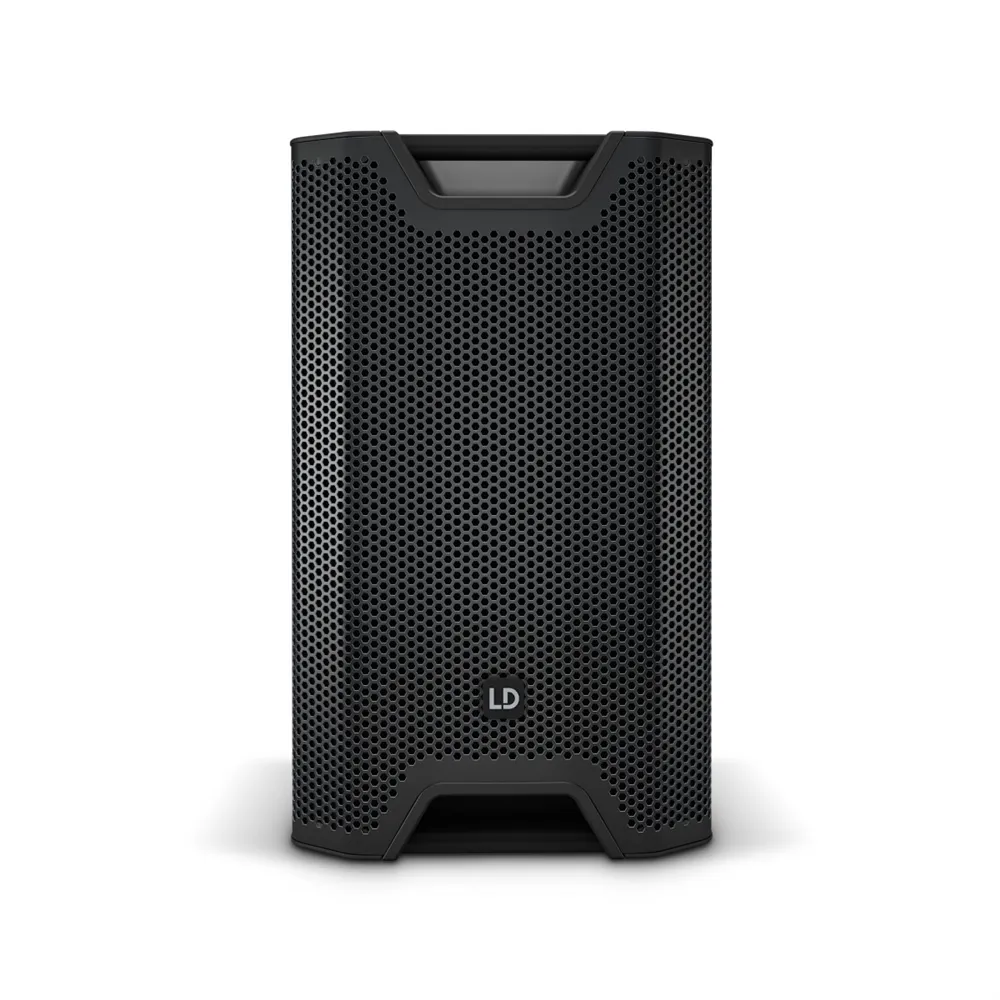

Impact-resistant front grille for optimal speaker protection
4 aluminum handles with ergonomic, rubberized surface
Comprehensive optional accessories for installation and transport
Product type: PA speaker
Type: Active
Woofer size: 12 "
Woofer magnet: Ferrite
Horn: BEM optimized CD horn
HF driver size: 1 "
HF driver magnet: Ferrite
Amplifier: Class D
Dispersion angle (H x V): 90° x 50°
Power (RMS): 300 W
Frequency response: 50 - 20000 Hz
Max SPL (Peak): 126 dB
Protection circuits: Multiband limiter, overheating, overvoltage, overcurrent

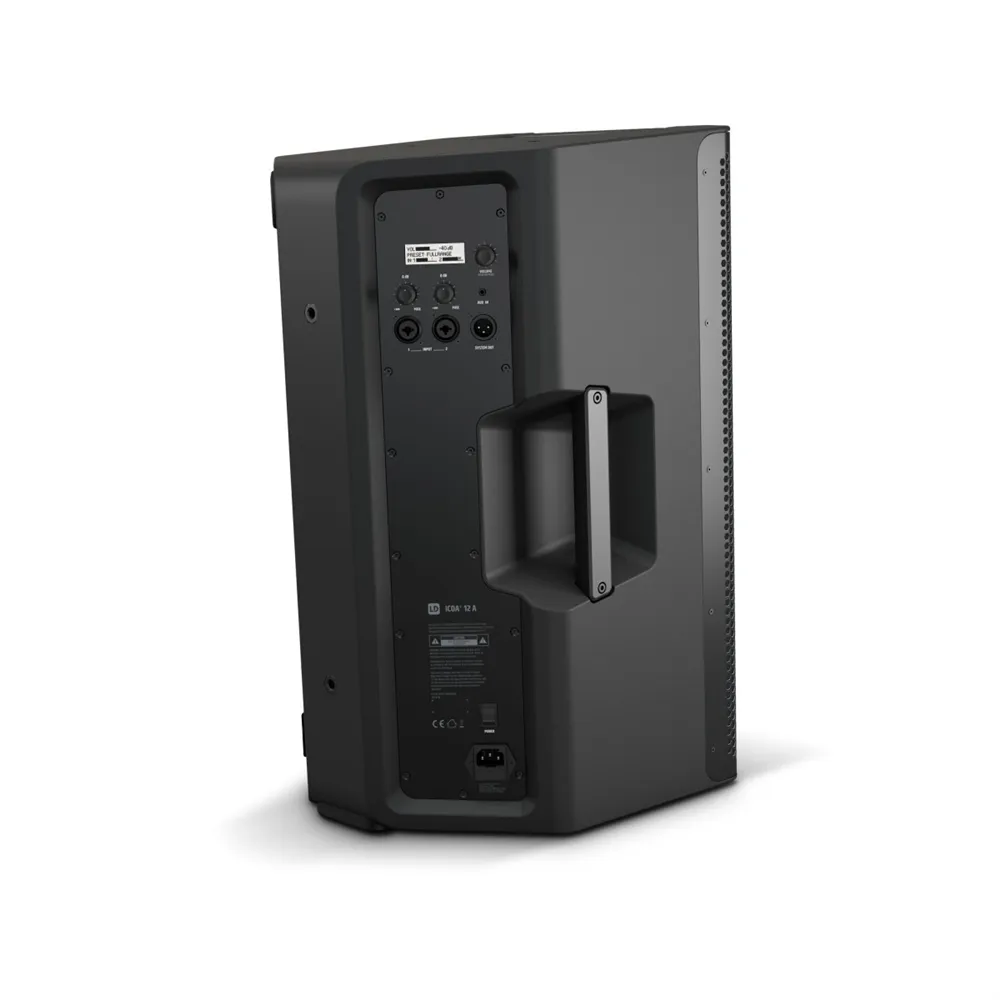

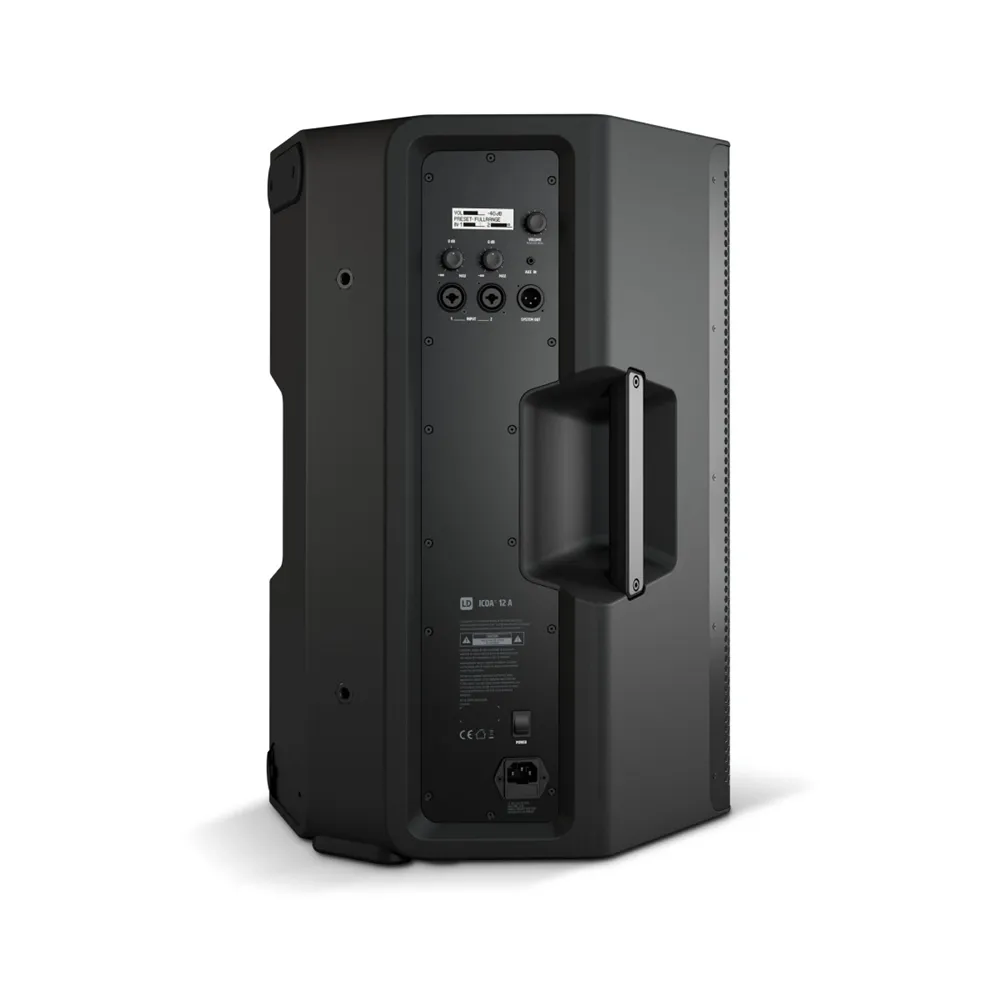

Controls: 2 x Gain, rotary-push encoder, power switch
Display elements: LC display
Mic/line inputs: 2
Mic/line input connectors: 6.3 mm jack combo sockets (balanced), XLR
Line inputs: 1 (3.5 mm stereo jack)
Line outputs: 1 (XLR)
Power supply: SMPS
Power consumption: 150 W
Operating temperature (in use): 0 - 40 °C
Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
Fuse: T4AL 250 V
Cabinet material: Polypropylene
Cabinet design: Bass reflex
Mounting: 36 mm flange (0°, 5°), 6 x M10 flying points

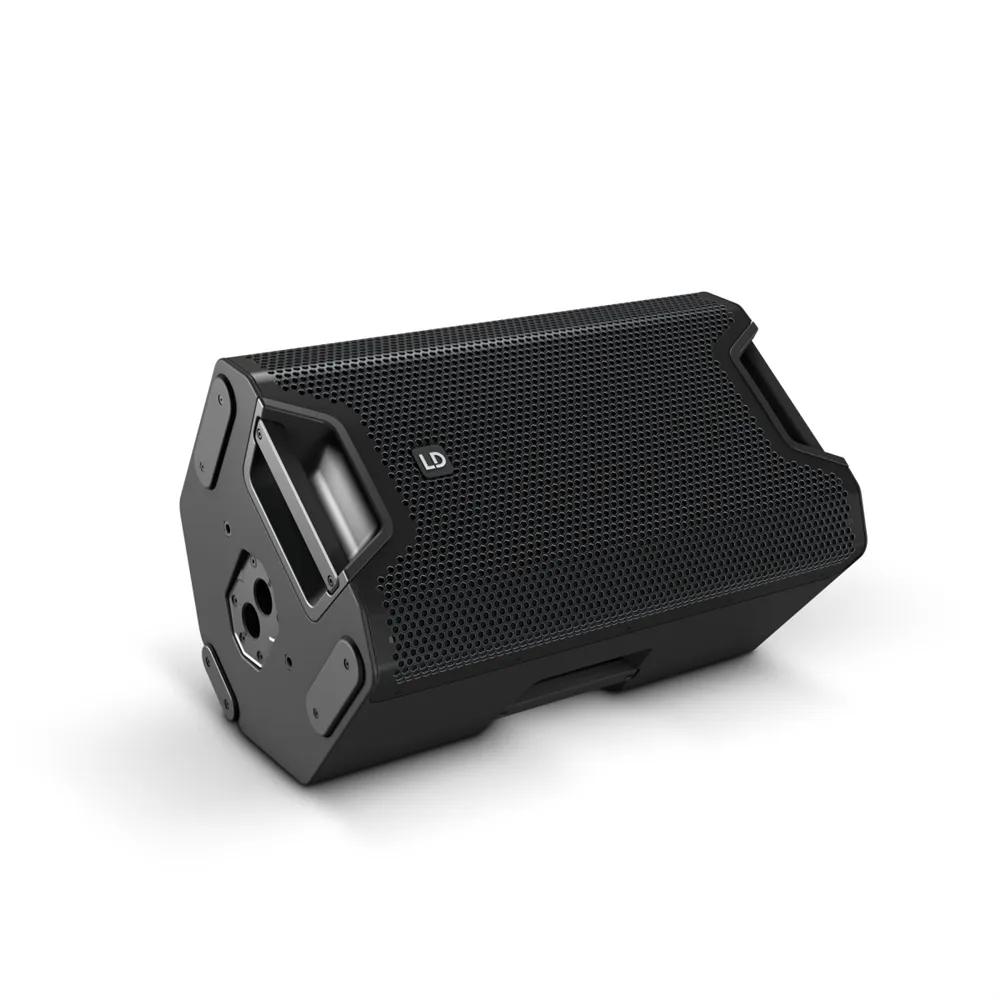

Monitor angle: 55 °
Width: 375 mm
Height: 635 mm
Depth: 396 mm
Weight: 19.95 kg
Accessories (included): Power cable

LD Systems ICOA 12 A - 12" Active Coaxial PA Speaker

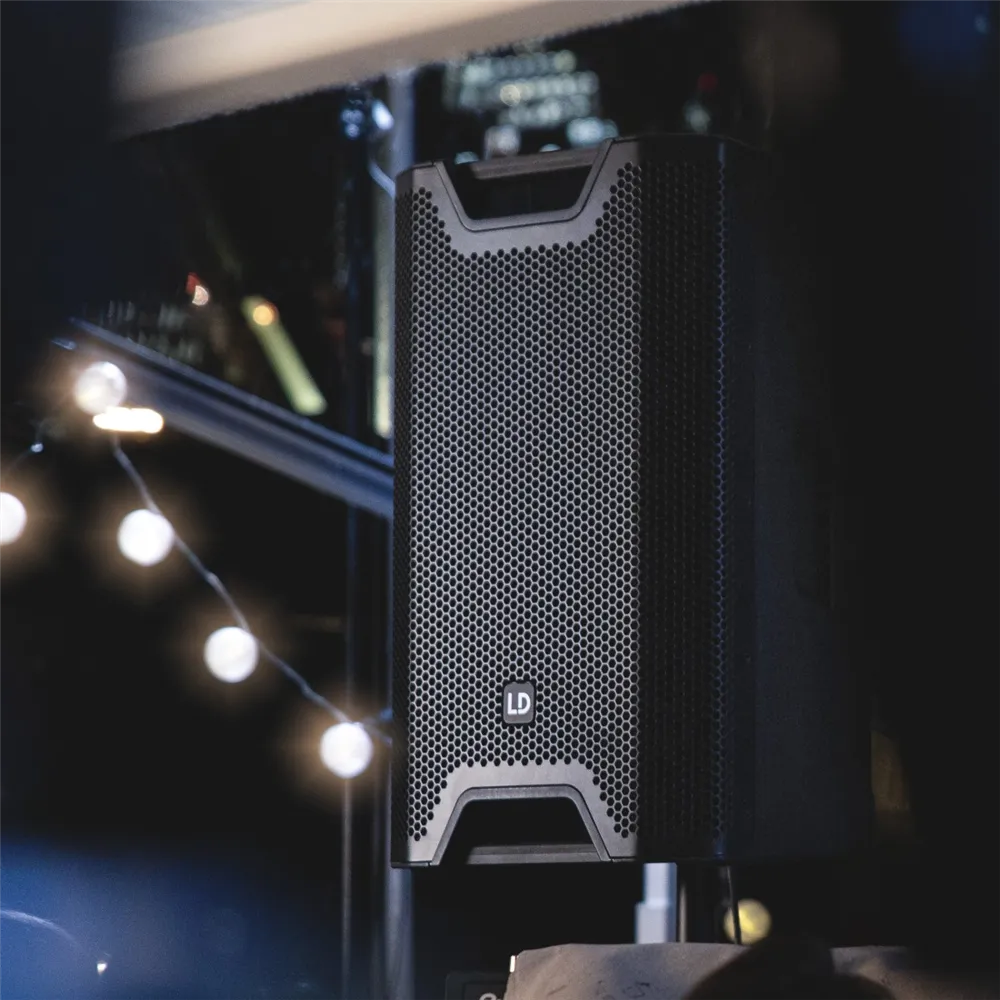

The LD Systems ICOA 12 A is the ultimate 12" active coaxial PA speaker, designed as a true all-rounder for full-range, satellite, and monitor applications. With an impressive maximum sound level of 126 dB and a peak power of 1200 W, this speaker delivers powerful and clear sound that will impress both musicians and DJs.

Thanks to its innovative coaxial design and rotatable, BEM-optimized CD horn, the ICOA 12 A adapts flexibly to various usage scenarios. The DynX DSP technology, featuring four presets, a 3-band EQ, and a delay function, ensures that the sound can be optimally tailored under all conditions.

With two line/mic input channels, individual gain controls, and a mono mix output, various signal sources can be easily connected. The impact-resistant front grille protects the speaker, while the ergonomic aluminum handles facilitate transport. The 36 mm dual-tilt stand mount allows for easy adjustment of the tilt angle, enabling the speaker to be used both vertically and horizontally.

The LD Systems ICOA 12 A is the perfect choice for anyone seeking a powerful, versatile, and robust speaker.
