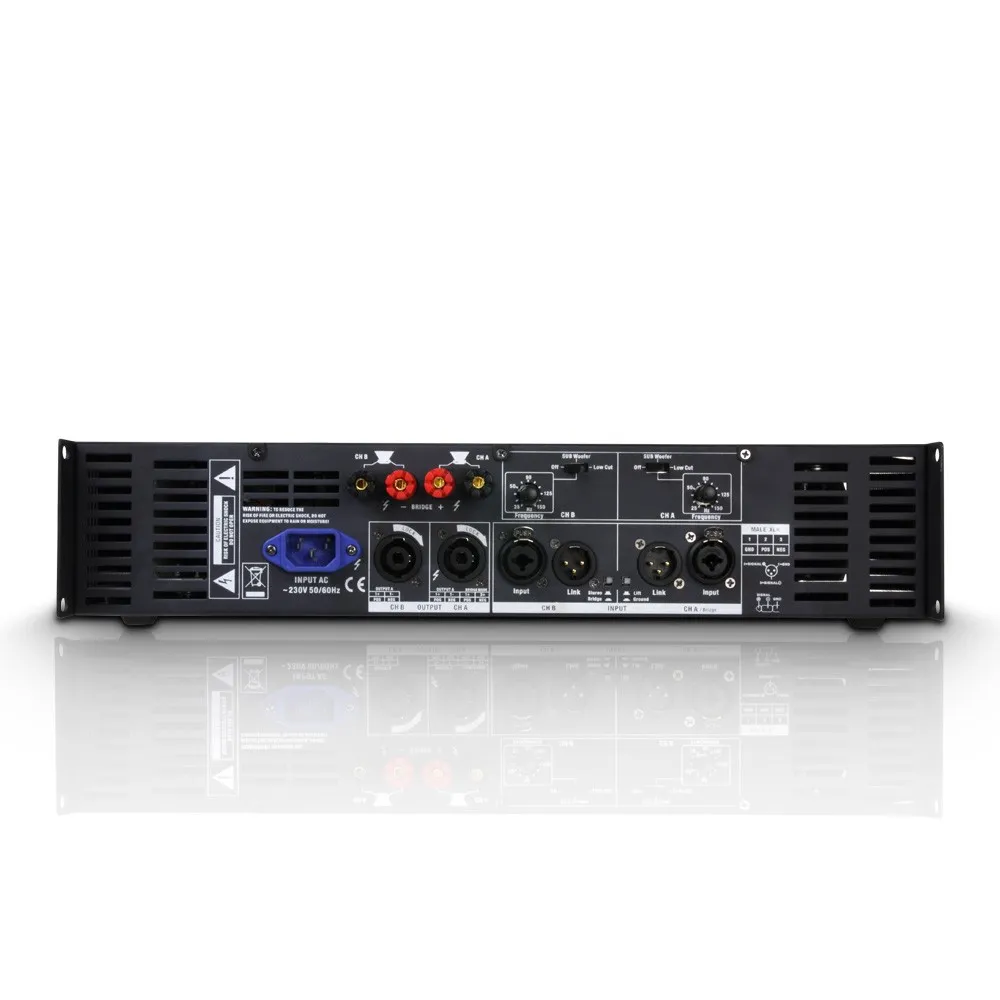

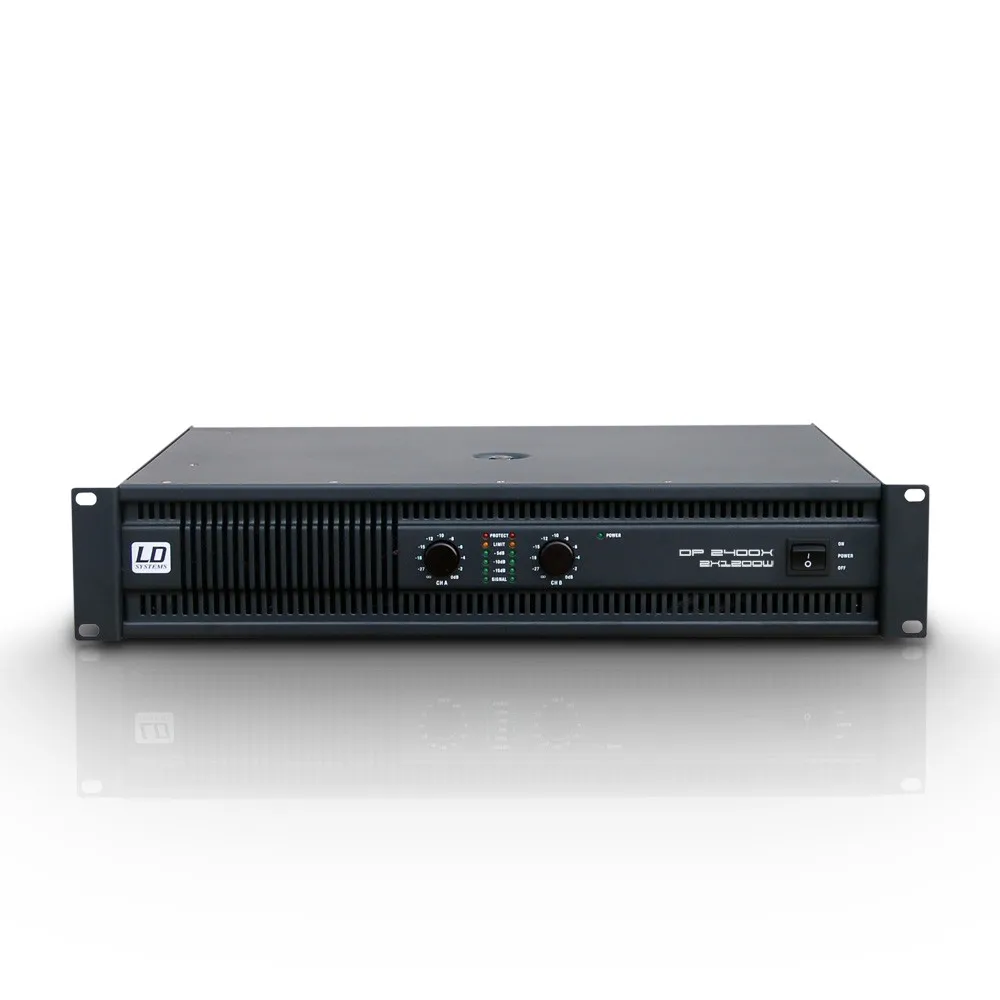

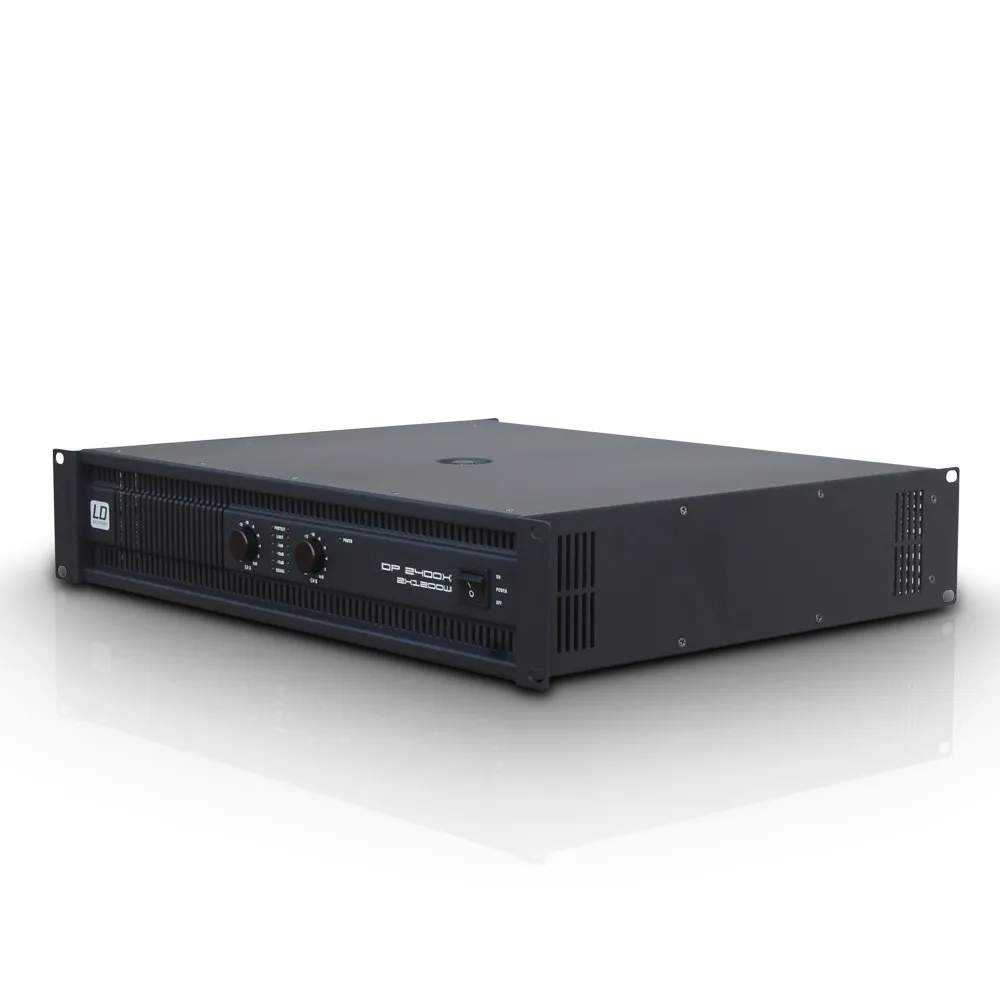

LD Systems DEEP2 2400 X - PA Endstufe 2 x 1200 W 2 Ohm

LD Systems DEEP2 2400 X - PA Amplifier 2 x 1200 W 2 Ohm

Brand:

LD Systems DEEP2 1600 - PA Amplifier 2 x 800 W 2 Ohm

LD Systems DEEP2 4950 - PA Amplifier 4 x 810 W 4 Ohm

Features

Product Type: Power Amplifiers
Type: PA Power Amplifiers
Output Power (1 kHz @ 2 Ohm): 2 x 1200 W
Output Power (1 kHz @ 4 Ohm): 2 x 950 W
Output Power (1 kHz @ 8 Ohm): 2 x 600 W
Output Power (1 kHz @ 4 Ohm, Bridge Mode): 2200 W
Output Power (1 kHz @ 8 Ohm, Bridge Mode): 1800 W
Circuit Concept: Class H
Frequency Response: 20 - 20,000 Hz
Signal-to-Noise Ratio: 106 dB
Damping Factor (20Hz-500Hz @ 8 Ohm): > 450
Crosstalk: > 76 dB
Voltage Gain: 39 dB
Input Sensitivity: 0.775 V
Protection Circuits: Clip Limiter
Protection Circuits: Short Circuit
Protection Circuits: DC Protection
Protection Circuits: Overheating
Controls: 2 x High-Pass/Low-Pass (switchable)
Controls: 2 x Volume
Controls: Ground Lift
Controls: Power Switch (On/Off)
Controls: Bridge/Stereo Mode Switch
Indicators: Limit
Indicators: Level
Indicators: Power
Indicators: Protect (Protection Circuit Active)
Indicators: Signal
Speaker Outputs: 2
Speaker Output Connections: Binding Posts
Speaker Output Connections: Speakon Compatible
Cooling: High-Efficiency Automatic Fan with Two Speeds
Power Supply: Transformer
Operating Voltage: 230 V AC, 50 - 60 Hz
Weight: 17.6 kg
Features: Volex Power Socket

LD Systems DEEP2 2400 X - Power Amplifier 2 x 1200 W 2 Ohm

The latest addition to the LD DEEP2 amplifier series, the LD DP 2400 X, offers impressive power and versatility for professional audio applications. With an RMS output of 2 x 1200 W at 2 Ohms, 2 x 950 W at 4 Ohms, and 2 x 600 W at 8 Ohms, this amplifier is perfect for demanding live events and installations. The DP2400X operates in an efficient Class H circuit and utilizes a conventional power supply to ensure stable and reliable performance.

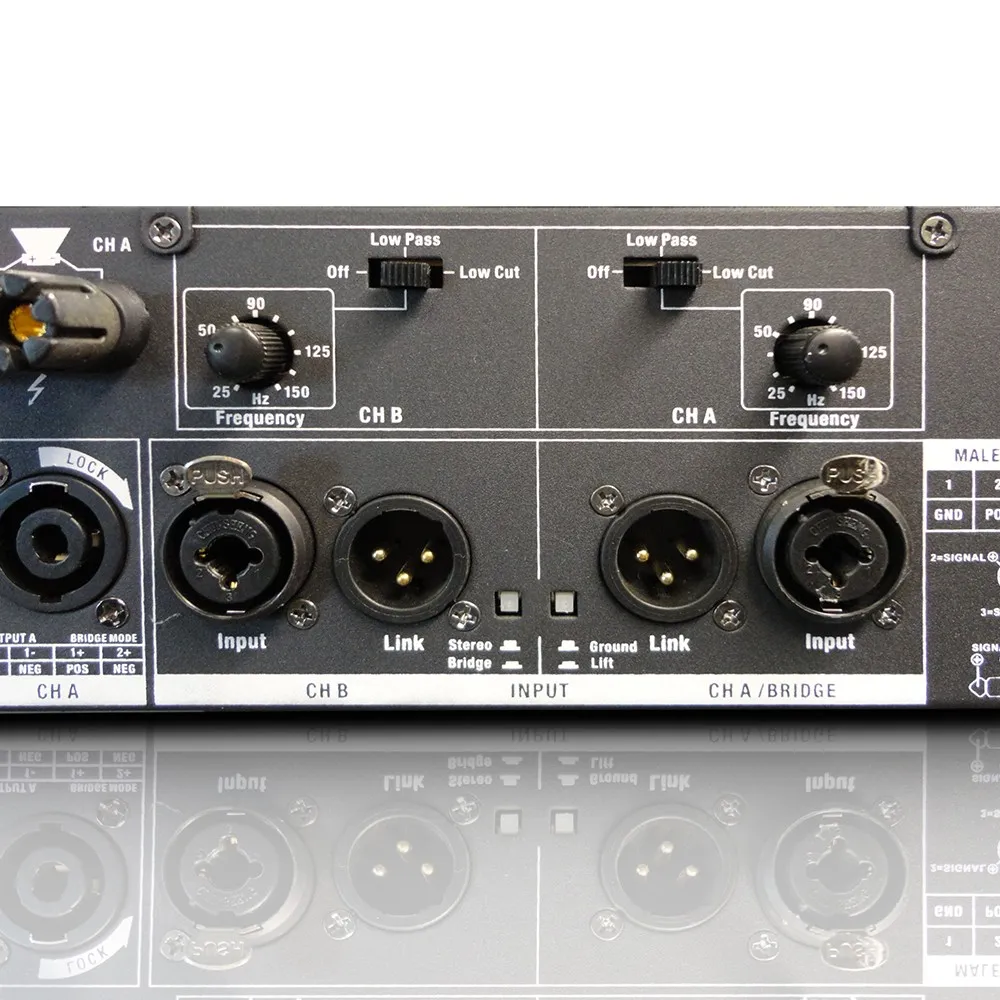

A standout feature of this amplifier is the switchable 12 dB low-cut and low-pass filter, adjustable from 25 Hz to 150 Hz on each channel. This functionality allows the LD DP 2400 X to be used both as a powerful bass amplifier and for implementing a bi-amping system. The filter functions can be disabled, enabling traditional usage of the amplifier. Additionally, temperature-controlled fans with two-speed settings provide optimal cooling, while the proven protection circuits of the DEEP2 series ensure added safety. Experience a new dimension of sound quality and performance with the LD Systems DEEP2 2400 X!
