LD Systems BM1 - Boundary Microphone

LD Systems BM1 - Boundary Microphone

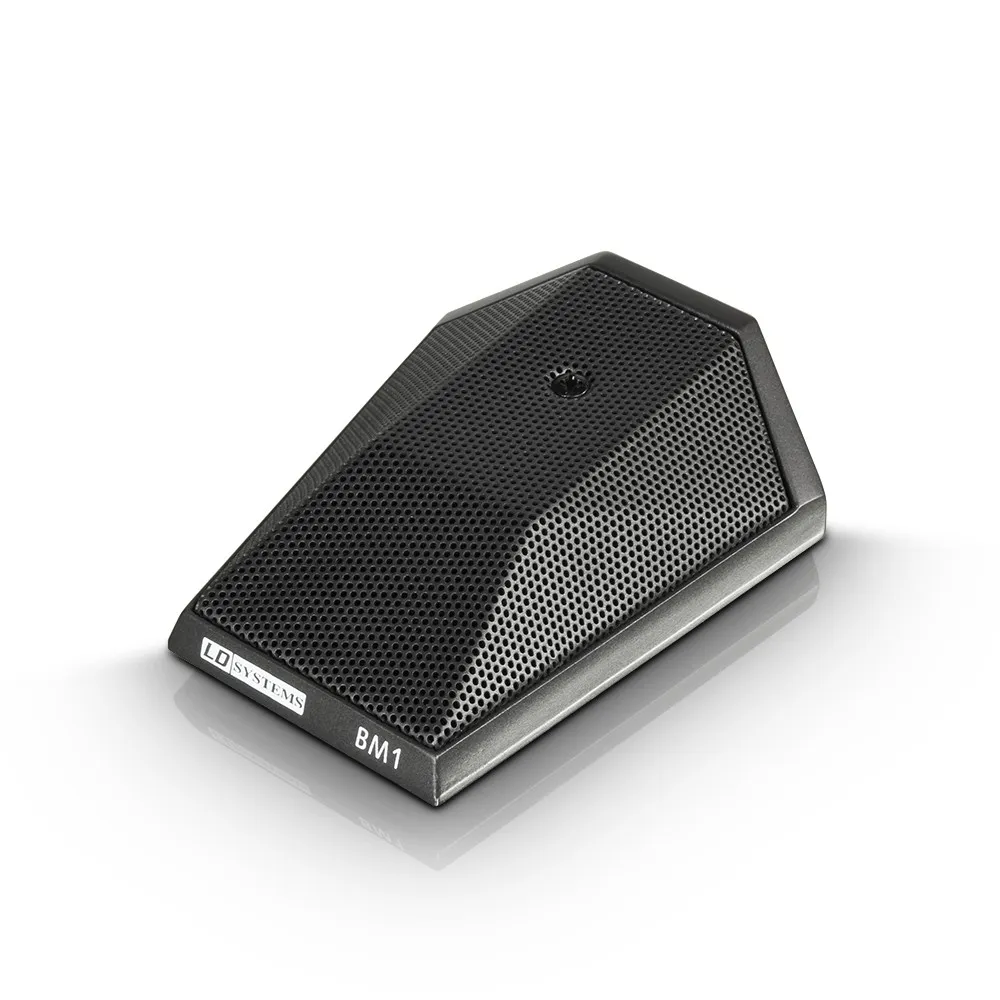

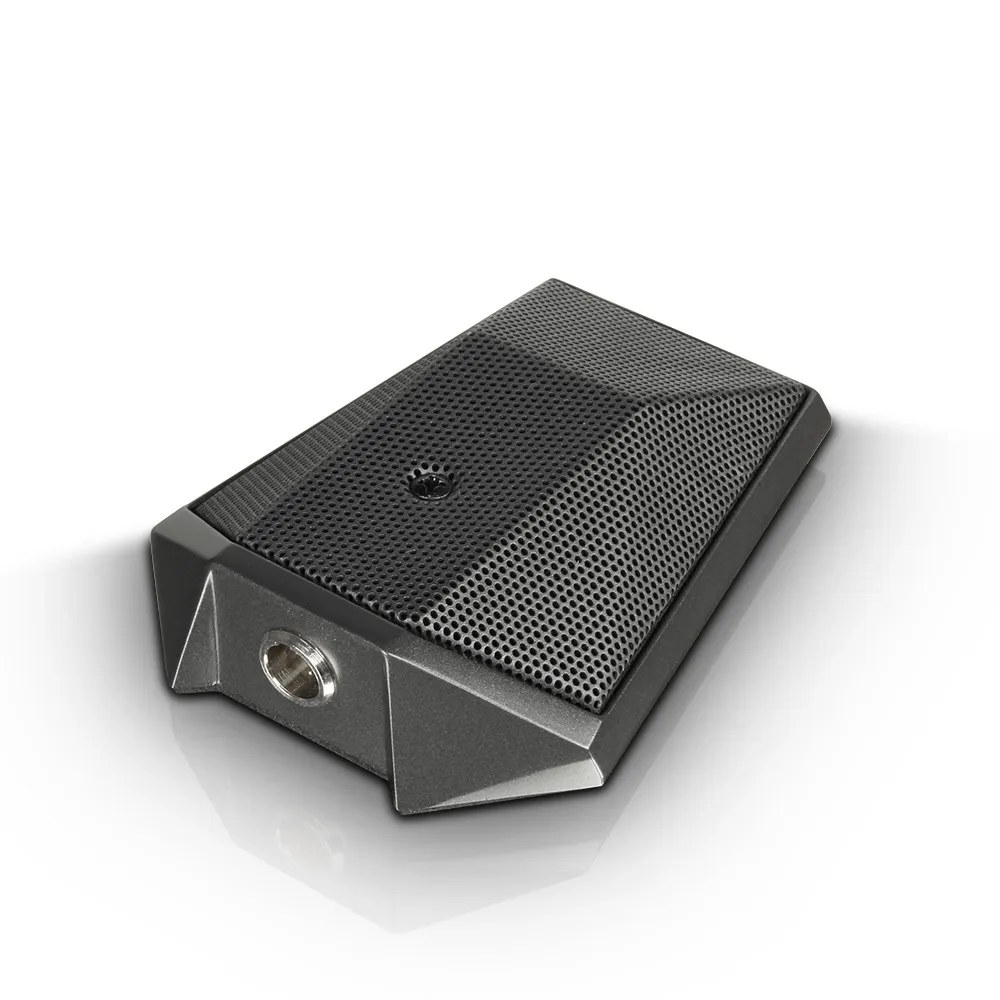

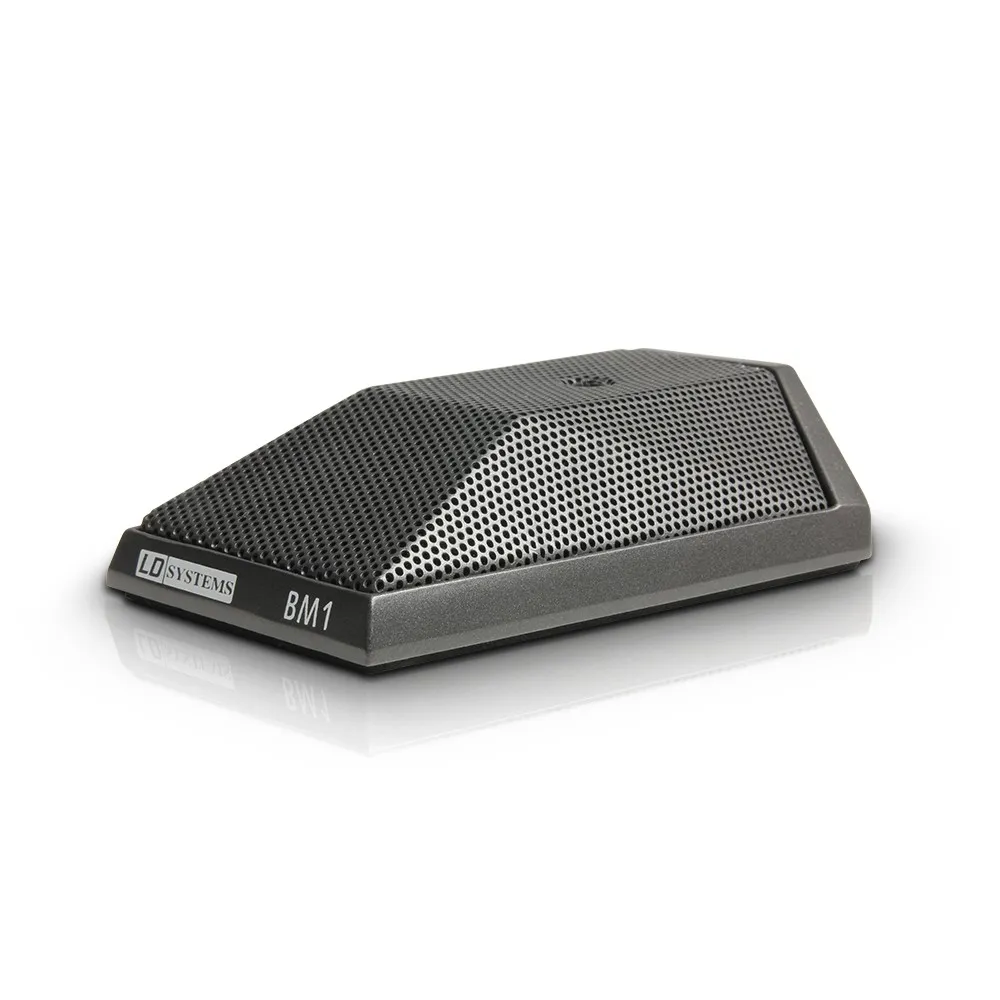

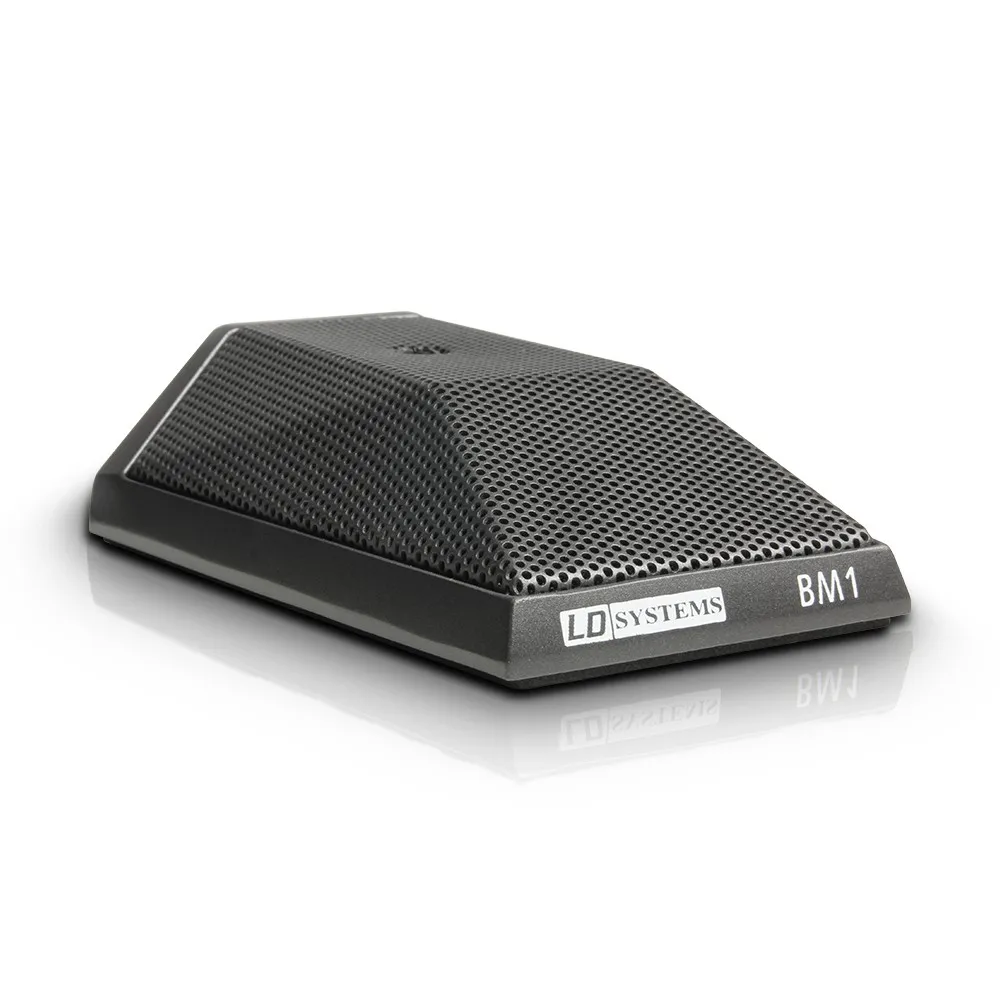

The LD Systems BM1 Boundary Microphone is a premium electret condenser microphone with a hemispherical pickup pattern, perfectly suited for use on stage as well as in the studio. It has been specifically designed for precise sound capture of pianos and grand pianos, and offers versatile applications in conference technology, roundtable discussions, and theatrical performances.

With an impressive frequency response of 50 to 20,000 Hz, the BM1 captures a wide range of sounds, ensuring clear and natural audio reproduction. The nominal impedance of 250 ohms and a maximum sound pressure level of 135 dB (1% THD @ 1 kHz) guarantee outstanding performance even in loud environments. The microphone requires a 48 V phantom power supply and is equipped with a 3-pin XLR connector, facilitating integration into existing systems.

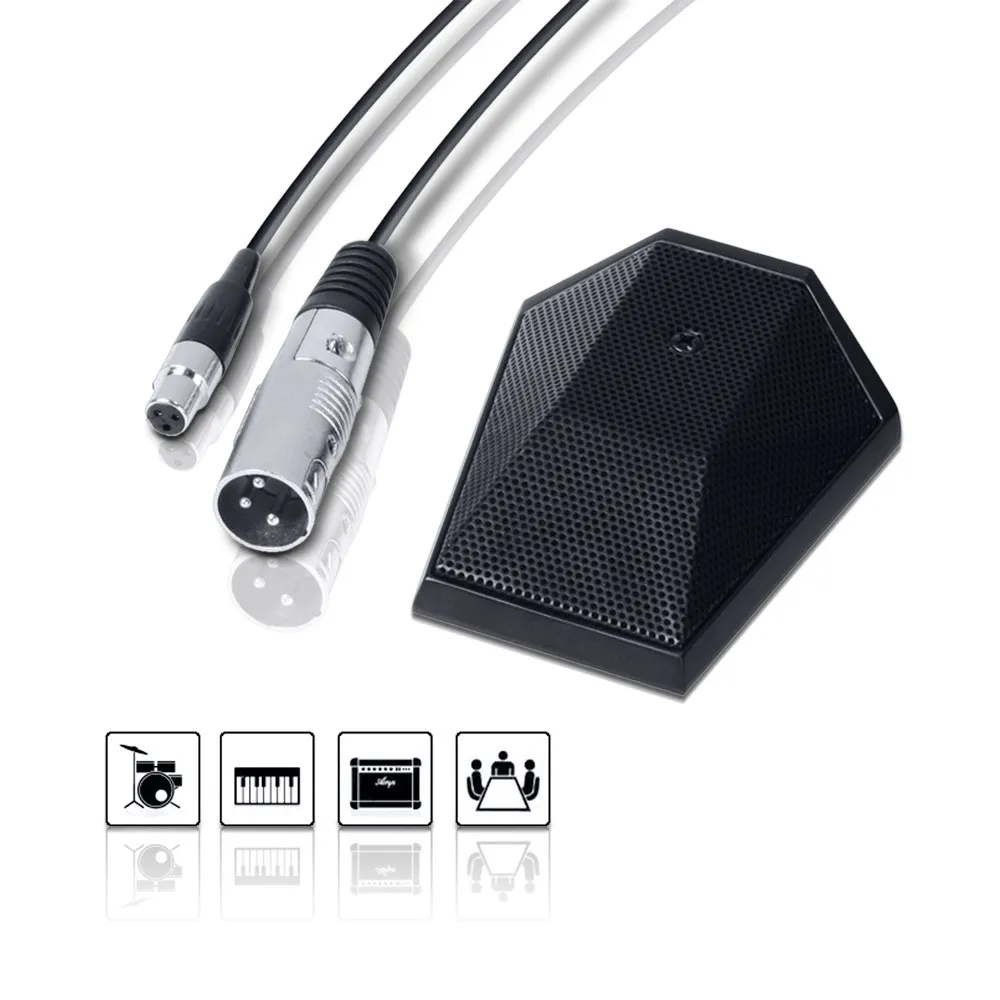

The compact design, with a width of 27 mm, a height of 74.5 mm, and a diameter of 93.5 mm, makes the BM1 a practical choice for any installation. Included in the package is a 6-meter long mini-XLR/XLR cable, allowing you to start using it right away. Weighing only 0.345 kg, the microphone is lightweight and easy to handle, making it ideal for mobile applications and professional setups.
