Features
- ELA Amplifier, 120 W RMS
- 1 Line Input (XLR and 6.3 mm Jack)
- 1 Loop Output (either XLR or 6.3 mm Jack)
- Master Volume Control
- LED Indicators for Power, Level, Clip, and Fault
- (19") 48.3 cm Rack Mountable, 2 HE
- High-Efficiency Airflow from Front to Rear
- Device Cooling via Fan
- Suitable for Applications such as: Installations; Restaurants, Bars, and Hotels; Sports Centers/Fitness Studios
- Power Supply: 230 V AC, 50 Hz
- Total Power Consumption: 240 W
- Protection Class: Class I
- Output Power: 120 W RMS
- Power Connection: Fixed Power Cable with Protective Earth Plug
- Device Fuse: 5 x 20 mm, T 3 A Replaceable Fuse
- Frequency Range: 60 - 16,000 Hz
- Signal-to-Noise Ratio: >90 dB
- Cooling: 1 x Fan, Airflow from Front to Rear
- Impedance: 4-16 Ohm; ELA Technology 100V; ELA Technology 70V
- Housing Color: Black
- Circuit Type: Class AB
- Controls: Power Switch, Volume Control
- Protection Circuit: Soft Start; Overheating; Overload; Short Circuit; DC Protection
- Status LED: Level Indicator, Power, Fault, Clip
- Connections: Input: Line via 1 x 6.3 mm Jack Socket (mono) Mounting Version; Input: Line via 1 x 3-Pin XLR 0.8 V; Output: Line via 1 x 6.3 mm Jack Socket (mono) Mounting Version; Output: Line via 1 x 3-Pin XLR
- Housing Design: (19") 48.3 cm Rack Mountable, 2 HE
- Dimensions: Width: 48.3 cm; Depth: 38.5 cm; Height: 9.2 cm
- Weight: 5.35 kg

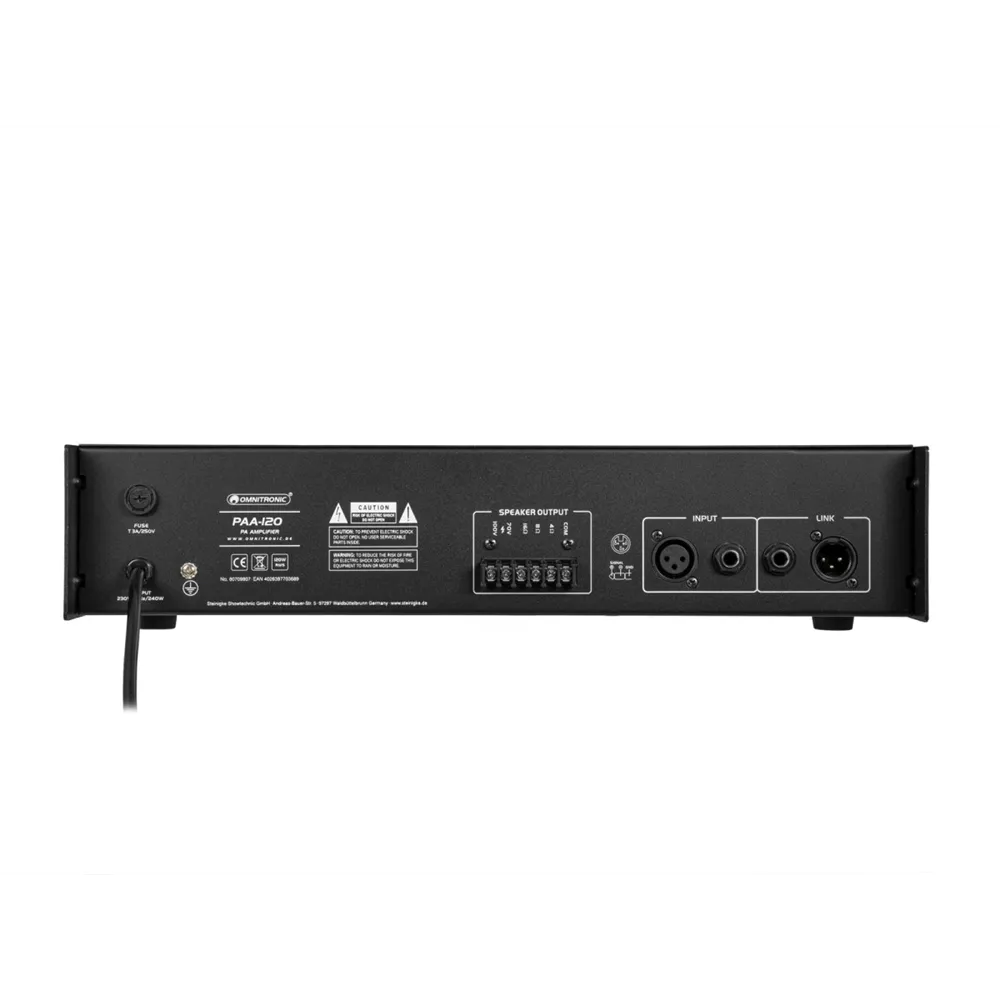

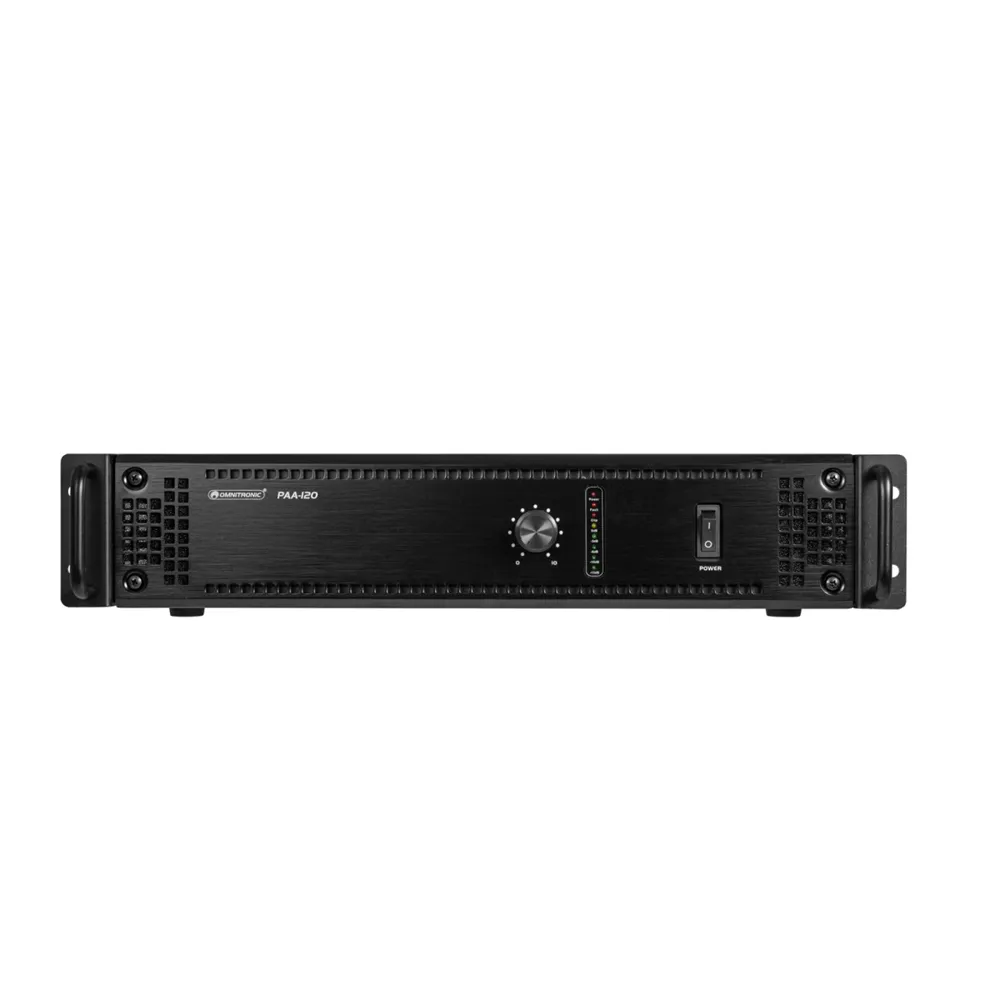

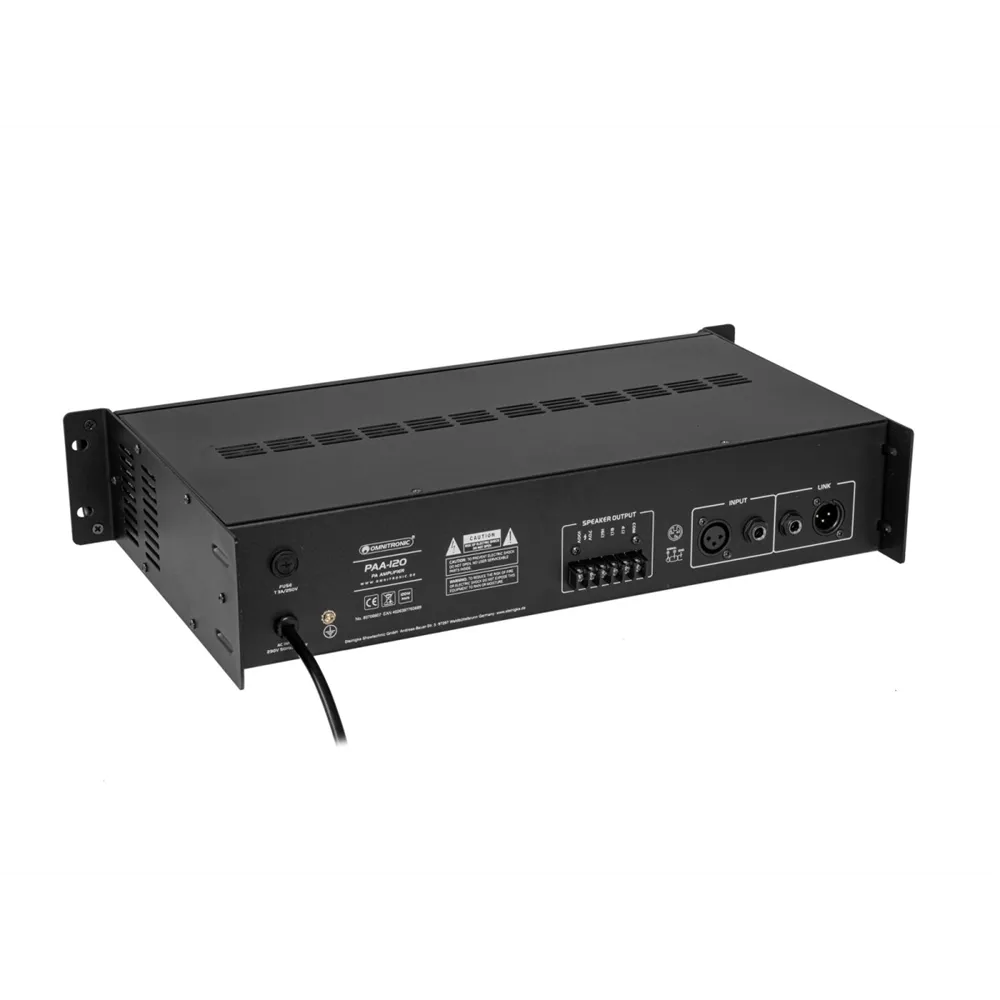

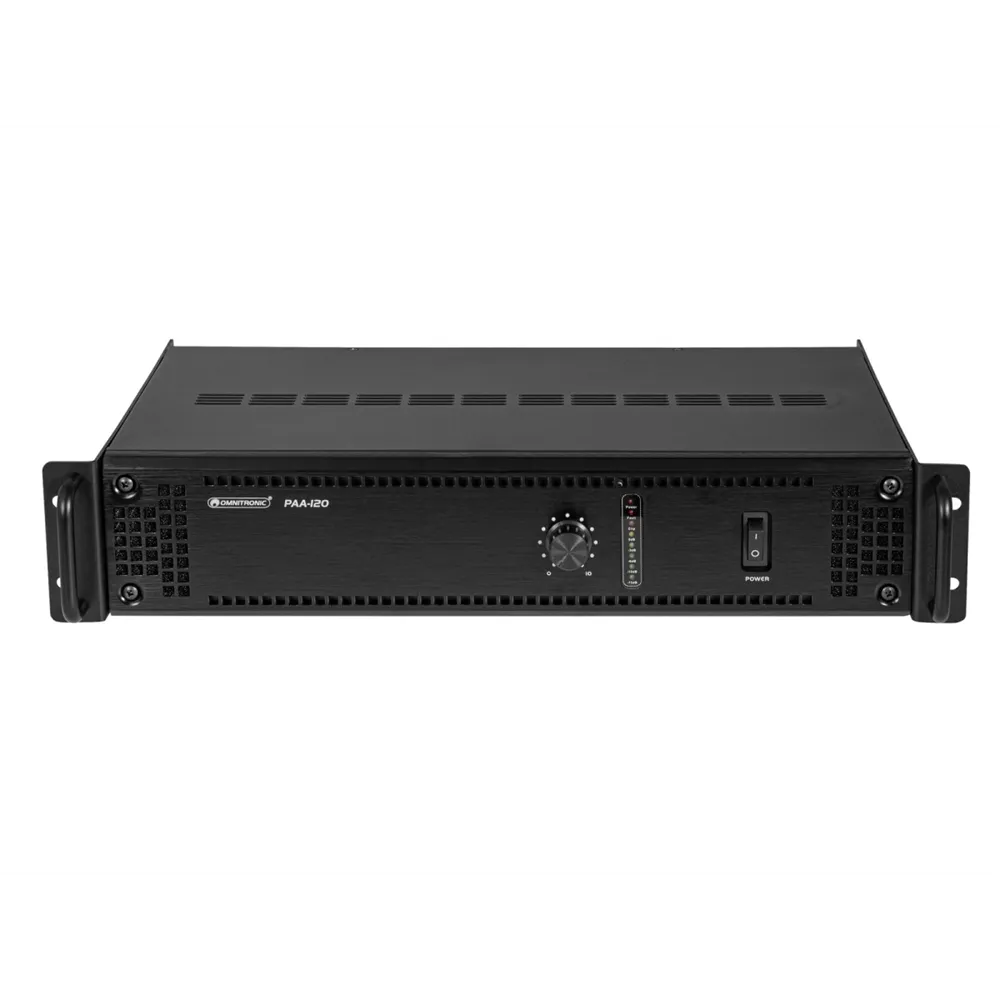

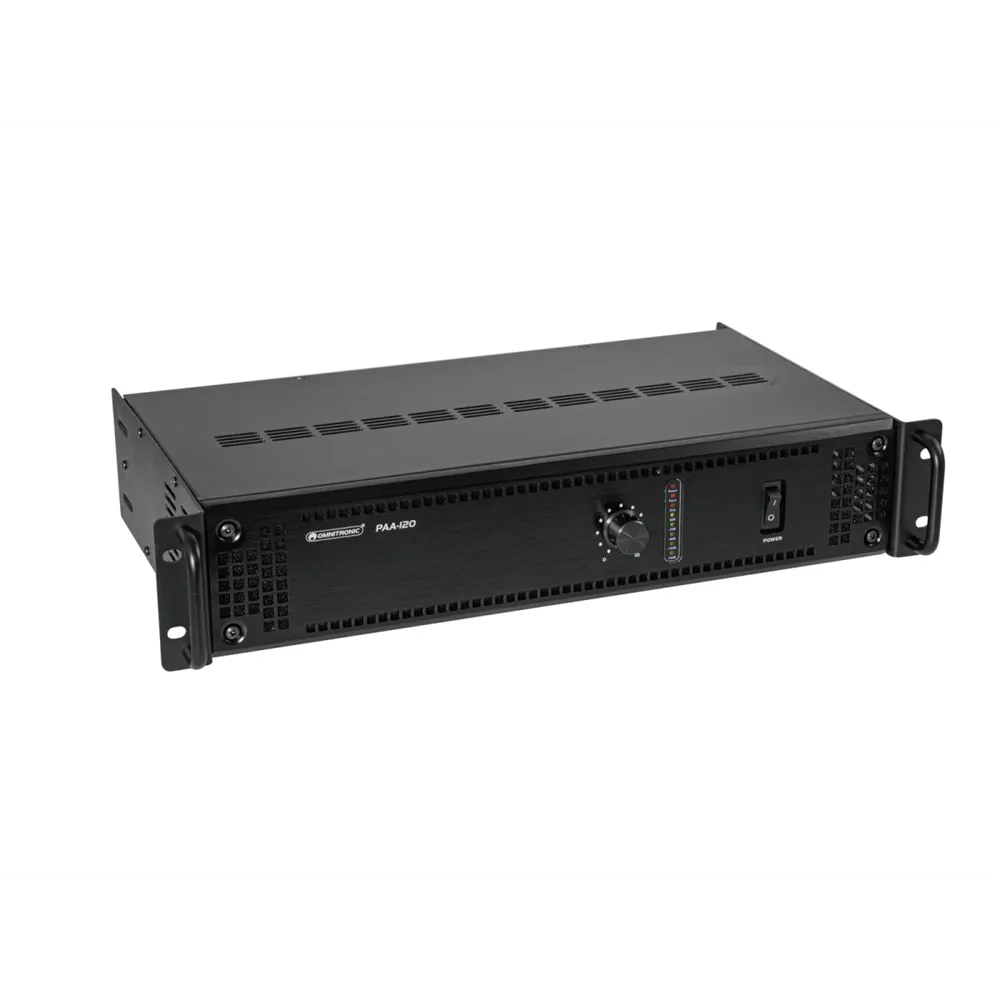

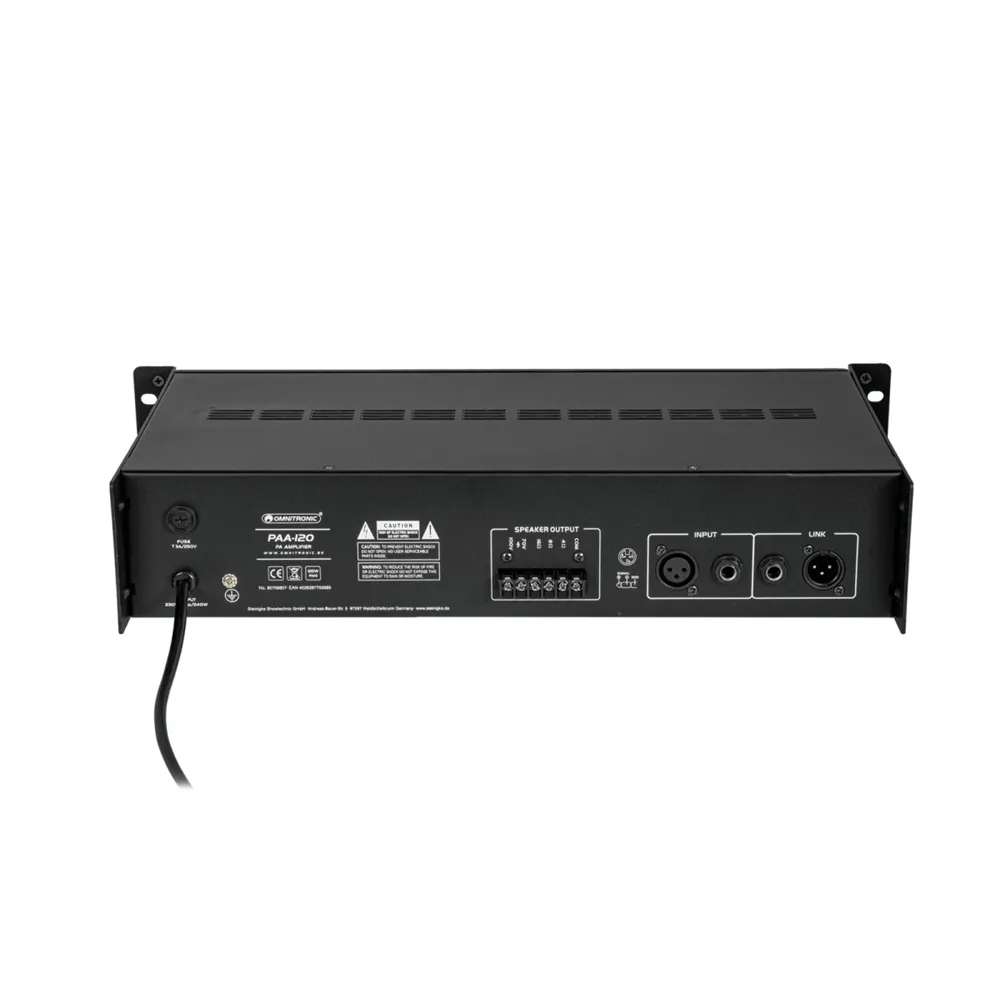

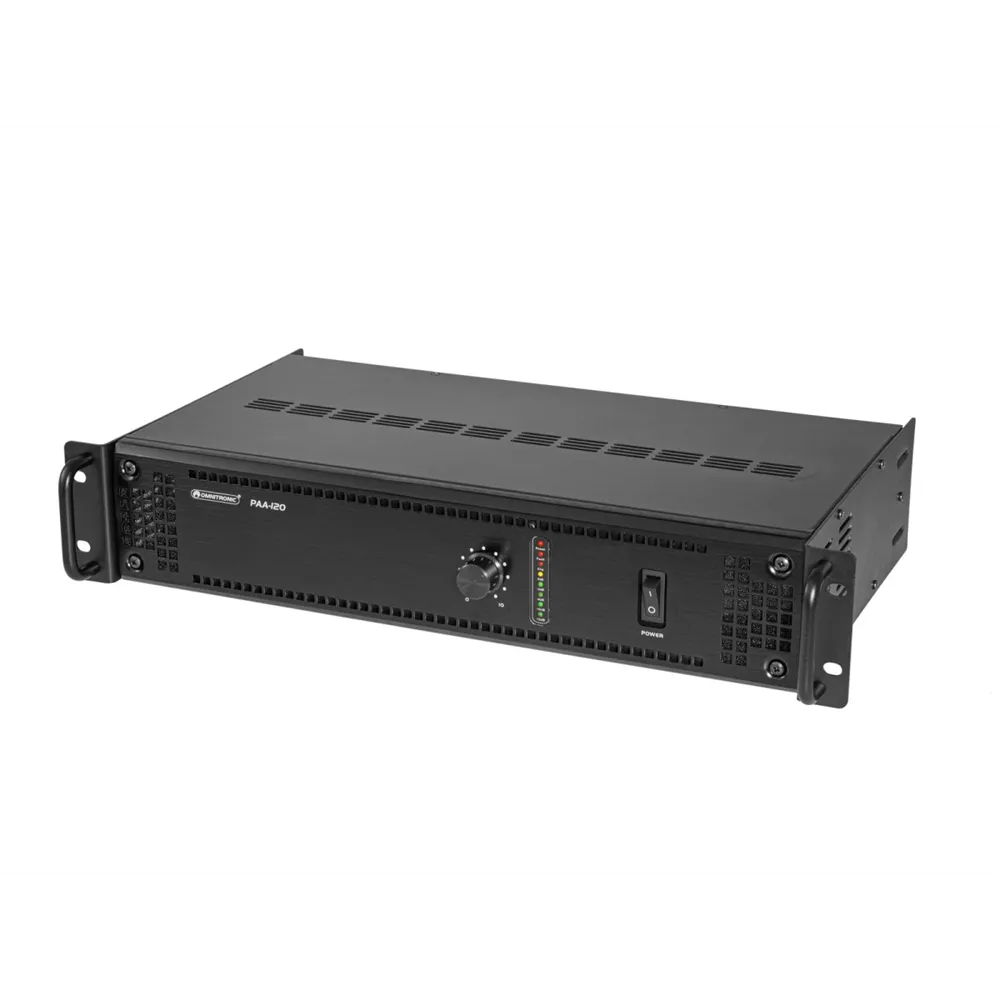

OMNITRONIC PAA-120 ELA Amplifier
The OMNITRONIC PAA-120 ELA Amplifier is the ideal solution for professional audio installations in restaurants, bars, hotels, and fitness studios. With an impressive output power of 120 W RMS, this amplifier delivers powerful sound reproduction, ensuring excellent acoustics even in large spaces.
The amplifier features a line input with XLR and 6.3 mm jack connectors, as well as a loop output that supports either XLR or 6.3 mm jack. User-friendly controls, including a master volume knob, allow for easy volume adjustments. An LED display provides information on operational status, levels, clipping, and potential errors.
With a compact 19" rack-mountable design (2U) and highly efficient airflow from front to back, the PAA-120 is not only powerful but also space-saving. The integrated cooling system with a fan ensures that the amplifier operates reliably even during extended use. Protect your investment with the soft start and overload protection circuitry, which provides additional safety.
Included in the package: 1 x user manual, 1 x amplifier, 2 x brackets, 4 x screws.
