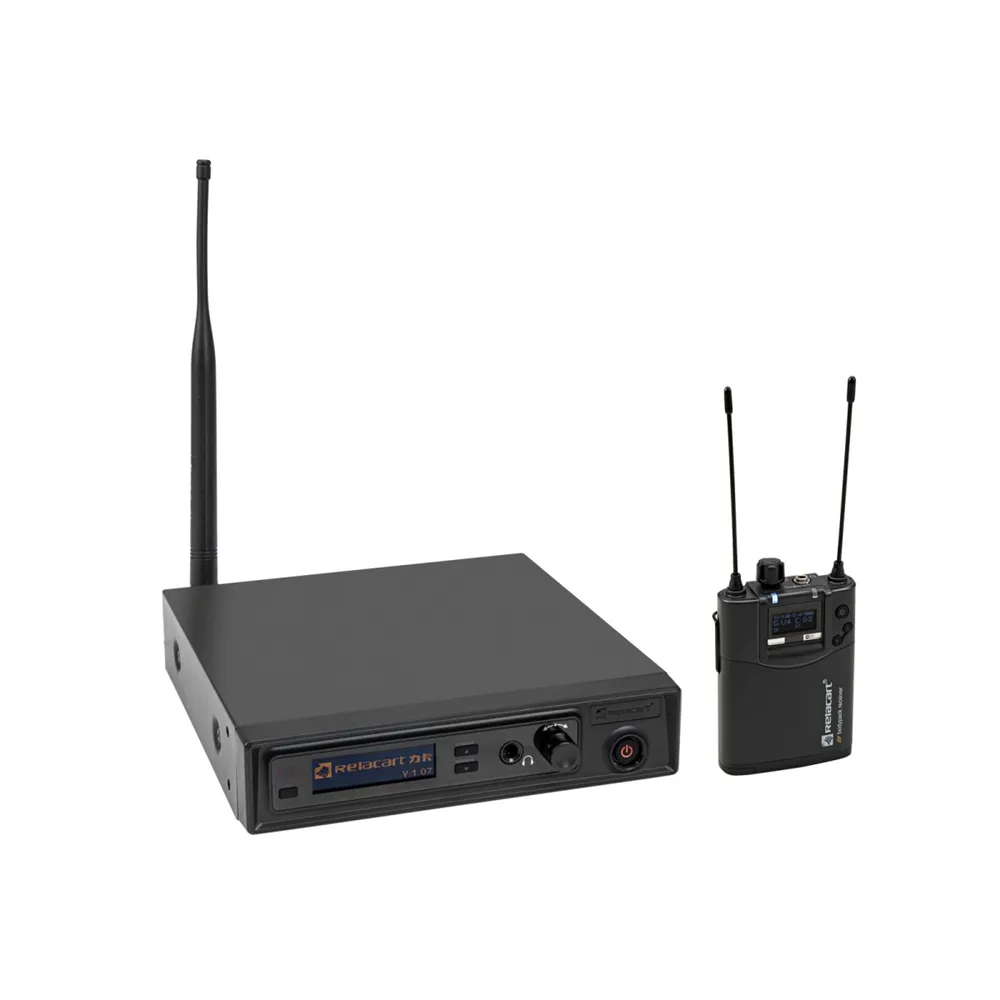

RELACART PM-320 In-Ear Monitor System 626-668 MHz
Features
- Wireless in-ear monitoring system with outstanding sound quality
- Diversity technology for high reception quality and interference resistance
- Frequency range: 626-668 MHz
- Mono and stereo operation possible
- Transmitter and receiver available for individual purchase
- Suitable for audio wireless transmission with extremely low latency
- 317 preset channels and 5 free channels for in-ear monitoring
- Pilot frequency squelch technology to eliminate RF interference
- Infrared interface for quick synchronization between transmitter and receiver
- Lock function to prevent accidental changes to settings
- Adjustable transmission power (Hi/Low)
- Range of up to 100 m in line of sight
- OLED display for clear readout
- Robust all-metal housing for demanding touring applications
- Adjustable balance (left, right)
- Limiter and treble boost available
- Up to 5 transmitters can be operated in parallel
- 2 line inputs via balanced combo connectors (XLR/6.3 mm jack)
- 2 loop-through outputs
- Adjustable headphone output
- Transmitter dimensions: Width 26 cm, Depth 20 cm, Height 4.4 cm
- Transmitter weight: 1.51 kg
- Receiver dimensions: Width 6.5 cm, Depth 2.3 cm, Height 9 cm
- Receiver weight: 0.11 kg
- Receiver battery: 2 x AA (not included)
RELACART PM-320 In-Ear Monitoring System 626-668 MHz
The RELACART PM-320 is a state-of-the-art wireless in-ear monitoring system specifically designed for live musicians, actors, and interpreters. With a frequency range of 626-668 MHz and innovative diversity technology, this system delivers outstanding sound quality and maximum reliability by avoiding interference and dropouts. The compact pocket receiver weighs only 100 grams, ensuring the highest level of comfort during use.
The PM-320T In-Ear Stereo Transmitter features 317 preset channels and 5 free channels for in-ear monitoring. Thanks to the pilot tone squelch technology, wireless RF interference is effectively eliminated. The infrared interface allows for quick and error-free synchronization between the transmitter and receiver. Additionally, the system can operate in both stereo and mono/mix modes.
The PM-320R In-Ear Pocket Receiver offers high reception quality through antenna diversity technology and allows for the simultaneous operation of up to 5 transmitters. With a robust all-metal housing and soft-touch controls, it is ideally suited for demanding touring environments. The OLED display provides essential information such as frequency and battery status.
Experience a new dimension of monitoring with the RELACART PM-320 In-Ear System – designed for professional standards and the highest demands in sound quality.
