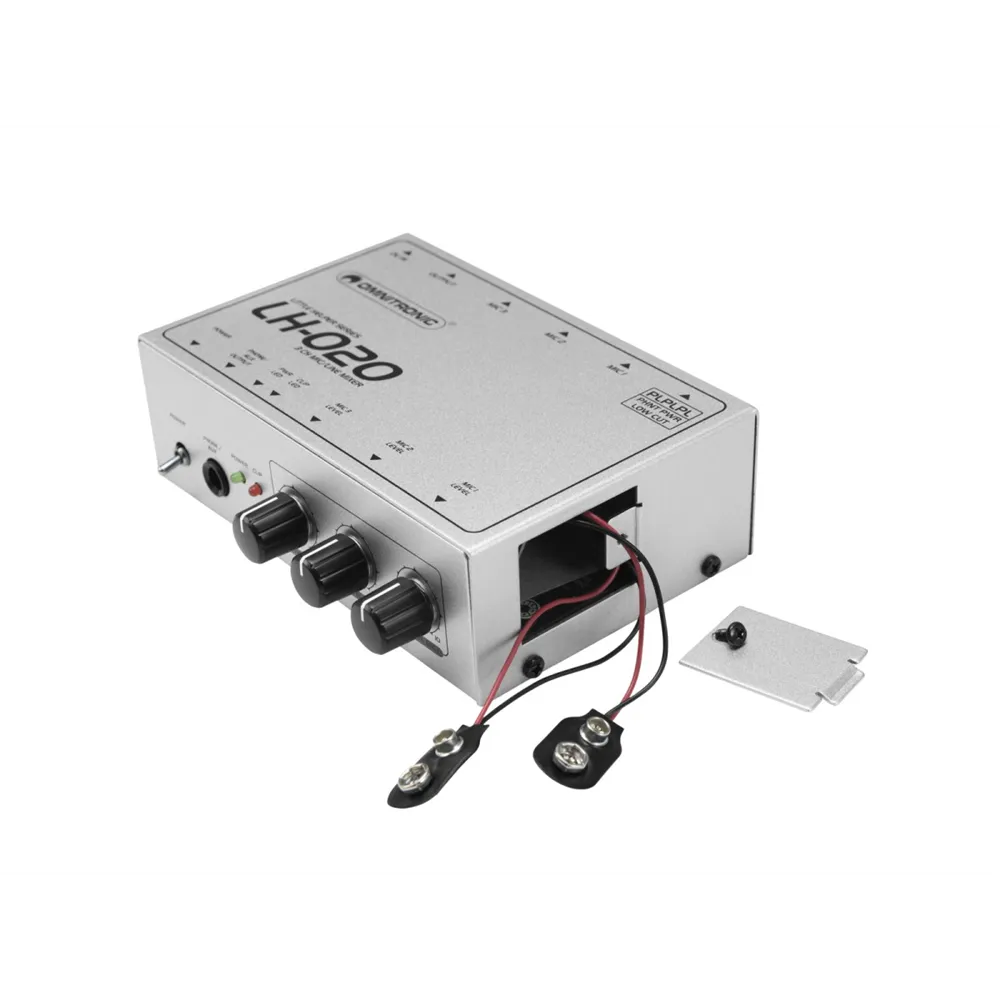

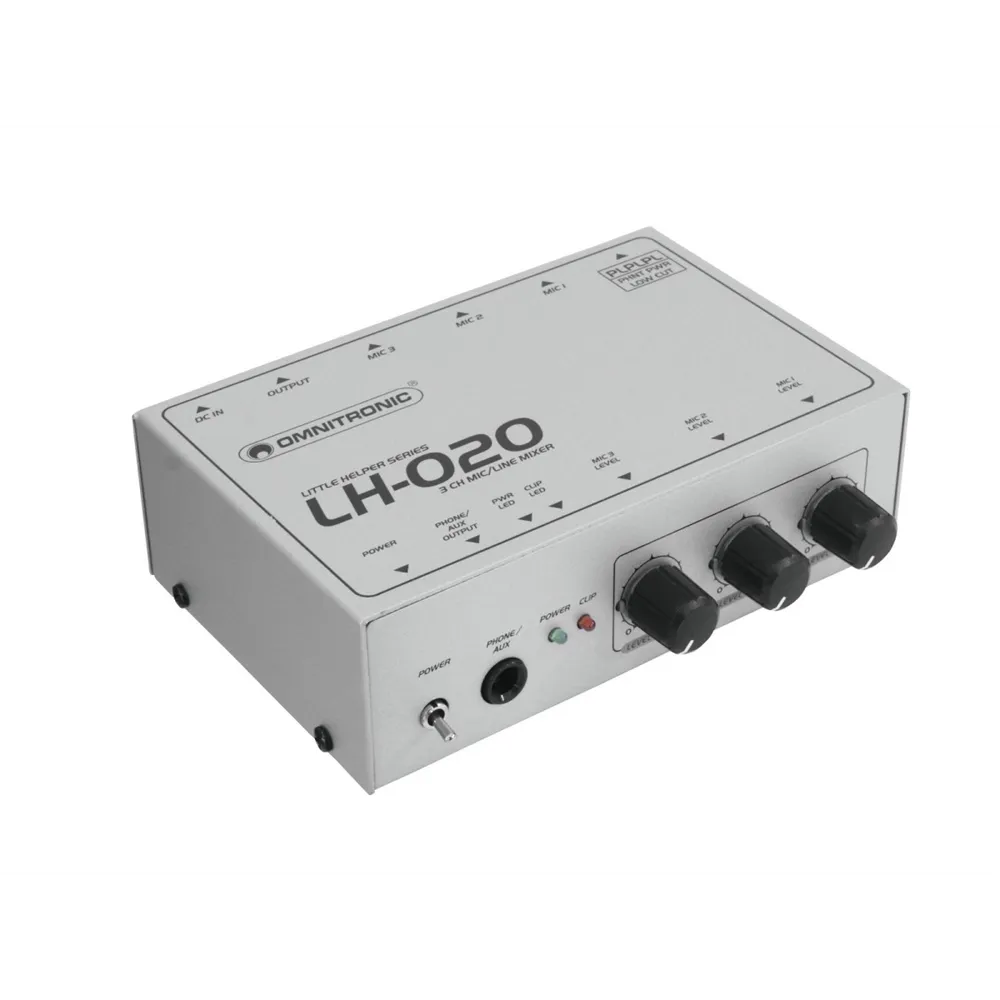

OMNITRONIC LH-020 3-Channel Microphone Mixer

Brand:

OMNITRONIC LH-015 2-Channel Mic-Line Mixer

Features

Compact mixer for combining 3 microphones into 1 line output, with individual volume control
3 microphone input channels with separate volume controls, switchable phantom power, and low cut filter
1 mix output with line level, clip LED for level indication
1 headphone output (6.3 mm jack)
Inputs and output via balanced XLR connectors
Desktop housing
Power supply: 12V DC 150 mA or 18V DC
Pin configuration: center - / outer +
Protection class: Class III
Power connection: Power supply via barrel connector (M) with built-in power supply cable and adapter (included), battery/accumulator
Battery: 2 x 9.0 V E-block (not included)
Frequency range: 25 - 16,000 Hz
Signal-to-noise ratio: >75 dB
Phantom power: 18 V DC
Impedance: Input: 600 Ohms
Gain: 60 dB
Housing color: Silver
Controls: Power switch, low cut switch, phantom power switch, volume control per channel
Status LEDs: Power, Clip

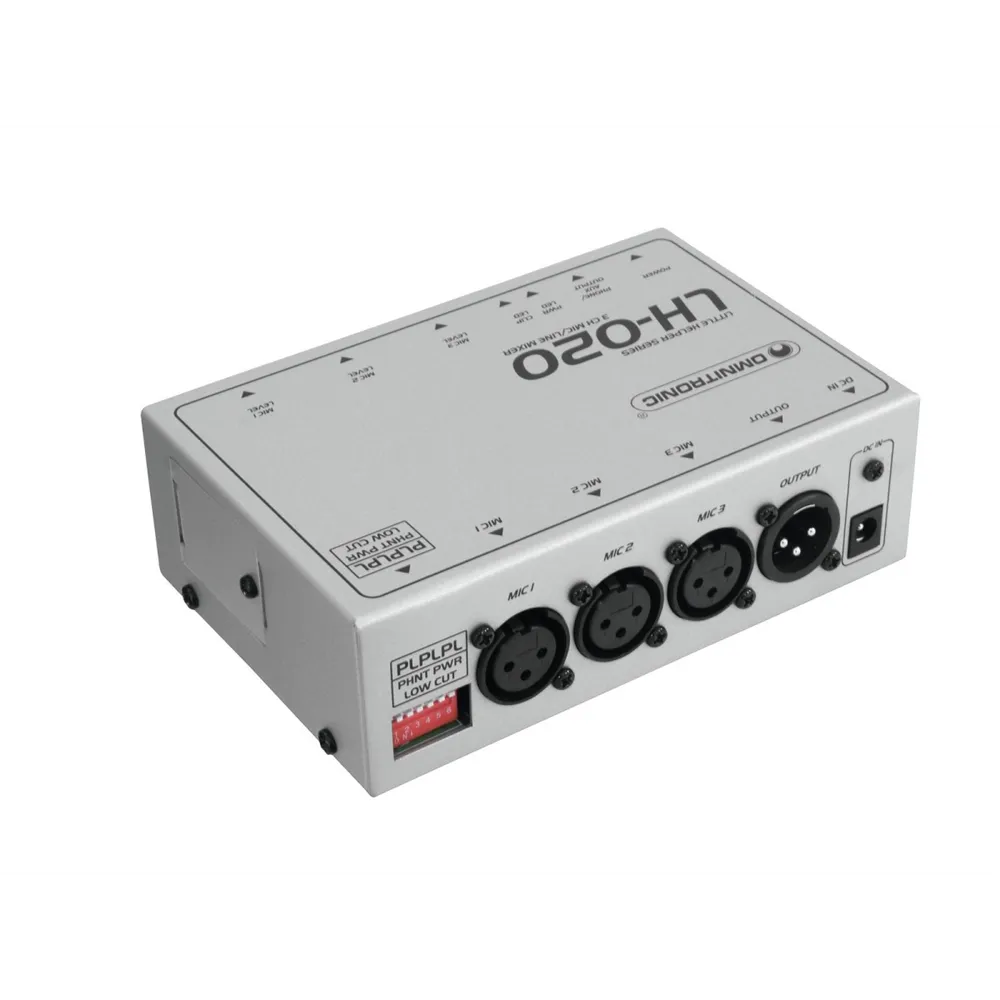

Connections: Input: Microphone via 3 x 3-pin XLR, Output: Microphone via 1 x 3-pin XLR, Output: Headphones via 1 x 6.3 mm stereo jack
Input channels: 3 x mono via XLR, channel control via rotary knob
Max level: Input: -14 dB, Output: +14 dB
Housing design: Desktop housing
Dimensions: Width: 14.3 cm, Depth: 9.3 cm, Height: 4.5 cm
Weight: 0.76 kg

OMNITRONIC LH-020 3-Channel Microphone Mixer

The OMNITRONIC LH-020 is a compact 3-channel microphone mixer, ideal for mixing up to three microphones into a single line output. With individual volume controls for each channel, this mixer allows for precise adjustment of audio levels. The separate microphone input channels are equipped with switchable phantom power and a low-cut filter to ensure optimal sound quality.

The mixer features a master output with line level and a clip LED for level monitoring, allowing you to maintain control over your audio output at all times. A convenient headphone output (6.3 mm jack) enables real-time monitoring. All inputs and outputs are connected via balanced XLR connectors, ensuring interference-free signal transmission.

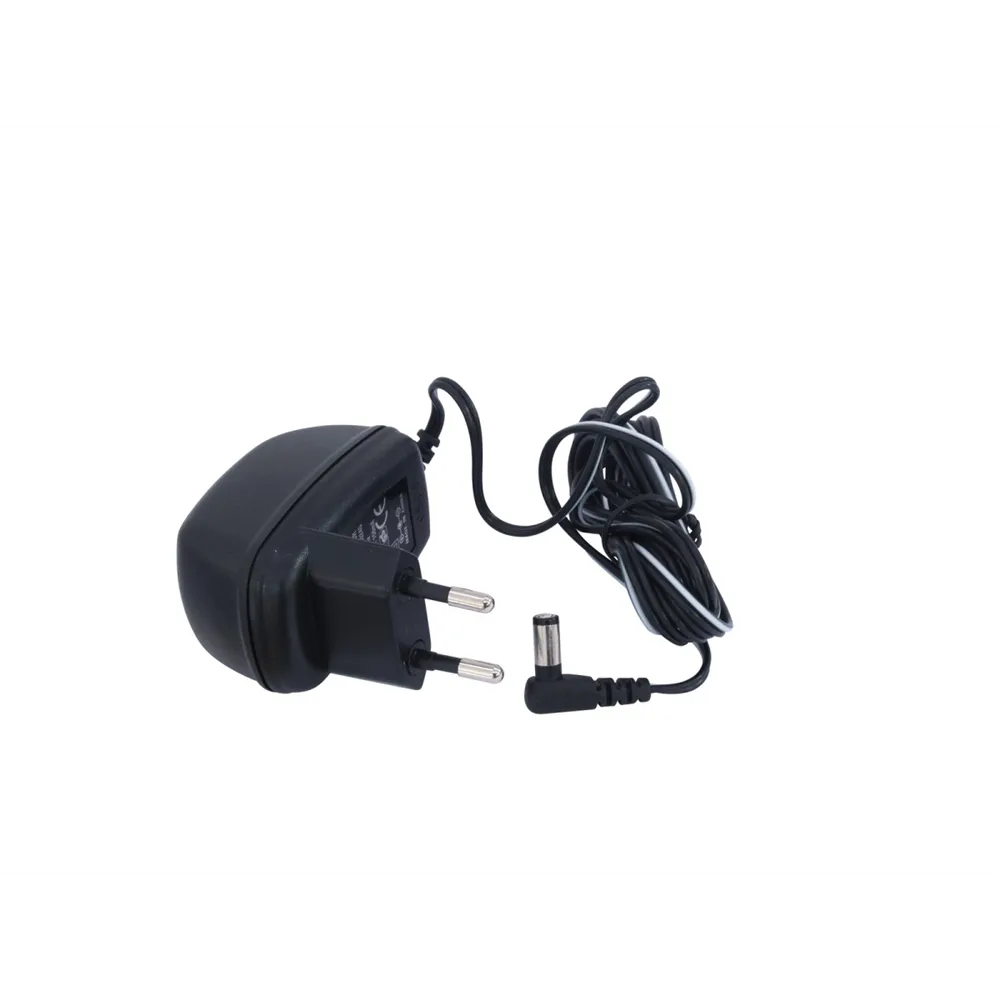

The tabletop housing of the LH-020 is not only functional but also space-saving. With a frequency range of 25 to 16,000 Hz and a signal-to-noise ratio of over 75 dB, this mixer delivers excellent audio performance. The package includes a user manual, an external power supply, and four feet to stabilize the mixer in position.
