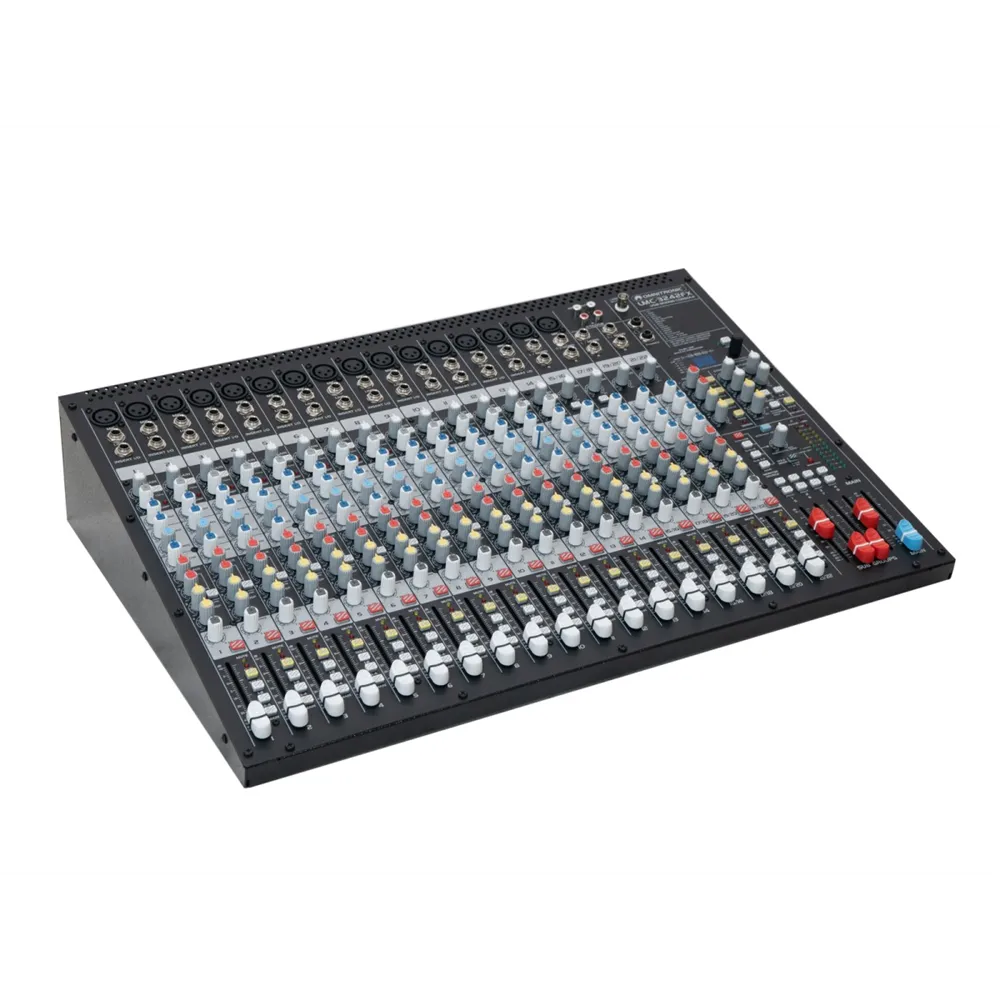

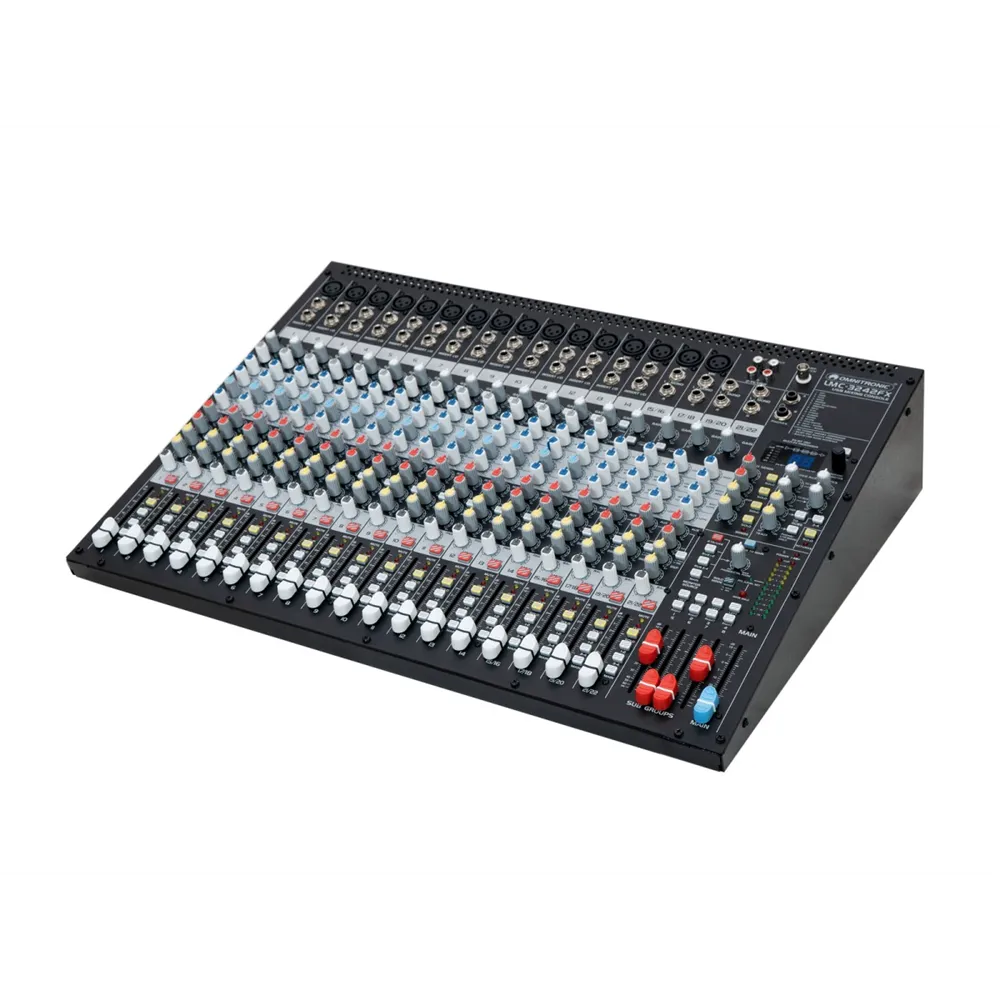

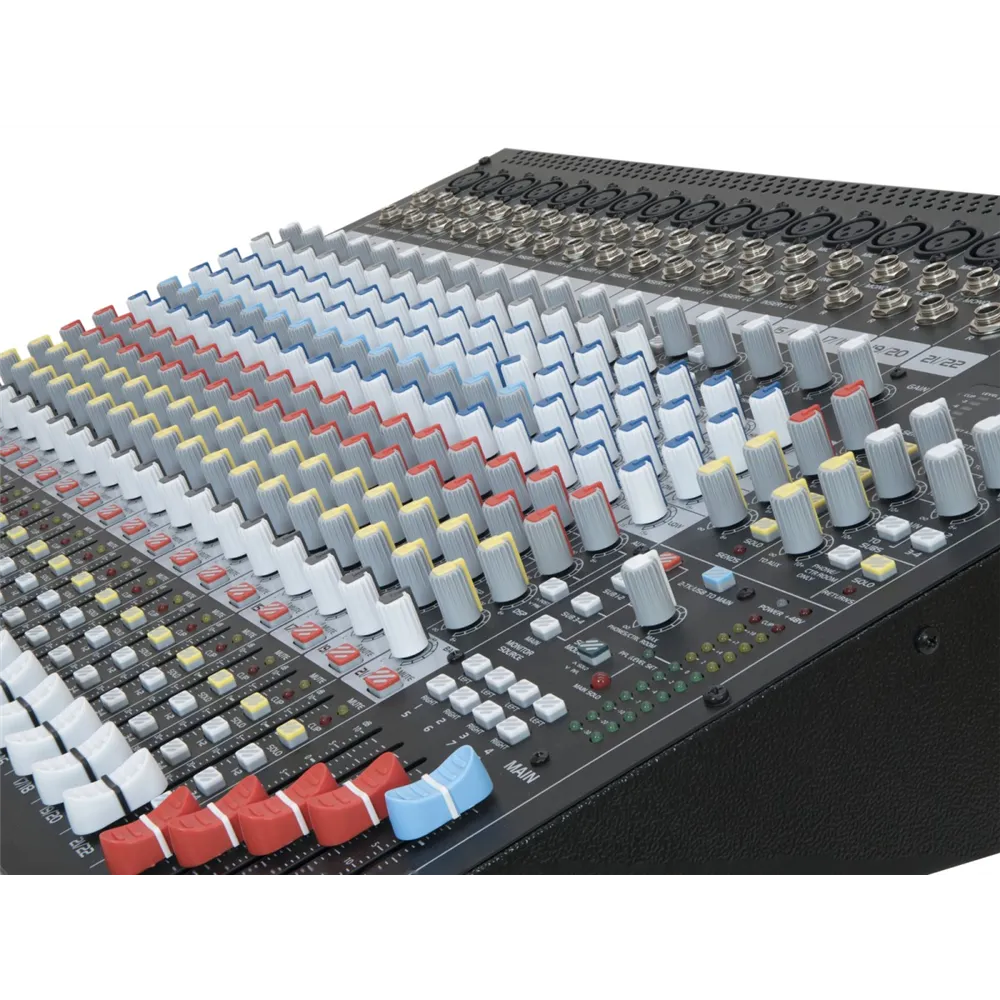

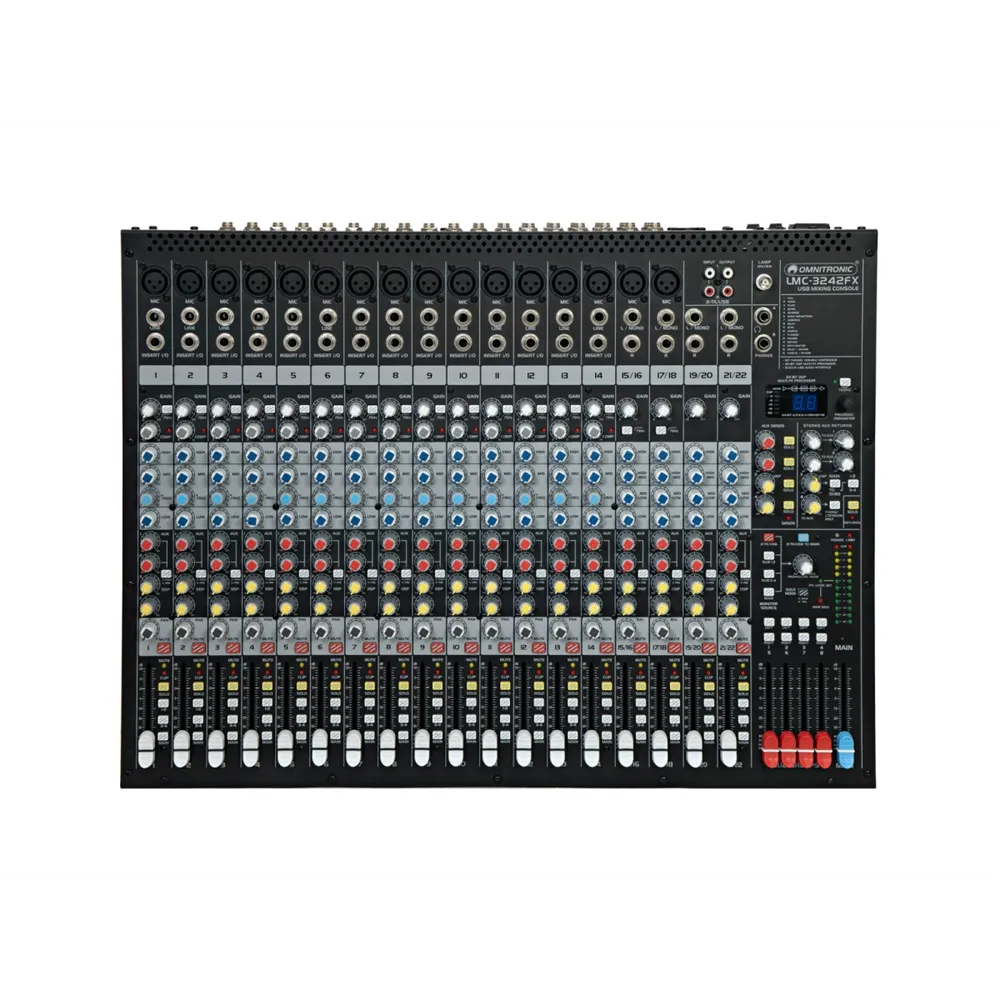

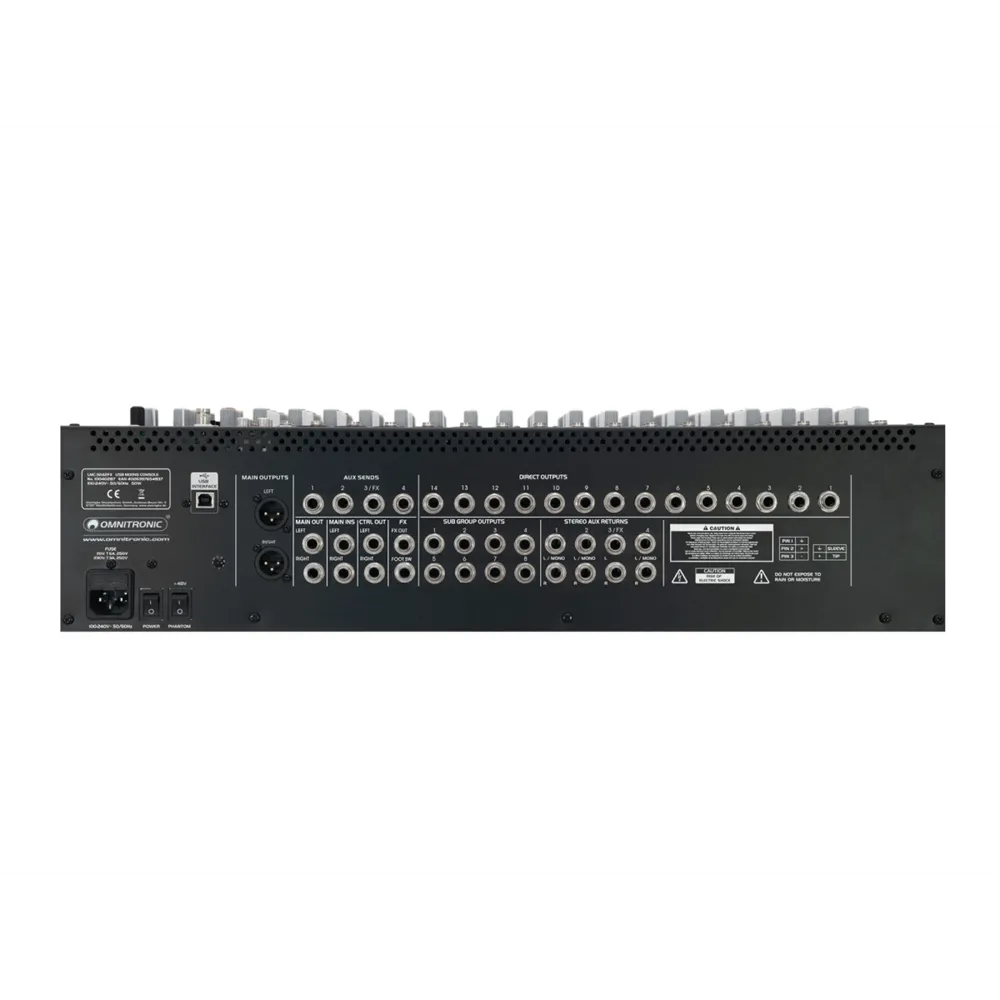

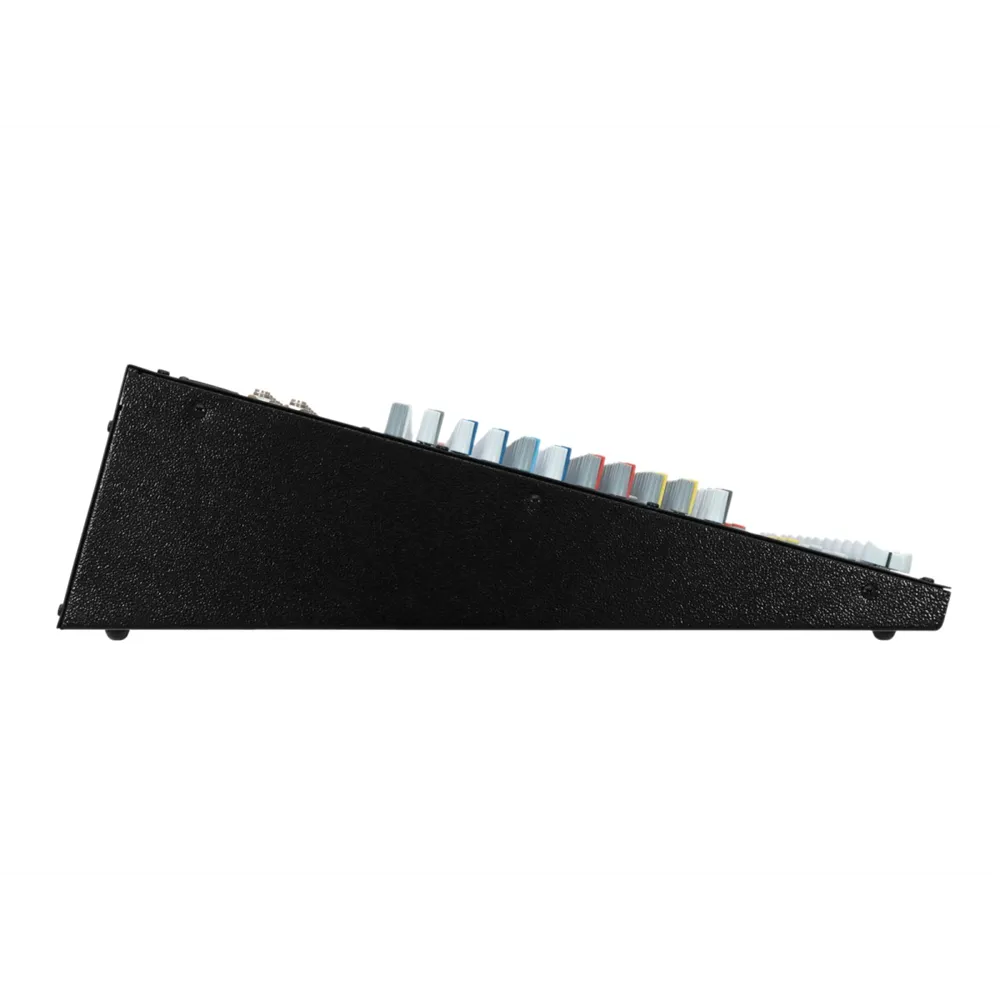

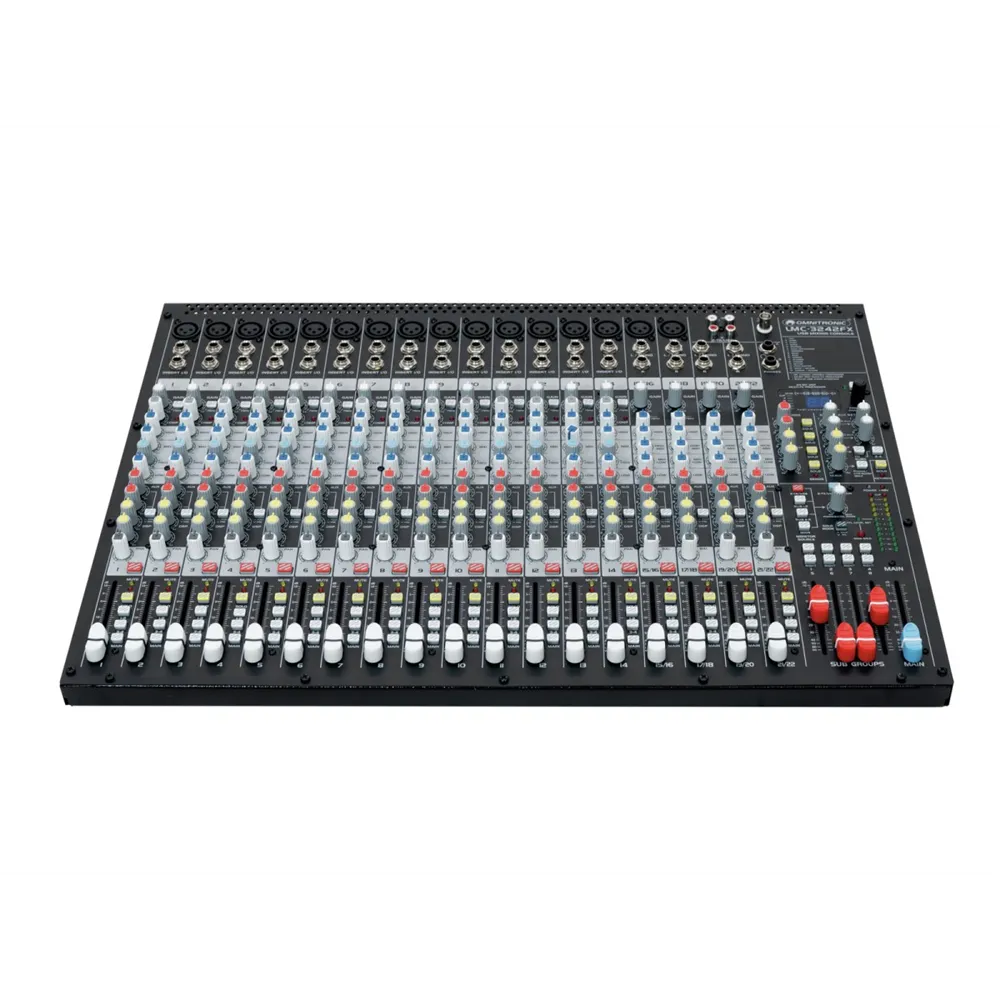

OMNITRONIC LMC-3242FX USB Mixer

Features

• 14 mono input channels with gain control, 3-band EQ with semi-parametric mid control, low cut, and pan control
• 14 inserts for connecting external signal processors in the mono channel strips
• 4 stereo input channels with 4-band EQ, gain control, low cut, and balance control
• High-quality, low-noise microphone preamps with 130 dB dynamic range and high headroom
• Excellent equalizers with British EQ circuitry for a warm and musical sound
• Easy-to-use one-knob compressors in studio quality with control LED in all mono channel strips
• 24-bit DSP effects unit with 16 editable effects, tap function, and user-saveable settings
• Integrated USB audio interface for recording and playback with a computer (PC and Mac)
• Intelligent feedback detection for effortless removal of feedback
• 4 AUX sends per channel: 2 switchable pre-fader/post-fader for flexible routing
• 4 subgroups with separate faders and outputs for additional routing options
• 4 stereo AUX returns usable as additional line inputs
• 14 direct outputs for recording purposes
• Clip LEDs in all channel strips
• Routing switches for mute, main mix, subgroup, and solo/PFL in all channel strips
• 2 separate main outputs with inserts
• 2 headphone and monitor outputs with flexible input routing
• CD/Tape input with routing options to main or monitor/headphone outputs, CD/Tape output
• Precise 12-segment LED level meter
• Desk lamp connection via BNC socket
• Effect processor remotely controllable via external footswitch
• +48 V phantom power, centrally switchable
• Single-color 2-digit 7-segment LED display
• Power supply: 100-240 V AC, 50/60 Hz
• Frequency range: 20 - 20,000 Hz
• Signal-to-noise ratio: >110 dB
• Dimensions: Width: 59.2 cm, Depth: 45 cm, Height: 13.7 cm
• Weight: 9.30 kg
