OMNITRONIC EM-312 Entertainment Mixer

Brand:

Features

12-channel mixer with 6 mic/line combo inputs and 6 additional line inputs
6 mono input channels for microphone/line (combo jack), switchable
3 stereo line input channels (RCA)
Phantom power switchable for each microphone input
All input channels with separate volume controls and signal LEDs
Adjustable priority function for channel 1
Balanced stereo XLR outputs and RCA jacks
Adjustable monitor output
Adjustable mono line output (1/4" jack)
Master control, 4-digit stereo LED level meter, and 3-band equalizer
Additional terminal connections for 24V power supply
Rack mountable (19") 1U
Suitable for installation in restaurants, bars, hotels, clubs, and dance schools
Power supply: 230 V AC, 50 Hz or 24V DC
Total power consumption: 12 W
Protection class: Class I
Frequency range: 20 - 22,000 Hz
Signal-to-noise ratio: >103 dB
Phantom power: 18 V DC or 21 V DC
Impedance: Mic/line input 1.4 kOhm, line input 10 kOhm, output 120 Ohm
Controls: Power switch, input sensitivity switch, tone control, volume control per channel, master control
Status LEDs: Power, Signal, Master level display, Clip
Max level: Microphone input -19 dBu, line input +21 dBu, output +21 dBu
Color: Black
Dimensions: Width 48.3 cm, Depth 23 cm, Height 4.45 cm
Weight: 3.04 kg

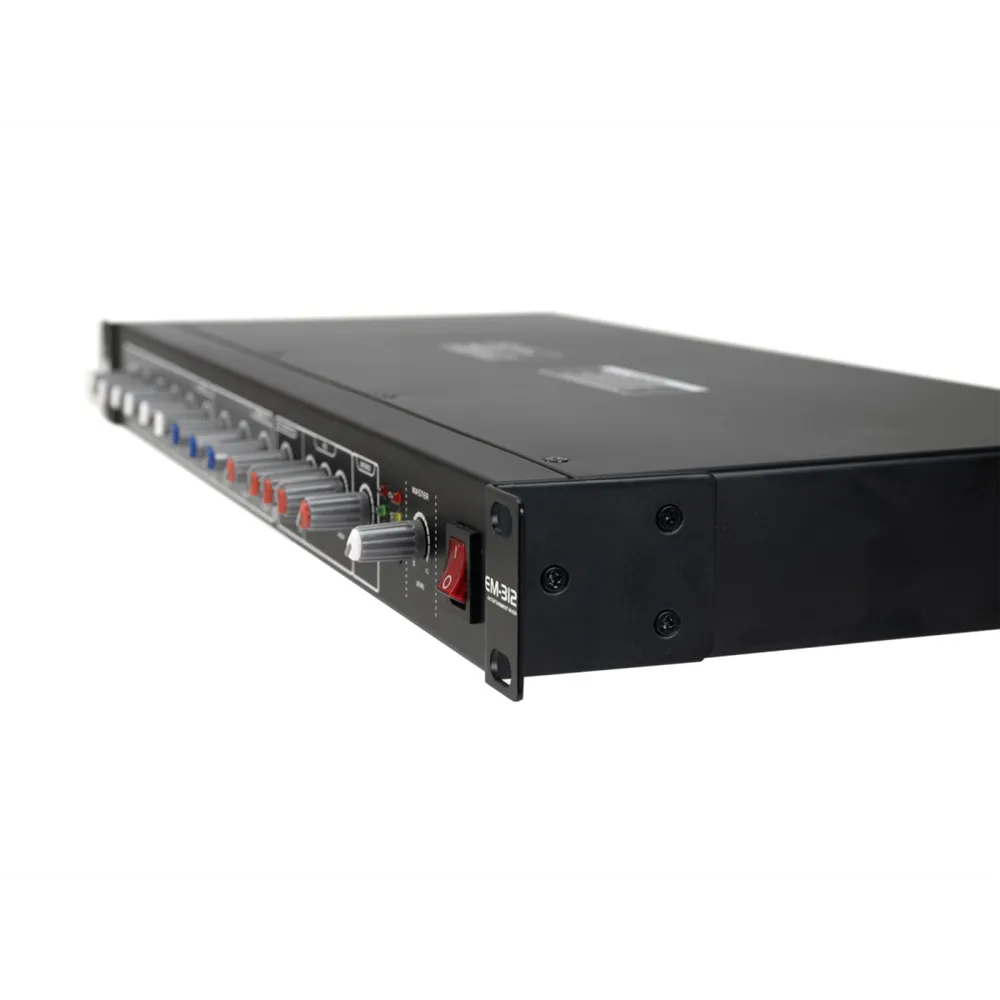

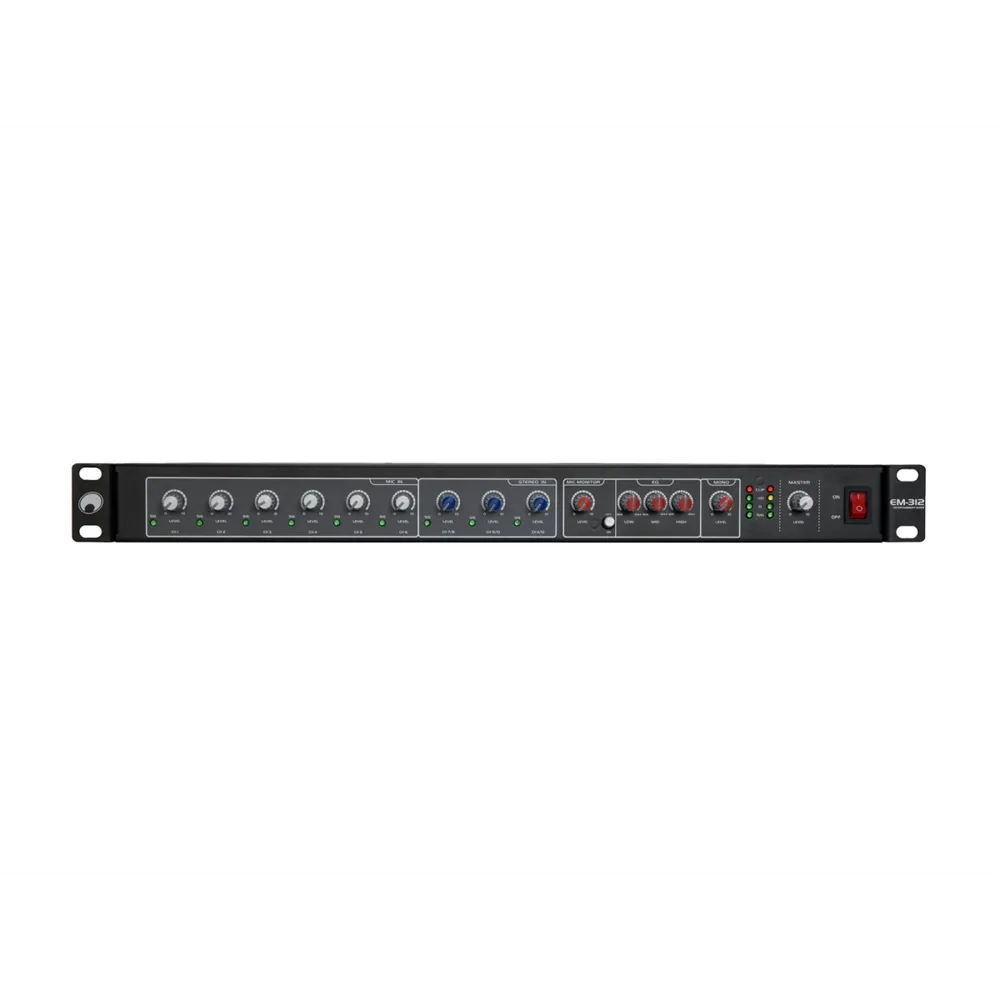

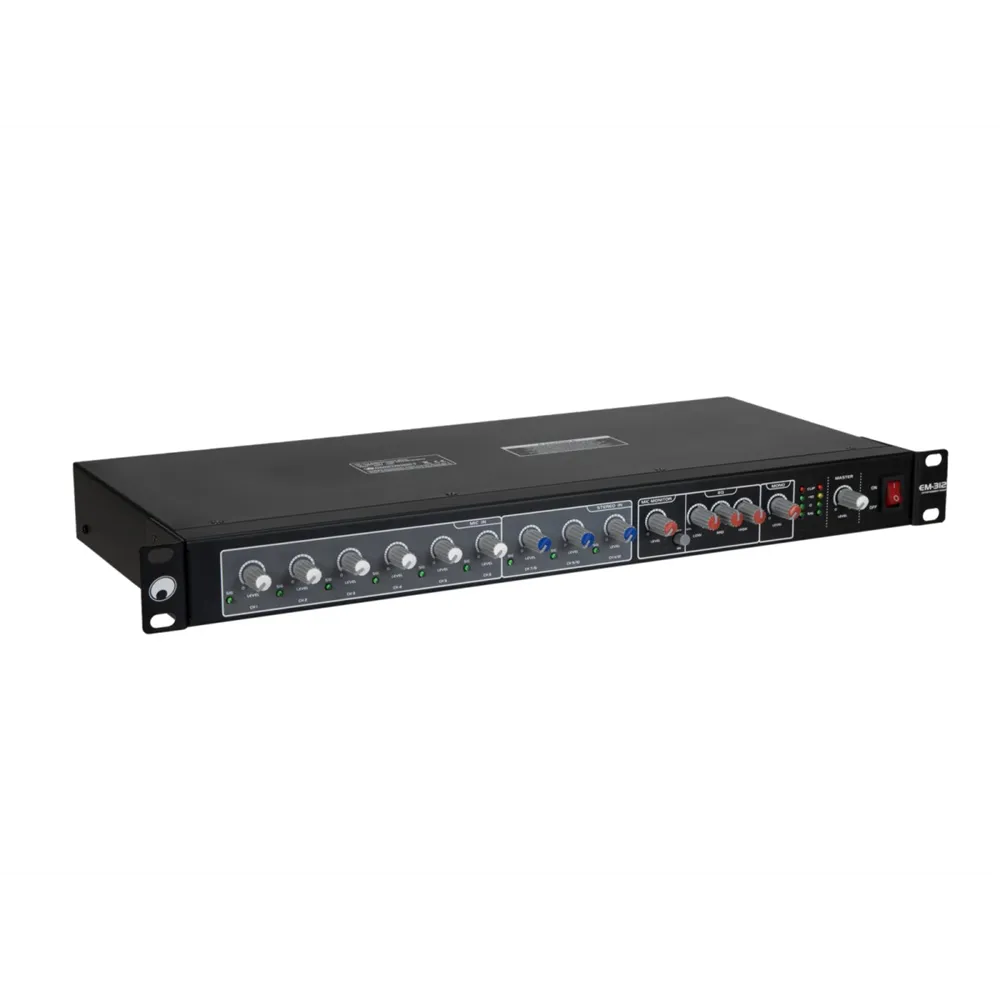

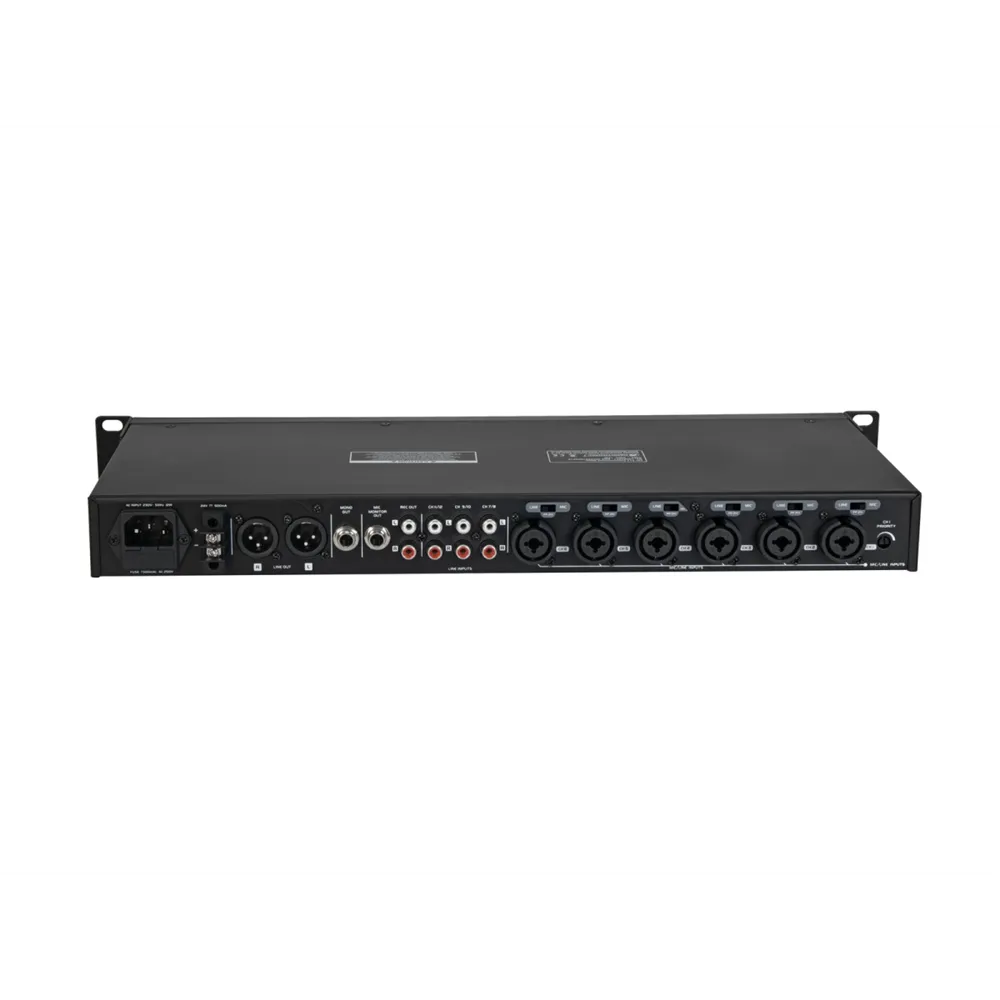

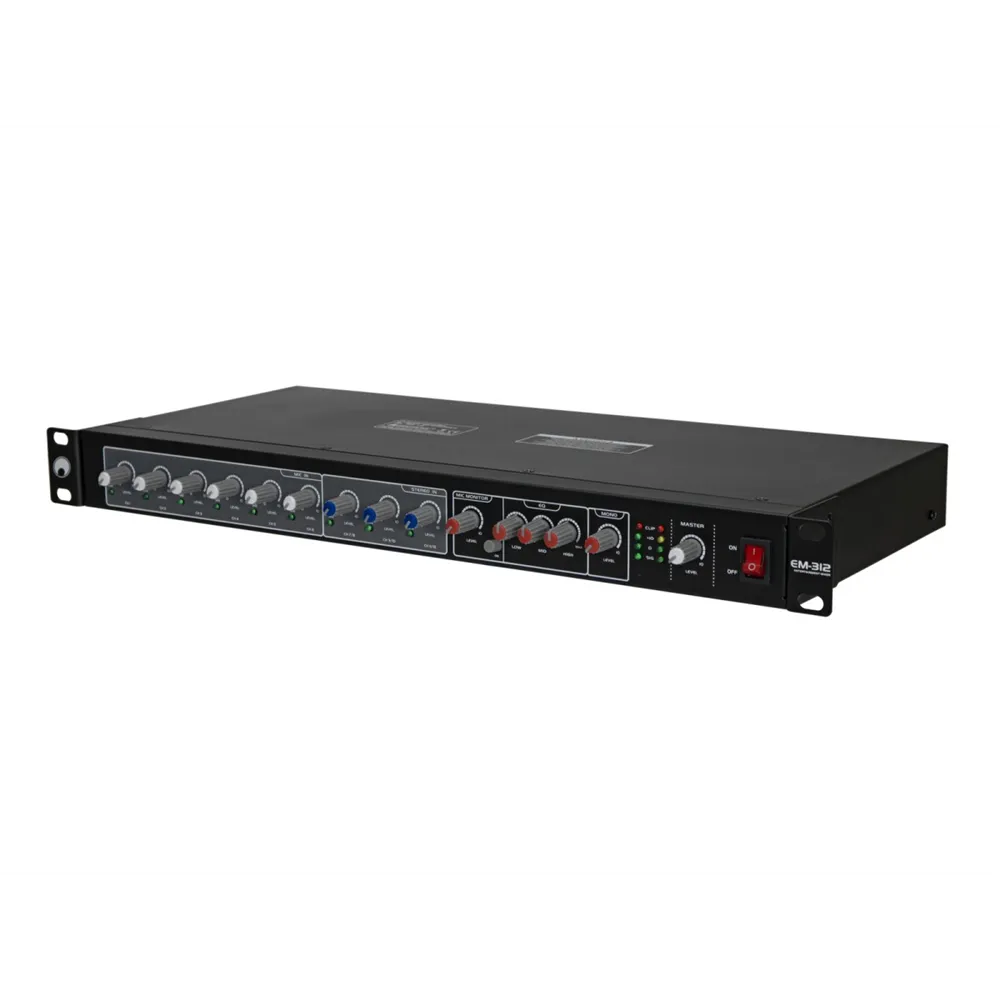

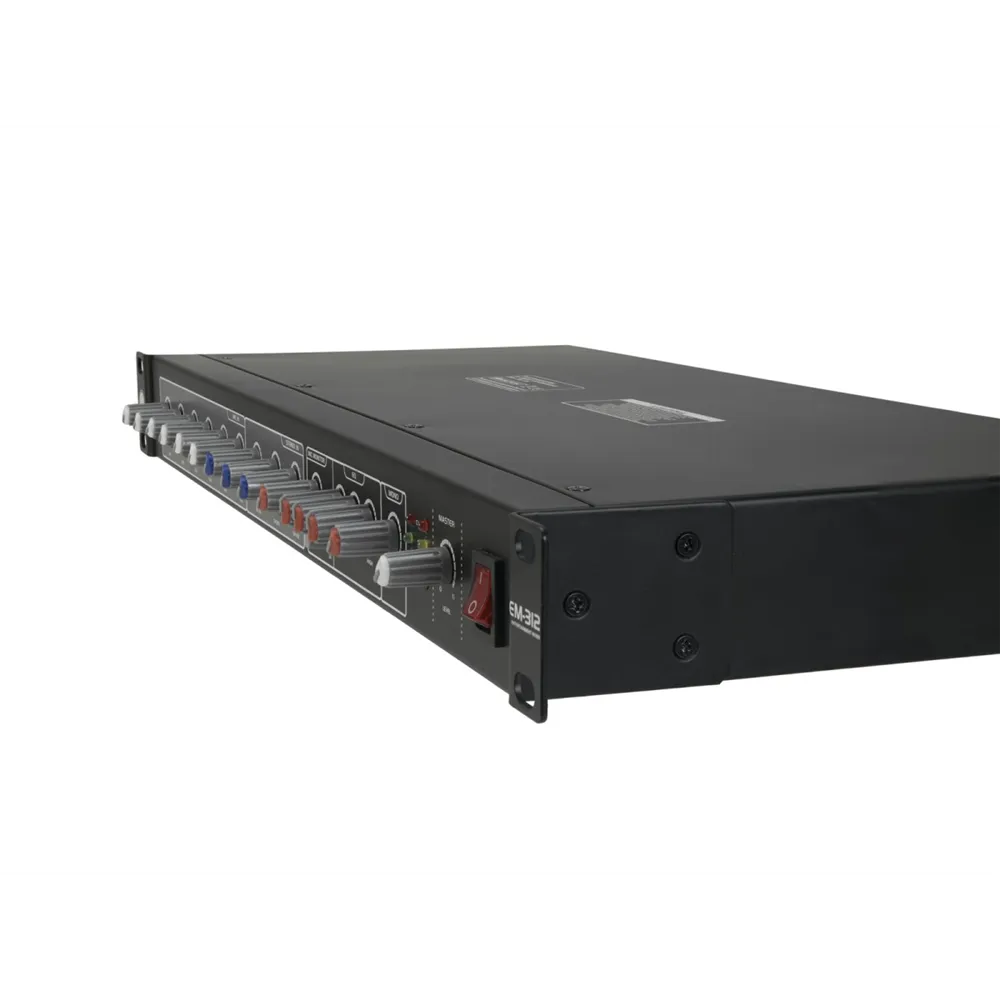

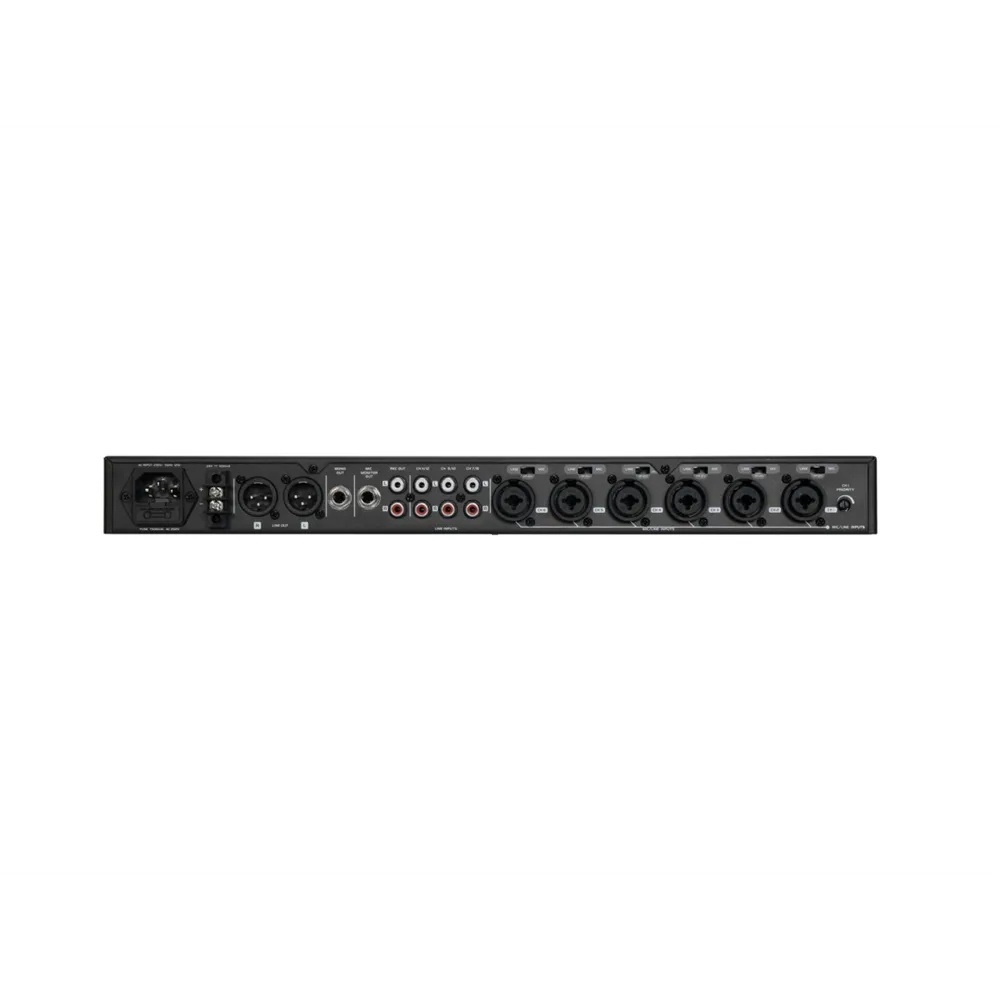

OMNITRONIC EM-312 Entertainment Mixer

The OMNITRONIC EM-312 is a compact 12-channel mixer, ideal for various applications in the entertainment industry. With 6 combo microphone/line inputs and 6 additional stereo line inputs, it offers a flexible solution for professional audio applications. Phantom power for each microphone input ensures optimal sound quality, while separate volume controls and signal LEDs for all channels allow for precise management.

Notably, the adjustable priority function for channel 1 guarantees clear intelligibility for announcements. The EM-312 features balanced XLR outputs, a mono jack output, as well as recording and monitoring outputs, all providing high sound quality. With a 3-band equalizer and a 4-digit stereo LED level meter, you can tailor the sound to your preferences.

The mixer is designed for rack mounting (19", 1U) and is perfect for installations in restaurants, bars, clubs, and dance schools. The package includes the device, a power cable, four feet, and a user manual. Weighing only 3.04 kg, the EM-312 is both lightweight and powerful.
