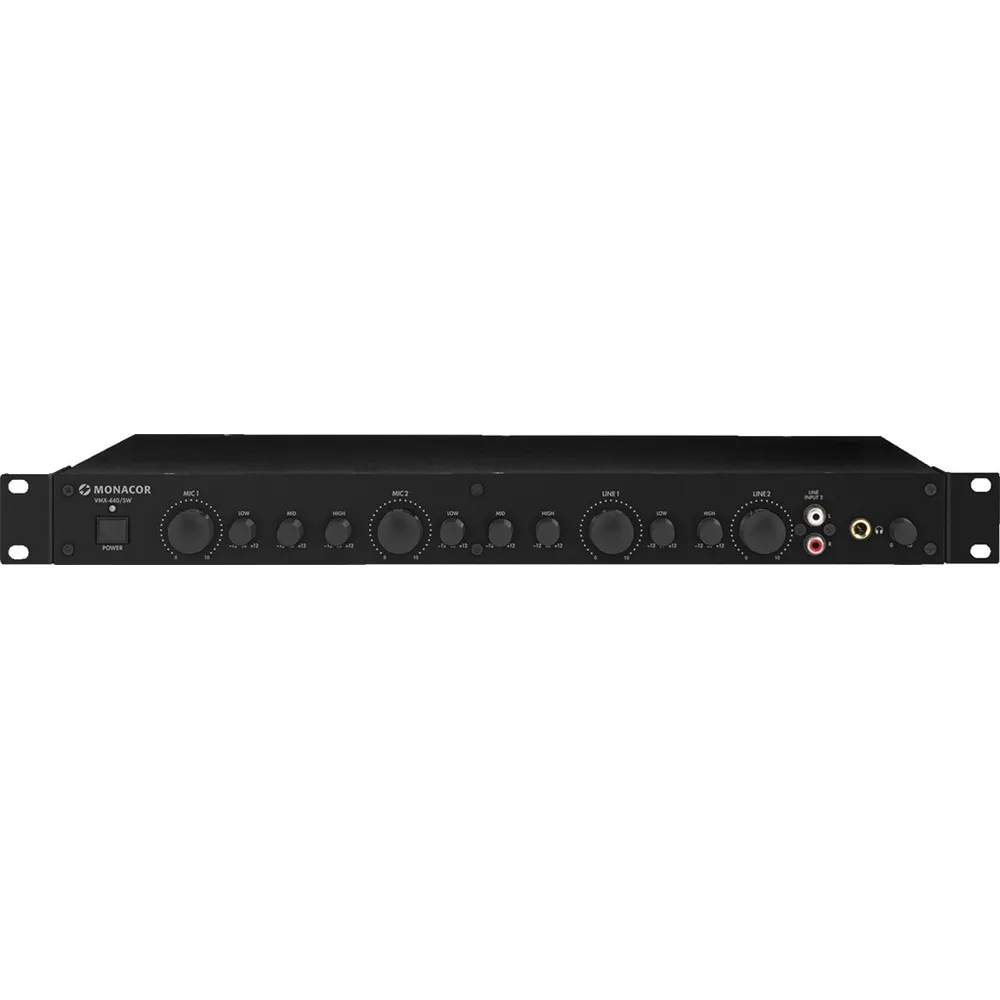

MONACOR 4-Channel Line/Mic Mixer

Features

• 4-Channel Microphone Line Mixer
• 2 Stereo Line Inputs
• 2 Balanced Microphone Inputs
• Parallel Front-Panel Stereo Line Input
• 3-Band Equalization for Each Microphone Input
• 2-Band Equalization Shared for Both Line Inputs
• Mute Function via Optional Button/Switch
• 2 Adjustable Stereo Master Outputs
• Master Output Level Adjustable via Trim Potentiometer
• Adjustable Headphone Output
• Stereo Record Output
• 482 mm Rack Mount (19"), 1U, with Included Mounting Brackets
• Number of Channels: 4
• Number of Inputs: 5
• Mic Input: 1 mV/600 Ω, 2 x 6.3 mm TRS, Balanced
• Line Input: 100 mV/10 kΩ, 3 x RCA L/R
• Master Output: 1-3 V/100 Ω, 2 x RCA L/R
• Record Output: 1 V/100 Ω, 1 x RCA L/R
• Headphone: ≥ 32 Ω, 2 x 15 mW, 1 x 6.3 mm TRS
• Frequency Range: 20-20,000 Hz
• Total Harmonic Distortion: 0.05%
• Signal-to-Noise Ratio: > 60 dB
• Low Frequency Equalization: ±12 dB/30 Hz
• Mid Frequency Equalization: ±12 dB/1 kHz (Voice Only)
• High Frequency Equalization: ±12 dB/12 kHz
• Power Supply: ~ 230 V/50 Hz/10 VA
• Voltage: ~ 230 V
• Frequency: 50 Hz
• Power Consumption in Operation: 10 VA
• Permissible Operating Temperature: 0-40 °C
• Width: 482 mm
• Height: 45 mm
• Depth: 180 mm
• Rack Units (U): 1
• Weight: 2.25 kg
• Packaging Dimensions (W x H x L): 0.225 x 0.105 x 0.47 m
• Gross Weight: 2.66 kg
• Net Weight: 2.253 kg
