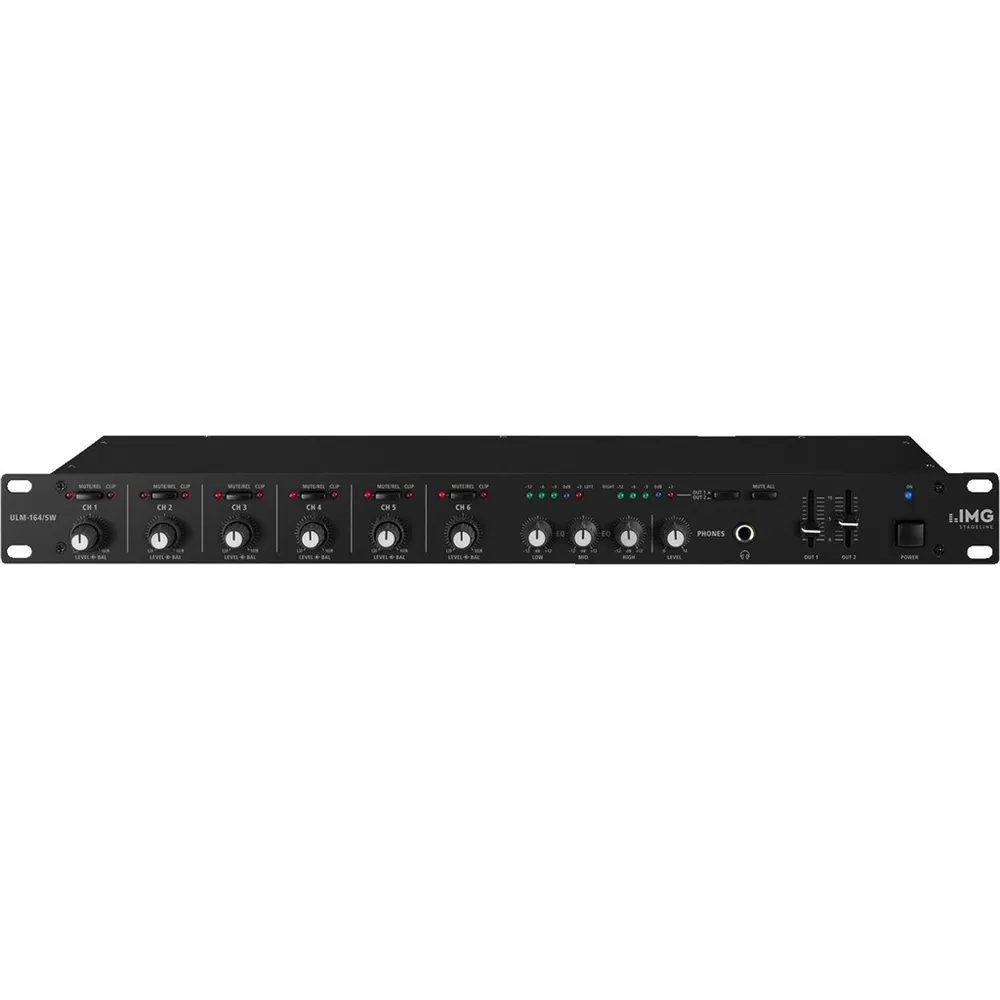

IMG STAGELINE Universal Line Mixer, 6 Channel

Features

• 6 Stereo/Mono Inputs
• 2 Independent Stereo Outputs (Master 1 via RCA and 6.3 mm jack), 1 Mono Output
• 3-Band Equalizer
• LED VU Meter, switchable for both outputs
• Clip LED per channel
• Balance Control with Center Detent for Stereo Input Channels
• Advanced Muting Function
• Adjustable Headphone Output
• 482 mm Rack Mount (19"), 1 U
• Number of Channels: 6
• Number of Inputs: 12
• Line Input: 150 mV/50 kΩ (stereo), 6 x RCA L/R; 150 mV/25 kΩ (mono), 6 x 6.3 mm jack, unbalanced
• Master Output: 1 V/600 Ω (stereo), 2 x RCA (1 x 6.3 mm) L/R; 2 V/600 Ω (mono), 1 x 6.3 mm jack
• Headphone: ≥8 Ω, 1 x 6.3 mm jack
• Frequency Range: 20-20,000 Hz
• Total Harmonic Distortion: 0.05%
• Signal-to-Noise Ratio: 69 dB, unweighted
• Low Frequency Equalization: ± 12 dB/80 Hz
• Mid Frequency Equalization: ± 12 dB/1 kHz
• High Frequency Equalization: ± 12 dB/10 kHz
• Power Supply: ˜ 230 V/50 Hz/10 VA
• Voltage: ~ 230 V
• Frequency: 50 Hz
• Power Consumption in Operation: 10 VA
• Permissible Operating Temperature: 0-40 °C
• Width: 482 mm
• Height: 48 mm
• Depth: 175 mm
• Rack Units (U): 1
• Weight: 2.3 kg
• Packaging Dimensions (W x H x L): 0.18 x 0.047 x 0.482 m
• Gross Weight: 3.035 kg
• Net Weight: 2.32 kg
