MONACOR Stereo-Mischverstaerker, 3xIn 3xMik 2x100W, 1HE

MONACOR Stereo Mixing Amplifier, 3x Input 3x Microphone 2x100W, 1U

Brand:

Monacor

Features

Silent operation due to fanless cooling design
3 stereo line inputs
3 mono microphone inputs on the front, each with gain control
Adjustable digital echo for microphone inputs
Karaoke function
Vocal partner function
LED indicators for level and active line inputs
Controls for volume, bass, treble, balance, and digital echo
Stereo record output
482 mm rack mountable (19"), 1 U, with included mounting brackets
Total output power: 2 x 100 W
Rated power: 100 W
Power at 4 Ω: 2 x 50 W
Power at 8 Ω: 2 x 30 W
Channels: 2
Inputs: 175 mV/8 kΩ (Line), 2.5 mV/3.5 kΩ (Mic)
Frequency range: 20-20,000 Hz
Bass control: ± 10 dB
Treble control: ± 10 dB
Signal-to-noise ratio: 62 dB
Power supply: ~ 230 V
Power frequency: 50 Hz
Power consumption during operation: 210 VA
Permissible operating temperature: 0-40 °C
Width: 432 mm
Height: 45 mm
Depth: 275 mm
Rack units (U): 1
Weight: 4.5 kg

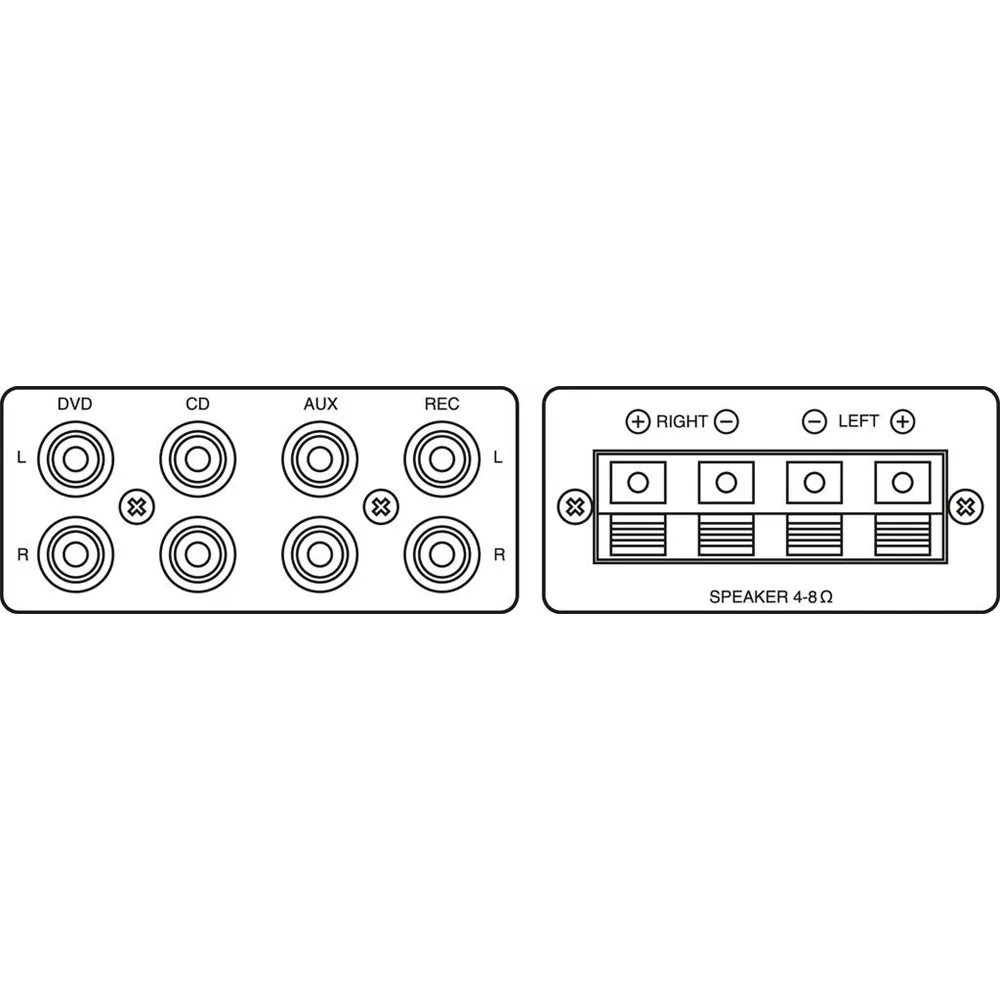

Connections: 1 x RCA L/R (Line), 1 x 6.3 mm jack (Mic), 1 x RCA L/R (Rec), 4 x speaker terminals
Packaging dimensions (W x H x L): 0.27 x 0.055 x 0.43 m
Gross weight: 5.42 kg
Net weight: 4.72 kg

MONACOR Stereo Mixer Amplifier, 3x Input 3x Mic 2x100W, 1U

Discover the MONACOR Stereo Mixer Amplifier, a powerful device that impresses with its 2 x 100 W output power. Ideal for music enthusiasts and karaoke fans, this mixer amplifier features a well-structured control interface that makes listening to and creating music a pleasure. With three stereo line inputs and three mono microphone inputs, each equipped with a gain control, you can effortlessly mix your audio sources.

Special features such as "One-Touch Karaoke" and "Vocal Partner" make it the perfect choice for karaoke nights. An adjustable digital echo can be added to the microphone channels as an effect to enhance your performances. Thanks to the fanless cooling concept, the amplifier operates silently, while modern protection circuits ensure safety against overload, overheating, and short circuits.

With controls for volume, bass, treble, and balance, as well as a stereo record output, the MONACOR Stereo Mixer Amplifier is the ideal solution for those who value quality and user-friendliness. It fits perfectly into a 19" rack and can be easily installed with the included mounting brackets.
