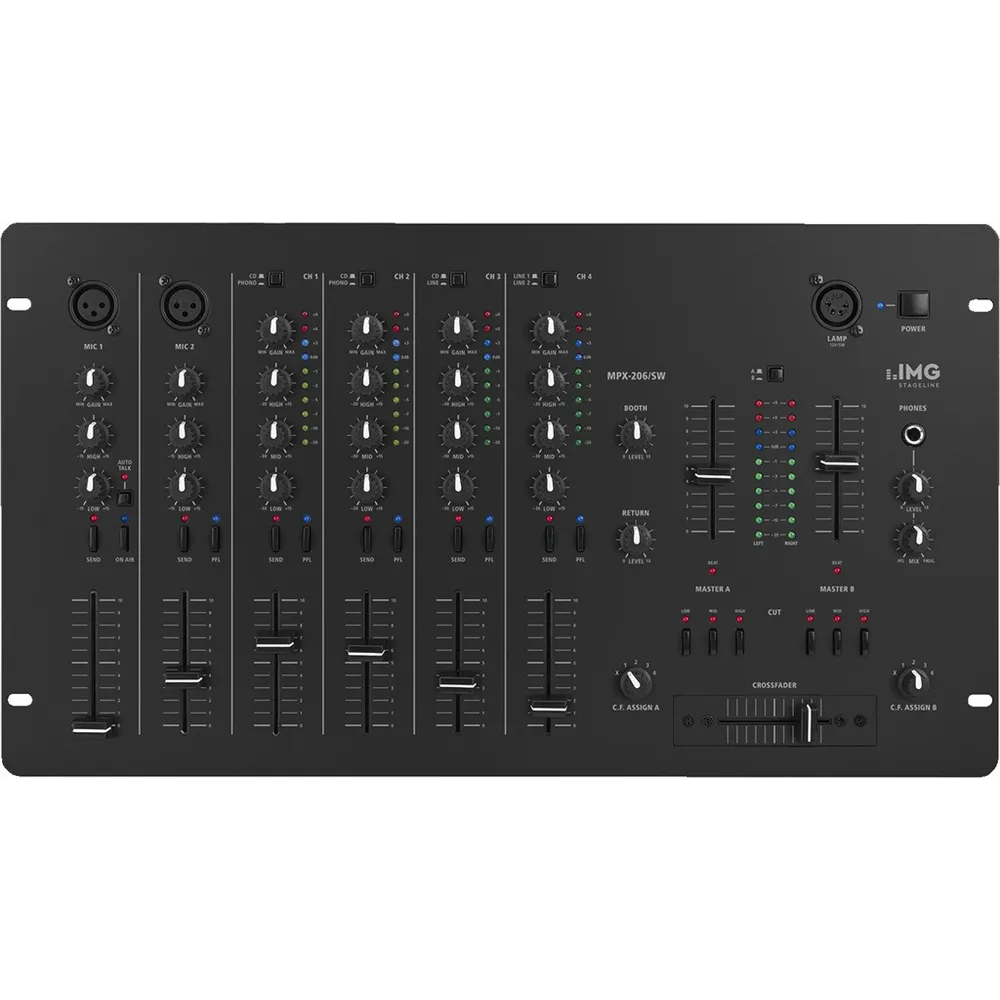

IMG STAGELINE 6-Channel Mixer with 2 DJ Microphones and 4 Stereo Inputs

Features

• 6-Channel Stereo Mixer
• 4 Stereo Input Channels with individual LED Level Indicators, switchable Line/Phono (Channels 1-2) and Line/Line (Channels 3-4), Gain Control, 3-Band EQ with Cut Function
• 1 DJ Microphone Channel with switchable Auto Talkover and 1 Guest Microphone Channel, both with Gain Control and 2-Band EQ
• 1 Stereo Effects Loop (Send/Return)
• 2 Master Outputs each with Beat LED and 1 Booth Output
• 1 Record Output
• LED Level Indicator, switchable between both Master Outputs
• Crossfader with Assignment Switches for Channels 1-4 and Cut Switch Function to suppress Treble, Mid, and Bass
• Adjustable Headphone Output
• Fader Start for Stereo Inputs (Channels 1-4)
• Connection for Gooseneck Light GNL-404
• Number of Channels: 6
• Number of Inputs: 12
• Mic Input: 1.5 mV, 2 x 6.3 mm Jack
• Line Input: 150 mV, 3 x RCA L/R
• CD Input: 150 mV, 3 x RCA L/R
• Phono Input: 3 mV, 2 x RCA L/R
• Effect Return: 135 mV, 1 x RCA L/R
• Master Output: 1 V/600 Ω, 1 x 3-Pin XLR L/R
• Record Output: 300 mV/600 Ω, 1 x RCA L/R
• Monitor Output: 1 V/600 Ω, 1 x RCA L/R
• Effect Send: 300 mV/600 Ω, 1 x RCA L/R
• Headphones: ≥8 Ω, 6.3 mm Jack
• Gooseneck Light: 12 V/5 W, 4-Pin XLR
• Frequency Range: 20-20,000 Hz
• THD (Total Harmonic Distortion): 0.05%
• Signal-to-Noise Ratio: > 50 dB
• EQ Low: +15 dB, -30 dB/50 Hz
• EQ Mid: +15 dB, -30 dB/1 kHz
• EQ High: +15 dB, -30 dB/10 kHz
• Talkover: -12 dB, switchable
• Crossfader: Yes
• Power Supply: ~ 230 V/50 Hz/14 VA
• Voltage: ~ 230 V
• Frequency: 50 Hz
• Power Consumption in Operation: 14 VA
• Permissible Operating Temperature: 0-40 °C
• Width: 482 mm
• Height: 266 mm
• Depth: 110 mm
• Rack Units: 6
• Weight: 6.48 kg
• Packaging Dimensions (W x H x L): 0.305 x 0.16 x 0.56 m
• Gross Weight: 7.82 kg
• Net Weight: 6.48 kg
