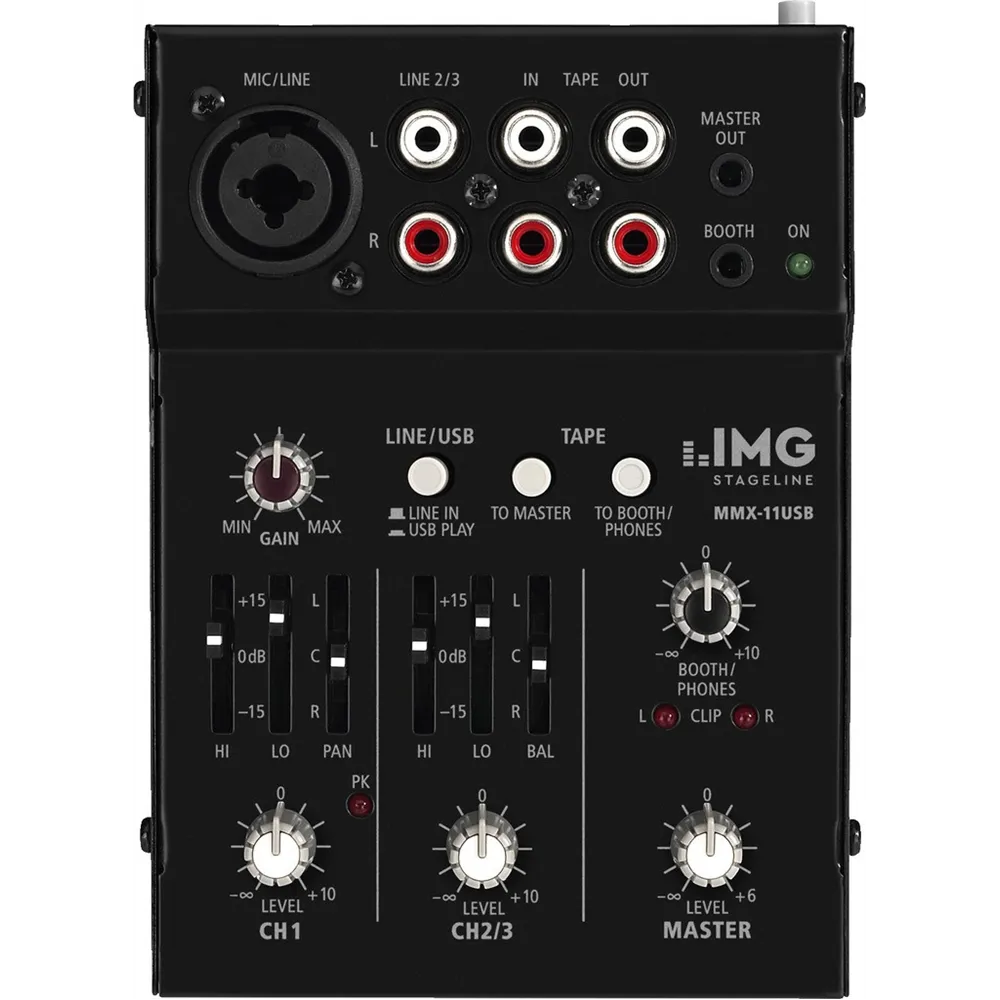

IMG STAGELINE 2-Channel Audio Mini Mixer, USB

Features

• Integrated USB audio interface (recognized and operated as an external sound card)
• Full-duplex USB port (simultaneous recording and playback possible)
• 1 mono input channel with gain control, 2-band EQ, pan control, peak LED
• 1 stereo input channel with level control, 2-band EQ, and balance control
• Tape record/play connections
• 1 x 3.5 mm stereo output (master)
• Adjustable headphone output
• +20V phantom power, permanent
• Clip LED
• Sturdy, compact metal housing
• Number of channels: 2
• Number of inputs: 3
• Mic input: 0.5 mV, 1 x 3-pin XLR
• Line input: 150 mV (stereo), 1 x RCA L/R; 2 mV (mono), 6.3 mm jack
• Tape (play): 420 mV, 1 x RCA L/R
• Master output: max. 6 V, 1 x 3.5 mm jack
• Booth output: max. 6 V, 1 x 3.5 mm jack
• Tape (rec): 1 x RCA L/R
• USB: yes
• Frequency range: 20-20,000 Hz
• Signal-to-noise ratio: 81 dB, rated
• Low frequency control: ±15 dB/80 Hz
• High frequency control: ±15 dB/12 kHz
• Power supply: via USB interface or included power adapter
• Operating voltage: DC 5 V
• Current: DC 500 mA
• Permissible operating temperature: 0-40 °C
• Width: 102 mm
• Height: 45 mm
• Depth: 140 mm
• Weight: 430 g
• Packaging dimensions (W x H x L): 0.14 x 0.07 x 0.18 m
• Gross weight: 0.615 kg
• Net weight: 0.48 kg
