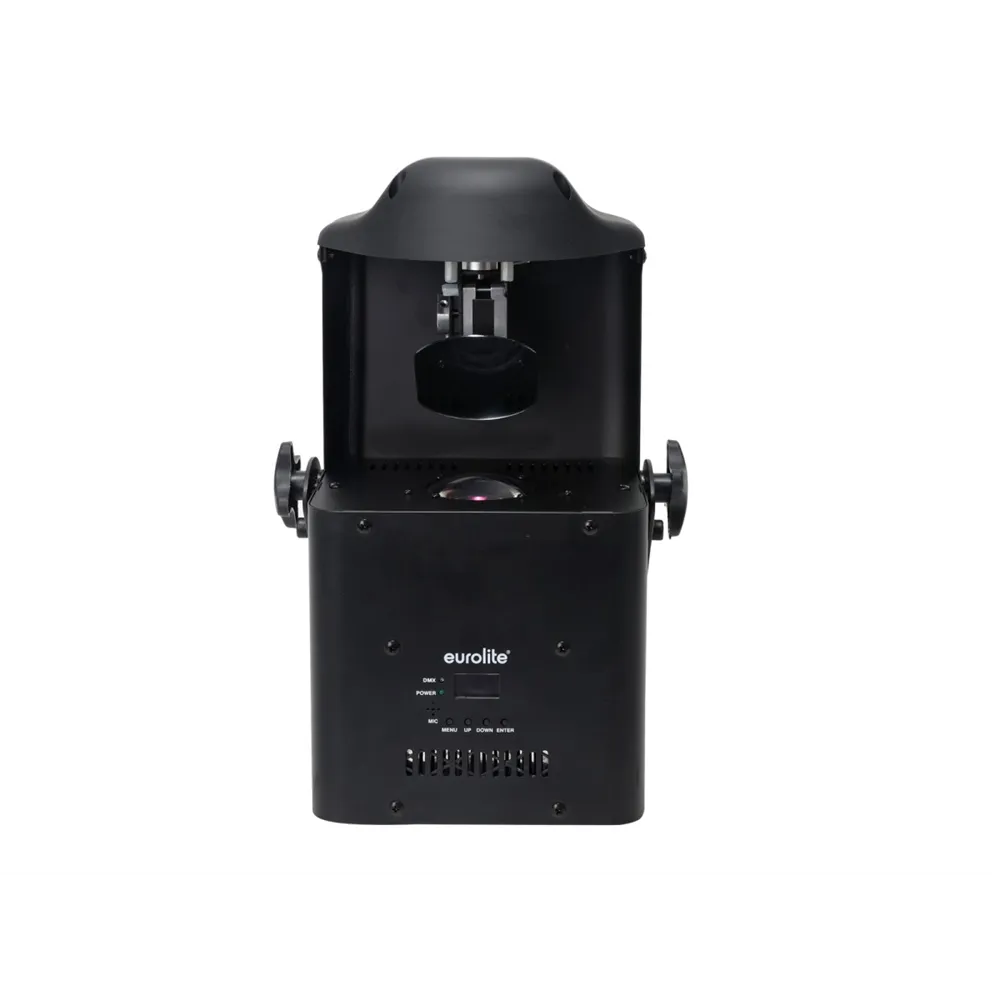

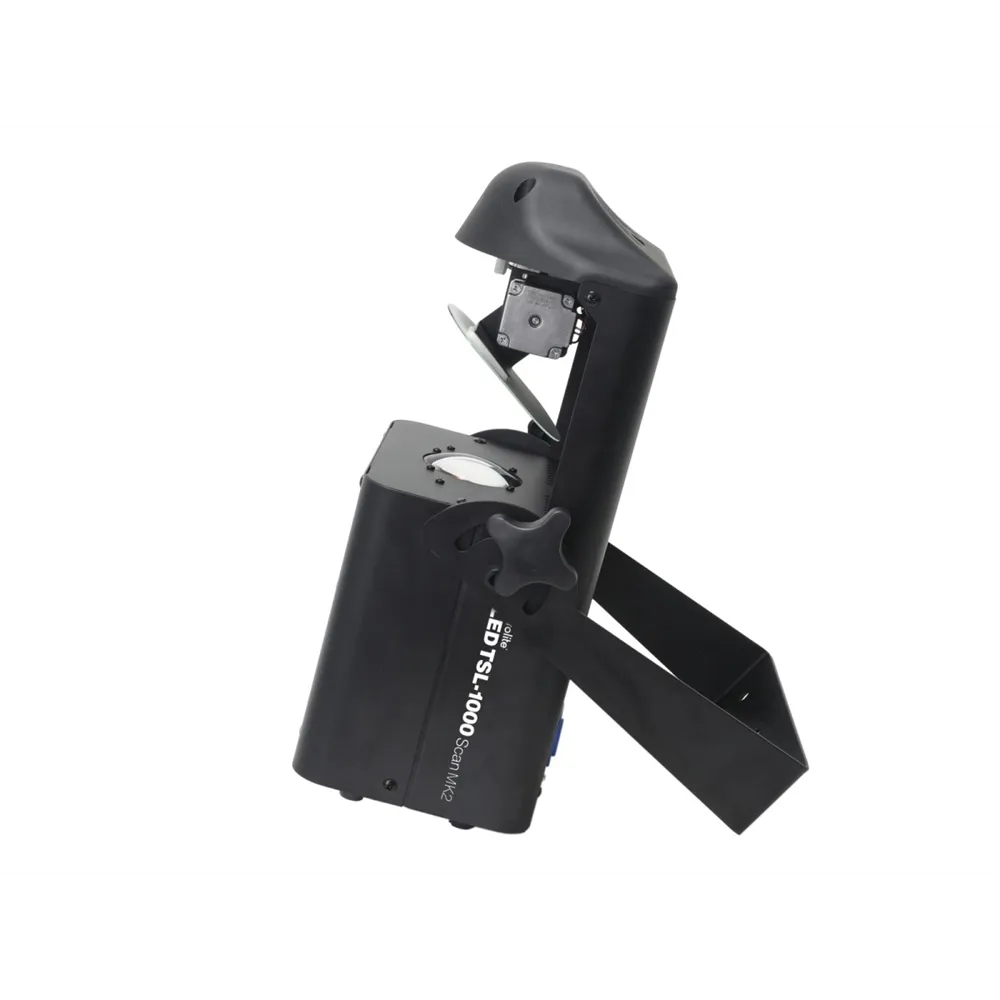

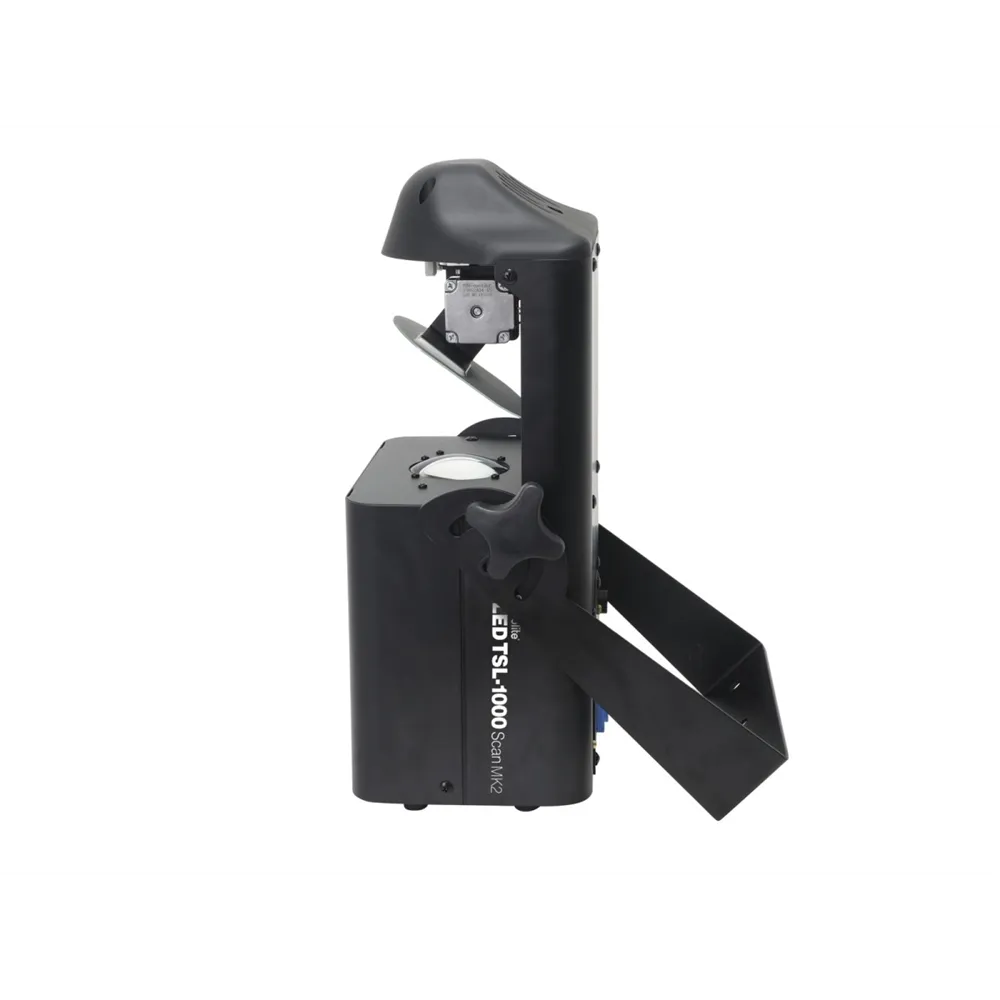

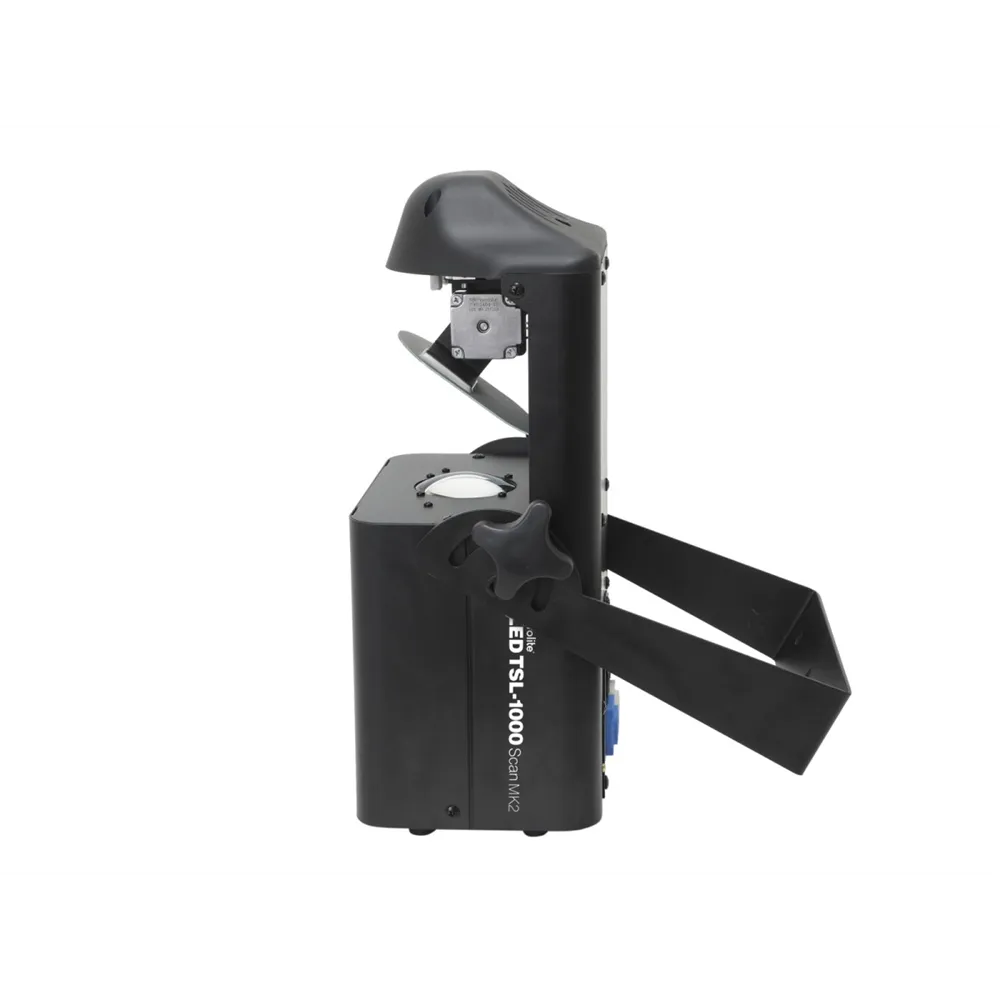

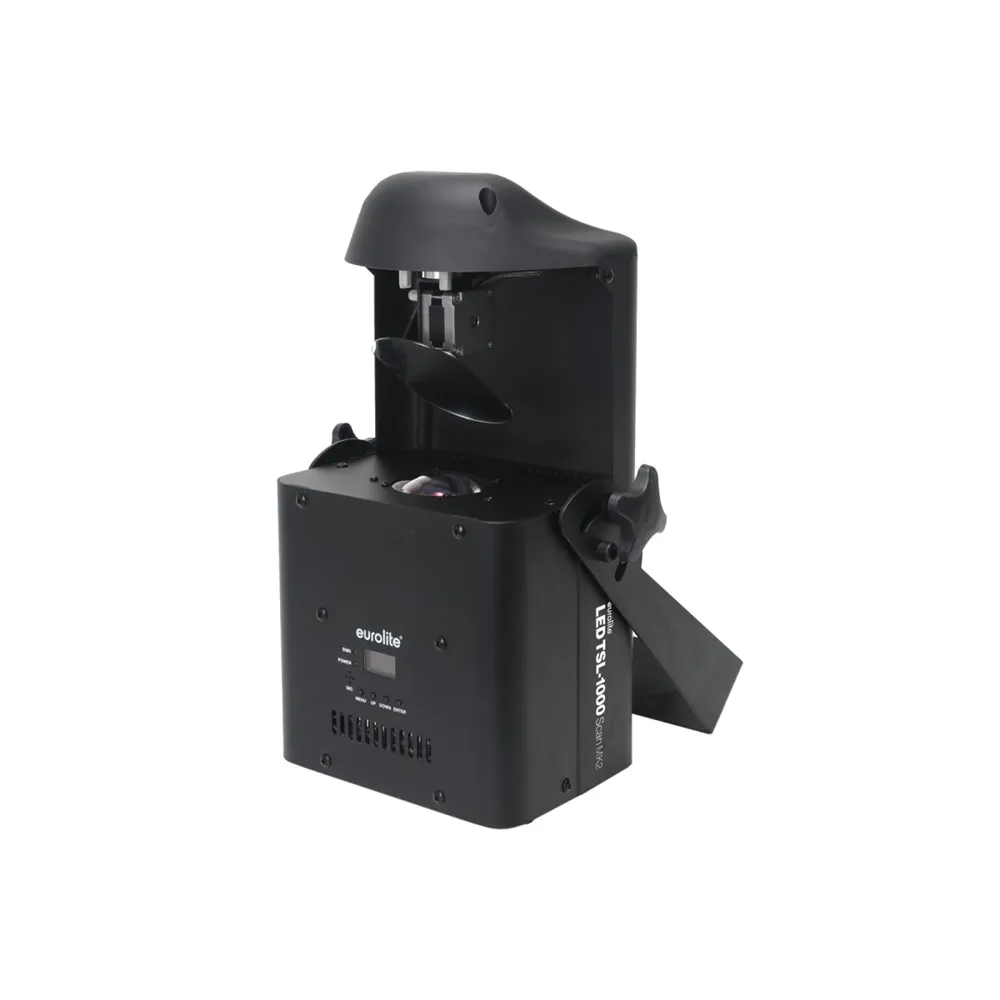

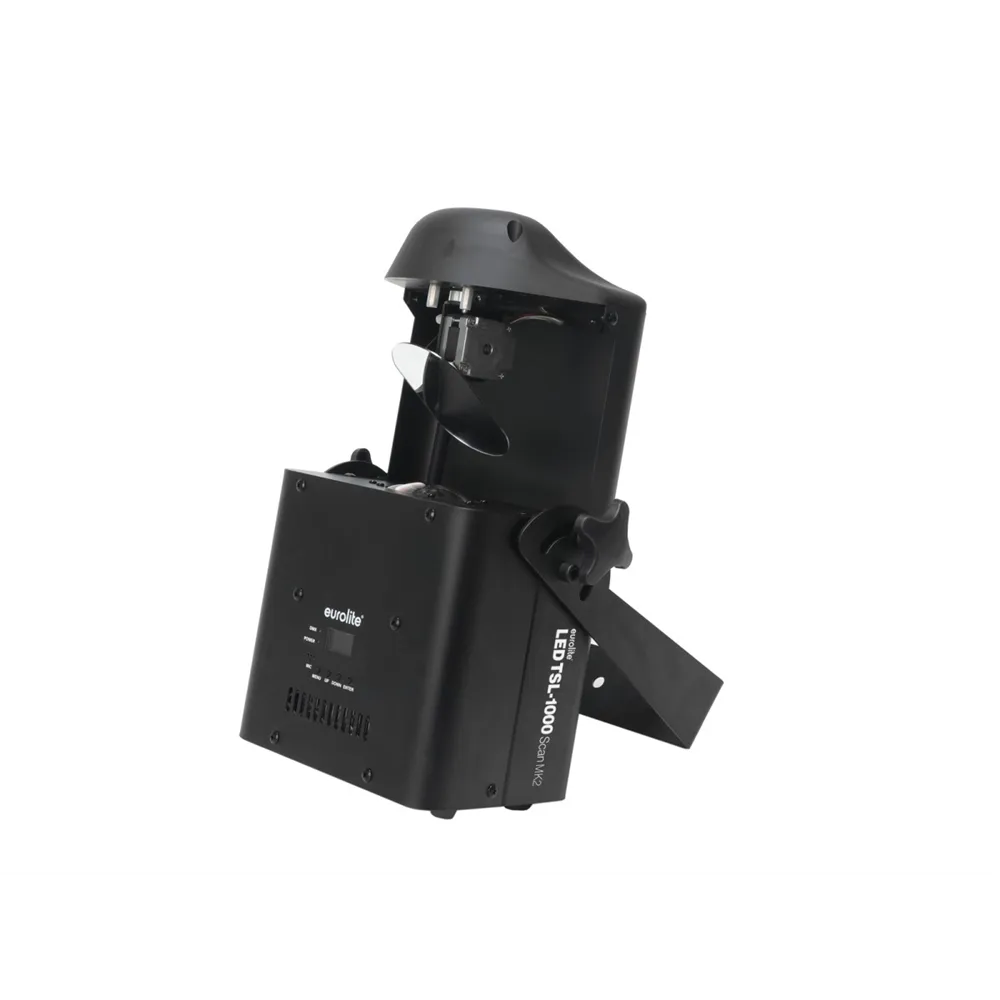

EUROLITE LED TSL-1000 Scan MK2

EUROLITE LED TSL-1000 Scan MK2

Brand:

EUROLITE Set of 2 LED TSL-350 Scan COB Lights + Case

Features

Scanner with 100W LED, rotating gobos, 3-facet prism, color wheel, and motorized focus
1 powerful 100W COB (Chip-on-Board) cool white (CW) LED
Positioning within 160° PAN, 50° TILT
Precise positioning (16-bit resolution)
Motorized focus; color wheel; gobo wheel with rotating gobos; 3-facet prism
Gobo effect; strobe effect
Color wheel with 8 dichroic colors and open; selectable half colors, rainbow effect with variable speed in both directions
Gobo wheel with rotating gobos, 7 gobos and open; shake effect
Interchangeable gobos
Slot-in gobo system for easy gobo changes
Integrated show programs
Device cooling via fan
Controllable via stand-alone; DMX; master/slave function; music control via microphone
Flicker-free
Beam angle of 20°
OLED display
Electronic dimmer
Pre-programmed with Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Rubber feet
Power input and output for easy linking of up to 8 devices
Suitable for applications such as clubs/dance schools; weddings/gala/events; mobile DJs/solo entertainers; rental companies
Mounting options: standing; hanging; on tripod
Power supply: 100-240 V AC, 50/60 Hz
Total power consumption: 110 W
Protection class: IP20
Protection category: Class I

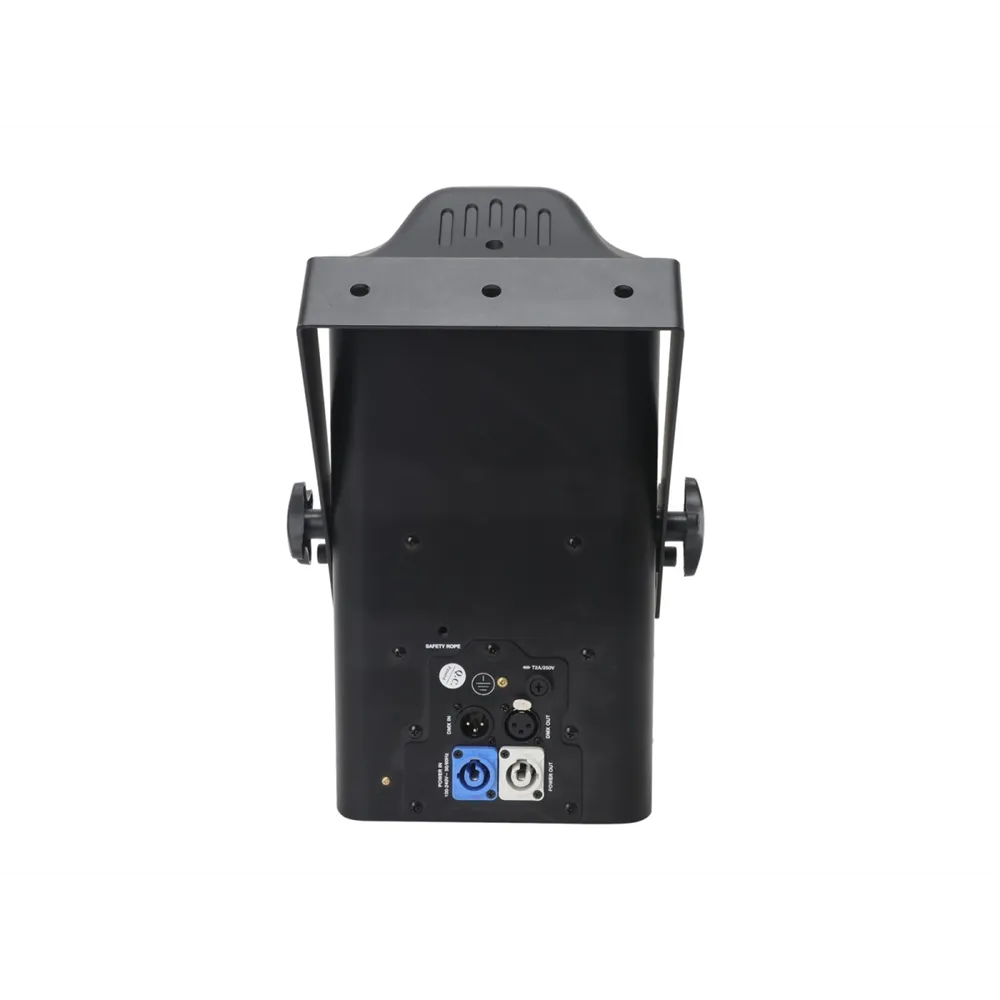

Power connection: Power input via P-Con (blue), built-in version power connection cable with protective contact plug (included)
Power output: P-Con (gray), built-in version
Fuse: 5 x 20 mm, T 4 A replaceable fuse
Type of lamp: LED lamp
LED type: 1 x 100 W COB (Chip-on-Board) cool white (CW)
Max. tilt movement: 50° precise positioning (16-bit resolution)
Max. pan movement: 160° precise positioning (16-bit resolution)
Flash rate: 1 - 25 Hz
Features: motorized focus; color wheel; gobo wheel with rotating gobos; 3-facet prism
Color generation: color wheel with 8 dichroic colors and open; selectable half colors, rainbow effect with variable speed in both directions
Gobos: gobo wheel with rotating gobos, 7 gobos and open; shake effect; interchangeable gobos; slot-in gobo system for easy gobo changes
DMX channels: 10; 15
DMX input: 3-pin XLR (M) built-in version
DMX output: 3-pin XLR (F) built-in version
Cooling: fan
Control: stand-alone; DMX; master/slave function; music control via microphone
Pre-programmed with: Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Projection: flicker-free
Beam angle: 20°
Color temperature: 8000K
Illuminance in lux (lx): Cool white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
Housing color: black
Display type: OLED display

EUROLITE LED TSL-1000 Scan MK2

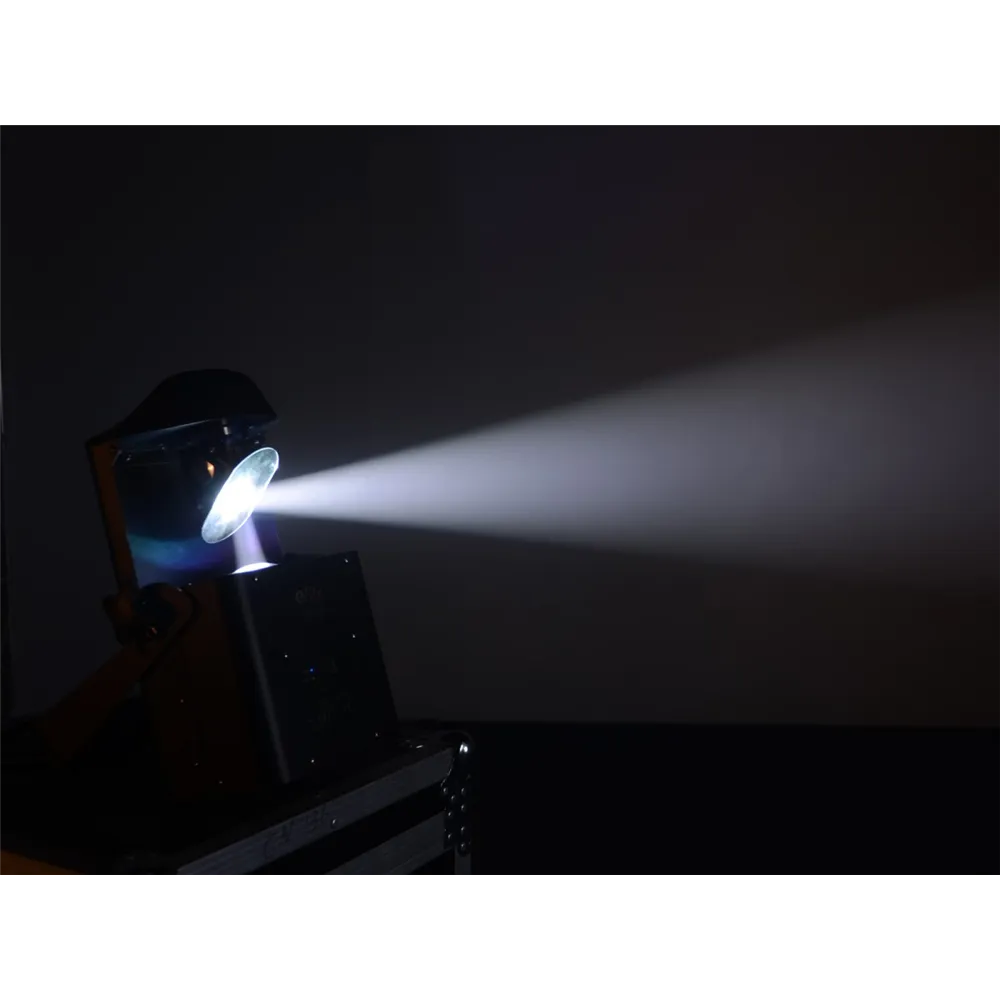

The EUROLITE LED TSL-1000 Scan MK2 is the perfect scanner for impressive light shows. Equipped with a powerful 100W LED (COB, cool white), this scanner delivers excellent light performance and a variety of creative effects. With a pan range of 160° and a tilt range of 50°, it allows for precise positioning thanks to its 16-bit resolution.

The TSL-1000 Scan MK2 features a color wheel with 8 dichroic colors, as well as a rainbow effect with variable speed. The rotating gobos and 3-facet prism create dynamic light displays, while the integrated strobe effect adds additional visual accents. Thanks to the slot-in gobo system, gobos can be quickly and easily changed.

Control options include DMX, stand-alone, or music control, and the built-in show programs provide immediate usability. With a beam angle of 20° and flicker-free operation, the TSL-1000 Scan MK2 is ideal for clubs, events, weddings, and mobile DJs. Its robust construction and rubber feet ensure stability and durability.
