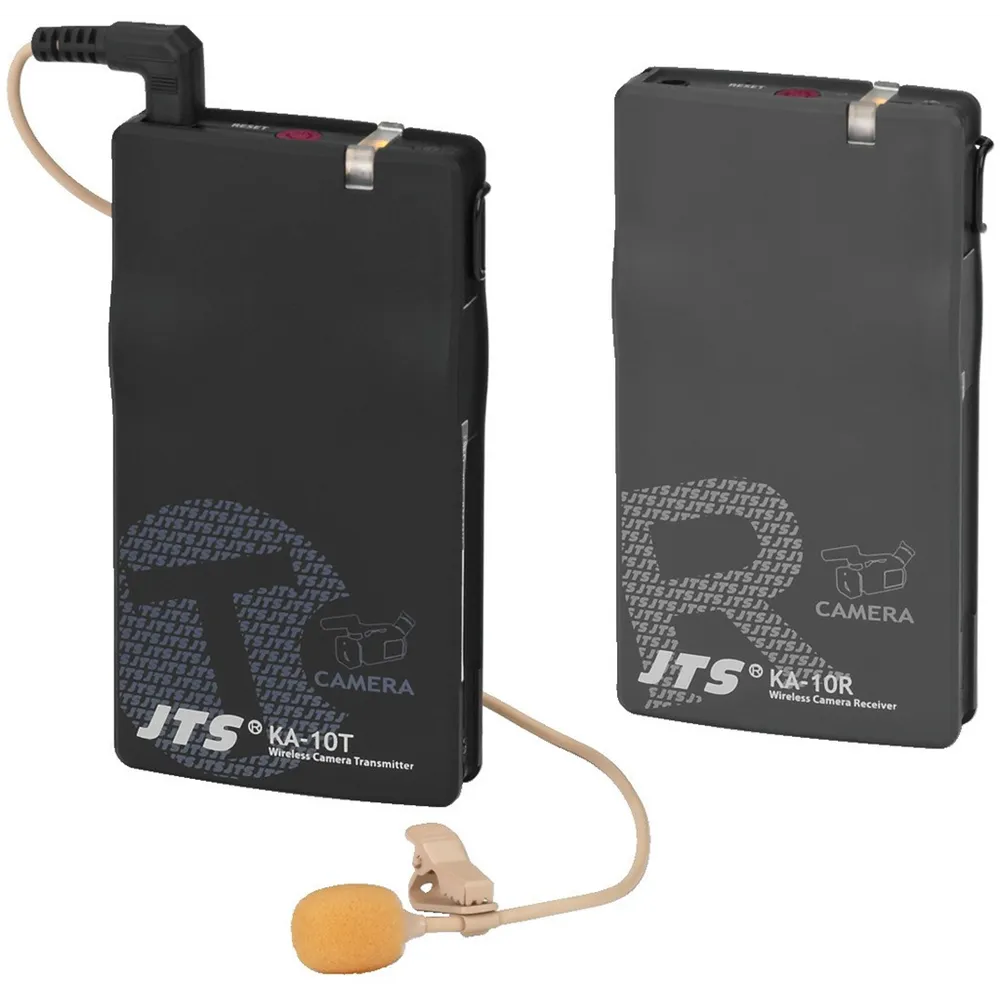

JTS Audio Transmission System

Features

• Wireless 16-channel PLL audio transmission system for cameras
• Includes a portable audio transmitter and receiver
• Carrier frequency range: 863-865 MHz
• Audio frequency range: 40-18,000 Hz
• Transmitter and receiver equipped with lithium-ion batteries for weight savings and long operating times
• Transmission of line signals via transmitter possible (adjustable via recessed gain control)
• Receiver with 3-position PAD switch (0 dB/-10 dB/-20 dB) for optimal level adjustment to the camera's audio input
• Transmitter and receiver with stable metal mounting clip
• Operating time approximately 12 hours
• Range: approximately 60 m
• Includes lavalier microphone in skin tone with windscreen and tie clip
• Mounting shoe for camera attachment, trim key, dual charging dock with plug-in power supply
• Connection cable with 3.5 mm jack to 3.5 mm jack
• Connection cable 3.5 mm jack to XLR connector
• Optional connection cable 801TG with angled 3.5 mm jack available
• Permissible operating temperature: 0-40 °C
• Transmitter weight: 80 g
• Receiver weight: 82 g
• Audio signal receiver: 300 mV/7 kΩ (jack)
• Transmitter power supply: 3.7 V lithium-ion battery
• Receiver power supply: 3.7 V lithium-ion battery
• Transmitter width: 55 mm
• Transmitter height: 100 mm
• Transmitter depth: 18 mm
• Receiver width: 55 mm
• Receiver height: 100 mm
• Receiver depth: 18 mm
