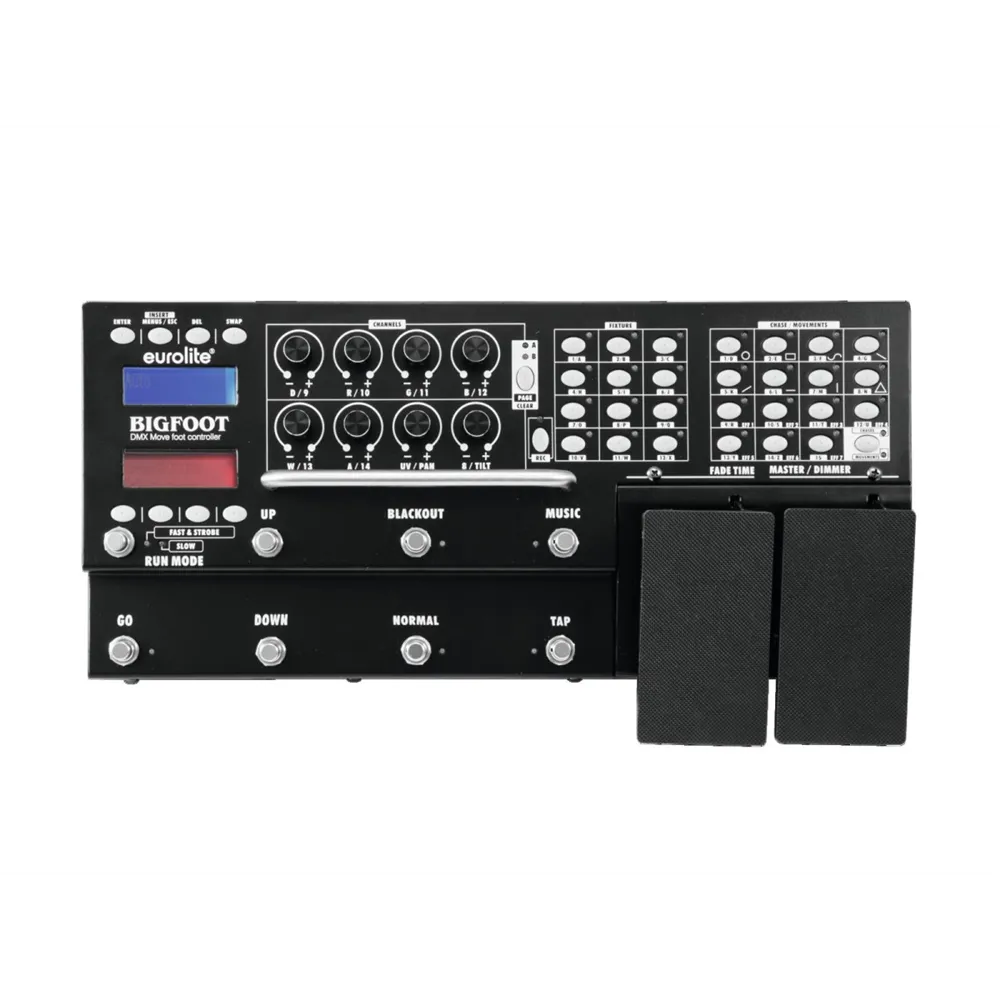

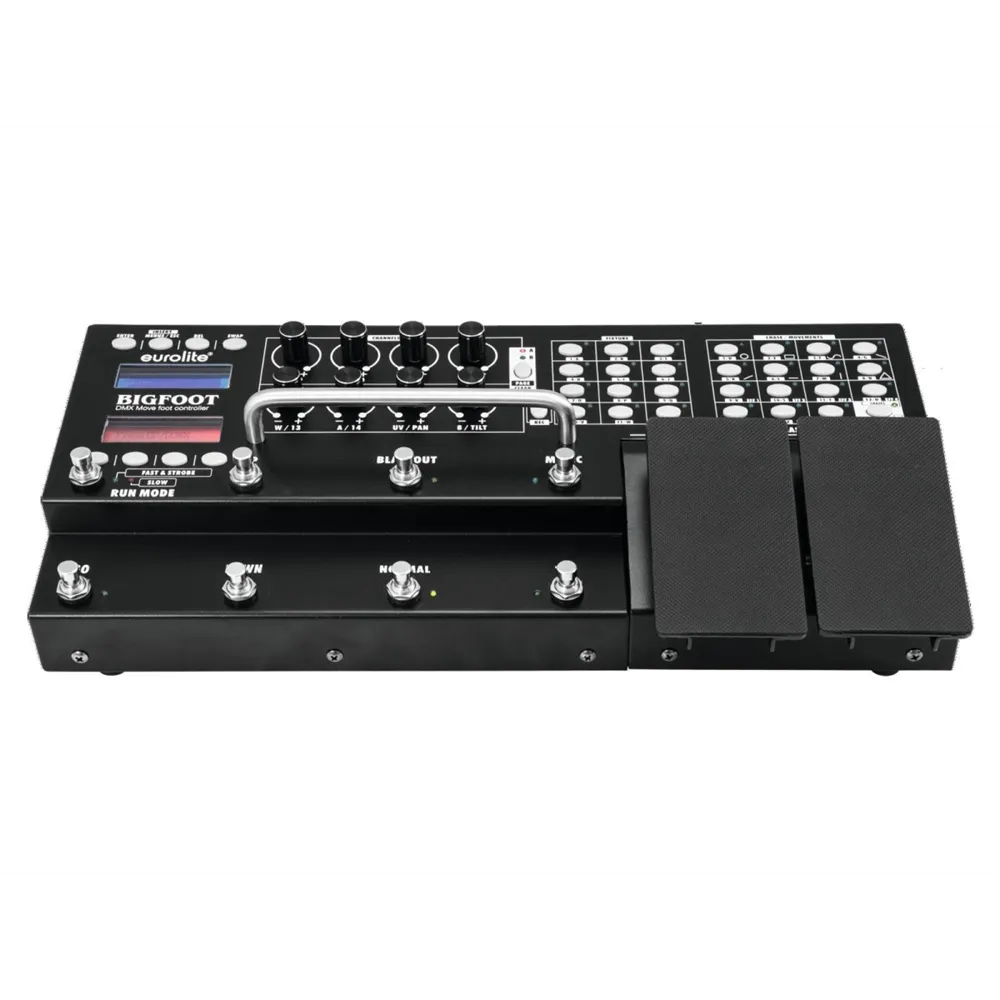

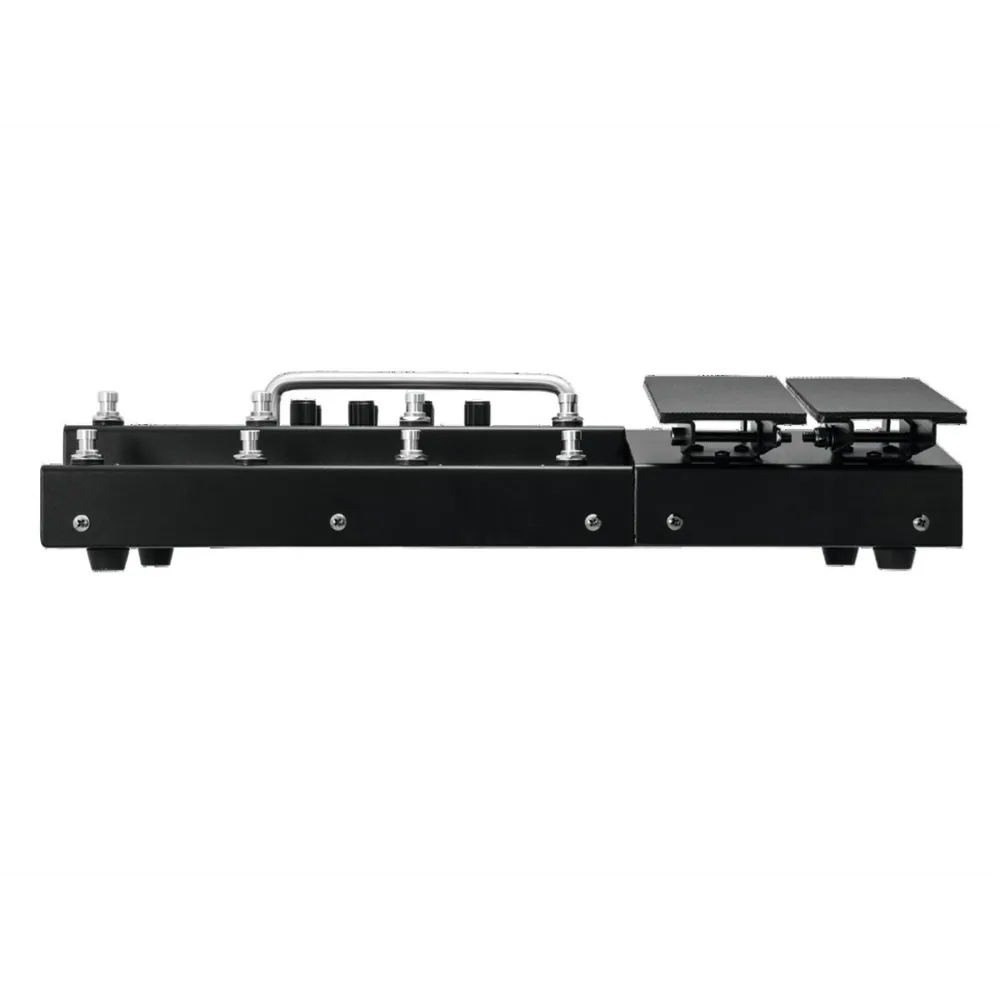

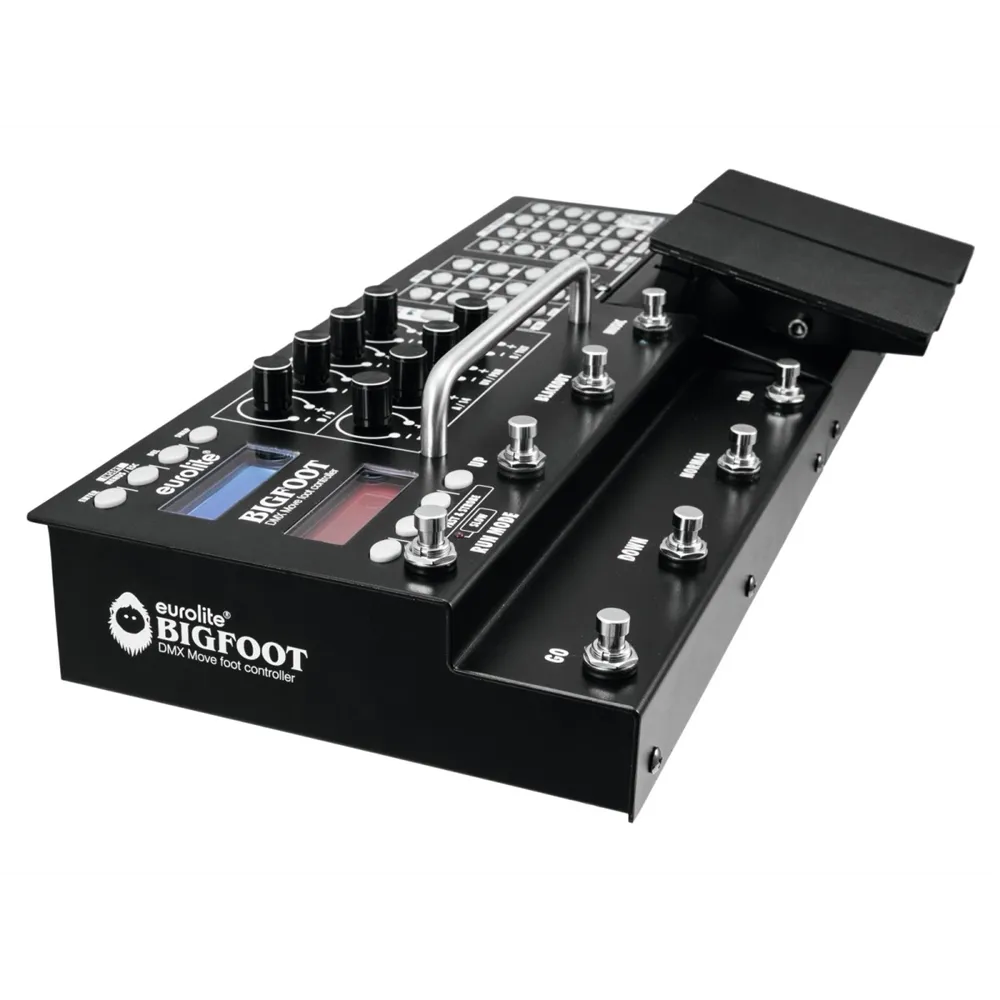

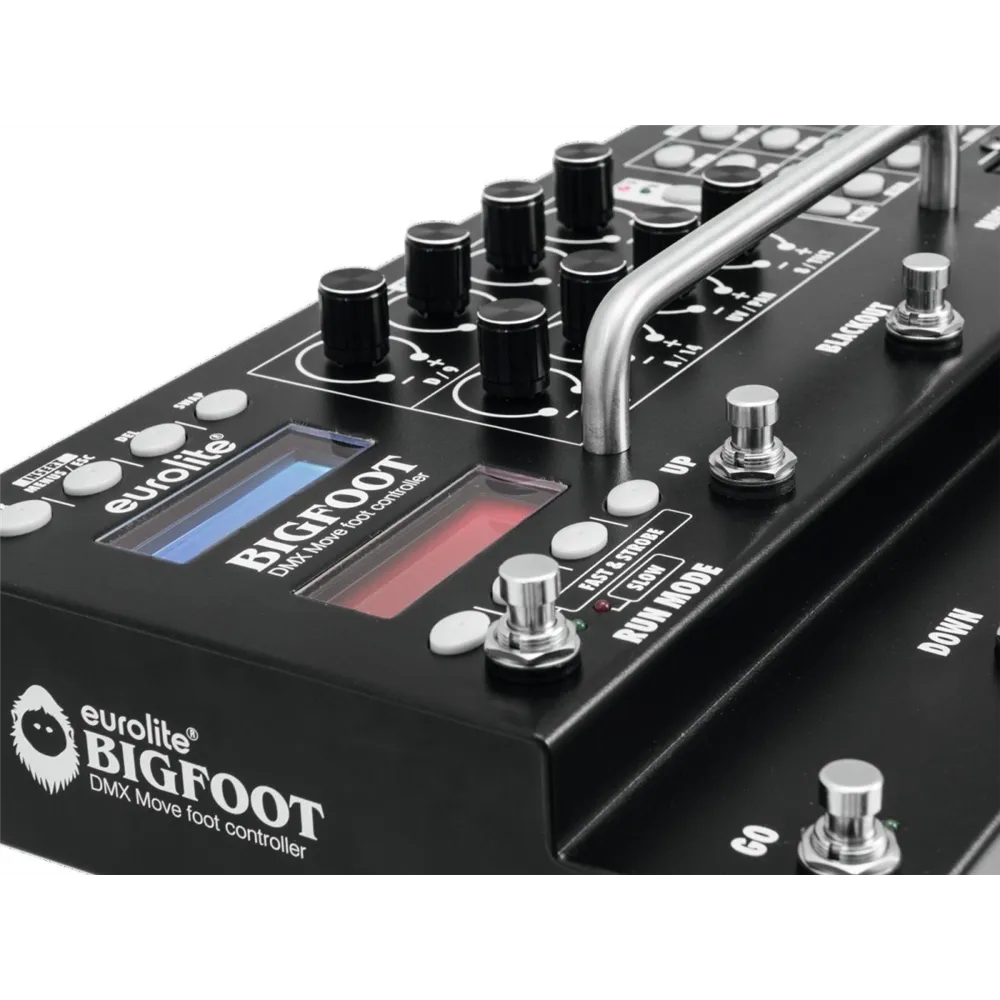

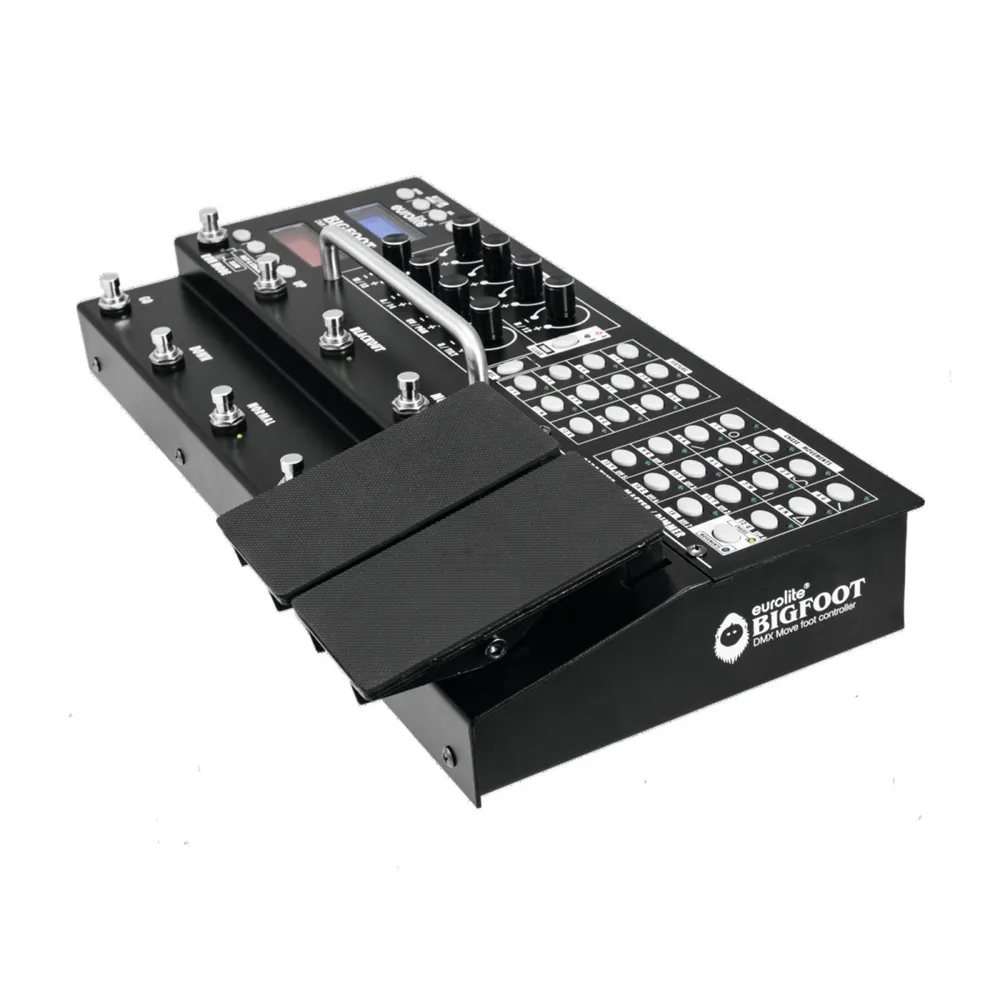

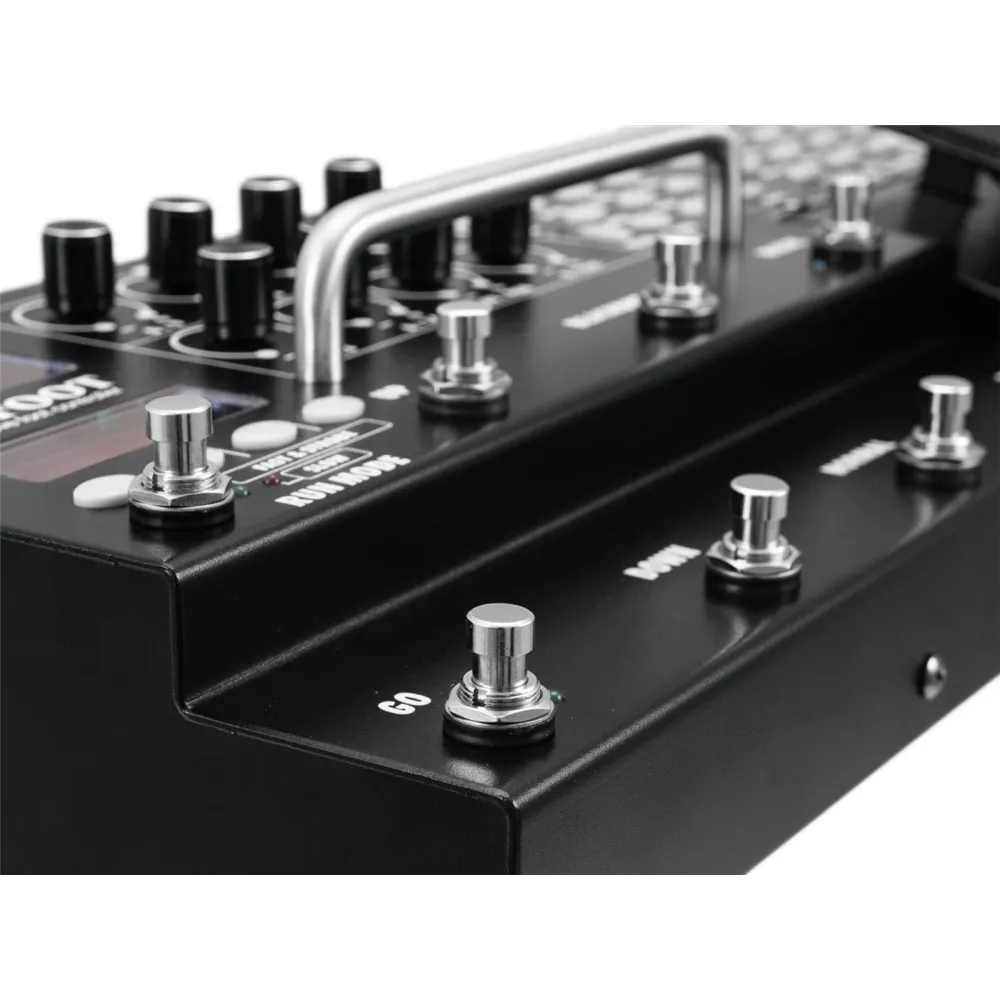

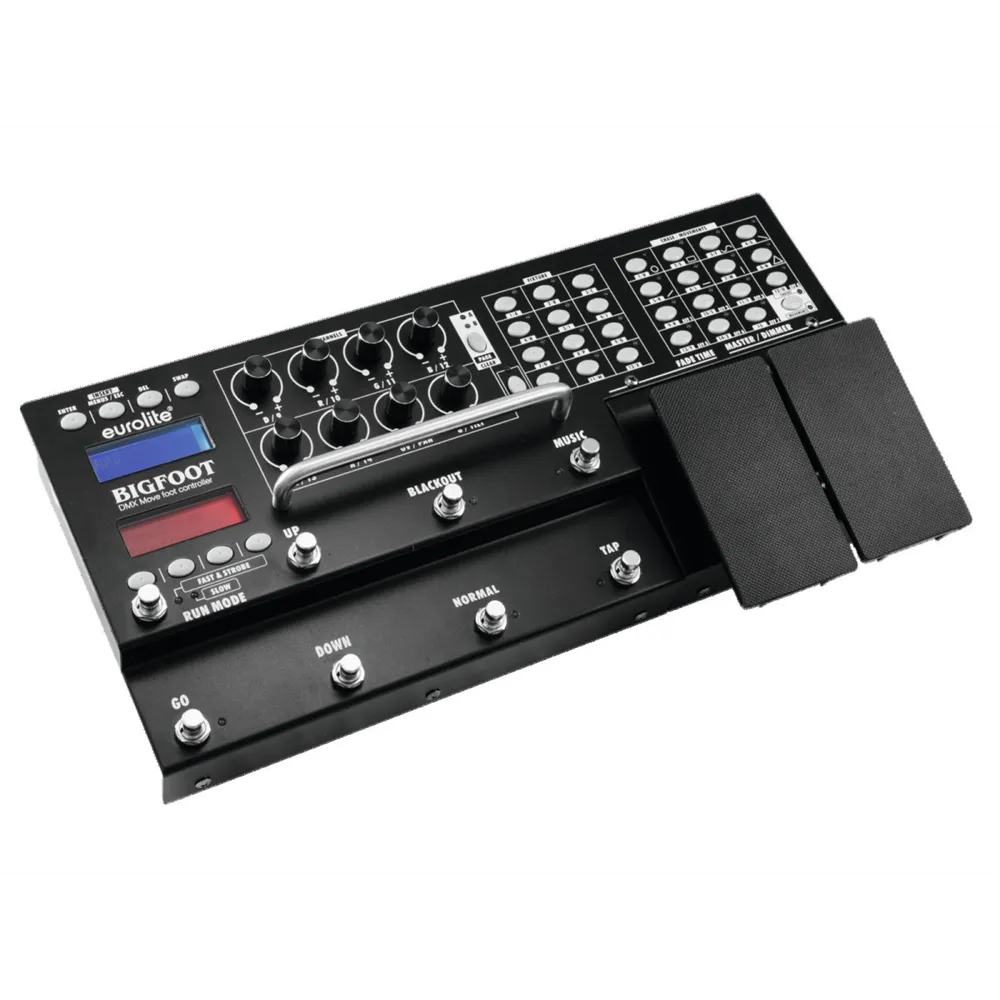

EUROLITE DMX Move Bigfoot Foot Controller 192

Features

• Fully programmable DMX footswitch for DMX lighting effect devices such as moving heads, scanners, and RGBW LED spotlights
• 192 DMX channels freely assignable to 16 control channels, individually invertible (soft patch)
• Supports up to 12 devices, each with a maximum of 16 control channels
• USB port for storing light show data
• Quick programming via effect generator with movement and color effects
• Multiple effects can be used simultaneously
• Programs can be named freely
• Easily select the desired program and activate it with the GO button
• Tempo control via music signal or TAP button
• Comfortable foot control for dimmer, fade time, and other functions
• 8 endless encoders on 2 levels for adjusting DMX values
• Blackout function
• Sturdy metal housing
• Programmable 15 scenes/chases with up to 100 cues each
• Can transmit up to 192 DMX channels
• Controllable via DMX; music control via microphone; music control via RCA (female) built-in version

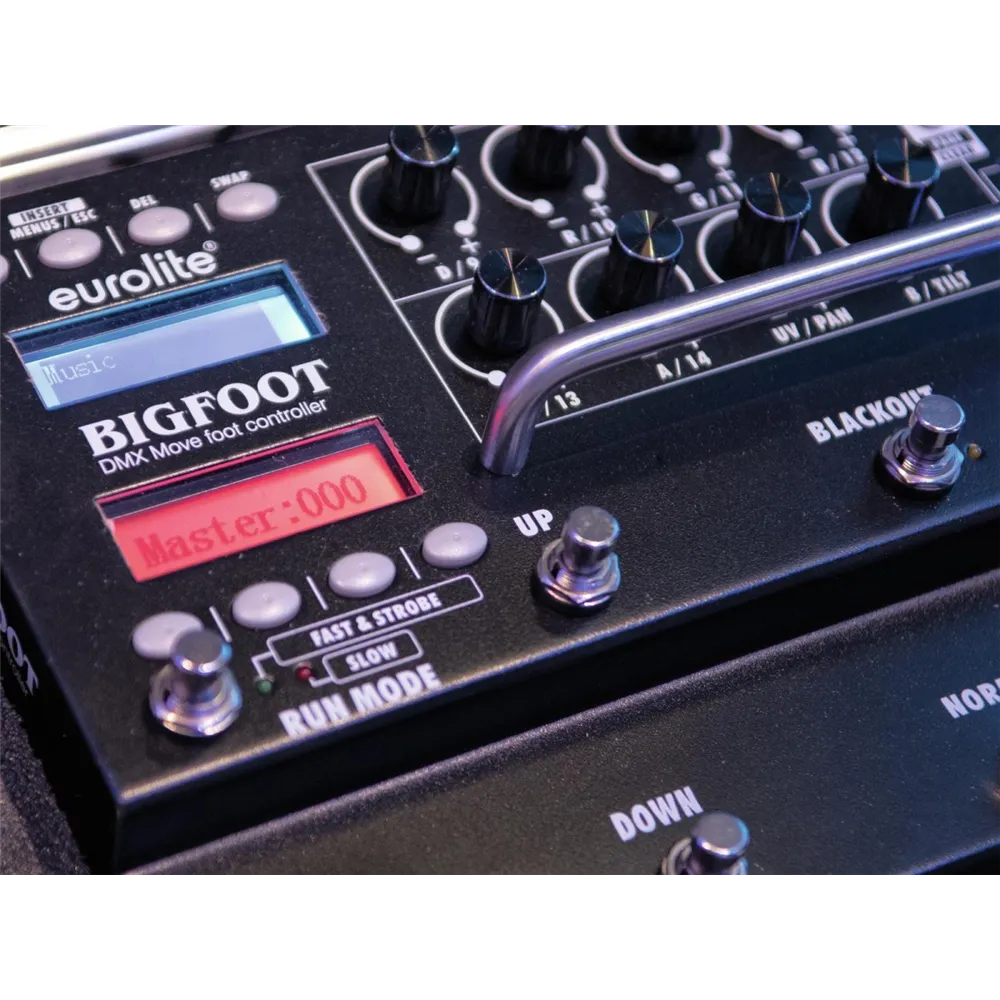

• Monochrome LCD display
• Foot-resistant pedal housing
• Suitable for applications such as stage performances, mobile DJs/entertainers, product presentations, and lectures
• Silent operation
• Firmware update capable
• Power supply: 100-240 V AC, 50/60 Hz, 9V DC 800 mA
• Total connection value: 10 W
• Protection class: IP20
• Protection rating: Class III

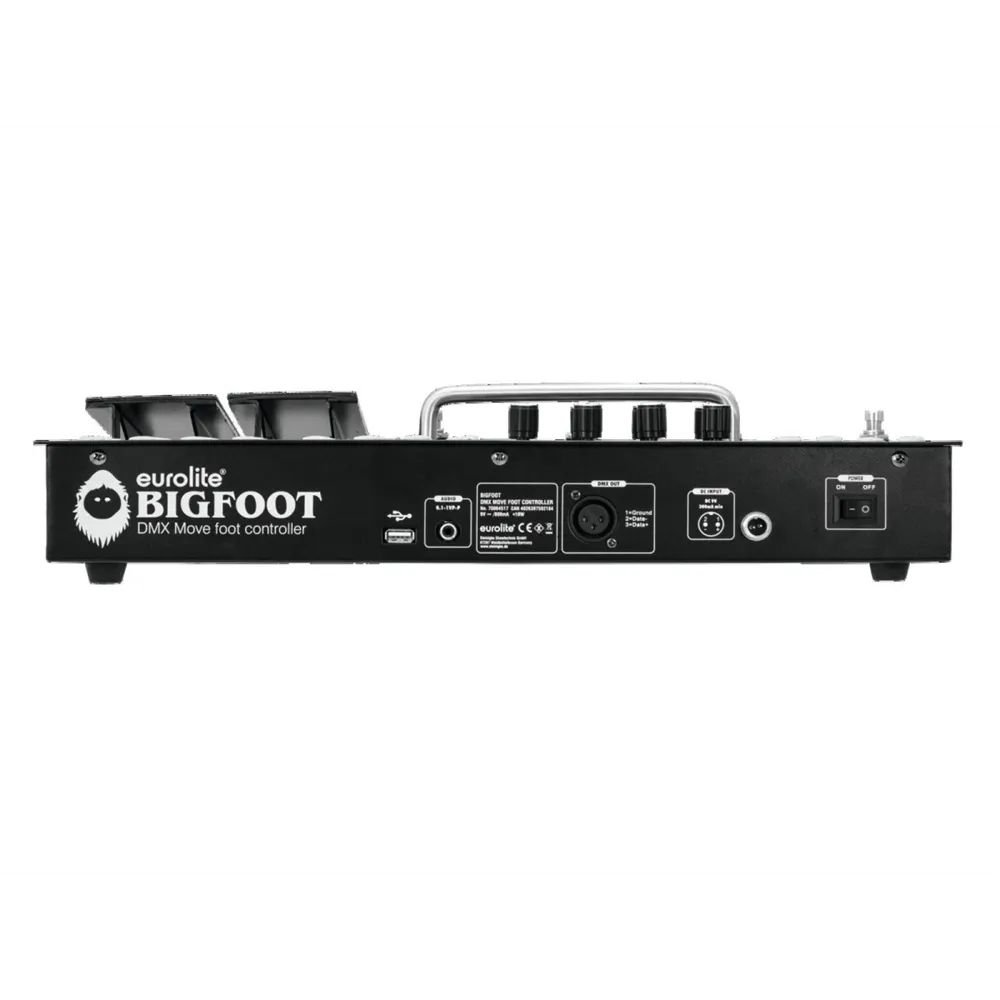

• Power connection: Power supply via 2-pole screw connector (male) built-in version, power connection cable with plug-in power supply (included)
• DMX output: 1 x 3-pin XLR (female) built-in version
• Housing color: Black
• Display type: Monochrome LCD display
• Compatible storage media: USB devices (FAT 32)
• USB port: Type A
• Housing design: Foot-resistant pedal housing
• Dimensions: Width: 45 cm, Depth: 24 cm, Height: 10 cm
• Weight: 4.72 kg
• Noise classification: Class 0 (no noise)
