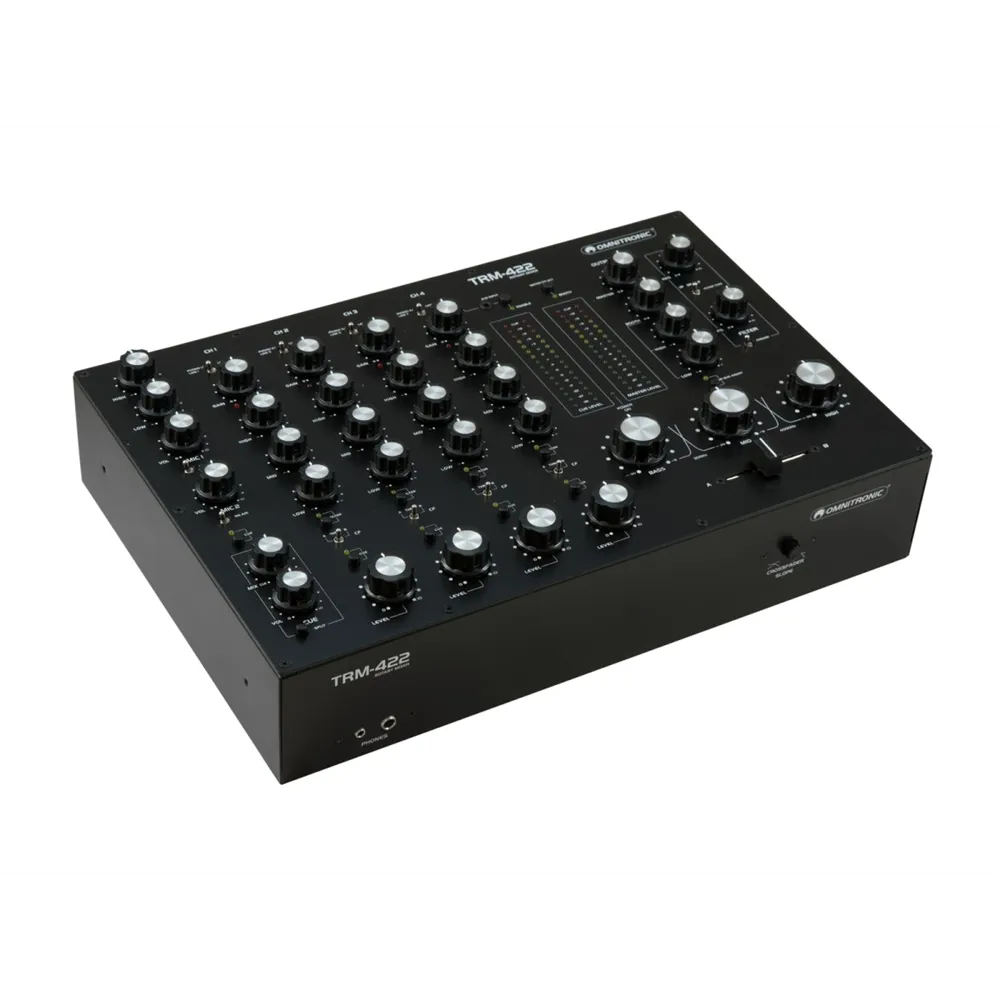

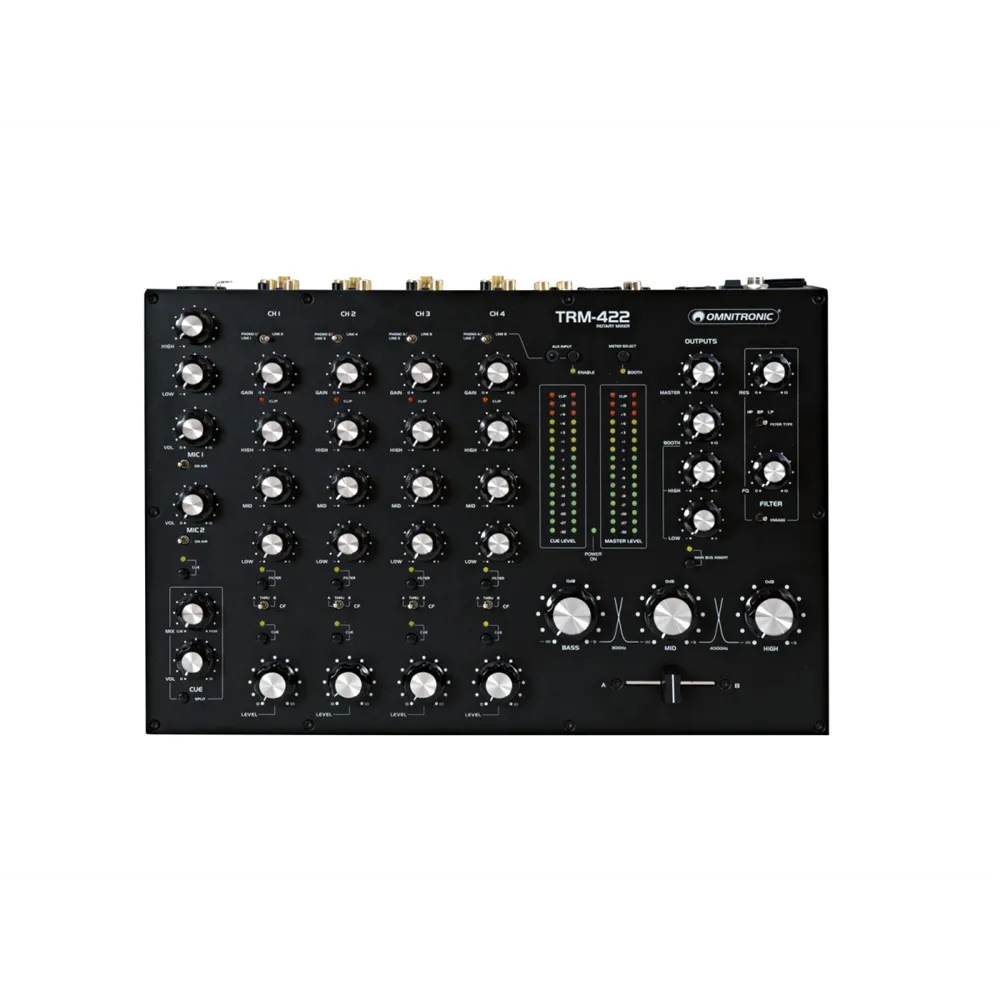

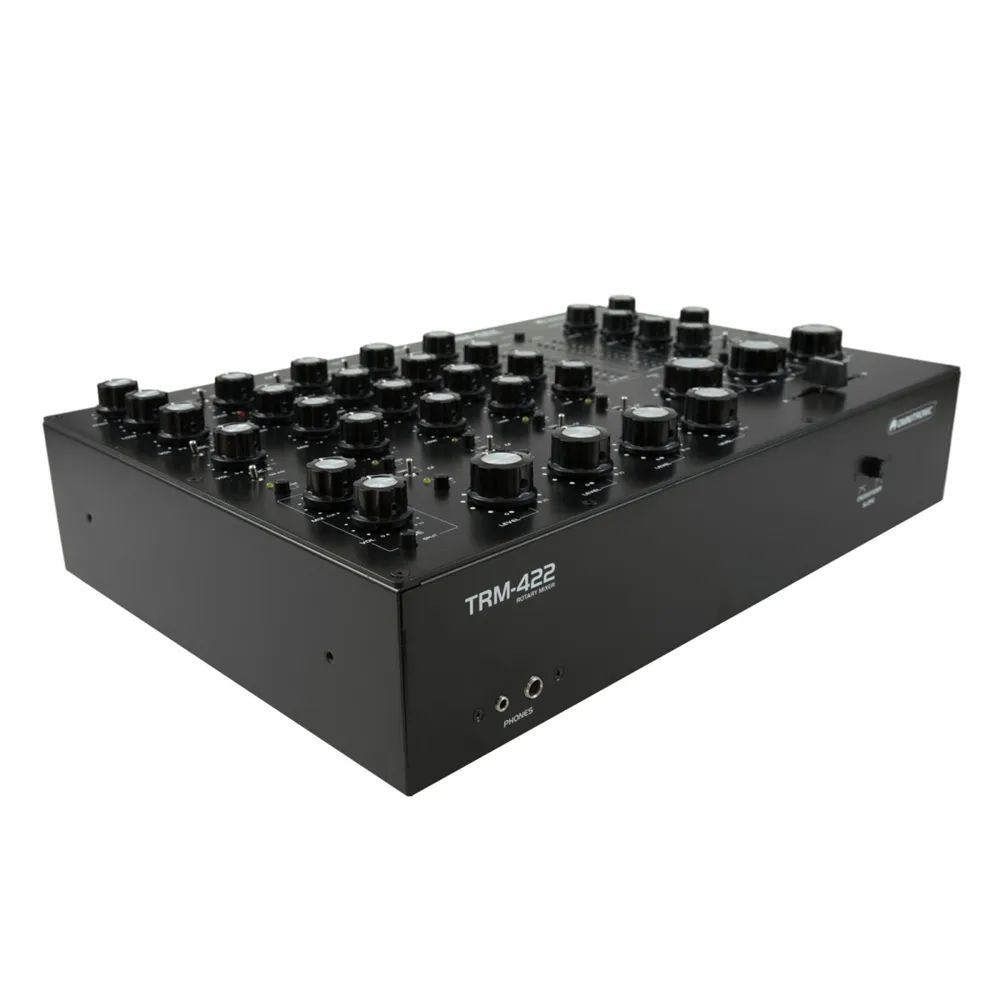

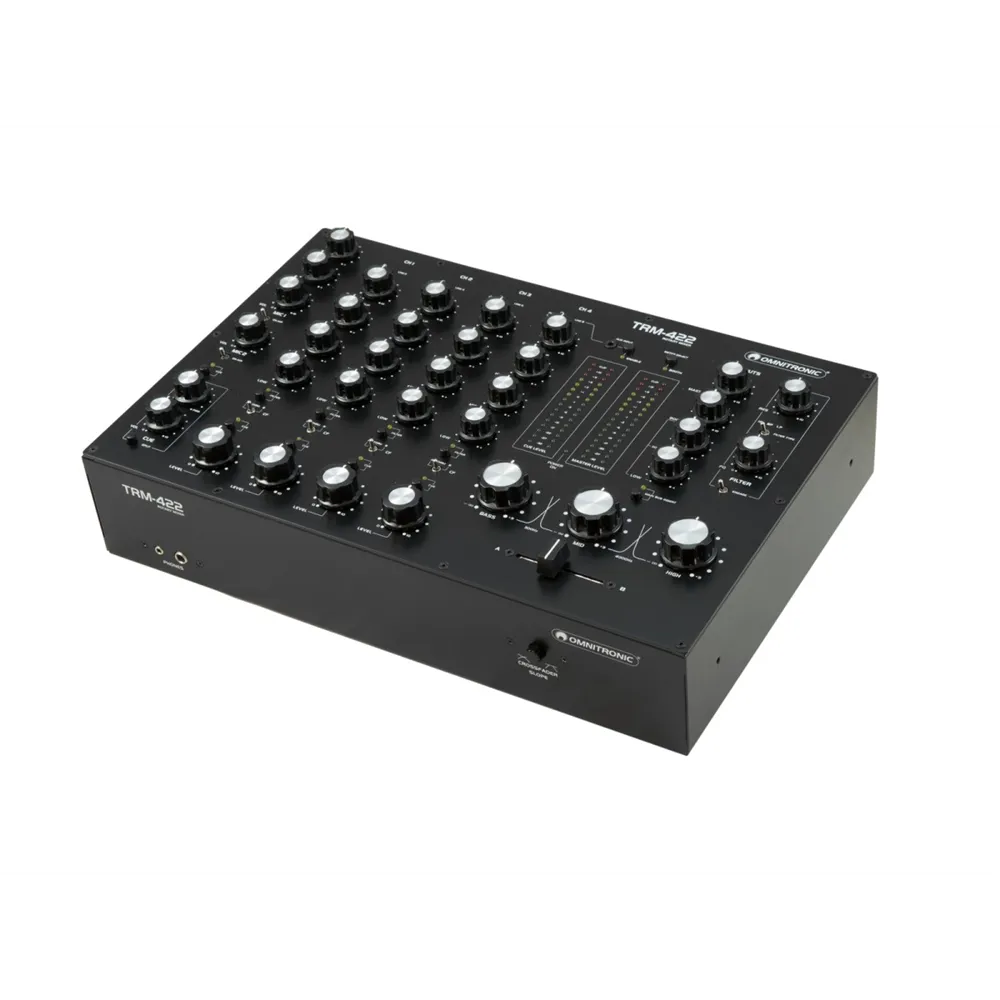

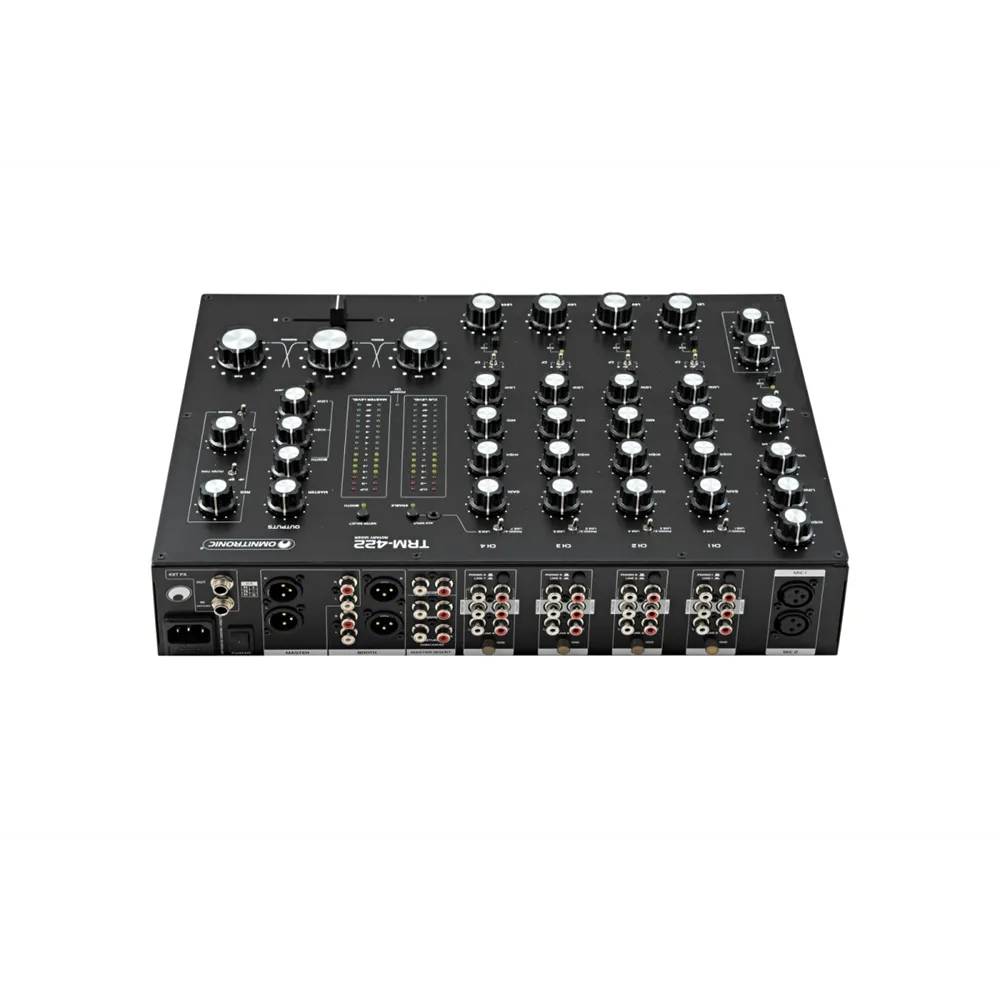

OMNITRONIC TRM-422 4-Channel Rotary Mixer

Features

• 4-channel rotary mixer with 3-band frequency isolator and filter section for DJs
• 3-band master frequency isolator with classic ALPS rotary potentiometers (Blue Velvet RK27)
• Kill characteristic allows for complete elimination of bass, midrange, and treble frequencies
• Filter section with resonance and sweep controls for creative manipulation of frequency bands
• 4 stereo input channels with gain control, clip LED, 3-band EQ, and phono/line switching
• 2 microphone input channels with gain control, 2-band EQ, and on-air switch
• High-quality components ensure long lifespan and excellent sound characteristics
• 16-segment stereo LED level meter, switchable between master and booth output
• Booth output with separate 2-band EQ and volume control
• PFL section with 16-segment stereo LED level meter, volume control, PFL/Main balance control, and cue mix/split function
• VCA technology crossfader with adjustable fade characteristics
• 2 effect loops for connecting external effect devices
• Direct outputs for timecode applications

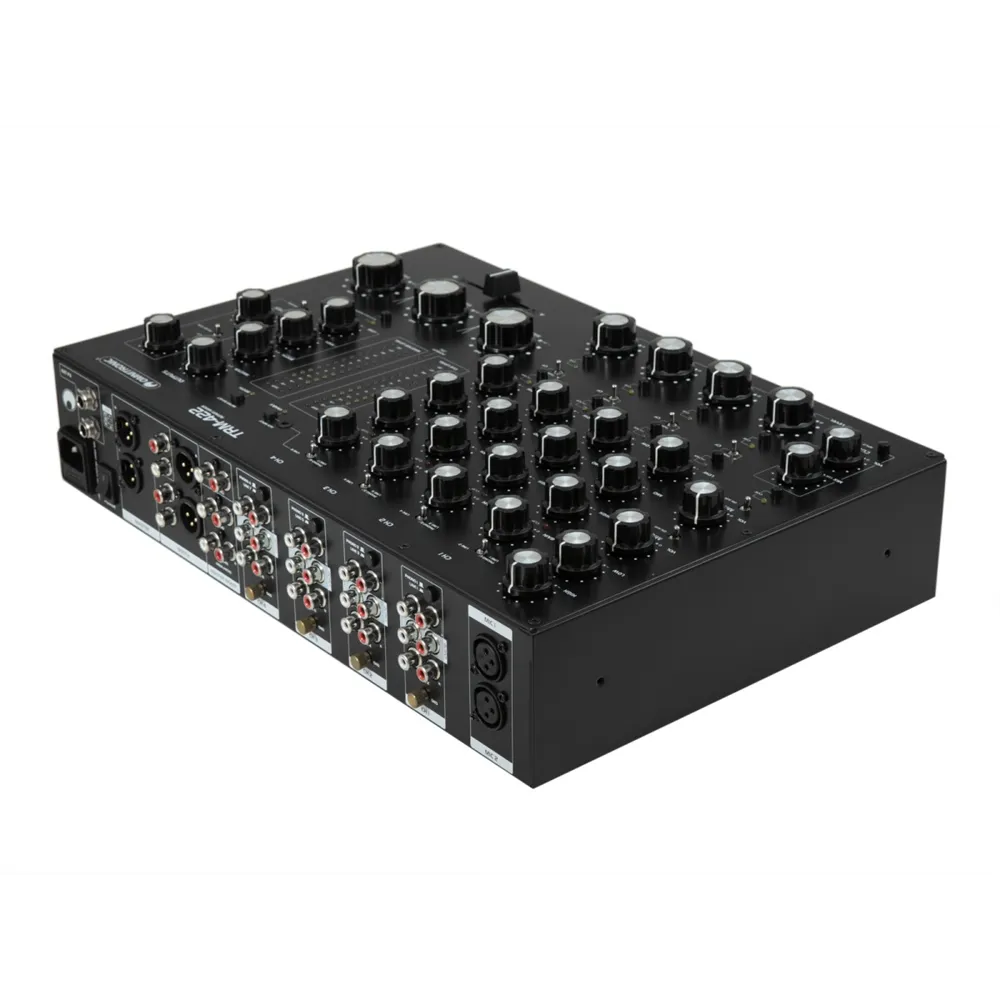

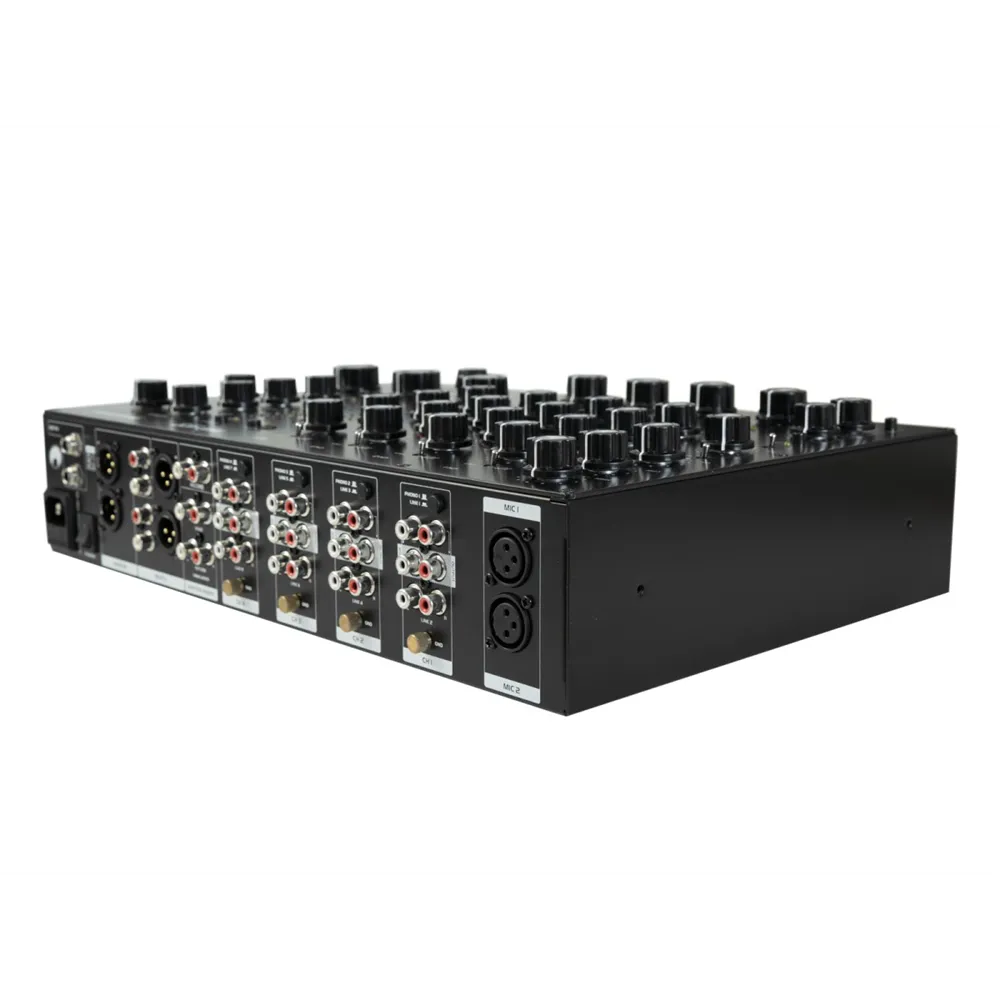

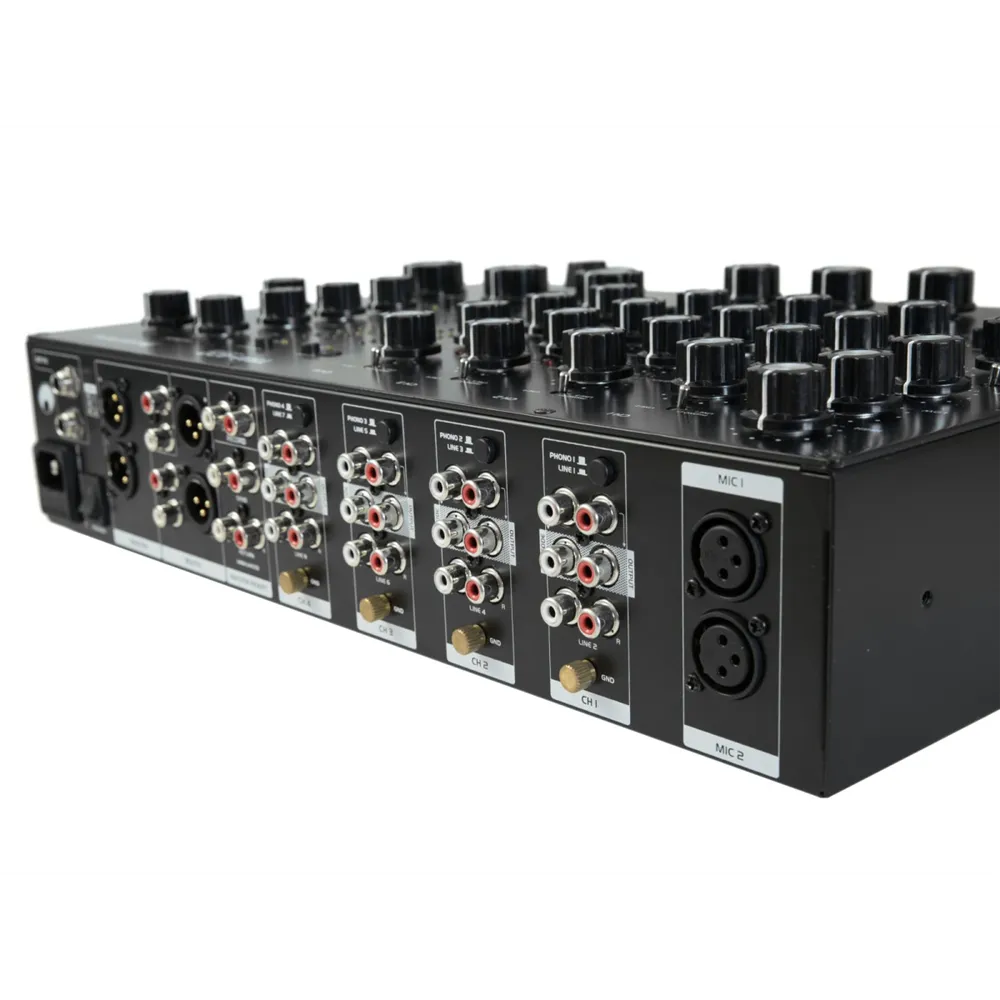

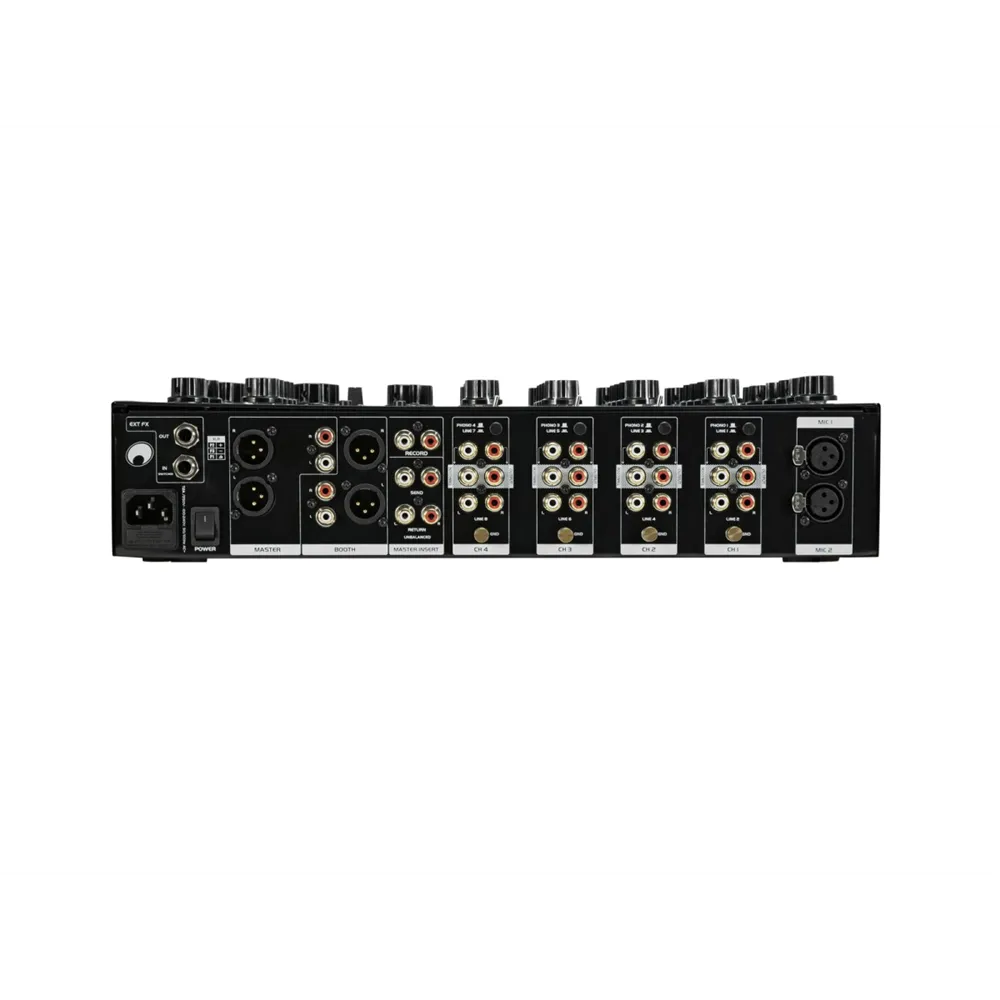

• Outputs: Master and Booth (XLR/RCA L/R), Record (RCA L/R), Master Insert Send/Return (RCA L/R), FX In/Out (stereo jack)
• Desktop console housing
• (19") 48.3 cm rack mountable
• Assignable DJ filters: LPF, BPF, HPF
• Suitable for applications such as clubs/dance schools, mobile use, mobile DJs/entertainers, home recording, and studios
• Power supply: 100-240 V AC, 50/60 Hz
• Total power consumption: 24 W
• Protection class: Class I
• Frequency range: 20 - 20,000 Hz Microphone, 20 - 20,000 Hz Line, 40 - 18,000 Hz Phono
• Signal-to-noise ratio: >97.2 dB Line, >91.7 dB Microphone
• Gain: Microphone 44 dB, Line -16.5 dB to +8.5 dB, Phono -48.5 dB to +23.5 dB
• Crosstalk attenuation: >-68 dB
• Max level: Output: +18 dBu
• Material: Metal
• Housing color: Black
• Dimensions: Width: 41 cm, Depth: 28.5 cm, Height: 10.5 cm
• Weight: 5.74 kg
